Honeywell VM3AL0N User manual
\
Thor™ VM3A
Vehicle-Mount Computer
Powered by Android™
Quick Start Guide
VM3A-EN-QS-01 Rev A
01/20
Out of the Box
Make sure your shipping box contains these items:
• Thor VM3A vehicle-mounted computer (Model VM3AL0N)
• Regulatory Sheet
If you ordered additional accessories for your computer, verify
that they are also included with the order. Be sure to keep the
original packaging in case you need to return the computer for
service.
Computer Features
P8
P1 P14
P7
P13
P6
P12
P5
P11
P4
P10
P3
P9
P2
Front Touch Panel
Speakers
System
Status
LEDs
Power
Button
Network
Connection
LEDs
Shift Keys
Volume
Controls Brightness
Controls
NFC Antenna

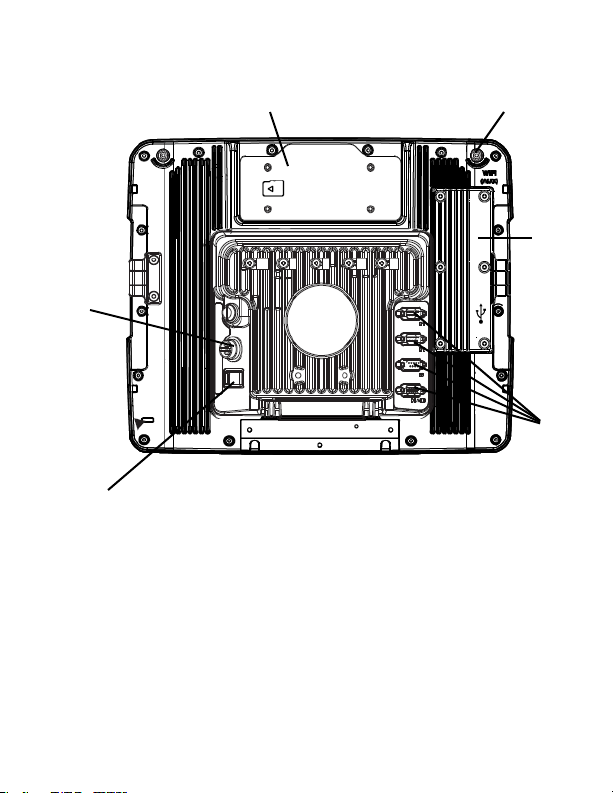

Back
Power Button
DC Power
Input
SD memory expansion
access panel
Wi-Fi/BT
Antenna
connections
Factory
debug
access
panel
COM USB,
and Audio
Dock Features
Dock Contact
Pads
Com 1
Com 2
USB
Audio
Power
Switch
Power
Connector
Fuse
Ram Ball
Wi-Fi
(Main)
Wi-Fi
(Aux)
Standard Dock
Mount to Vehicle
The Thor VM3A should be secured to an area in the vehicle
where it:
• Does not obstruct the driver's vision or safe vehicle operation.
• Will be protected from rain or inclement weather.
• Will be protected from extremely high concentrations of dust
or wind-blown debris.
• Can be easily accessed by a user seated in the driver's seat
while the vehicle is not in operation.

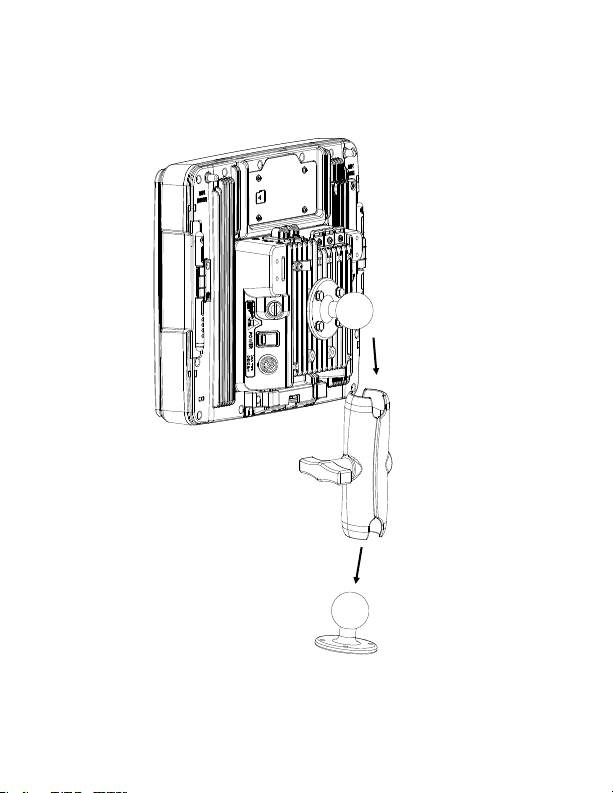

To mount the VM3A using a RAM mount system:
1. Attach RAM base to vehicle (RAM ball, RAM Clamp, RAM
Plate, etc.).

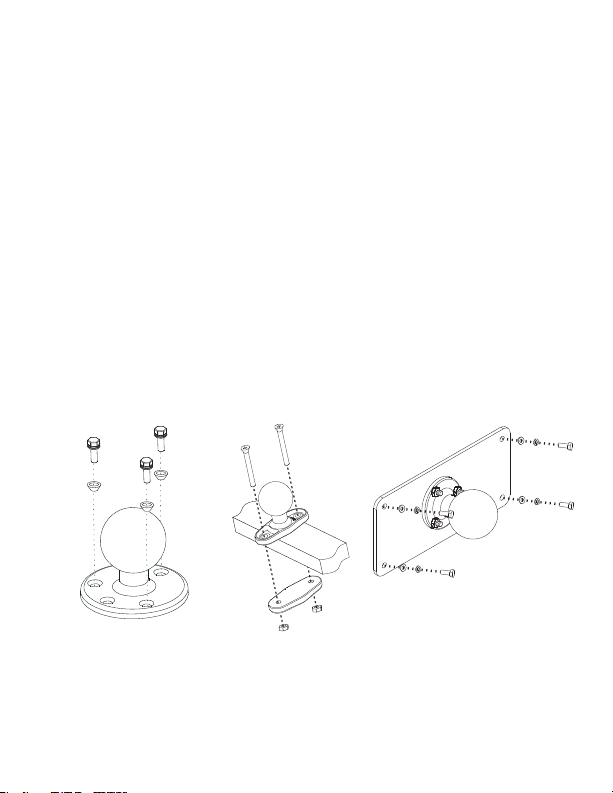

RAM Ball RAM Clamp RAM Plate
2. Attach RAM ball to the Smart Dock.
Connecting the Power Cable for 12-48 VDC Vehicles
(10-60 VDC Direct Connection)
Note: Refer to the Thor VM3A User Guide for other power
connections, available at www.honeywellaidc.com.
Caution: For installation by trained service
personnel only.
Warning: Fuse Requirements
For proper and safe installation, the input power cable
must be connected to a fused circuit on the vehicle. If
the supply connection is made directly to the battery,
the fuse should be installed in the positive lead within 5
inches of the battery’s positive (+) terminal. The fused
circuit requires a maximum time delay (slow blow) fuse
with a current rating as noted below.
• For 12VDC input, use a 10A slow blow fuse that has a
DC voltage rating greater than 12VDC.
• For 24VDC input, use a 6A slow blow fuse that has a
DC voltage rating greater than 24VDC.
• For 36VDC input, use a 4A slow blow fuse that has a
DC voltage rating greater than 36VDC.
• For 48VDC input, use a 3A slow blow fuse that has a
DC voltage rating greater than 48VDC.
Note: For North America, a UL Listed fuse must be used.
Power Cable Routing
