Honeywell IS-215T User manual

❶Select the mounting location.

❹Wire the unit.

❸Mount the unit.

Mounting Location Guidelines

• 2.3 m (7’6”) mounting height

• Avoid direct or reflected sunlight

• Aim sensor away from windows or heating/

cooling devices

• Sensor must have a clear line-of-sight to

protected area

• Push outward on the

PCB latch and lift the

PCB out of the hous-

ing.

• Slide the wire through the wire channel and wire

access in the back housing.

• Mount the back housing flat against a wall or in a

corner.

• Replace the PCB.

• Connect wires as shown using 0.64 - 1.63 mm2

(14 to 22 AWG) wire size. Observe proper

polarity.

Corner

Mount

Wire Channel

Wall Mount

IS-215T Passive Infrared Motion Sensor Installation Instructions

❷Separate the sensor housings and re-

move the printed circuit board (PCB).

Corner

Mount

Wiring Knockouts

POWER

12VDC

10mA

ALARM

16VDC

90mA

TAMPER

30VDC

0.5A

❺Configure the sensor sensitivity.

• Configure the IS-215T for the sensitivity best

suited to the application.

OFF

SENSITIVITY SWITCH SW2 POSITION

High (pulse count 1)

Low [Normal] (pulse count 2)

❻Walk-test the sensor.

High Sensitivity: 2-4 Steps

(Pulse Count 1)

Switch

• Use a small screwdriver to

push in the housing latch

at the bottom of the sensor,

and gently pull apart the

housings.

Alarm

LED

Low [Normal] Sensitivity: 3-5 Steps

(Pulse Count 2)

IS-215T Passive Infrared Motion Sensor Product Information

ALARM LED DISABLE

After walk-testing the sensor, disable the alarm

LED by turning Switch S1 to the OFF position.

SPECIFICATIONS

Range:

12 m x 12 m

40' x 40'

Power requirements:

10 - 14 VDC, w/LED - Alarm:

10mA max.; w/o LED - Alarm:

7mA max.; 12 VDC

3V peak-to-peak at nominal

12 VDC

Alarm relay:

Form A SPST,

90 mA, 16 VDC,

15 Ohm protective resistor

Tamper switch

Closed with cover in place

0.5 A, 30 VDC

RFI immunity:

30 V/m

10 MHz - 1000 MHz

PIR White light immunity:

6,500 Lux

PIR sensitivity:

Switch selectable

low [normal] (pulse count 2)

3-5 steps

high (pulse count 1) 2-4 steps

PIR fields of view:

dual element,

44 long range zones

14 intermediate, 8 lower,

4 look-down

Operating temperature:

-10oC to +55oC (14° F to 131° F)

Relative humidity:

5% to 95% noncondensing

Dimensions:

8.57 cm x 6.03 cm x 3.81 cm

(3-3/8" H x 2-3/8" W x 1-1/2" D)

Weight:

66.62 g (2.35 oz)

Packaged Product is 92.14 g

(3.25 oz)

Approvals/listings:

cULus

C-Tick

EN 50131-1

Security Grade 2

Environmental Class II

Important: For UL Certificated installations, the IS215T must

be connected to a UL listed power supply or UL listed control

unit capable of providing a minimum of four hours of standby

power.

Suitable for connection to an EN 60950 Class II Limited Power

Source.

TOP VIEW

Wide Angle Lens

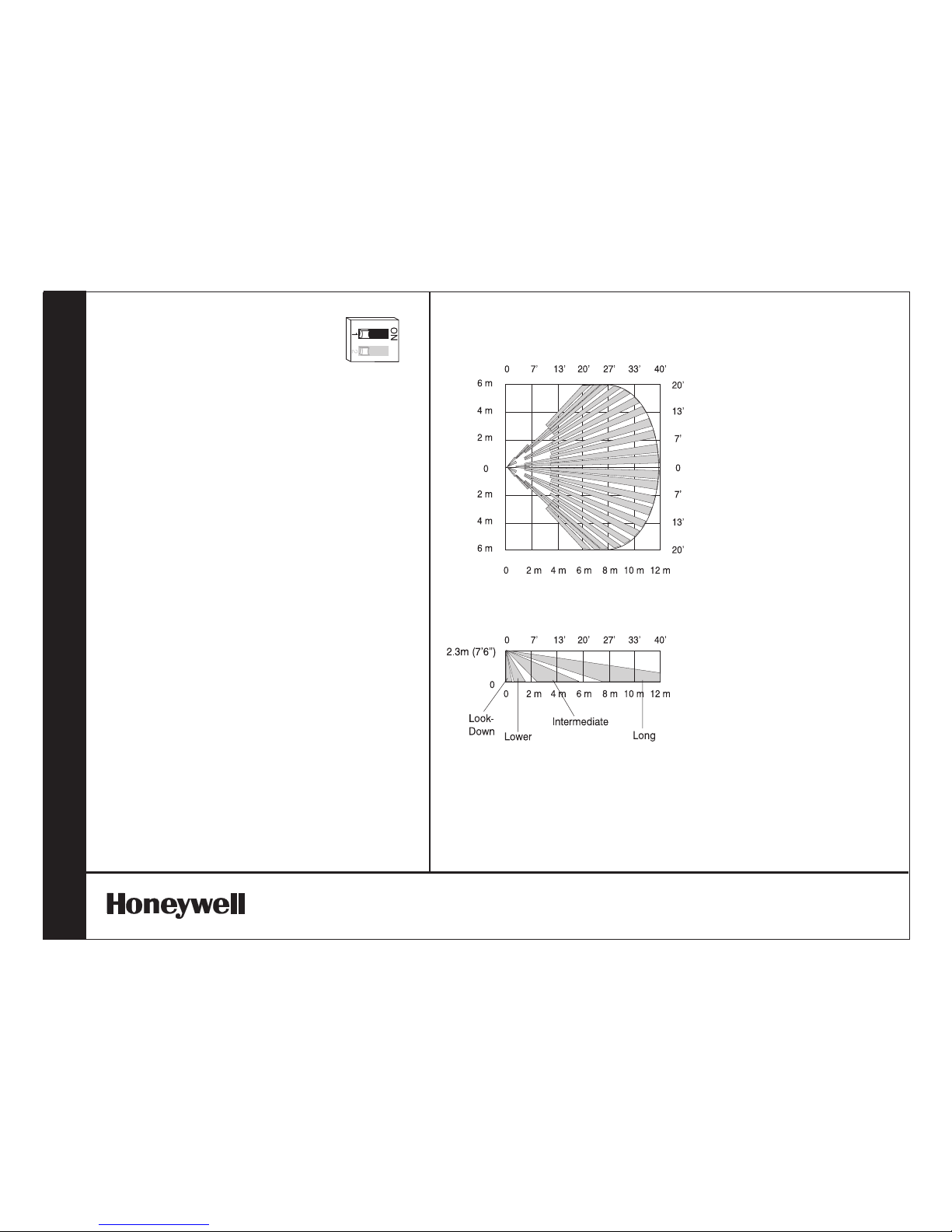

DETECTION PATTERNS

SIDE VIEW

Wide Angle Lens

5-051-680-40 Rev C
