Honeywell Dolphin CT40XP User manual

CT40 Series

Quick Start Guide

CT40-A-EN-QS-01 Rev E

06/20





Out of the Box

Make sure that your shipping box contains these items:

• Mobile Computer

Model CT40-L0N, CT40-L1N, CT40P-L0N, or CT40P-L1N

• Rechargeable Li-ion battery (see page 7)

• Hand strap

• Product documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Note: CT40-L0N/CT40P-L0N models do not include a WWAN radio.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

mobile computers for maximum performance and durability.

Contact a Honeywell sales representative for

additional information on qualified memory card options.

Mobile Computer Features

Microphone

Power Button

Battery Status/

Notification LED

Speaker

Touch Panel

Scan Button

Microphone

Speaker

Scan Status LED

Scan Button

Imager Window

(LED/Laser Aperture)

Push-to-Talk

Button

(model dependent)

Front Facing Camera

(model dependent)

Note: Hand strap not shown.

Scan Button

Volume Button

Camera Lens

and Flash

Laser Safety

Label Location

SIM Card Door

MicroSD Card Door

I/O Connector

Audio Jack Pin

(model dependent)

USB, Type C

(model dependent)

BLE port In

(model dependet)

BLE Speaker Out

(model dependent)

Battery Latch (Models

CT40-L0N-xxxxxAx,

CT40-xxx-xxxxxBx,

CT40-xxx-xxxxxHx,

CT40P-L0N-xxxxxAx,

CT40P-xxx-xxxxxBx,

CT40P-xxx-xxxxxHx)

Battery

(Refer to page 7)

Battery Latch (Model

CT40-xxx-xxxxx0x)

Install a microSD Card (Optional)

Note: Format the microSD card before initial use.

Note: Always power off the computer before attempting to install or

remove a card.

Install a microSIM Card

Note: Phone feature is only available on CT40-L1N/CT40P-L1N

models. On all models, the SIM slot supports use of a UICC card for

NFC Secure Element NFC link encryption.

Note: Always power off the computer before attempting to install or

remove a card.

About the Battery

The mobile computer ships with a Li-ion battery manufactured

for Honeywell International Inc.

Model Configuration Battery P/N Power

CT40-xxx-xxxxx0x 318-005-011 3.8 VDC, 15.5 watt-hour

CT40-xxx-xxxxxHx 318-055-017 3.8 VDC, 15.5 watt-hour

CT40-LON-xxxxxAx 318-055-015 3.85 VDC, 15.5 watt-hour

CT40-xxx-xxxxxBx

CT40P-xxx-xxxxxHx TBD 3.85 VDC, 15.5 watt-hour

CT40P-L0N-xxxxxAx 318-055-067 3.85 VDC, 15.5 watt-hour

CT40P-xxx-xxxxxBx

Configuration number (CN) is located on the label in the battery well of

the mobile computer.

We recommend use of Honeywell Li-ion battery

packs. Use of any non-Honeywell battery may result

in damage not covered by the warranty.

Nous recommandons l’utilisation de batteries Li-ion

de la marque Honeywell. L’utilisation d’une batterie

d’un autre fabricant est susceptible de provoquer des

dommages non couverts par la garantie.

Ensure all components are dry prior to placing the

battery in the computer. Mating wet components

may cause damage not covered by the warranty.

Assurez-vous que tous les composants sont secs avant

d’insérer la batterie dans l’ordinateur. L’insertion de

composants humides risque de provoquer des

dommages non couverts par la garantie.

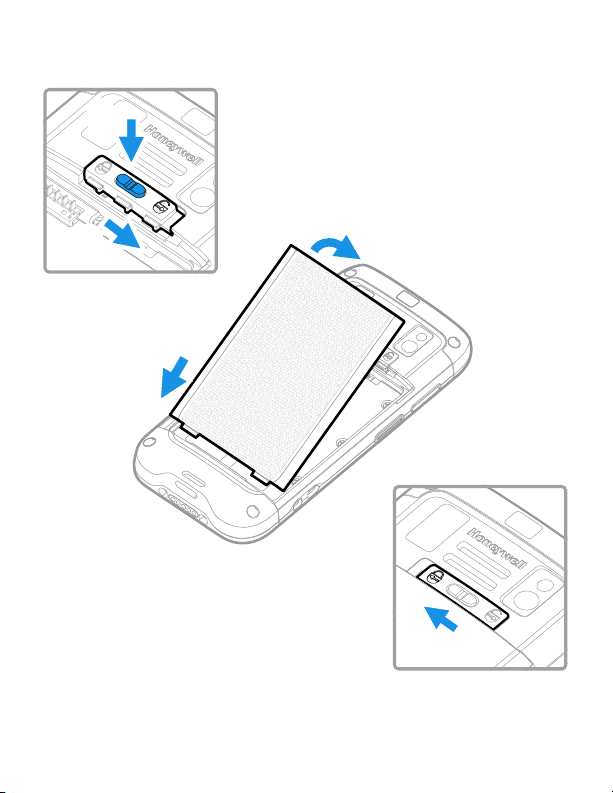

Install Battery (Model CT40-xxx-xxxxx0x)

Install Battery (Models CT40-LON-xxxxxAx,

CT40-xxx-xxxxxBx, CT40-xxx-xxxxxHx,

CT40P-L0N-xxxxxAx, CT40P-xxx-xxxxxBx,

CT40P-xxx-xxxxxHx)
