Home Decorators Collection INTERVALE N609A-BN User manual

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We

strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for

your home improvement needs. Thank you for choosing Home Decorators Collection!

THANK YOU

USE AND CARE GUIDE

72 IN. INTERVALE

INDOOR/COVERED OUTDOOR CEILING FAN

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to nd

this fan and click the link of visual instruction in the product overview section.

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

1008 714 303

Item #1008 715 034

N609A-MBK

Model #N609A-BN

Table of Contents ..................................

Safety Information .................................

Warranty .........................................

Pre-installation ....................................

Installation .......................................

Assembly ........................................

Operation ........................................

Care and Cleaning .................................

Troubleshooting ...................................

Table of Contents

READ AND SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, ensure electricity has been

turned off at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70” and local electrical codes. Electrical

installation should be performed by a qualied licensed

electrician.

The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 35 lb (15.9 kg)

or less. Use only UL Listed outlet boxes marked “FOR FAN

SUPPORT.”

The fan must be mounted with a minimum of 7 ft (2.1 m)

clearance from the trailing edge of the blades to the oor.

Avoid placing objects in the path of the blades.

To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box and ungrounded conductor on the other side of the

outlet box.

All set screws must be checked and retightened where

necessary before installation.

Suitable for use with solid-state speed control (MR205A-TR only).

10.

WARNING: To reduce the risk of electrical shock or re, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not bend

the blade arms (also referred to as anges), when installing

the brackets, balancing the blades or cleaning the fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of re, electric shock or

personal injury, mount the fan to an outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

Safety Information

The following responsible party designated in FCC §2.909 is

responsible for this declaration:

Model Number: N609A-BN, N609A-MBK

Company Name: TAL INTERNATIONAL CORPORATION

Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.

Telephone Number: (909) 923-2888 Fax: (909) 923-8337

NOTE: Suitable for use in DAMP locations.

Please contact 1-800-986-3460 for further assistance.

HOMEDEPOT.COM/HOMEDECORATORS3

Pre-Installation

SPECIFICATIONS

TOOLS REQUIRED

The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the

factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any

glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after

the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper

installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not

cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest

useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a

defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby

disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent

permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the

express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to

you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential

damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a

claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

Warranty

Phillips

screwdriver

Flat blade

screwdriver

Step

ladder

Wire

stripper

Electrical

tape

Adjustable

wrench

72 in.

0.08

0.21

0.61

2.79

14.05

38.74

2040

5642

7963

10.80 kg

(23.76 lb)

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Low (Speed 1)

Medium (Speed 4)

High (Speed 6)

120

Fan size Watts RPM CFMSpeed Volts Amps N.W.

NOTE: Hardware not shown to actual size.

HARDWARE INCLUDED

Pre-Installation (continued)

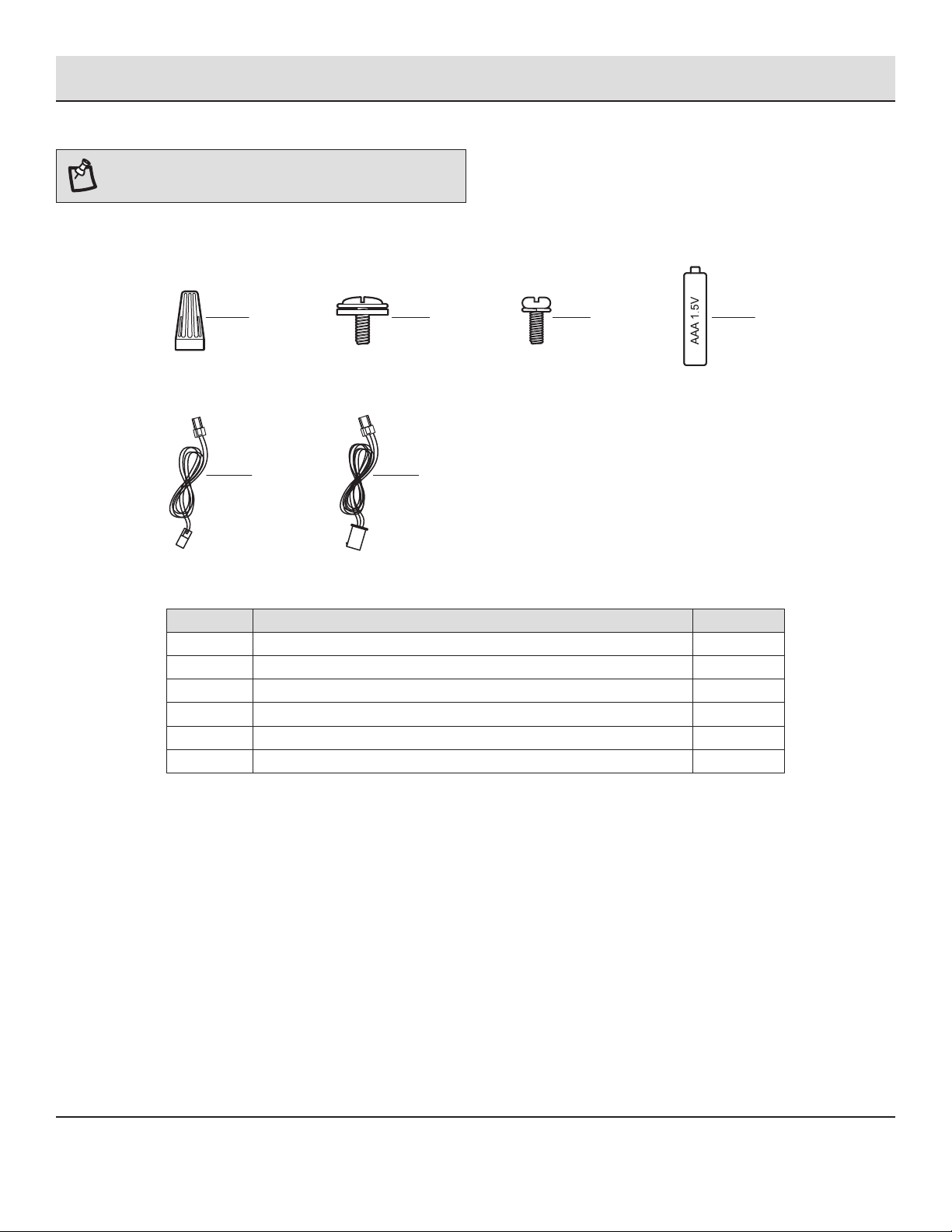

Plastic wire nut

Blade attachment screw and ber washer

Blade arm screw with lock washer

1.5V AAA battery

2-pin extension cord

3-pin extension cord

Part Description

Quantity

AA BB CC DD

FFEE

Please contact 1-800-986-3460 for further assistance.

HOMEDEPOT.COM/HOMEDECORATORS5

Part

Description

Blade

Blade arm

20 watt LED light kit

Receiver

Remote control

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy

Canopy bottom cover (preassembled)

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

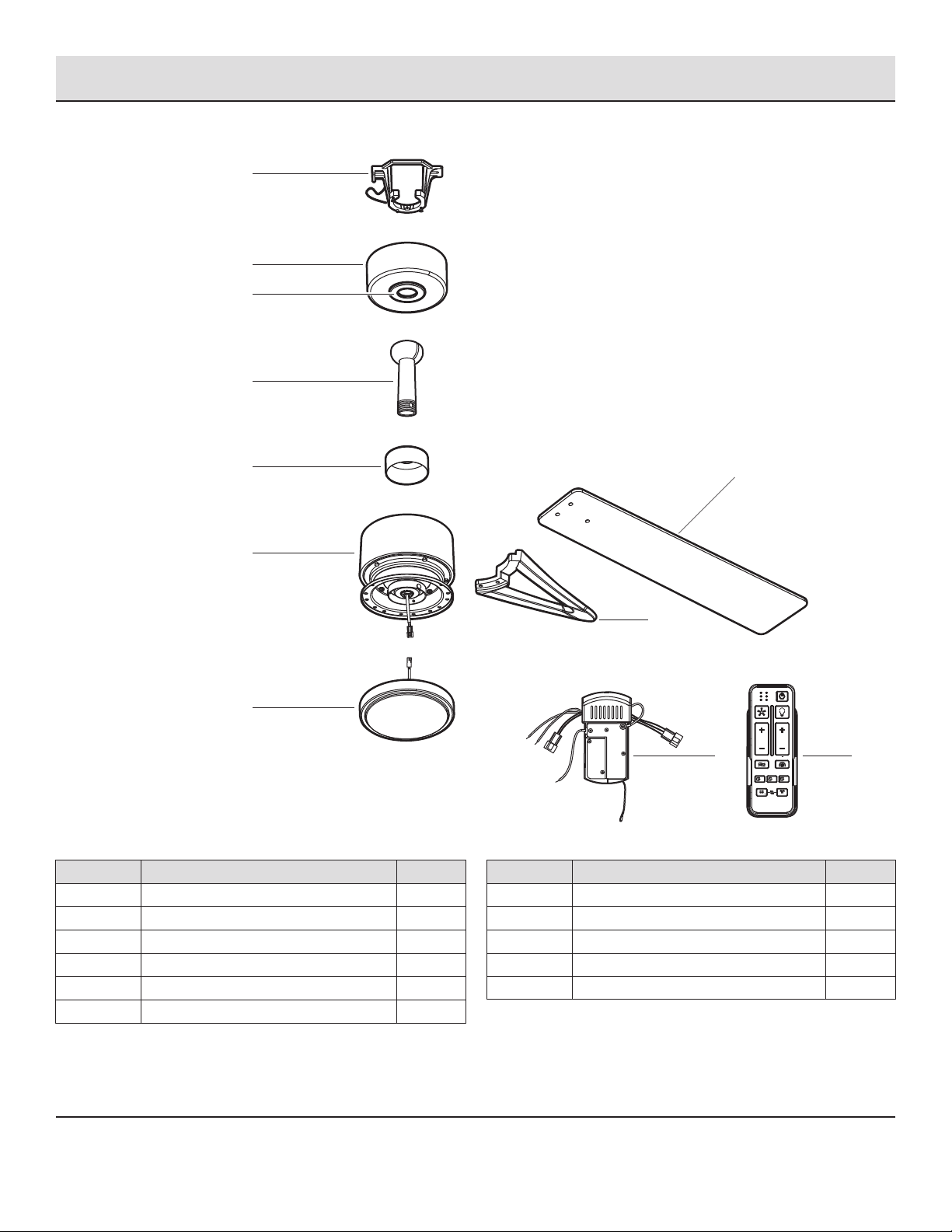

PACKAGE CONTENTS

Pre-Installation (continued)

J K

TIMER

WINTER

SUMMER

FAN DIRECTION

HOLD 3 SEC.

2HR 8HR4HR

ON / OFF ON / OFF

BREEZE

6 SPEED

BRIGHTNESS

COLOR TEMP.

ALL

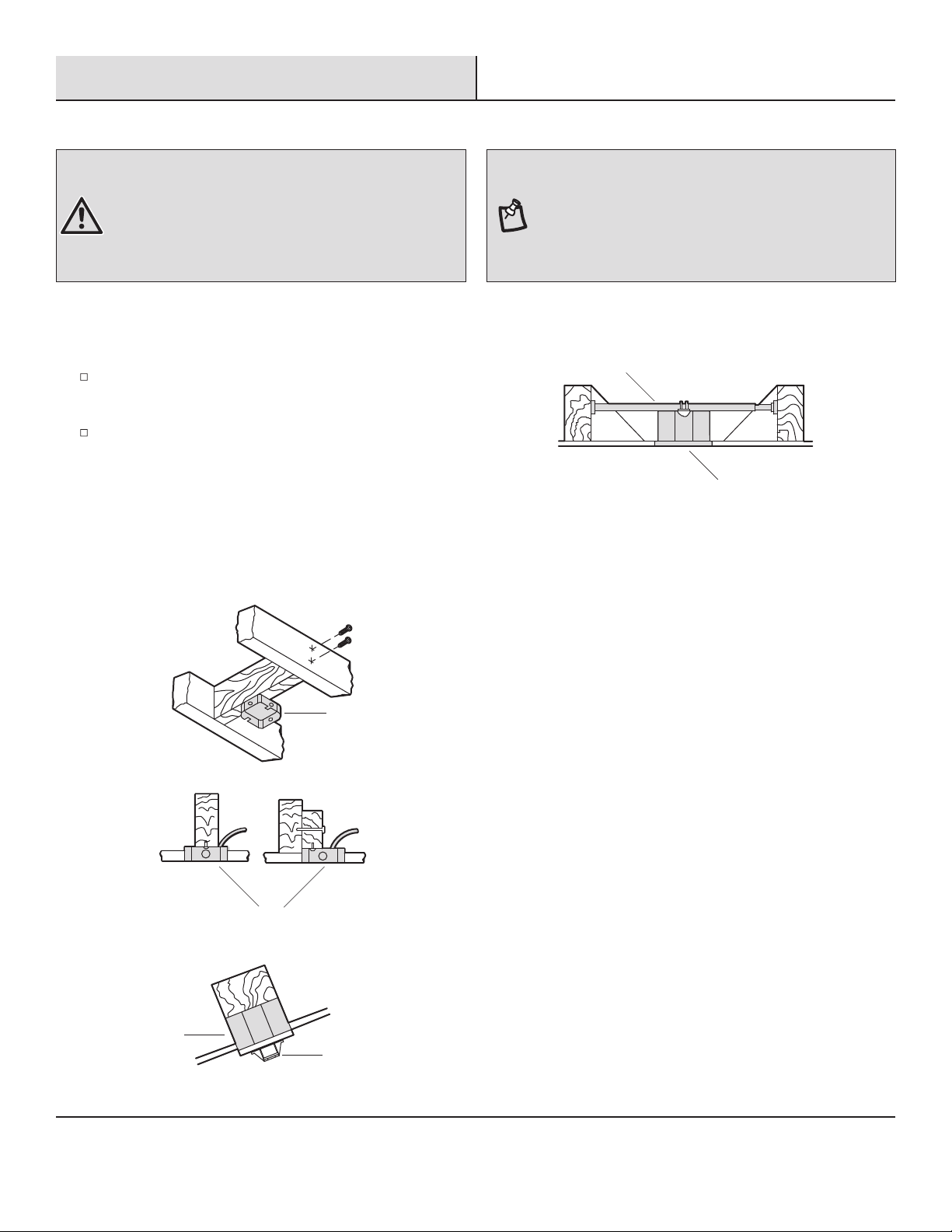

If your ceiling fan does not have an existing UL Listed mounting

box, then install one using the following instructions:

Disconnect the power by removing the fuses or turning off

the circuit breakers.

Secure the outlet box (not included) directly to the building

structure. Use appropriate fasteners and materials (not

included). The outlet box and its bracing must be able to fully

support the weight of the moving fan (at least 35 lb). Do not

use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (not included).

To hang your fan where there is an existing xture but no ceiling

joist, you may need an installation hanger bar (not included) as

shown above.

Outlet Box

Hanger Bar

Outlet Box

Recessed

Outlet

Box A

WARNING: To reduce the risk of re, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting xtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualied

electrician.

MOUNTING OPTIONS

Installation

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (B) touches the hanger ball/downrod assembly (D),

remove the decorative canopy bottom cover (C) and turn the

canopy (B) 180° before attaching the canopy (B) to the mounting

bracket (A).

Assembly

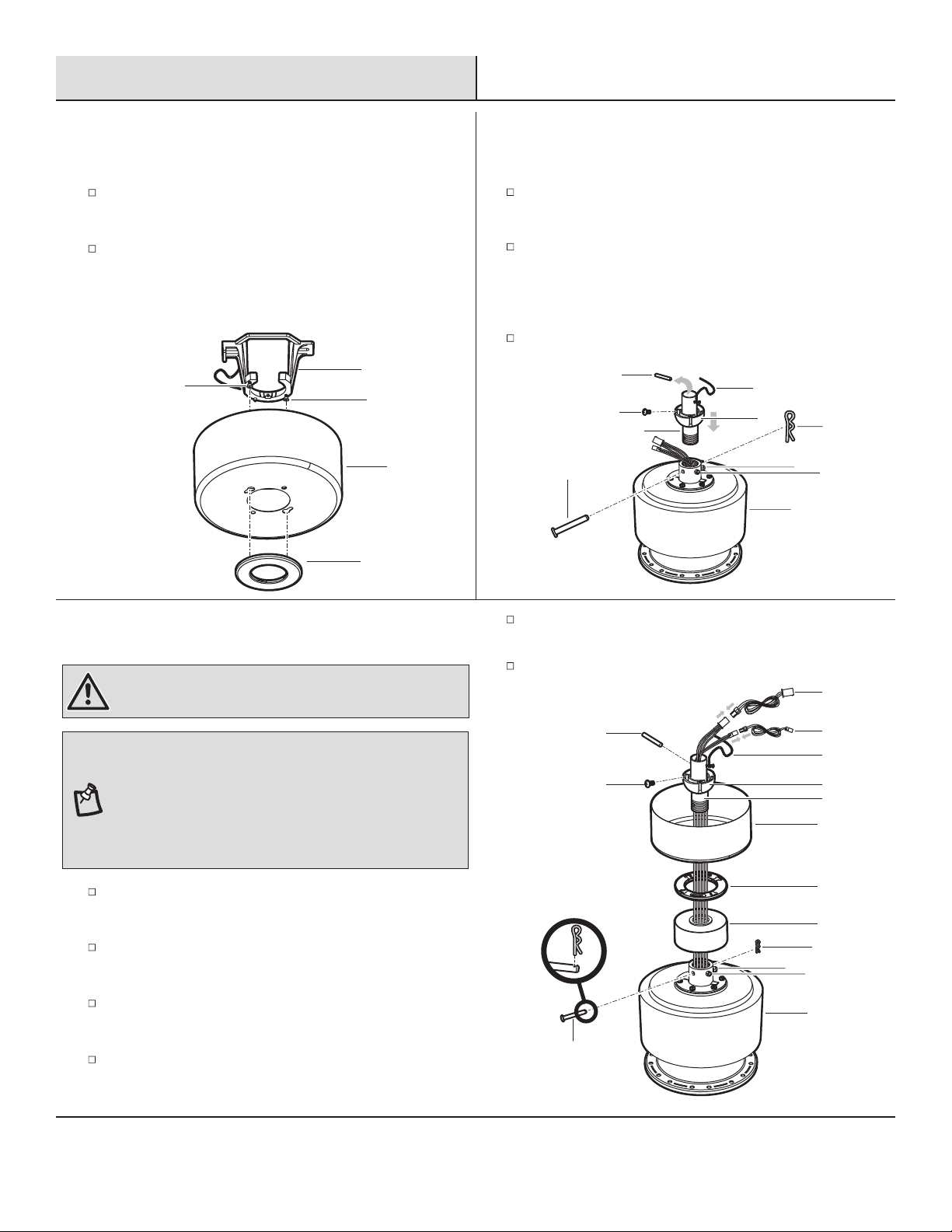

1Preparing the canopy

3Assembling the fan

Preparing the motor

Remove the canopy bottom cover (C) from the canopy (B) by

turning the canopy bottom cover (C) counterclockwise.

Remove the mounting bracket (A) from the canopy (B) by

loosening canopy mounting screws (GG) a half turn from the

screw head. Next, turn the canopy (B) counterclockwise to

remove the mounting bracket (A) from the canopy (B).

MM NN

Please contact 1-800-986-3460 for further assistance.

HOMEDEPOT.COM/HOMEDECORATORS

JJ JJ

Remove the cotter pin (HH) and clevis pin (II), and loosen the

two collar set screws (JJ) from the motor collar.

Take out the set screw (KK) located in the hanger ball (LL),

lower the hanger ball (LL) and remove the cross pin (MM).

Remove the hanger ball (LL) from the hanger ball/downrod

assembly (D).

Remove the ground lead (NN) from the downrod assembly (D).

WARNING: Failure to properly install the cotter pin (HH) could

result in the fan loosening and possibly falling.

NOTE: If a longer downrod (not included) is needed, take out

the screw located in the hanger ball (LL), lower the hanger ball

(LL) and remove the pin (MM). Remove all three pieces from the

downrod and assemble them onto the new longer downrod before

proceeding to the downrod installation. Be sure to snap together

the 2-pin and 3-pin connectors, the two male plugs from the

fan and female plugs from the extension cord (EE and FF).

Carefully feed the motor wires up through the downrod (OO).

Thread the downrod (OO) into the collar.

Align the holes and replace the clevis pin (II) and cotter pin

(HH). Tighten the two collar set screws (JJ).

Slip the coupling cover (E), the canopy bottom cover (C), and

the canopy (B) onto the downrod (OO).

Carefully reinstall the hanger ball (LL) and the ground lead

(NN) onto the downrod (OO).

Replace the cross pin (MM) and make sure it is in the correct

position.

Tighten the set screw (KK) and make sure wires are not twisted.

Assembly — Hanging the Fan

4Attaching the mounting bracket to the

electrical box

Hanging the fan on the mounting

bracket

Pass the 120-volt supply wires through the center hole in

the mounting bracket (A).

Attach the mounting bracket (A) on the outlet box by sliding

the mounting bracket (A) over the screws provided with the

outlet box. Note that the at side of the mounting bracket

(A) is toward the outlet box.

Securely tighten the two mounting screws.

Carefully lift the fan motor assembly (F) up to the mounting

bracket (A) and seat the hanger ball/downrod assembly (D)

in the mounting bracket (A) socket. Make sure the tab on the

mounting bracket (A) socket is properly seated in the groove

in the hanger ball/downrod assembly (D). This will help to

balance the ceiling fan.

WARNING: To reduce the risk of re, electric shock or other

personal injury, mount the fan only to an outlet box or supporting

system marked acceptable for fan support and use the mounting

screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

Outlet Box

NOTE: The fan must be installed at a maximum distance of

20 ft. from the remote control for proper signal transmission

between the remote control and the fan's receiving unit.

Assembly — Hanging the Fan (continued)

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts (except for the ground wire).

If you feel you do not have enough electrical wiring knowledge

or experience, have your fan installed by a licensed electrician.

Follow the steps below to connect the fan to your household

wiring. Use the plastic wire nuts (AA) with your fan. Secure the

plastic wire nuts (AA) with electrical tape. Make sure there are

no loose strands or connections.

Insert the receiver (J) into the mounting bracket (A) with the

at side of the receiver (J) facing the ceiling.

Make wire connections from the fan to the receiver (J).

From fan To receiver

2-pin connector--------------- 2-pin connector

3-pin connector--------------- 3-pin connector

Make wire connections from the receiver (J) and fan to the

outlet box as follows, using the wire nuts (AA).

From receiver To outlet box

Black wire "AC in L" --------- Black wire (Hot)

White wire "AC in N" --------- White wire (Neutral)

From fan and receiver To outlet box

Green wires* ----------------- Green or bare wire (Ground)

* There are three green grounding leads: one from the mounting

bracket (A), one from the hanger ball/downrod assembly (D) and

one from the receiver (J).

Turn the wire nut connections upward, spreading them apart

so the green (ground) and white wires will be on one side of

the outlet box and the black wire will be on the other side.

Carefully tuck the connections up into the outlet box.

6Making the electrical connections

CAUTION: To reduce the risk of electric shock, this fan must

be installed with an isolating wall control/switch.

Please contact 1-800-986-3460 for further assistance.

HOMEDEPOT.COM/HOMEDECORATORS

2-pin and 3-pin

connectors

White

Green

Black

Ground

White conductor

Outlet Box

Green

Assembly — Hanging the Fan (continued)

7Attaching the canopy

WARNING: Make sure the tab on the mounting bracket (A)

properly sits in the groove in the hanger ball (LL) before attaching

the canopy (B) to the mounting bracket (A) by turning the canopy

housing until it drops into place.

Make sure connections are neatly tucked into the ceiling

outlet box.

Slide the canopy (B) up to the mounting bracket (A) and place

the key holes on the canopy (B) over the loose canopy mounting

screws (GG) on the mounting bracket (A). Turn the canopy

(B) clockwise until it locks in place at the narrow section of

the key holes. Make sure the positioning pin (PP) on the

mounting bracket falls into one of two holes (QQ) on the

canopy, and then tighten the two canopy mounting screws

(GG).

Attach the canopy bottom cover (C) to the canopy by inserting

the screw heads into the key slots in the canopy bottom cover

NOTE: Adjust the canopy mounting screws (GG) as necessary

until the canopy (B) and canopy bottom cover (C) are snug.

Outlet Box

Attaching the canopy bottom cover

This manual suits for next models

Table of contents

Other Home Decorators Collection Fan manuals

Home Decorators Collection

Home Decorators Collection 60-BDT User manual

Home Decorators Collection

Home Decorators Collection CANTERBURY SW17B2L BN User manual

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN User manual

Home Decorators Collection

Home Decorators Collection GRENADA YG522-BN User manual

Home Decorators Collection

Home Decorators Collection PIERSSON User manual

Home Decorators Collection

Home Decorators Collection AM589H-EB User manual

Home Decorators Collection

Home Decorators Collection FC132-BVRL User manual

Home Decorators Collection

Home Decorators Collection 52170 User manual

Home Decorators Collection

Home Decorators Collection KENNEDY AM747A-GM User manual

Home Decorators Collection

Home Decorators Collection 68681 User manual

Home Decorators Collection

Home Decorators Collection 51662 User manual

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545A-EB User manual

Home Decorators Collection

Home Decorators Collection Trudeau YG545-BN User manual

Home Decorators Collection

Home Decorators Collection RIMGATE 56048 User manual

Home Decorators Collection

Home Decorators Collection PARKRIDGE YG614-NI User manual

Home Decorators Collection

Home Decorators Collection BAXLEY POINT OUTDOOR YG786-MBK User manual

Home Decorators Collection

Home Decorators Collection WINDWARD 68-WWD User manual

Home Decorators Collection

Home Decorators Collection RADLEY AM690-BN User manual

Home Decorators Collection

Home Decorators Collection 56072 User manual

Home Decorators Collection

Home Decorators Collection WINDWARD 68000 User manual

Home Decorators Collection

Home Decorators Collection DIALSTONE AK480-BN User manual

Home Decorators Collection

Home Decorators Collection TOLEDO 52-PLM User manual

Home Decorators Collection

Home Decorators Collection 1009HDCGLDI User manual

Home Decorators Collection

Home Decorators Collection KINGSBROOK 60-KBR User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
