Home Decorators Collection ARLEIGH User manual

USE AND CARE GUIDE

ARLEIGH LED 44 IN. CEILING FAN

#1004 291 852

Item #1004 291 840

Model #AM589H-EB

Model #AM589H-WH

THANK YOU

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to ﬁnd

this fan and click the link of visual instruction in the product overview section.

Table of Contents

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Speciﬁcations ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

READ AND SAVE THESE INSTRUCTIONS

Operation .....................................................................

Pull Chain Operating Instructions ..........................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ..........................................................

Service Parts ................................................................

Safety Information

WARNING: To reduce the risk of electrical shock or ﬁre, do

not use this fan with any solid-state fan speed control device.

It will permanently damage the electronic circuitry.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as ﬂanges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of ﬁre, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft (2.1m)

clearance from the trailing edge of the blades to the ﬂoor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Warning: Changes or modiﬁcations to this unit not expressly

approved by the party responsible for compliance could void

the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

The following responsible party designated in FCC §2.909 is

responsible for this declaration:

Model Number: AM589H-EB, AM589H-WH

Company Name: TAL INTERNATIONAL CORPORATION

Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.

Full Name: James Lai Title: Manager

Telephone Number: (909) 923-2888 Fax: (909) 923-8337

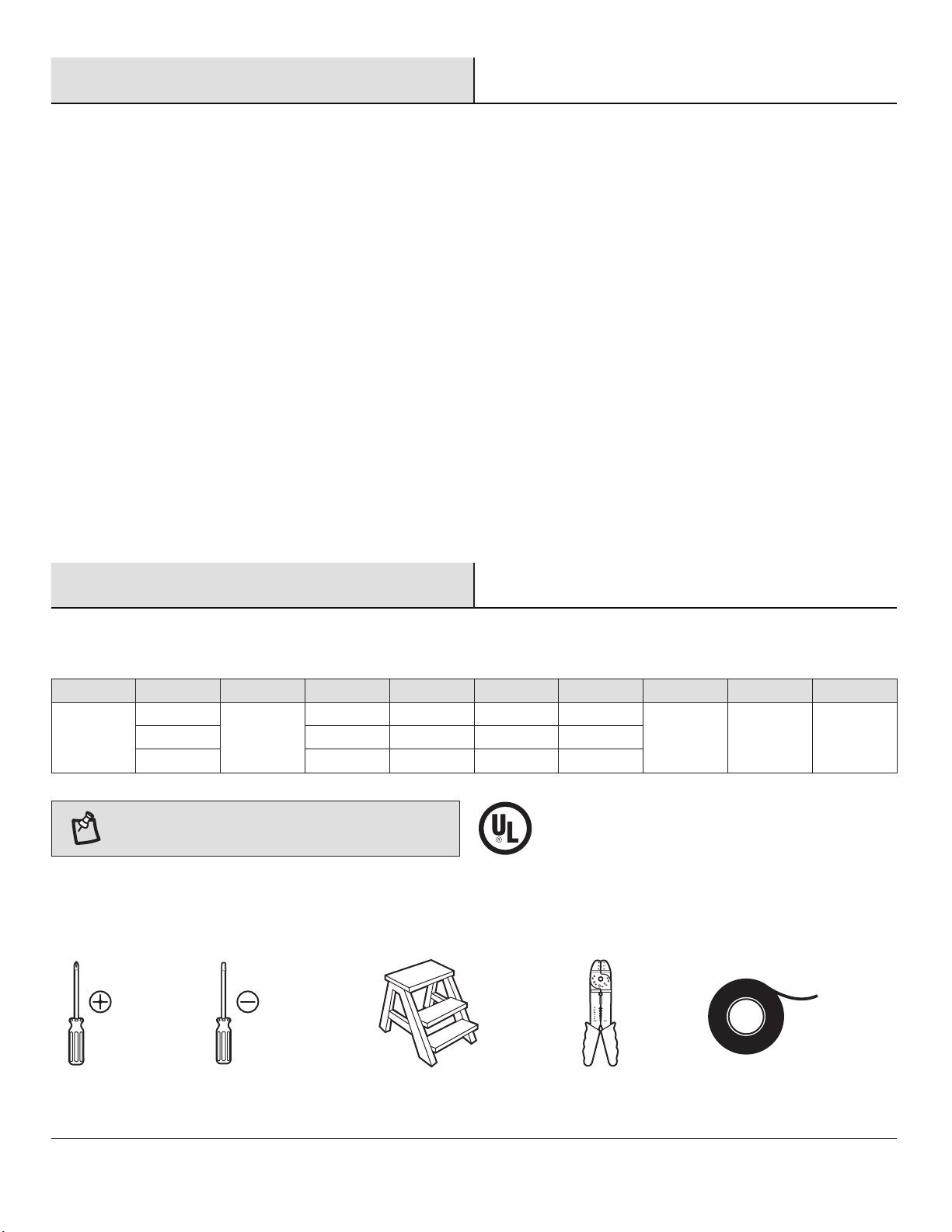

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

44 in.

Low

Medium

High

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

2.27 cu. ft.

N.W.

G.W.

C.F.

0.22

0.31

0.42

12.59

25.67

49.85

132

180

1866

2725

3757

9.11 kg

(20.04 lbs.)

10.45 kg

(22.99 lbs.)

Plastic wire nut

Motor mounting screw with lock washer (preassembled)

Blade attachment screw with lock washer (not to scale)

Light kit mounting plate screw (preassembled)

Light kit mounting screw (preassembled)

Pull chain and fob (not to scale)

Part

Description

Quantity

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware shown to actual size unless noted

otherwise in the table below.

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

AA EE

PACKAGE CONTENTS

Part

Description

Light kit mounting plate

Light kit assembly

Glass shade

Pre-Installation (continued)

Part

Quantity

Description

Mounting bracket

Fan motor assembly

Blade

Blade support plate

To hang your fan where there is an existing ﬁxture but no ceiling

joist, you may need an installation hanger bar (HH) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (GG) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show two different ways to mount the

outlet box (GG) (not included).

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting ﬁxtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualiﬁed

electrician.

Installation

MOUNTING OPTIONS

7 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan

1Installing the mounting bracket

to the electrical box

Hanging the fan to the

mounting bracket

□Attach the mounting bracket (A) to the outlet box (GG)

(not included) with two screws and washers provided

with the outlet box (GG). Ensure the mounting bracket

(A) is tight and secured.

WARNING: To reduce the risk of ﬁre, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

□Remove two of the four motor mounting screws (BB)

from the motor assembly (B) and loosen the other

two screws (BB). (Do not remove)

□Lift the fan into position by hanging the fan motor

assembly (B) onto the hook (II). from the ceiling

mounting bracket (A) allowing it to hang freely.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Blue

Black

Green

White

Black

Ground

conductor

White

Making the electrical

connections

If you feel you do not have enough electrical wiring

knowledge or experience, have your fan installed by a

licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the plastic wire nuts (AA) with your

fan. Secure the plastic wire nuts (AA) with electrical tape.

Make sure there are no loose strands or connections.

□Connect the ground conductor of the 120V supply

(this may be a bare wire or a wire with green colored

insulation) to the green ground lead(s) of the fan.

□Connect the fan motor white wire to the supply white

(neutral) wire using a plastic wire nut (AA).

□Connect the fan motor black wire and the blue wire to

the supply black (hot) wire using a plastic wire nut

(AA).

□Turn the wire nut connections upward, spreading

them apart so the green (ground) will be on one side

of the outlet box (GG) and the white, black and blue

wire will be on the other side. Carefully tuck the

connections up into the outlet box (GG).

WARNING: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts (except for the ground wire).

WARNING: To reduce the risk of ﬁre or electric shock, do

not use this fan with any solid-state speed control device.

WARNING: To avoid possible electrical shock, be sure

electricity is turned off at the main fuse box before wiring.

Assembly — Hanging the Fan (continued)

4Attaching the fan motor assembly

to the mounting bracket

□Remove the fan motor assembly (B) from the

mounting bracket hook (II), and engage the key holes

on the mounting bracket (A) with the two mounting

bracket screws (BB) previously loosened.

□Install the two mounting bracket screws (BB)

previously removed, and tighten all four mounting

bracket screws (BB).

Assembly — Hanging the Fan (continued)

This manual suits for next models

Table of contents

Other Home Decorators Collection Fan manuals

Home Decorators Collection

Home Decorators Collection SHERIDAN 54-SHAN User manual

Home Decorators Collection

Home Decorators Collection AM909-NI User manual

Home Decorators Collection

Home Decorators Collection KENSGROVE YG493A-BN User manual

Home Decorators Collection

Home Decorators Collection ELLARD YG629A-BN User manual

Home Decorators Collection

Home Decorators Collection VENDOME 51880 User manual

Home Decorators Collection

Home Decorators Collection KINGSBROOK 60-KBR User manual

Home Decorators Collection

Home Decorators Collection FC140-BKRL User manual

Home Decorators Collection

Home Decorators Collection 59201 User manual

Home Decorators Collection

Home Decorators Collection REINHARDT 59204 User manual

Home Decorators Collection

Home Decorators Collection RADLEY AM690-BN User manual

Home Decorators Collection

Home Decorators Collection 68681 User manual

Home Decorators Collection

Home Decorators Collection SFZ-500-R User manual

Home Decorators Collection

Home Decorators Collection MONTEL User manual

Home Decorators Collection

Home Decorators Collection CARRINGTON II User manual

Home Decorators Collection

Home Decorators Collection YG612-EB User manual

Home Decorators Collection

Home Decorators Collection CHELTON 46-MDL User manual

Home Decorators Collection

Home Decorators Collection WINDWARD 68-WWD User manual

Home Decorators Collection

Home Decorators Collection 68-ATRDC User manual

Home Decorators Collection

Home Decorators Collection 731 146 User manual

Home Decorators Collection

Home Decorators Collection WALES 56-WALS User manual

Home Decorators Collection

Home Decorators Collection 7982HDCBN User manual

Home Decorators Collection

Home Decorators Collection Bentley II 129828 User manual

Home Decorators Collection

Home Decorators Collection TRENTINO II YG475-WH User manual

Home Decorators Collection

Home Decorators Collection BRETTE III AM382D-BN User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
