USE AND CARE GUIDE

KITTERIDGE 52-INCH INDOOR CEILING FAN

THANK YOU

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #/ Model #: 34777-HBUG

Item #/ Model #: 34777-HBUW

Item #/ Model #: 34777-HBUM

Item #/ Model #: 34777-HBUB

(1004292203)

(1004292254)

(1004292201)

(1004292211)

Questions, problems, missing parts? Before returning to the store,

call Home Depot Customer Service

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

Table of Contents ................................................................ 2

Safety Information............................................................... 2

Warranty ............................................................................... 3

Pre-Installation .................................................................... 3

Installation............................................................................ 6

Assembly............................................................................ 7

Operation ........................................................................... 15

Care and Cleaning.............................................................15

Troubleshooting................................................................. 16

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70 and local electrical codes. Electrical

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL

Listed outlet boxes marked “Acceptable for Fan Support of 35

lbs. (15.9 kg) or less.”

4. Do not operate the reversing switch while the fan blades are in

motion. You must turn the fan off and stop the blades before

you reverse the blade direction.

5. Do not place objects in the path of the blades.

Safety Information

Table of Contents

READ AND SAVE THESE INSTRUCTIONS.

installation should be performed by a qualiﬁed licensed

FCC Statement .

...................................................................17

WARNING: To reduce the risk of personal injury, do not

WARNING:

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

CAUTION: To avoid personal injury or damage to the fan

and other items, use caution when working around or

cleaning the fan.

bend the blade brackets when installing the brackets

balancing the blades, or cleaning the fan. Do not insert

foreign objects in between rotating fan blades.

To reduce the risk of ﬁre, electric shock

or personal injury, mount to outlet box marked

“acceptable for fan support of 35 lbs. (15.9Kg)

or less” and use screws provided with the outlet box.

After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

All setscrews must be checked and retightened where

necessary before installation.

Changes or modiﬁcations not expresslyCAUTION:

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

WARNING:

shock, do not use this fan with any solid-state speed

control device.

To reduce the risk of ﬁre or electric

Thefan must bemounted with a minimumCAUTION:

of 7 ft (2.1m) clearance from the trailing edge of the

blades to the ﬂoor.

79.19

99.68

128.36

3842.99

3267.42

1821.39

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

SPECIFICATIONS

TOOLS REQUIRED

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter

Step ladder

Size Speed Volts CFM

Fan Power

Consumption

(Without Lights)

WATT

(Higher Is Better)

CFM/WATT

Net

Weight

Gross

Weight Cube Feet

52 in.

Low

120

14.19

13.07 lbs

(5.93 kgs)

14.64 lbs

(6.64kgs) 1.11 cu.ft

Medium 32.78

High 48.53

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-

tion or by afﬁxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover

any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or peeling. Brass ﬁnishes of this type give their longest useful

life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim

any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the extent permitted by

law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the express warranty.

Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall

not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as

may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty

must be paid by the customer.

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Blade screw (not to scale)

Canopy screw (not to scale) (preassembled) 4

Wire nuts (not to scale)

Hitch pin (not to scale) (preassembled)

Fiber washer (not to scale)

GG Set screw (not to scale) (preassembled)

Part Description Quantity

Lock pin (not to scale) (preassembled)

HH Wall control mounting screw (not to scale)

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

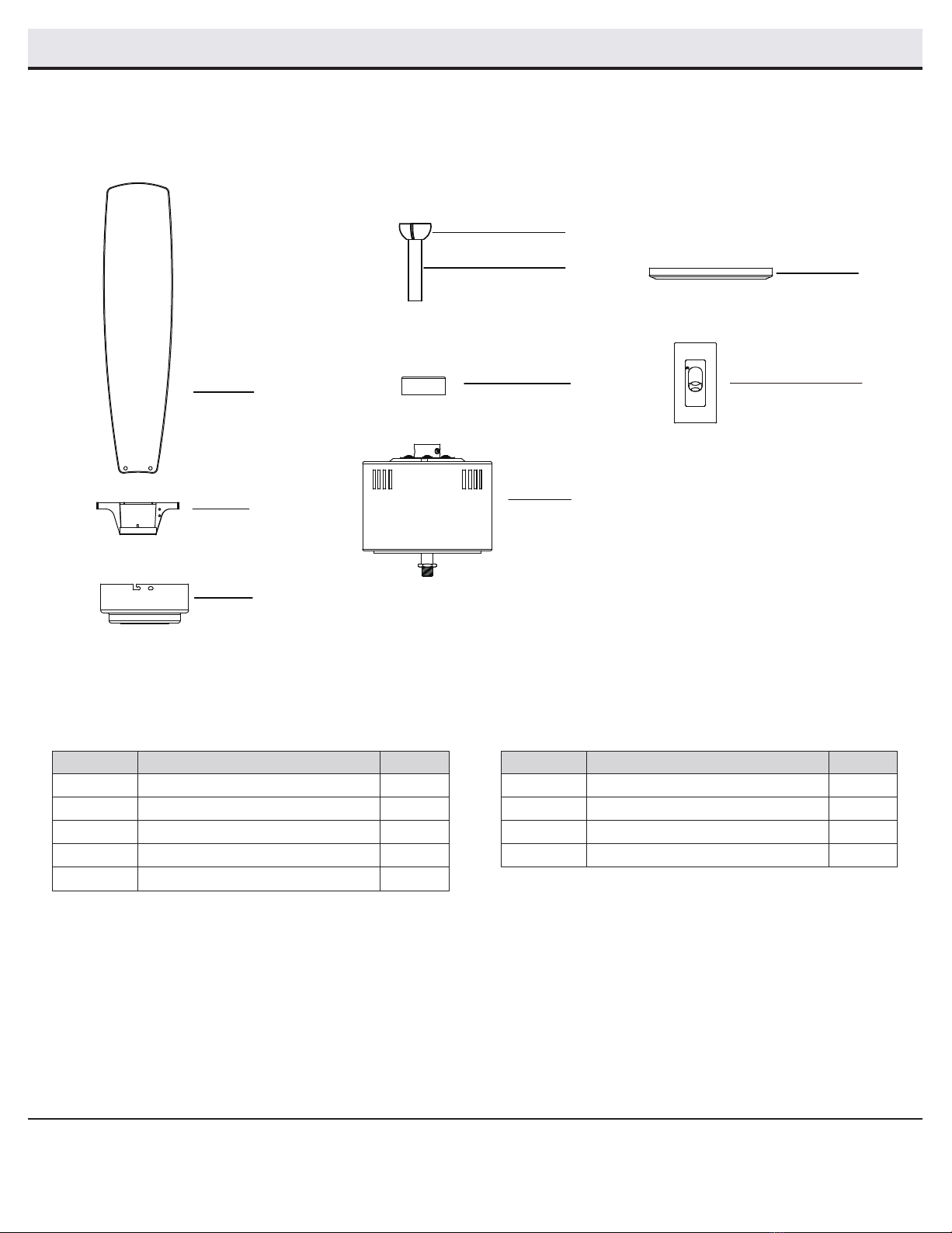

PACKAGE CONTENTS

Hanger ball (preassembled)

Downrod (preassembled)

Blade

Mounting bracket

Canopy

Fan motor assembly

Wall control

Coupling cover

Bottom cover

Part Description Quantity Part Description Quantity

Pre-Installation (continued)

Installation

MOUNTING OPTIONS

WARNING:

personal injury, mounttooutletbox marked “acceptable

for fan support of 35 lbs. (15.9 Kg) or less” using the

screwsprovided with theoutlet box. An outlet box

not beacceptable for fan support and may need to be

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure.

Use the appropriate fasteners and materials. The outlet box

and its bracing must be able to fully support the weight

of the moving fan (at least 35 lbs.). Do not use a plastic

outlet box.

The illustrations below show three different ways to mount the

outlet box.

If the canopy touches the downrod, then remove the decorative canopy

bottom cover, and turn the canopy 180° before attaching the canopy to

the mounting plate.

you may need an installation hanger bar as shown above.

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 23° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

To reduce the risk of ﬁre, electric shock, or

commonly used for the support of lighting ﬁxtures may

replaced. If in doubt, consult a qualiﬁed electrician.

To hang your fan where there is an existing ﬁxture but no ceiling joist

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wires

Assembling the fan

Preparing for mounting

□Route the wires exiting the top of the fan motor

assembly (G) into the coupling cover (F).

□Make sure the slot openings are on top and route the

wires through the canopy (C) and then through the ball

and downrod (E) assembly.

□

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (E) and the set screw

(GG) must be completely tightened.

WARNING: Make sure power is off before attempting

installation.

□Loosen the two canopy screws (AA) located in the “L

shaped” slots.

□Remove and save the two canopy screws (AA) in the round

holes.

Loosen the set screws (GG) in the downrod coupler until the inside

of the channel is clear of the screw tip.

Remove and save the lock pin (FF) on

the end of the downrod (E).

Slide the ceiling canopy (C) onto the downrod (E) followed by the

coupling cover (F).

Attach the downrod (E) into the coupler until the lock pin (FF) can

be inserted through the hole in both the rod and coupler.

Tighten both set screws on the coupler.

Insert the lock pin (FF) through the hole in the

coupler and

downrod (E) then attach the hitch pin (EE) on the other side.

□

Assembly - Standard Ceiling Mount (continued)

Attaching the fan to the electrical box

4Hanging the fan

□Carefully lift the fan motor assembly (G) up to the mounting

bracket (B).

□Seat the hanger ball (D) portion of the downrod assembly (E)

in the mounting bracket socket. Ensure that the tab on the

mounting bracket (B) socket is properly seated in the groove

in the hanger ball. If using ﬂushmount, hang the fan on the

hook provided by utilizing one of the holes at the outer rim

of the ceiling canopy (C).

□Pass the 120-Volt supply wires through the center hole in the

mounting bracket (B).

□

□Securely tighten the two outlet box screws.

Install the ceiling mounting bracket (B) on the outlet box using the

two mounting screws provided with the outlet box. If necessary

use leveling washers (not included) between the mounting

bracket (B) and outlet box.

Note that the ﬂat side of the mouting bracket (B) is toward the

outlet box. When using ﬂushmount, it is important that the

mounting bracket be level.

WARNING:

To reduce the risk of ﬁre, electric shock

or personal injury, mount to outlet box marked

“acceptable for fan support of 35 lbs. (15.9Kg)

or less” and use screws provided with the outlet box.

Assembly - Standard Ceiling Mount (continued)

Making the electrical connections

WARNING:

Follow the steps below to connect the fan to your house

supply wires. Secure the wire nuts (DD) supplied with your

fan by wrapping the connections with electrical tape.

□Connect the black (live) wire from the ceiling to the

black wire from the fan motor assembly (G).

□Connect the white (neutral) wire from the ceiling to

the white wire from the fan motor assembly (G).

□Connect the ground conductor of the 120-VOLT supply

(this may be a bare wire or a wire with green colored

insulation) to the green ground lead(s) of the fan.

There are two green grounding leads: one from the

mounting bracket (B) and one from the hanger ball/

downrod (E) assembly.

□Secure the wire connections with plastic wire nuts

(DD) provided with the electrical hardware.

□After connecting the wires, spread them apart so that

the green and white wires are on one side of the

outlet box (1) and the black and blue wires are on the

other side. Carefully tuck the wire connections up

into the outlet box (1).

the electricity is turned off at the circuit breaker or main

fuse box before wiring.

To avoid possible electrical shock, ensure

including the ground, and that no bare wire is visible at

the wire nuts, except for the ground wire.

Check to see that all connections are tight,

DD (X3)

HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Green WhiteBlack

Assembly - Standard Ceiling Mount (continued)

Mounting the fan

WARNING: When using the standard ball/downrod mounting, the

tab in the ring at the bottom of the mounting bracket must rest in

the groove of the hanger ball. Failure to properly seat the tab in

the groove could cause damage to the wiring.

BAA

Attaching the fan blades

□Attach the fan blades (A) to the fan motor assembly (G)

by using the blade screws (BB) and ﬁber washers (CC).

Tighten blade screws (BB) securely.

□Repeat these steps for the remaining blades (A).

□

Installing the bottom cover

Place the bottom cover (H) into the fan motor assembly (G)

and rotate securely.

□Align the locking slots of the ceiling canopy (C) with the two

canopy screws (AA) in the mounting bracket (B). Push up tor

engage the slots and turn clockwise to lock in place.

□Firmly tighten the two canopy screws (AA).

□Install the two canopy screws (AA) (saved from Assembly

Step 1 “Preparing for mounting”) into the holes in the

canopy (C) and tighten ﬁrmly.

This manual suits for next models

Table of contents

Languages:

Other Home Decorators Collection Fan manuals

Home Decorators Collection

Home Decorators Collection YG612-EB User manual

Home Decorators Collection

Home Decorators Collection HIGHSTONE 56040 User manual

Home Decorators Collection

Home Decorators Collection FAWNDALE 46-FAWNRC User manual

Home Decorators Collection

Home Decorators Collection Merryn User manual

Home Decorators Collection

Home Decorators Collection BENTOYGA 51820 User manual

Home Decorators Collection

Home Decorators Collection KENNEDY AM747A-GM User manual

Home Decorators Collection

Home Decorators Collection OSSA CF2001-N User manual

Home Decorators Collection

Home Decorators Collection TETIA User manual

Home Decorators Collection

Home Decorators Collection N609-BN User manual

Home Decorators Collection

Home Decorators Collection PINE MEADOWS 52-ALLE User manual

Home Decorators Collection

Home Decorators Collection ALTURA 56-ATR User manual

Home Decorators Collection

Home Decorators Collection CONNOR 51847 User manual

Home Decorators Collection

Home Decorators Collection ACWORTH YG623A-MWH User manual

Home Decorators Collection

Home Decorators Collection SALEEN YG458-GM User manual

Home Decorators Collection

Home Decorators Collection EMSWELL 52-INCH User manual

Home Decorators Collection

Home Decorators Collection HANLON YG533-SST-BN User manual

Home Decorators Collection

Home Decorators Collection KELBRA YG439-BN User manual

Home Decorators Collection

Home Decorators Collection MERCER 54725 User manual

Home Decorators Collection

Home Decorators Collection EASTON N381B-BN User manual

Home Decorators Collection

Home Decorators Collection YG749-BN User manual

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN User manual

Home Decorators Collection

Home Decorators Collection KITTERIDGE 35442-HBUM User manual

Home Decorators Collection

Home Decorators Collection YG768A-MBK User manual

Home Decorators Collection

Home Decorators Collection GAMALI 56000 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
