HOMCOM 820-260V80 Datasheet

IN221000594V02_US

USING INSTRUCTION

Electric oil filled heater

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

820-260V80

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR

MAINTAIN THE PRODUCT DESCRIBED

PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION

FAILURE TO COMPLY WITH INSTRUCTION COULD RESULT IN PERSONAL INJURY

AND/OR PROPERTY DAMAGE

RETAIN INSTRUCTIONS FOR FUTURE REDERENCE

IMPORTANT INSTRUCTIONS

When using this appliance, basic precautions should always be followed to reduce

the risk of fire, electric shock and injury to persons, including the following:

CAUTION-

High temperature, keep electrical cords, drapery, and other furnishings at least

3 feet (0.9m) from the front of the heater and away from the side and rear.

1.Before using this heater, read and follow all instructions in this manual carefully.

2.Do not cover the heater to prevent overheating.

3.Do not place the heater directly below an electrical outlet or socket.

4.Keep the heater away from humid environments, such as bathrooms. Do not immerse

the appliance in water or let liquid enter the body –this is an electrical hazard. Never use

this appliance near flammable or explosive materials.

5.Never use this appliance if the power cord is damaged. It must be replaced by the

manufacturer, its service agent or a similarly qualified professional.

6.The heater should be filled with a precise amount of professional HTF. Opening or

repairing the fins can only be done by the manufacturer or service personnel. If there is an

oil leak, it must be fixed by the manufacturer or service personnel.

7.When throwing away your heater, check local regulations on how to safely dispose of

the oil inside the heater.

8.Ensure the heater is placed on a smooth and even surface. Do not tilt or turn when in

use.

9.Do not place clothes, towels or other items directly on the heater –this is a safety hazard

that can cause overheating.

10. After use or when left unattended, turn off and unplug the appliance. When

unplugging, grasp the plug and not the wire to avoid any damages.

11.Before cleaning, turn off the appliance and wait for it to cool.

12.When in use, keep the power cord away from the heater’s body.

13. If, for any reason, the appliance does not work, turn off and unplug the appliance

immediately. Contact the manufacturer, its service agent or similarly qualified personnel

for inspection, repairs or replacements.

14.Do not use other electric heaters or electrical appliances in the same outlet or circuit -

this can cause a circuit overload or fire.

15. Do not use extension cords with this appliance.

16.Prohibited the use of automatic power program, timer or any other device to use the

heater.

17.Do not put hands, sticks and other objects inserted into the apertures of the heater, to

prevent accidents.

18.When using the heater, in order to avoid burns, do not let bare skin in direct contact

with electric heating The surface. Be sure to take advantage of when you need to move in

front of the handle.

19.May not have towels, clothing, bed sheets, bedding, curtains and other combustible

materials within the heater around 1 meter Products, and should be kept away after

thermal deformation or discoloration of furniture

and other items.

20.There shall be no obstructions or unstable hanging objects within 1 meter from the top

of the heater.

21.Children must be supervised to ensure that they do not touch or play with the

appliance.

22. When using the heater, keep doors and windows shut to get the maximum heating

effect.

23.Do not use the heater outdoors.

24.Keep the product specification safe –do not discard it.

PRODUCT CHARACTERISTICS

◆The company manufactured oil heater is a tubular element of heat, high efficiency

permanent oil as the medium through the heat sink to dissipate heat, the use of air circula-

tion to increase room temperature.

◆Electric oil heater easy to use, safe, beautiful, quiet operation, no electromagnetic inter-

ference and other characteristics, suitable for scientific research, hospitals, hotels, martial

arts room, bedroom and other places, in the cold season to make your home or office

more warm and comfortable!

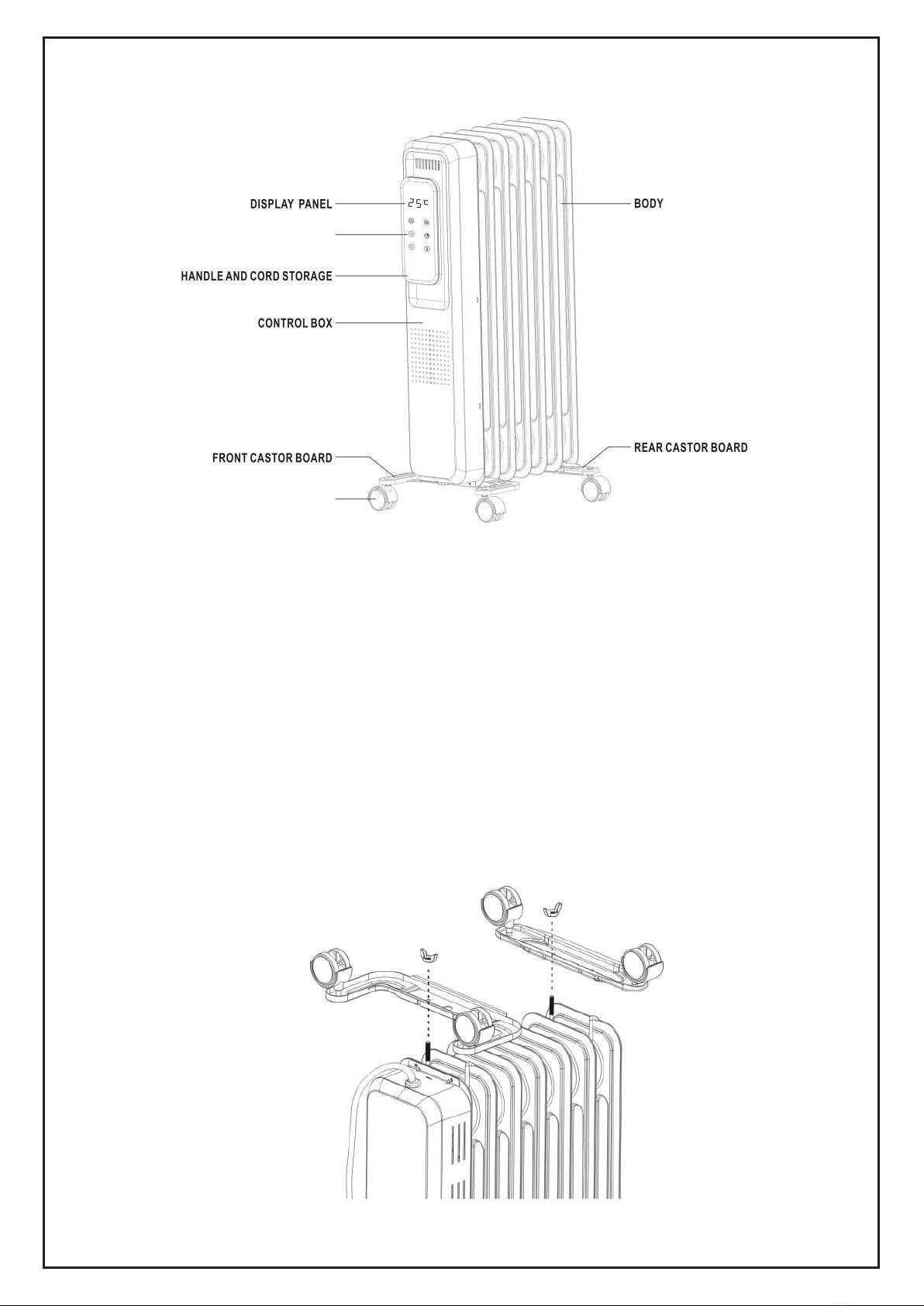

Product structure

Figure 2: Castor plate installation diagramme

Figure 1 Product Structure

INSTRUCTIONS FOR USE

1.INSTALLATION METHOD:

Remove the heater and all parts from the packaging box.

(1) Place the heater upside down, then place the castors onto the bottom using the wing

nuts and U-screw (fig. 2).

(2) Place the heater upright, so it is in the correct position.

BUTTONS

CASTORS

2. What to check before using:

(1) Ensure the power cord is not damaged.

(2) Ensure the power source matches the electrical requirements stated on the

heaternameplate. Also make sure that it has safety grounding - if not, the outlet must be

replaced.

3.INSTRUCTIONS

POWER:

1. Plug in the power plug, the on/standby key will be high light. Touch the key to start, if no

other operations, the default is high gear mode (the default temperature is 25℃), the mode

key become high light, the display window shows "3", 3 seconds later the display window

shows the setting temperature(the default temperature is 25℃).

2. Touch the key again and the product enters the standby state.

3.The heater can remember the operation state without power off (the timing function is

not memorized).

MODE:

1.Touch this key to switch the machine heating mode, the switching order is high, medium,

low, Eco, high and cycles, the display window displays "3-2-1-Eco-3….” and cycles.

2. When setting the mode, the mode key is highlighted, the display window shows the

current set gear. Three seconds later after the heating mode is set, the display window will

change to indicate the setting temperature ( Default Temperature is 25℃).

3. When the heater is in the three modes of high, medium and low, the temperature can be

set in the range of 15-35℃. The heater will control the on-off of the current setting gear of

the heating pipe according to the setting temperature and the temperature of the NTC

probe.

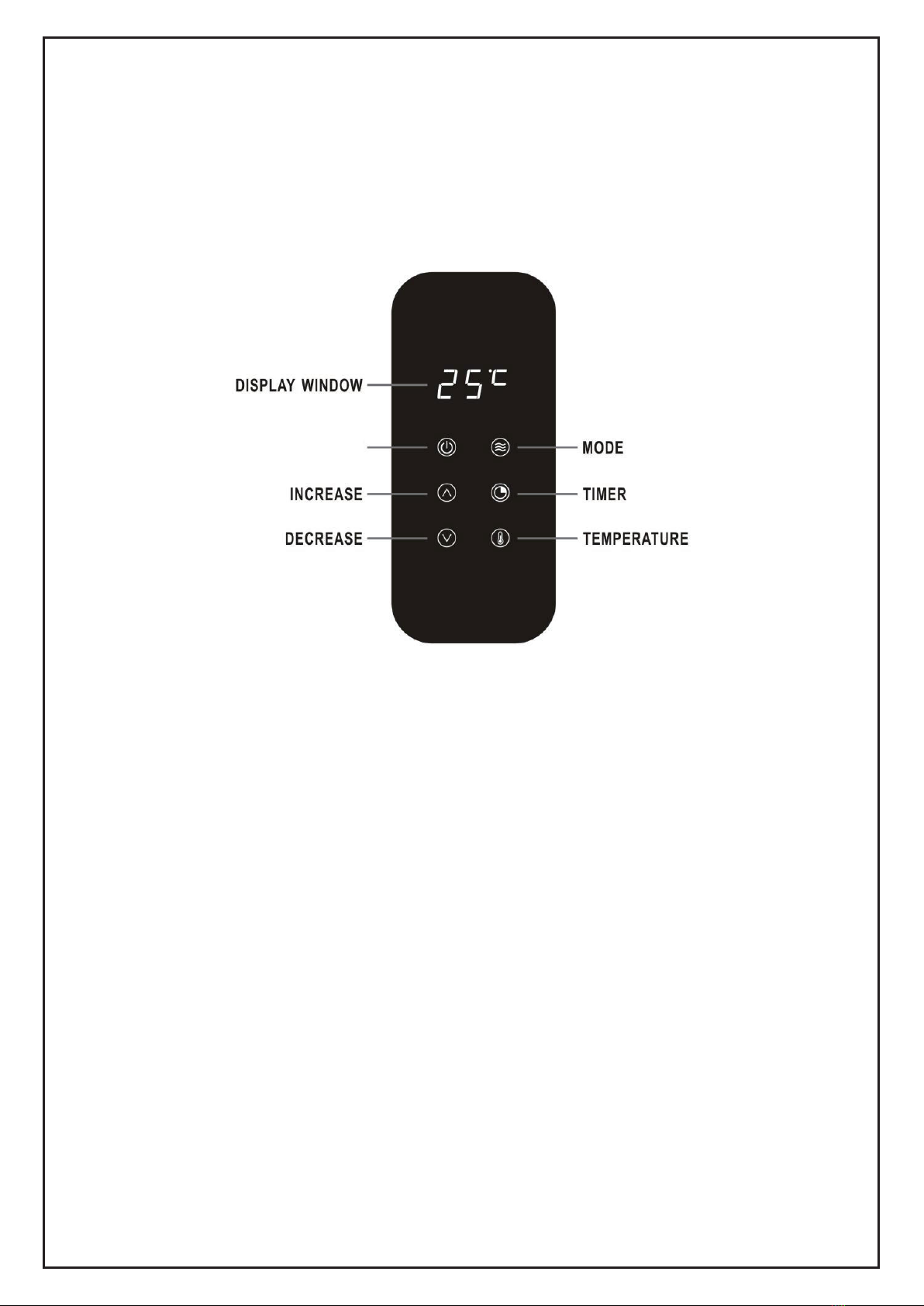

Figure 3 a schematic view of the control panel

POWER

4. When the heater is in eco mode, the temperature can be set within the range of 15-35

℃. The heater will intelligently control the on-off of the heating pipe according to the setting

temperature and NTC probe temperature. And the setting temperature will automatically

decrease by 1℃every hour. It can only be reduced by 5℃and It can only be reduced to

15℃.

TIMER:

1.Touch this key to enter the timing shutdown setting, and this key become highlight, and

the time of shut down is displayed on the display window.

2.Adjust the time of shut down by touch the increase or decrease key, and confirm auto-

matically after 5 seconds without operation or touch the timer key directly to confirm (the

maximum setting is 24 hours, and 0 hours is no timer function).

3.No matter what heating mode the machine is in, it can be set to shut down at a fixed

time.

4.Within 3 seconds after timing confirmation, the display window shows the time of shut-

down time, and after 3 seconds, it will show the setting temperature.

TEMPERATURE:

1.Touch the temperature key, activate the increase and decrease key to adjust the control

temperature, the temperature key become highlight, the control temperature is displayed

on the display window.

2.The default control temperature is 25℃. Set the temperature by touch the increase or

decrease key, and automatically confirm after 5 seconds without operation or touch the

temperature key directly to confirm (the control temperature setting range is 15-35℃).

3.Touch and hold on the temperature key 5 seconds, and the Celsius mode (point + c) is

converted to Fahrenheit mode (point + F). When the machine is in Fahrenheit mode, touch

and hold on the temperature key for 5 seconds to switch back to Fahrenheit mode.

4.In Fahrenheit mode, the default control temperature is 77°F and the setting range is 59°F

-95°F.

5.The Celsius and Fahrenheit modes have a memory function, it can still remember the

last pattern after a complete power outage.

INCREASE / DECREASE:

1.When there is no timing setting or temperature setting, the two corresponding lights are

low light and there is no response by touch this key.

2.When making timing setting or temperature setting, the two keys are active and become

highlight.

3.Before setting the control temperature, you must touch the temperature key first.

DUMPING FUNCTION:

1. When the angle between the machine dumping and the horizontal position is less than

40 ±5 degrees, the display window flashes and prompts "Eo", and all outputs are closed.

2.When the angle between the machine centralization and the horizontal position is more

than 50 ±5 degrees, the working state before dumping will be restored.

ANTI-FROST FUNCTION:

1.In the standby state, the mid-range heating is automatically turned on when the NTC

temperature is lower than 5℃(41°F), and when the NTC temperature is higher than 7℃

(45°F), the heating is stopped and returned to the standby state.

2.When the frost protection function is turned on, the ON/STANDBY key become highlight

and flashes at a frequency of 2 seconds per time, and the display window flashes “7℃(or

45°F)”at a frequency of 2 seconds per time.

SUPPLEMENTARY EXPLANATION:

1.If the display window is flashing prompt "EH" or "EL", it need to be repaired by power

outage.

CLEANING AND MAINTENANCE

1. Avoid bruised or scratched heater, so as not to damage the surface coating and rust.

2. After a soft clean cloth is placed in the box collection when unused for long periods, with

the heater.

If you have any questions, please contact our customer care center.

Our contact details are below:

001-877-644-9366

customerservice@aosom.com

Imported by Aosom LLC

27150 SW Kinsman Rd Wilsonville, OR 97070 USA

MADE IN CHINA
