Hitachi C 10RA2 User manual
POWER TOOLS
TECHNICAL DATA
AND
SERVICE MANUAL
TABLE SAW
C 10RA2
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT
LIST No. E929 Sep. 1999
C
MODEL
C 10RA2
--- 35 ---

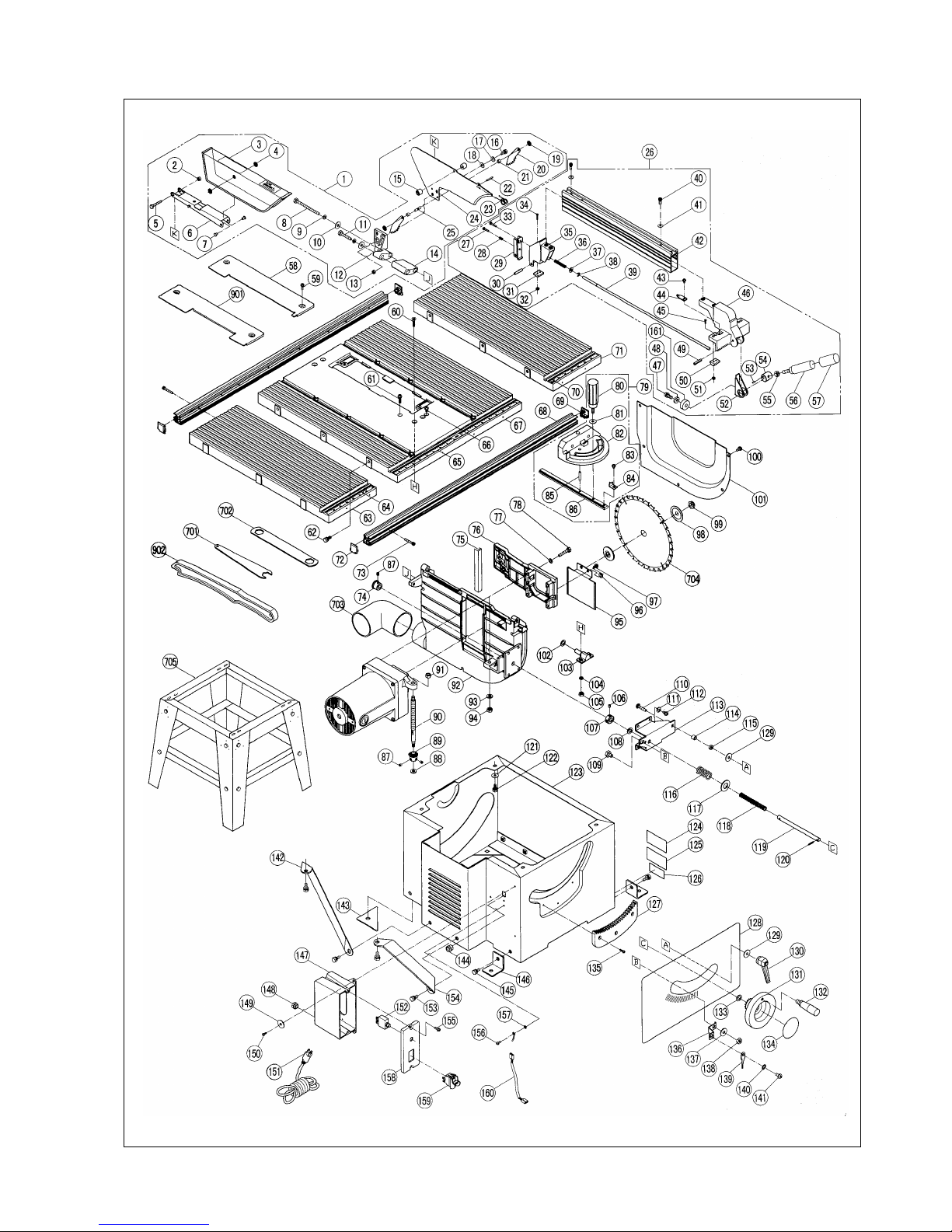

Assembly Diagram for C 10RA2
--- 36 ---

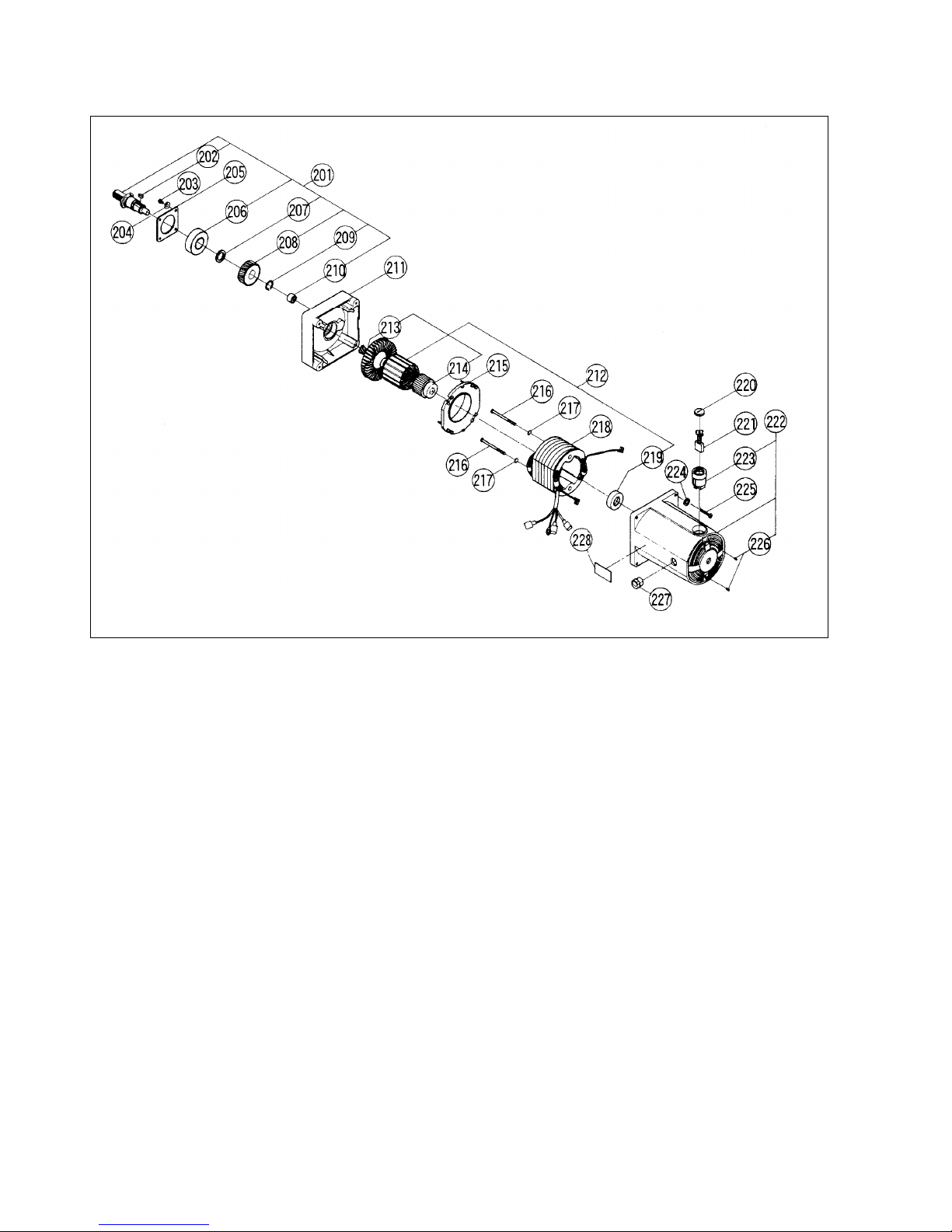

Assembly Diagram for C 10RA2
--- 37 ---
PARTS
C 10RA2
ITEM
No. CODE NO. DESCRIPTION NO.
USED
REMARKS
1 318-086 BLADE GUARD ASS’Y 1 INCLUD.2-25
2 314-474 NUT CHUCK M6 1
3 314-479 BLADE GUARD 1
4 314-476 SELF-LOCKING RING 2
5 949-644 BOLT M6X40 (10 PCS.) 1
6 314-477 ARM 1
7 314-478 RIVET 2
8 318-088 BOLT M6X110 1
9 949-455 SPRING WASHER M6 (10 PCS.) 2
10 949-432 BOLT WASHER M6 (10 PCS.) 2
11 318-089 BOLT M6X90 1
12 314-483 GUARD BRACKET 1
13 949-556 NUT M6 (10 PCS.) 2
14 318-090 CUSHION 1
15 314-480 BUSHING 2
16 949-613 BOLT M6X16 (10 PCS.) 2
17 949-455 SPRING WASHER M6 (10 PCS.) 2
18 973-361 WASHER 2
19 314-476 SELF-LOCKING RING 2
20 314-444 KICK BACK PAWL 2
21 314-445 BUSHING 2
22 949-870 ROLL PIN D4X22 (10 PCS.) 1
23 314-447 SPRING 1
24 318-092 SPREADER 1
25 314-446 ROLL PIN 1
26 318-093 RIP FENCE ASS’Y 1 INCLUD.27-57,161
27 318-094 TAPPING SCREW D5X25 1
28 314-555 SEGMENT GEAR 1
29 318-095 REAR CLAMP 1
30 318-096 SPRING PIN 1
31 318-097 SLIDER (REAR) 1
32 318-098 HEX. NUT M4 2
33 318-133 PAN HD. SCREW M5X25 1
34 318-100 COUNTER HD. SCREW M4X20 2
35 318-101 SUPPORT 1
36 314-537 COMPRESSION SPRING 57L 1
37 318-102 FLAT WASHER 5/16"X5/8" 1
38 318-103 E-RING 1
39 318-104 LOCKING ROD 1
40 949-755 HEX. SOCKET HD. BOLT M6X16 (10 PCS.) 4
41 317-627 FLAT WASHER 1/4"X5/8" 4
42 318-105 PARALLEL BRACKET 1
43 317-567 ROUND WASHER HD. SCREW M5X8 1
44 318-106 NEEDLE POINTER 1
45 318-107 COUNTER HD. SCREW M4X12 4
46 318-108 WIDTH BODY 1
47 949-237 MACHINE SCREW M5X12 (10 PCS.) 1
48 949-431 BOLT WASHER M5 (10 PCS.) 1
49 318-096 SPRING PIN 1
50 318-111 SLIDER (FRONT) 2
51 318-098 HEX. NUT M4 4
: ALTERNATIVE PARTS
*
7
----
99
--- 38 ---
PARTS
C 10RA2
: ALTERNATIVE PARTS
ITEM
No. CODE NO. DESCRIPTION NO.
USED
REMARKS
52 318-113 CLAMPER 1
53 318-114 RUBBER BUSHING 1
54 318-115 ECCENTRIC SHAFT 1
55 949-558 NUT M8 (10 PCS.) 1
56 318-116 CLAMP BOLT 1
57 318-117 GRIP 1
58 314-484 TABLE INSERT FOR SAW BLADE 1
59 949-235 MACHINE SCREW M5X8 (10 PCS.) 2
60 949-342 FLAT HD. SCREW M6X25 (10 PCS.) 4
61 314-486 SEAL LOCK SCREW M6X20 1
62 318-118 MACHINE SCREW (W/WASHERS) M6X20 6
63 318-119 EXTENSION WING (LEFT) 1
64 318-120 SCALE (LEFT) 1
65 318-121 SCALE (CENTER) 1
66 314-490 SEAL LOCK SCREW M6X10 1
67 318-122 TABLE 1
68 318-123 RAIL 2
69 318-124 SIDE COVER (RIGHT) 2
70 318-125 SCALE (RIGHT) 1
71 318-126 EXTENSION WING (RIGHT) 1
72 318-127 SIDE COVER (LEFT) 2
73 318-128 HEX. SOCKET HD. CAP BOLT M6X35 16
74 314-512 BEVEL GEAR (A) 1
75 314-513 SLIDE PLATE 2
76 314-514 SLIDE BRACKET 1
77 949-455 SPRING WASHER M6 (10 PCS.) 4
78 949-803 BOLT M6X35 (10 PCS.) 4
79 315-042 MITER GAUGE ASS’Y 1 INCLUD.80-86
80 314-505 CLAMP HANDLE (B) 1
81 314-506 FLAT WASHER M6.4 1
82 314-507 MITER GAUGE 1
83 949-234 MACHINE SCREW M5X6 (10 PCS.) 1
84 314-509 ANGLE POINTER 1
85 314-510 PIN 1
86 314-511 SHEET BAR 1
87 967-469 HEX. SOCKET SET SCREW M6X6 4
88 314-516 FLAT WASHER M8X14.3 1
89 314-517 BEVEL GEAR (B) 1
90 314-518 SCREW BAR 1
91 314-519 NUT CHUCK M8 1
92 314-520 BODY 1
93 314-521 FLAT WASHER M6.4X12.7 1
94 314-522 SPECIAL NUT CHUCK M6 1
95 314-523 GUARD 1
96 949-455 SPRING WASHER M6 (10 PCS.) 1
97 949-255 MACHINE SCREW M6X12 (10 PCS.) 1
98 314-454 WASHER (A) 2
99 318-130 SET NUT 1
100 317-352 TAPPING SCREW D5X10 5
101 314-526 BLADE GUARD 1
102 314-527 FLAT WASHER M8X15 2
*
7
----
99
--- 39 ---
PARTS
C 10RA2
ITEM
No. CODE NO. DESCRIPTION NO.
USED
REMARKS
103 314-528 PIVOT SUPPORT 2
104 949-455 SPRING WASHER M6 (10 PCS.) 4
105 949-556 NUT M6 (10 PCS.) 4
106 967-469 HEX. SOCKET SET SCREW M6X6 2
107 314-533 ANCHOR BLOCK 1
108 314-534 FLAT WASHER M9.5 1
109 307-410 BOLT (W/WASHERS) M8X16 (BLACK) 1
110 314-529 SPECIAL BOLT M6X35 1
111 949-455 SPRING WASHER M6 (10 PCS.) 4
112 949-255 MACHINE SCREW M6X12 (10 PCS.) 4
113 314-530 BRACKET 1
114 314-531 SPACER 1
115 949-556 NUT M6 (10 PCS.) 1
116 314-535 COMPRESSION SPRING 20L 1
117 314-536 FLAT WASHER M16 1
118 314-537 COMPRESSION SPRING 57L 1
119 314-538 REGULATING BOLT 1
120 949-518 ROLL PIN D3X18 (10 PCS.) 1
121 973-361 WASHER 4
122 996-577 BOLT (W/WASHERS) M6X12 (BLACK) 4
123 314-539 BODY SHELL 1
124 WARNING LABEL (B) 1
125 WARNING LABEL (A) 1
126 NAME PLATE 1
127 314-555 SEGMENT GEAR 1
128 HITACHI LABEL 1
129 314-532 FLAT WASHER M6X25 2
130 314-556 TENSION HANDLE 1
131 314-557 WHEEL 1
132 314-558 HANDLE 1
133 314-534 FLAT WASHER M9.5 1
134 314-560 LABEL 1
135 318-131 PAN HD. TAPPING SCREW D4X12 3
136 314-561 POINTER BRACKET 1
137 949-433 BOLT WASHER M8 (10 PCS.) 1
138 949-558 NUT M8 (10 PCS.) 1
139 314-562 NEEDLE POINTER 1
140 314-580 TOOTHED LOCK WASHER M5 1
141 949-235 MACHINE SCREW M5X8 (10 PCS.) 1
142 314-541 EXTENSION SUPPORTER (L) 2
143 314-542 SPONGE 4
144 314-548 STRAIN RELIEF (RA-1418) 1
145 308-946 BOLT (W/WASHERS) M8X20 (BLACK) 4
146 314-540 SET PLATE 4
147 317-285 SWITCH BOX 1
148 314-544 STRAIN RELIEF (RU-1435) 1
149 949-429 BOLT WASHER M4 (10 PCS.) 3
150 314-545 TAPPING SCREW D4X10 3
151 314-456 POWER CABLE 1
152 314-457 CIRCUIT BREAKER SWITCH 1
153 308-946 BOLT (W/WASHERS) M8X20 (BLACK) 8
: ALTERNATIVE PARTS
*
7
----
99
--- 40 ---
PARTS
C 10RA2
: ALTERNATIVE PARTS
ITEM
No. CODE NO. DESCRIPTION NO.
USED
REMARKS
154 314-547 EXTENSION SUPPORTER (R) 2
155 314-549 TAPPING SCREW D5X16 2
156 318-132 PAN HD. TAPPING SCREW D4X8 2
157 314-553 TOOTHED LOCK WASHER M4 2
158 314-458 SWITCH PLATE 1
159 314-459 ROCKER SWITCH 1
160 317-158 INTERNAL WIRE 1
161 318-274 RUBBER STOPPER 1
201 314-451 SPINDLE ASS’Y 1 INCLUD.202,206-210
202 314-567 PARALLEL KEY 1
203 949-217 MACHINE SCREW M4X12 (10 PCS.) 4
204 949-453 SPRING WASHER M4 (10 PCS.) 4
205 314-572 BEARING RETAINER 1
206 620-4VV BALL BEARING 6204VVCMPS2L 1
207 314-568 COLLAR FOR D17 1
208 314-569 HELIX GEAR 1
209 967-261 RETAINING RING FOR D17 SHAFT 1
210 314-570 NEEDLE BEARING 1
211 314-575 BRACKET 1
212 314-452 ARMATURE ASS’Y 115V 1 INCLUD.213,214,219
213 620-1VV BALL BEARING 6201VVCMPS2L 1
214 620-0VV BALL BEARING 6200VVCMPS2L 1
215 314-578 BAFFLE 1
216 314-579 TAPPING SCREW D5X60 2
217 314-580 TOOTHED LOCK WASHER M5 2
218 314-453 STATOR 115V 1
219 314-577 BEARING BUSHING 1
220 314-583 BRUSH CAP 2
221 999-044 CARBON BRUSH (1 PAIR) 2
222 314-585 HOUSING ASS’Y 1 INCLUD.223,226
223 314-586 BRUSH HOLDER 2
224 949-454 SPRING WASHER M5 (10 PCS.) 4
225 949-245 MACHINE SCREW M5X30 (10 PCS.) 4
226 967-377 HEX. SOCKET SET SCREW M5X8 2
227 314-544 STRAIN RELIEF (RU-1435) 1
228 MOTOR NAME PLATE 1
*
7
----
99
--- 41 ---
: ALTERNATIVE PARTS
C 10RA2
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
ITEM
No. CODE NO. DESCRIPTION NO.
USED
REMARKS
701 314-590 WRENCH 22MM 1
702 314-591 WRENCH 23/26MM 1
703 314-592 ELBOW 1
704 314-616 TCT SAW BLADE 255MM-D15.88 HOLE-NT36 1
705 314-819 STAND 1
ITEM
No. CODE NO. DESCRIPTION NO.
USED
REMARKS
901 314-325 TABLE INSERT FOR CUTTER 1
902 314-324 PUSH STICK 1
*
7
----
99
Printed in Japan
(990715 N)
