Hitachi R-W550PD User manual

R-W550PD R-W550PDX

Hitachi Refrigerator

Thank you very much for purchasing the Hitachi refrigerator.

Before using this please read the instruction manual carefully

for the correct usage.

Maintenance work must only be carried out at workshop

by well-trained maintenance worker.

Hitachi

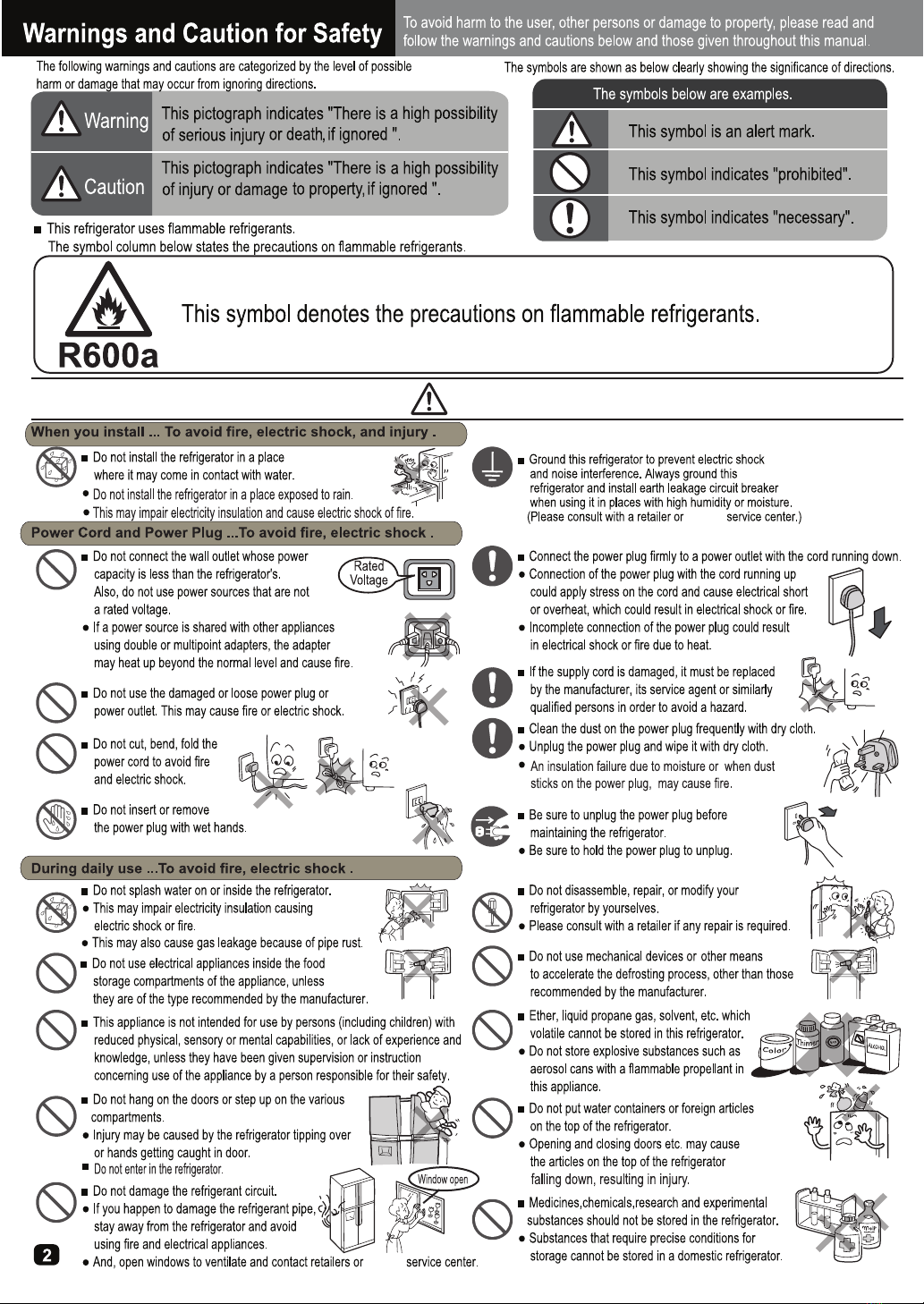

WARNING

CAUTION

WARNING : When positioning the appearance, ensure the supply cord is not trapped or damaged.

WARNING : Do not locate multiple portable socket-outlets or portable power supplies

at the rear of the appliance.

Fresh select

Notice

●

If you unplug the power plug ora power failure occurs and

then the refrigerator restarts, the temperature display and

each setting will be automatically resumed ***. However,

“Quick Freezing”operation will be cancelled.

●

Approximately 30 seconds afterthe end of operation,

all LED become unlit.

●

Response of the touch panel may change depending on the

surrounding temperature, humidity, physical condition of the

useroroperation status of the adjoining electric product.

●

The panel may not respond if it is wet ordirty.

*** There must setting more than 45 seconds before unplug the power or power failure. otherwise the temperature display shown as before setted.

Touch Touch

Touch

(Sound PiPi)

When making ice quickly or making

frozen food quickly. Or, a surrounding

temperature is high and the Freezer

compartment is not cold enough.

(Sound PiPi)

(Sound Pi)

To set the fine adjustment of the temperature (Refrigerator compartment/ Freezer Compartment)

Touch “ Temp. Control ”

for 5 seconds until 1 “Peep!”

sound is heard.

Each time you touch the button, the corresponding indicator lamp changes in order shown below (9 steps).

Indication

lamp

Setting Cold Coldest

To cancel the fine adjustment of the temperature.

Touch “ Temp. Control ” button for 5 seconds until “PiPi!” sound is heard and you can set temperature by normal step (5 steps)

( Lighting Blinking Turned off )

Touch “Select” and “Temp control” to make as adjustment.

Normal

This function is subjected to change according model type.Notice

Sound Pi! Pi! Pi! Pi! PiPi! Pi! Pi! Pi! Pi!

Touch “ Temp. Control ”

for 5 seconds until 1 “PiPi!”

sound is heard.

Factory setting, the adjustment temperatrure by normal step (5 steps).

●

PiPi!

Other Functions

“Temp. Control”

Touch“Temp. Control”

Touch Touch

Touch

Touch Touch

Touch

Touching Touching Touching

There is not sound when

touching any button

(disactive door alarm sound).

Other functions

Rail Stops

● Pull up the back and pull out

the shelf forward.

● Set the refrigerator shelves

by combining with stored food.

Adjusting the shelves.

Shelf Trim

Drawer

CAUTION

Shelf trims are removable, Holding the shelf with both hands.

DO NOT holding trim or holding shelf with only one hand

otherwise it may drop or injury.

CAUTION
