Hitachi NR 90AC2 Manual

POWER TOOLS

TECHNICAL DATA

AND

SERVICE MANUAL

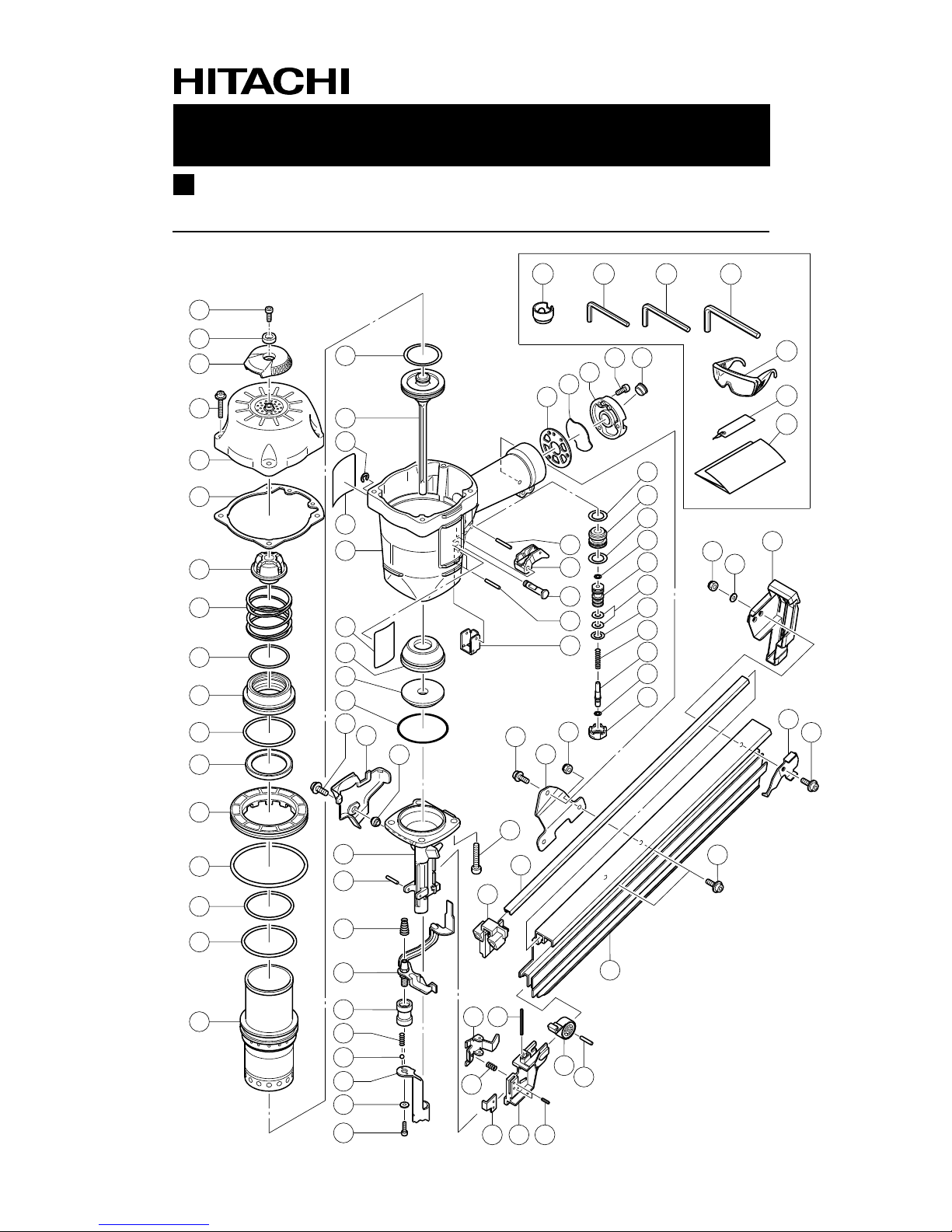

STRIP NAILER

NR 90AC2

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

LIST No. E002 Sep. 2001

MODEL

NR 90AC2

PNEUMATIC TOOL PARTS LIST

LIST NO.

STRIP NAILER

Model NR 90AC2

2001

•

(E1)

E002

43 44

71 72 73

501 502 503 504

505

506

507

*ALTERNATIVE PARTS

--- 2 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

1 949-755

HEX. SOCKET HD. BOLT M6X16 (10 PCS.)

2 880-515 PLATE 1

3 880-514 TOP COVER 1

4 882-793 HEX. SOCKET HD. BOLT (W/FLANGE) M6X35 4

5 881-946 EXHAUST COVER 1

6 881-940 GASKET (A) 1

7 881-945 EXHAUST VALVE RUBBER 1

8 881-944 HEAD VALVE SPRING 1

9 883-676 CYLINDER O-RING (B) 1

10 881-942 HEAD VALVE 1

11 883-677 CYLINDER O-RING 1

12 881-943 HEAD VALVE RUBBER 1

13 881-941 CYLINDER PLATE 1

14 878-907 O-RING (S-95) 1

15 878-376 O-RING (I.D 59.6/W2.4) 1

16 881-972 O-RING 1

17 881-939 CYLINDER 1

18 877-368 O-RING (1AP-48) 1

19 883-680 PISTON 1

20 955-479

RETAINING RING (E-TYPE) FOR D6 SHAFT

21 878-184 WARNING LABEL 1

22 883-675 BODY 1

23 NAME PLATE 1

24 883-670 PISTON BUMPER (A) 1

25 883-671 PISTON BUMPER (B) 1

26 956-996 O-RING (1AS-60) 1

27 881-969 NYLOCK BOLT (W/FLANGE) M6X20 2

28 881-935 GUARD 1

29 883-674 COLLAR (B) 1

30 883-672 NOSE 1

31 949-864 ROLL PIN D3X22 (10 PCS.) 1

32 883-691 SPRING 1

33 883-673 PUSHING LEVER (B) 1

34 881-974 ADJUSTER (A) 1

35 982-454 SPRING (C) 2

36 959-155 STEEL BALL D3.97 (10 PCS.) 2

37 881-933 PUSHING LEVER (A) 1

38 880-081 WASHER 1

39 949-657

HEX. SOCKET HD. BOLT M6X12 (10 PCS.)

40 883-678 GASKET (B) 1

41 883-679 DUST FILTER 1

42 881-949 CAP 1

43 949-821

HEX. SOCKET HD. BOLT M5X16 (10 PCS.)

44 872-035 DUST CAP 1

45 949-864 ROLL PIN D3X22 (10 PCS.) 1

46 880-674 TRIGGER (A) 1

47 881-952 TRIGGER PIN 1

48 949-865 ROLL PIN D3X28 (10 PCS.) 2

49 880-361 PUSHING LEVER GUIDE 1

50 877-699 HEAD VALVE O-RING (I.D 16.8) 1

51 878-881 VALVE BUSHING (B) 1

NR 90AC2

9 -- 01

*ALTERNATIVE PARTS --- 3 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

52 878-885 O-RING (S-18) 1

53 981-317 O-RING (S-4) 1

54 880-672 VALVE PISTON (B) 1

55 878-925 O-RING (I.D 8.8) 2

56 878-887 O-RING (I.D 11) 1

57 878-884 PLUNGER SPRING 1

58 880-673 PLUNGER (A) 1

59 878-888 O-RING (I.D 1.8) 1

60 880-671 VALVE BUSHING (A) 1

61 949-759

HEX. SOCKET HD. BOLT M8X30 (10 PCS.)

62 883-690 CONNECTOR 1

63 883-682 NAIL RAIL 1

64 883-689 HANDLE ARM 1

65 963-837 NYLON NUT M6 3

66 883-499 SLEEVE 1

67 883-683 MAGAZINE COVER 1

68 883-685 NAIL FEEDER (A) 1

69 949-688 ROLL PIN D4X40 (10 PCS.) 1

70 883-687 SPRING 1

71 883-688 PUSHING LEVER STOPPER 1

72 883-686 NAIL FEEDER (B) 1

73 949-776 ROLL PIN D3X10 (10 PCS.) 2

74 883-503 RIBBON SPRING 1

75 943-364 NEEDLE ROLLER D4X20 1

76 883-681 MAGAZINE 1

77 984-443

HEX. SOCKET HD. BOLT (W/FLANGE) M6X12

78 883-684 NAIL STOPPER 1

NR 90AC2

9 -- 01

*ALTERNATIVE PARTS

--- 4 ---

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

Printed in Japan

(010905N)

9 -- 01

501 881-968 NOSE CAP 1

502 944-458 HEX. BAR WRENCH 4MM 1

503 944-459 HEX. BAR WRENCH 5MM 1

504 872-422 HEX. BAR WRENCH 6MM 1

505 875-769 EYE PROTECTOR 1

506 881-976 CAUTION TAG 1

507 882-414 LEAFLET 1

601 881-973 SEQUENTIAL TRIP MECHANISM SET 1

NR 90AC2
