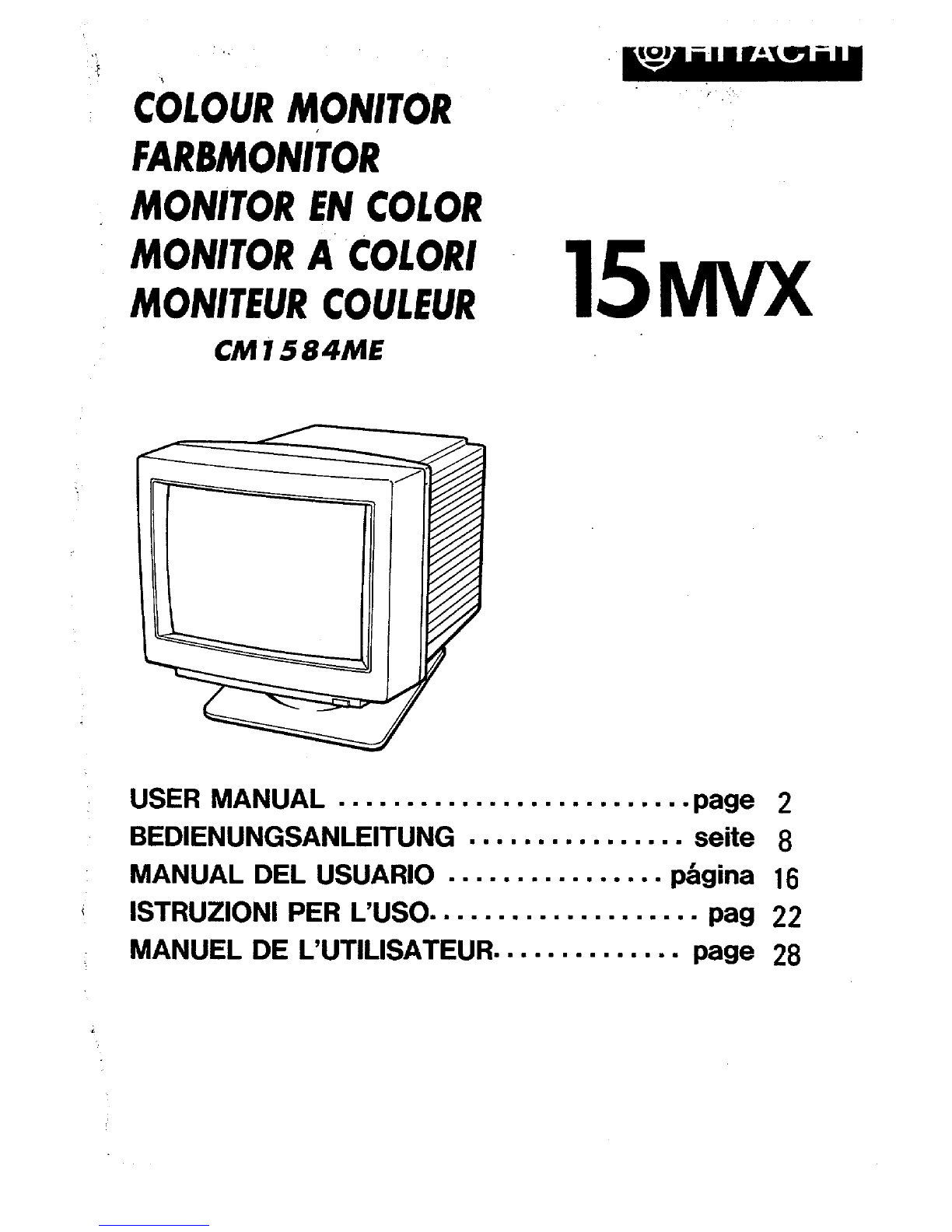

Hitachi CM1584ME User manual

COLOUR MONITOR

FARBMONITOR

MONITOR EN COLOR

MONITOR ACO1ORI

MONITEUR COULEUR 15MVX

CM7584ME

USER MANUAL .........■. . . . . . . . . . . . . . . .page 2

BEDIENUNGSANLEITUNG ...■.......=.■ ■ =seite 8

MANUAL DEL USUARIO . . . . . . . . . . . . . . . . p~gina 1(5

lSTRUZIONI PER L’USO. . . . . . . . . . . . . . ..=.. =pag 22

MANUEL DE L’UTILISATEUR . . . . . . . . . . . . . ●page 28

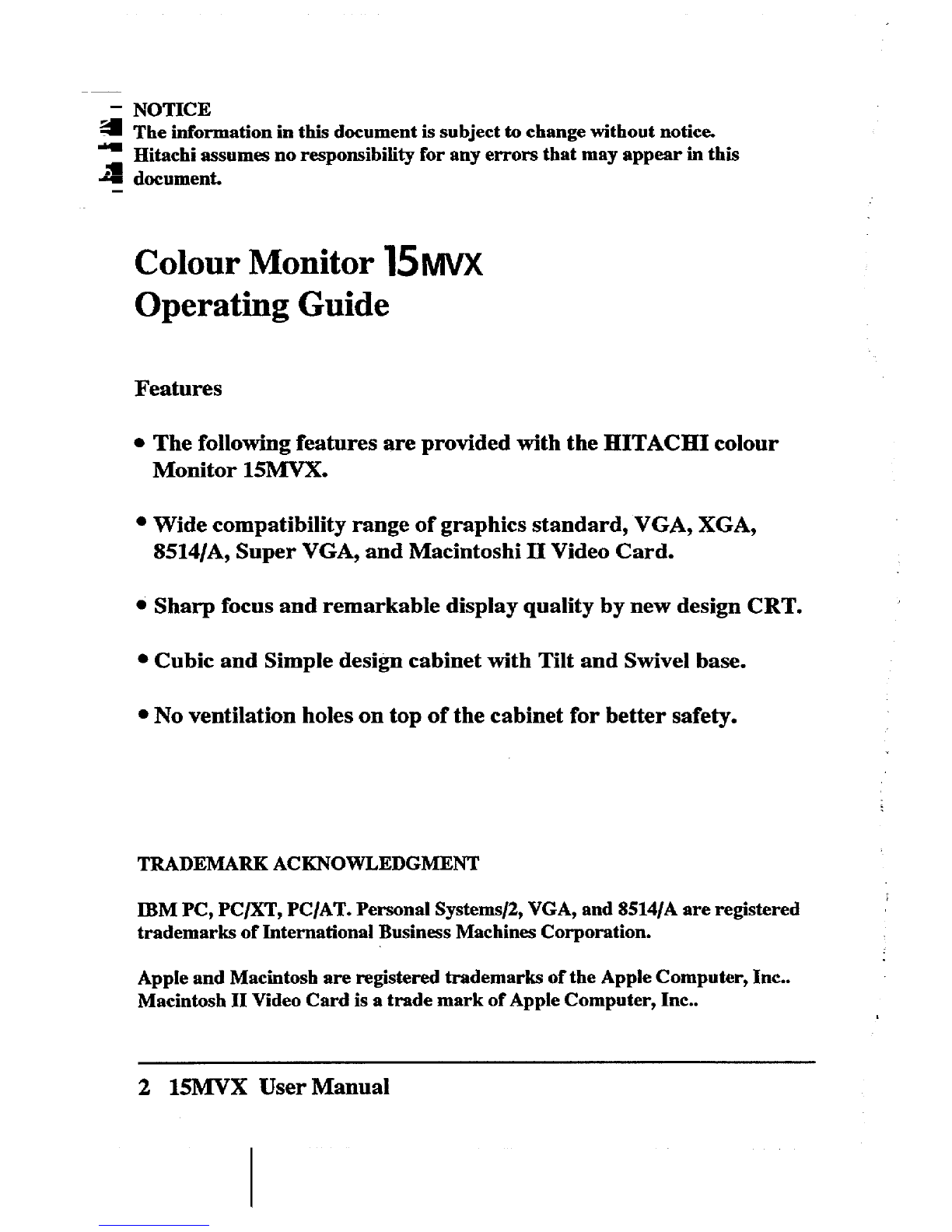

–NOTICE

=The i~o-ation in tfis d~ument is subject to change without notice.

-Hitachiassumesno responsibilityfor any errors thatmay appear in this

=doeumenL

Colour Monitor ‘hVIVX

Operating Guide

Features

●The fo]lo~ng features are provided with the HITACHI colour

Monitor 15MVX.

●Wide compatibility range of graphics standard, VGA, XGA,

8514/A, Super VGA, and Macintosh II Video Card.

●Sharp focus and remarkable display quality by new design CRT.

●Cubic and Simple design cabinet with Tilt and Swivel base.

●NOventilation holes on top of the cabinet for better safety.

TRADEMARK ACKNOWLEDGMENT

IBM PC, PC/XT, PC/AT. Personal Systems/2, VGA, and 8514/A are registered

trademarks of International Business Machines Corporation.

Apple and Macintosh are registered trademarks of the Apple Computer, Inc..

Macintosh II Video Card is atrade mark of Apple Computer, Inc..

2lSMVX User Manual

@i@

E■

NEVER REMOVE THE BACK COVER E.

Removal of theback cover MUST be carriedout only by

qualiikd personnel. This dwplay monitor qontainshigh voRage

tilde.

DO NOT USE IN HOSTILE ENVIRONMENTS

DO NOT expose thisdisplay monitor to rainor moistureto

preventelectric shock or fue hazard. This unitis designed to be

used in office or home.

DO NOT subject theunitto vibrations,dust,or corrosive gases.

KEEP IN AWELL VENTILATED PLACE

DO NOT cover thismonitor or place anythingagainstthesides

of unit. Ventilationholes areprovided on thecabinet to prevent

thetemperaturefrom rising. Ventilationholes are also provided

on thebottom of thecabinet.

AVOID HEAT

Avoid placing theunitinduect sunshineor nearaheating

appliance.

BE CAREFUL OF MAGNETIC FIELDS

DO NOT place amagnet,loud speakersystem, floppy disk

drive, or anythingwhich will generatemagnetismnearthe unit.

Amagnetic field may cause blurredcolors or distortionof the

displayed pattern.

lSMVX User Manual 3

i @PERATm@

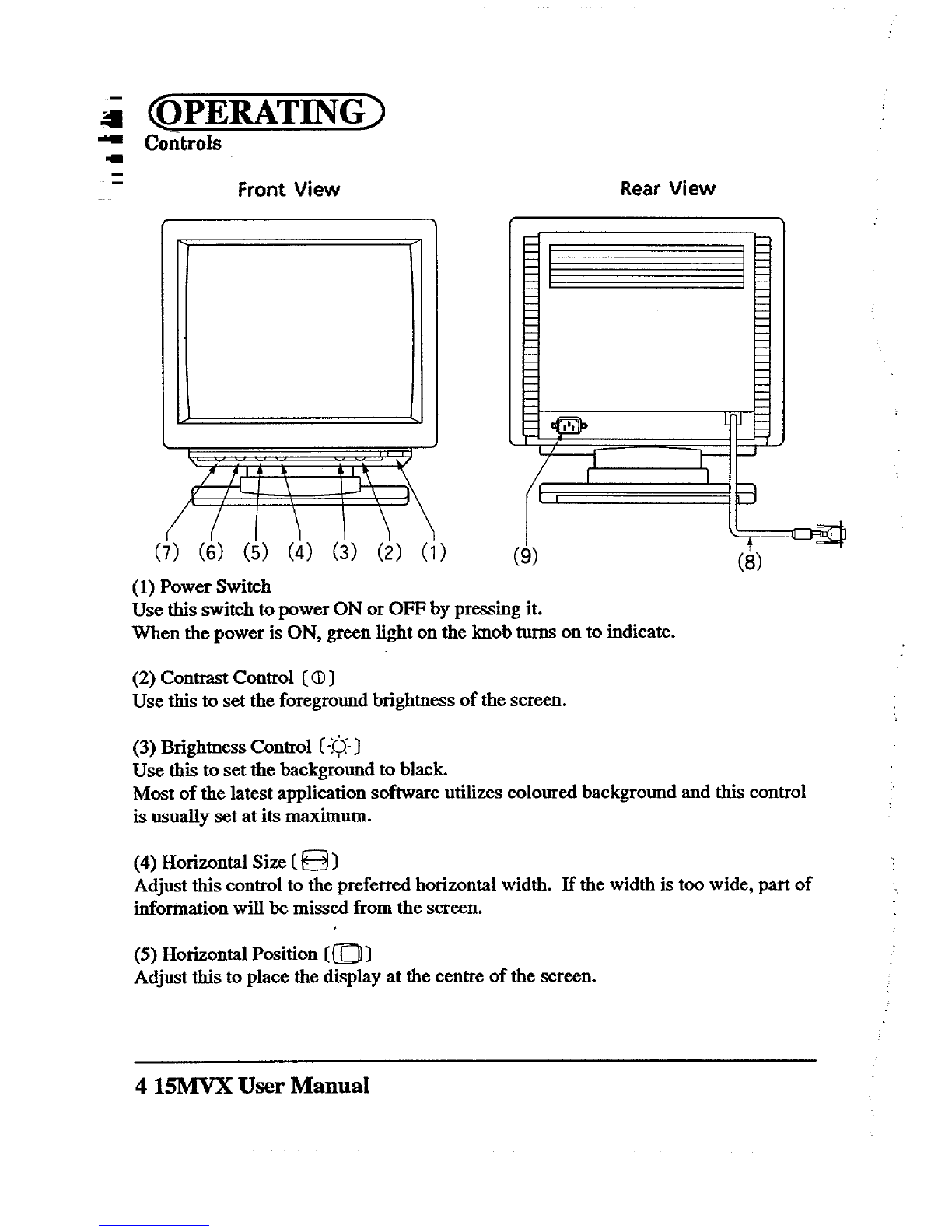

-Controls

Front View

[

(7) (6) (5) (4) (3) (2) (1)

Rear View

J) u—--,R@

(i)

(1) Power Switch

Use this switch to power ON or OFT by pressing it.

When the power is ON, green light on the knob turnson to indicate.

(2) ContrastControl [0)

Use this to set theforeground brightness of thescreen.

(3) Brighmess Control [~@)

Use thii to set the background to black.

Most of the latestapplication software utilizes coloured background and this control

is usually set atits maximum.

(4) Horizontal Size [~]

Adjust this control to the preferred horizontal width. If the width is too wide, partof

information will lx missed from the screen.

(5) Horizontal Position [~]

Adjust this to place the display at thecentre of the screen.

415MVX User Manual

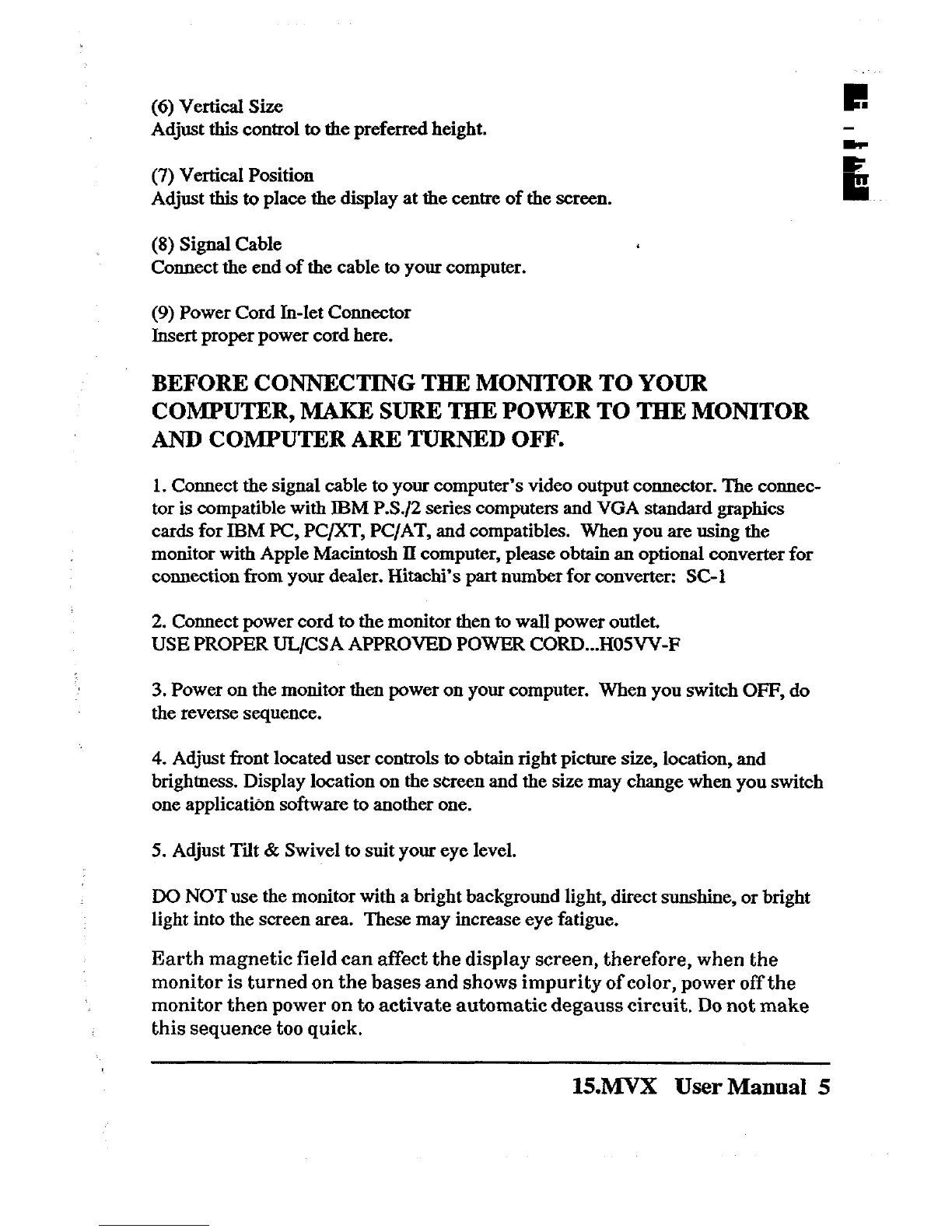

(6) Vertical Size

Adjust thiscontrol to the preferred height.

(7) Vertical Position

Adjust this to place the display at the centre of the screen.

(8) Signal Cable

Connect the end of the cable to your computer.

(9) Power Cord In-let Comector

Insertproper power cord here.

BEFORE CONNECTING THE MONITOR TO YOUR

COMPUTER, MAKE SURE THE POWER TO THE MONITOR

AND COMPUTER ARE TURNED OFF.

1. Connect the signal cable to your computer’s video outputconnector. The connec-

tor is compatible with IBM P.S./2 series computers and VGA standardgraphics

cards for IEM PC, PC/XT, PC/AT, and compatibles. When you are using the

monitor with Apple Macintosh II computer, please obtain an optioml converter for

connection from your dealer. Hitachi’s pantnumber for converter: SC-1

2. Connect power cord to the monitor thento wall power outlet.

USE PROPER UL/CSA APPROVED POWER CORD...HO5F-F

3. Power on the monitor thenpower on your computer. When you switch OFF, do

the reverse sequence.

4, Adjust front located user controls to obtain right picture size, location, and

brightness. Display location on thescreen and the size may change when you switch

one application software to another one.

5. Adjust Tilt& Swivel to suit your eye level.

DO NOT use themonitor with abright background light, direct sunshine, or bright

light into the screen area. These may increase eye fatigue.

Earth magnetic field can affect the display screen, therefore, when the

monitor is turned on the bases and shows impurity of color, power off the

monitor then power onto activate automatic degauss circuit. Do not make

this sequence too quick.

15.MVX User Manual 5

:@COMPATIBILITY>

❑15MVX is compatible with

1. IBM PS/2 series computers with MCGA, VGA XGA and 8514/A graphics

standards. Signal cable is conilgured as IBM 8514 monitor.

2. Most of the VGA and Super VGA standardgraphics boards available for the PC,

PC/AT,PS/2 and EISA bus computers. Please ask your dealer for details.

3. Apple Macintosh II computer with Macintosh Video Card. You haveto obtain a

15 pinto 15pin converter (Hitachi partsxSC- 1)from your dealer.

Connector Pm Assignment

Pin#

1Red Video

2Green Video

3Blue Video

4Ground

5Ground

6Red Ground

7Green Ground

8Blue Ground

Pin#

9No Pin

10 Ground

11 Ground

12 No Pin

13 Horizontal Sync

14 Vertical Sync

15 No Connection

615MVX User Manual

CRT

input Signal

Synchronization

Resolution

Video Band Width

Active D~play Area

Miswnvergence

Power Supply

Power Consumption

Dmensions

Weight

Environmental

Conditions

15(14V) inches diagonal, 0.28 mm dot pitch Black ~

mati Silica coa~ Short Persistence. m

Video: 0.7 Vpp

Sync: SeparatemV or Composite H/V lTL level or

Sync on Oreen at0.3 Vpp.

Horizontal 30 —58 kHz

Vertical 5O—1OOHZ

Automatically synchronize.

Horizontal: Up to 1024 dots

Vertical: Up to 768 lines

75 MHz “

Horizontal: 260 mm

Verticak 195 mm

Active display areais changed by the graphics board

standard.

Less than0.5 mm

AC 200--240 V, 50 Hz

100 WApproximately

358 (W) X378 ~X414@) mm

Jncluding Tilt& Swivel base.

16.5 kg

Operation Storage

Temperature 5°C to 35°C -20°C to 60”C

Humidity: 30% to 80% 10% to 90%

15MVX User Manual 7
