Hitachi LE70EC04AUD Manual

176.6cm (69.5") Full HD LED LCD TV

Installation & Operating Instructions - Please keep for future reference!

Model: LE70EC04AUD

These instructions contain important information which will help you get the best from your

television and ensure safe and correct installation and operation.

Important - Please read these instructions fully before installing or operating

Contents

Safety Information 3 - 4

Accessories included 5

Viewing remote control - TV 6-8

TV - Control buttons (Right side) 9

01Left side connections explained

11Connection to external devices

Remote control - Inserting batteries 12

Switching the TV On and Off 12

Getting Started 5 - 12

How to navigate menus 13

Electronic programme guide (EPG) (DTV

mode) 13

Teletext (ATV mode) 14

Digital Teletext (DTV mode) 15

Time Shift Function (DTV mode) 15-16

Recording DTV Programme onto a USB

Storage Device 16

Timer Programming 17

Play Recorded Programme 18

Channel management (ATV / DTV Mode)

19-21

Picture management 21

Basic Features 13 - 37

Viewing Photo 33

Listening to Music 34

Viewing Movies 35

My Text 36

Entertainment 33 - 36

Sound management 22

Time management 22-24

Lock management 25-27

Setup management 28-32

37-39gnitoohselbuorT

Other information 37 - 39

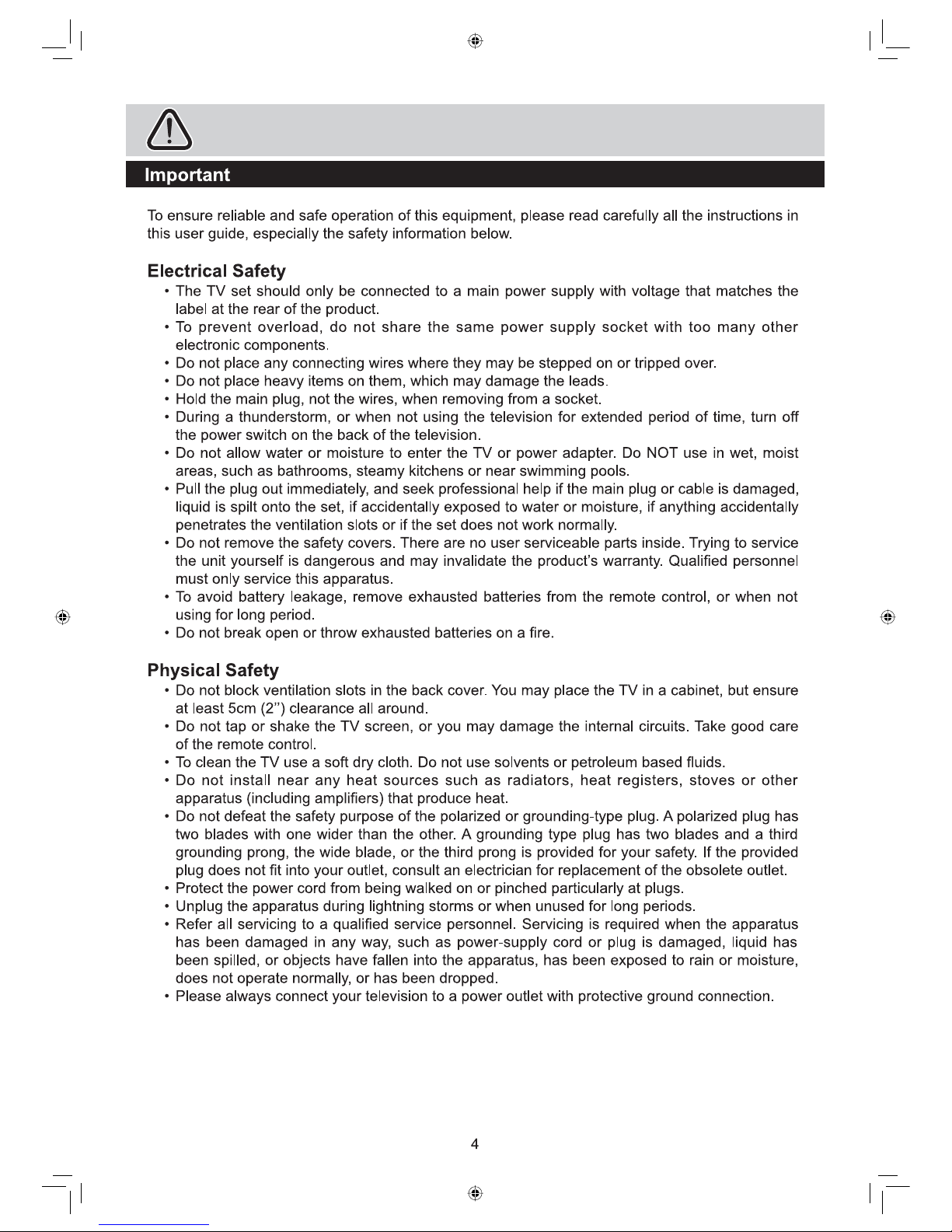

Safety Information

- Please read these instructions fully before installing or operating

Switches the TV between on and standby

mode.

2. MUTE

Mutes and restores your TV sound.

7. 0-9 Number Button

Press to select a programme. (ATV / DTV

mode)

Return to the previous viewing channel. (ATV

/ DTV mode)

6. P.MODE

Select picture mode: Dynamic / Standard /

Mild / Personal.

4. S.MODE

Select sound mode: Standard / Music / Movie

/ Sports / Personal.

Press it to enter a program number for multiple

program channels

10.DISPLAY

Display the present screen information such

as the current channel and the input source.

11. FREEZE

Freeze the current screen, press again to

release it.(TV mode)

12. AUTO

Adjust the picture (PC mode)

Record the current programme (DTV mode)

13. RED/GREEN/YELLOW/BLUE

Press these buttons directly to select

corresponding function on the screen.

3. NICAM/A2

Switch between different audio channels (only

applicable when the TV programme has this

feature).

5. ASPECT

Select from the following mode settings: 16:9

/ Zoom1 / Zoom2 / Auto / 4:3.

Getting Started

Viewing remote control - TV

NICAM/A2 ASPECT

DISPLAY FREEZE AUTO

BLUEYELLOWGREENRED

SLEEP SOURCE

MENU EXIT

SUBTITLE

T.SHIFT

HOLD REVEAL SIZE

INDEX S.PAGE

TEXT FAV AUDIO

DTV EPG

TV/RADIO

CH VOL

PMODE SMODE

123

654

789

-/--

ENTER

Getting Started

Viewing remote control - TV

NICAM/A2 ASPECT

DISPLAY FREEZE AUTO

BLUEYELLOWGREENRED

SLEEP SOURCE

MENU EXIT

SUBTITLE

T.SHIFT

HOLD REVEAL SIZE

INDEX S.PAGE

TEXT FAV AUDIO

DTV EPG

TV/RADIO

CH VOL

PMODE SMODE

123

654

789

-/--

ENTER

15. SOURCE

Select among the different input signal

sources: ATV /DTV / Media / AV1 / AV2 / PC /

Component1 / Component2 / HDMI1 /

HDMI2 / HDMI3 .

20. CH /

Select a channel.

21. VOL /

Adjust the volume.

14. SLEEP

Set the TV sleep timer.

16.

Allows you to navigate the OSD menus

and adjust the system settings to your

preference.

ENTER

Confirm the selection in the OSD menus.

Display a list of channels saved in the TV

tuner memory.

17. MENU

Display the OSD (On Screen Display) menu.

18. EXIT

Exit the OSD (On Screen Display) menu.

19. SUBTITLE

Display the subtitle which is broadcast with

the program.(DTV mode)

22. T.SHIFT

Start the time-shift function. (DTV mode)

23.

HOLD

Freezes a multi-page passage on screen

in teletext. (ATV / DTV mode)

To start the timeshift playback. (DTV mode)

To start playback or pause. (Media mode)

Getting Started

Viewing remote control - TV

24.

25.

26.

27.

To reverse playback rapidly. (Media mode)

To enlarge the picture on the TV in teletext.

(ATV / DTV mode)

To skip to the beginning of the next chapter /

track / photo. (Media mode)

To skip to the beginning of the next chapter /

track / photo. (Media mode)

INDEX

To select the page number of the index from

teletext. (ATV / DTV mode)

REVEAL

SIZE

Reveals hidden information such as the

answer to a quiz in teletext. (ATV / DTV

mode).

S.PAGE

TEXT

Displays the subpage on the teletext screen.

(ATV / DTV mode)

NICAM/A2 ASPECT

DISPLAY FREEZE AUTO

BLUEYELLOWGREENRED

SLEEP SOURCE

MENU EXIT

SUBTITLE

T.SHIFT

HOLD REVEAL SIZE

INDEX S.PAGE

TEXT FAV AUDIO

DTV EPG

TV/RADIO

CH VOL

PMODE SMODE

123

654

789

-/--

ENTER

Press once to stop. (Media mode)

28.

29.

FAV

30.

To skip to the beginning of the previous

chapter / track / photo. (Media mode)

Turn on and off the Teletext function. (ATV /

DTV mode)

Display the Favourite Channel list. ( ATV /

DTV

31.

To select DTV source. (DTV mode)

AUDIO

32.

To select different audio language.(DTV mode)

DTV mode)

34. TV/RADIO

Select TV program or Radio program. (DTV

mode).

33. EPG

Display the EPG (Electronic Program

Guide). (DTV mode)

Getting Started

TV - Control buttons (Right Back)

noitpircseDmetI

1 LED Indicator

Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby

mode. The LED will illuminate blue when the timer recording has started in the

standby mode.

2 IR (Infrared Receiver) Receives IR signals from the remote control.

3VOL Adjust the volume.

Select and adjust a setting in the OSD (On Screen Display) menus.

4CH Select a channel.

Select a sub-menu of the OSD menu.

5 MENU Displays the OSD menu.

6SOURCE ATV / DTV/ Media /AV1/ AV2/PC/Component1/Component2/HDMI1/HDMI2/HDMI3.

7Switch the TV on from standby.

Switch the TV back to standby.

Connections

Left side connections explained

noitpircseDmetI

1 POWER

Power ON/OFF.

USB Connect to external driver for PVR function and muti-media playback.

HDMI1/2/3 player, or AV receiver.

PC ANALOG / PC AUDIO Connect to a computer or other devices with a VGA interface.

COAXIAL

ANT Connect to the aerial sockdt on wall with the RF coaxial cable.

VIDEO / AUDIO (L/R) Connect to the composite VIDEO and AUDIO (L / R) output sockets on external video

devices.

Connect earphones for private listening.

Y, P B , P R Connect to a DVD player, Digital Set-Top-Box, or other AV devices

with component (YPbPr) video and audio output sockets.

POWER PC ANALOG PC AUDIO COAXIAL ANT

YPBPR

COMPONENT IN 1

COMPONENTIN 1/AV IN1

AV IN1

VIDEO R LAUDIO

YPBPR

COMPONENT IN 2

COMPONENTIN 2/AV IN2

AV IN1

VIDEO R LAUDIO

1 2 3 4 55 76 8

9 9
