Hitachi SJ300 Series User manual

• Three-phase Input 200V Class

• Three-phase Input 400V Class

UL Version Models CE Version Models

Manual No. NB6131XF • September 2006

Hitachi Industrial Equipment Systems Co., Ltd.

SJ300 Series Inverter

Quick Reference Guide

Caution: Be sure to read the SJ300 Inverter Manual and follow

its Cautions and Warnings for the initial product installation.

This Quick Reference Guide is intended for reference use by

experienced users in servicing existing installations.

UL®Cautions, Warnings, and Instructions

Wiring Warnings for Electrical Practices and Wire Sizes

The Cautions, Warnings, and instructions in this section summarize the

procedures necessary to ensure an inverter installation complies with

Underwriters Laboratories®guidelines.

Warning: “Use 60/75°C Cu wire only” or equivalent.

Warning: “Open Type Equipment.” For models SJ300–750H to

SJ300–1500H.

Warning: “Suitable for use on a circuit capable of delivering

not more than 100,000 rms symmetrical amperes, 240 V

maximum.” For models with suffix L.

Warning: “Suitable for use on a circuit capable of delivering

not more than 100,000 rms symmetrical amperes, 480 V

maximum.” For models with suffix H.

Terminal Tightening Torque and Wire Size

The wire size range and tightening torque for field wiring terminals are

presented in the tables below.

200V Models

Motor output Inverter

Model Wire Size (AWG)

Torque

kW HP ft-lbs (N-m)

0.4 1/2 –004LFU 20 1.1 1.5

0.75 1 –007LFU 18 1.1 1.5

1.5 2 –015LFU 14 1.1 1.5

2.2 3 –022LFU 14 1.1 1.5

3.7 5 –037LFU 10 1.1 1.5

5.5 7 1/2 –055LFU 8 1.8 2.5

7.5 10 –075LFU 6 1.8 2.5

11 15 –110LFU 4 3.6 4.9

15 20 –150LFU 2 3.6 4.9

18.5 25 –185LFU 1 3.6 4.9

22 30 –220LFU 1/0 AWG 6.5 8.8

30 40 –300LFU 1/0 || 1/0 AWG 6.5 8.8

37 50 –370LFU 1/0 || 1/0 AWG 6.5 8.8

45 60 –450LFU 1/0 || 1/0 AWG 10.1 13.7

55 75 –550LFU 2/0 || 2/0 AWG 10.1 13.7

400V Models

Motor output Inverter

Model Wire Size (AWG)

Torque

kW HP ft-lbs (N-m)

0.75 1 –007HFU/E 20 1.1 1.5

1.5 2 –015HFU/E 18 1.1 1.5

2.2 3 –022HFU/E 16 1.1 1.5

4.0 5 –037HFU/E 14 1.1 1.5

5.5 7 1/2 –055HFU/E 12 1.8 2.5

7.5 10 –075HFU/E 10 1.8 2.5

11 15 –110HFU/E 8 3.6 4.9

15 20 –150HFU/E 6 3.6 4.9

18.5 25 –185HFU/E 6 3.6 4.9

22 30 –220HFU/E 4 3.6 4.9

30 40 –300HFU/E 3 3.6 4.9

37 50 –370HFU/E 1 3.6 4.9

45 60 –450HFU/E 1AWG (75°C) 6.5 8.8

55 75 –550HFU/E 1/0 || 1/0 AWG 6.5 8.8

75 100 –750HFU/E 3/0 (1/0 || 1/0

AWG)

6.5 8.8

90 125 –900HFU/E 10.1 13.7

110 150 –1100HFU/E 1/0 || 1/0 AWG 10.1 13.7

200V Models

Motor output Inverter

Model Wire Size (AWG)

Torque

kW HP ft-lbs (N-m)

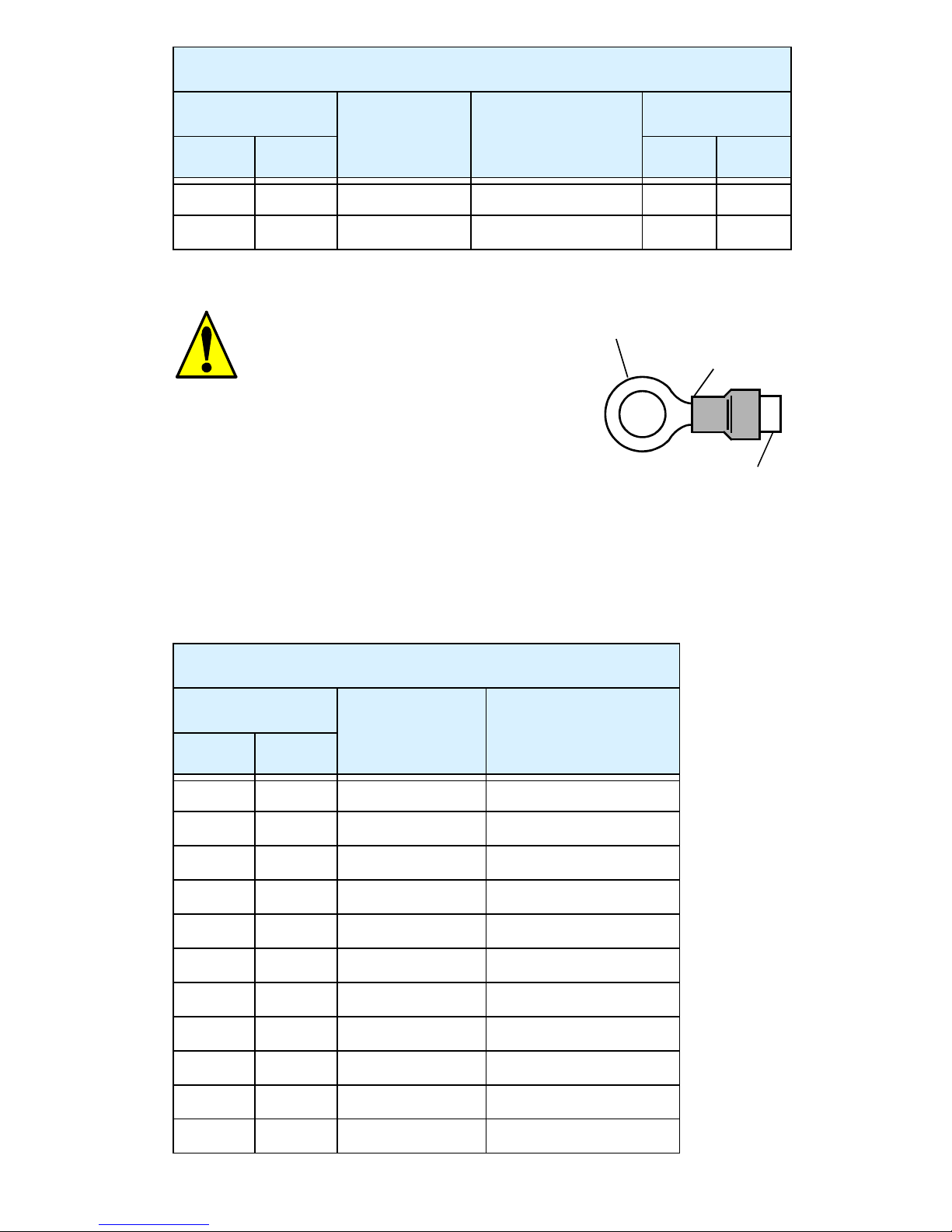

Wire Connectors

Warning: Field wiring connections

must be made by a UL Listed and CSA

Certified ring lug terminal connector

sized for the wire gauge being used.

The connector must be fixed using the

crimping tool specified by the con-

nector manufacturer.

Fuse and Circuit Breaker Sizes

The inverter’s input power wiring must include UL Listed, dual-element,

600V fuses, or UL Listed, inverse-time, 600V circuit breakers.

132 175 –1320HFU/E 3/0 || 3/0 10.1 13.7

150 200 –1500HFU/E 3/0 || 3/0 10.1 13.7

200V Models

Motor output Inverter

Model

Ampere Rating for

Fuse or Breaker

kW HP

0.4 1/2 –004LFU 10

0.75 1 –007LFU 10

1.5 2 –015LFU 10

2.2 3 –022LFU 15

3.7 5 –037LFU 20

5.5 7 1/2 –055LFU 30

7.5 10 –075LFU 40

11 15 –110LFU 60

15 20 –150LFU 80

18.5 25 –185LFU 100

22 30 –220LFU 125

400V Models

Motor output Inverter

Model Wire Size (AWG)

Torque

kW HP ft-lbs (N-m)

Terminal (ring lug)

Cable support

Cable

30 40 –300LFU 150

37 50 –370LFU 175

45 60 –450LFU 225

55 75 –550LFU 250

400V Models

Motor output Inverter

Model

Ampere Rating for

Fuse or Breaker

kW HP

0.75 1 –007HFU/E 10

1.5 2 –015HFU/E 10

2.2 3 –022HFU/E 10

4.0 5 –037HFU/E 15

5.5 7 1/2 –055HFU/E 15

7.5 10 –075HFU/E 20

11 15 –110HFU/E 30

15 20 –150HFU/E 40

18.5 25 –185HFU/E 50

22 30 –220HFU/E 60

30 40 –300HFU/E 70

37 50 –370HFU/E 90

45 60 –450HFU/E 125

55 75 –550HFU/E 125

75 100 –750HFU/E 175

90 125 –900HFU/E 200

110 150 –1100HFU/E 250

132 175 –1320HFU/E 300

150 200 –1500HFU/E 300

200V Models

Motor output Inverter

Model

Ampere Rating for

Fuse or Breaker

kW HP

Motor Overload Protection

Hitachi SJ300 inverters provide solid state motor overload protection,

which depends on the proper setting of the following parameters:

• B012 “electronic overload protection”

• B212 “electronic overload protection, 2nd motor”

• B312 “electronic overload protection, 3rd motor”

Set the rated current [Amperes] of the motor(s) with the above parame-

ters. The setting range is 0.2 * rated current to 1.2 * rated current.

Warning: When two or more motors are connected to the

inverter, they cannot be protected by the electronic overload pro-

tection. Install an external thermal relay on each motor.

Power Circuit Terminals

(L1)

R(L2)

S(L3)

T(+1)

PD (T2)

V(T3)

W(G)(G)

(R0)

(T0)

(L1)

R(L2)

S(L3)

T(+1)

PD (+)

P(T2)

V(T3)

(G)(G)

(R0)

(T0)

(L1)

R(L2)

S(L3)

(+1)

PD (+)

(T2)

V(T3)

(G) (G)(R0)

(T0)

(–)

N(T1)

(+)

P(–)

N(T1)

(–)

(T1)

(RB)

Inverter models:

–004LFU,

–007 to –055LFU,

–007 to –055HFE, HFU

(L1)

R(L2)

S(L3)

(+1)

PD (+)

(T2)

V(T3)

(G) (G) (R0)

(T0)

(–)

(T1)

(RB)

Inverter models:

–075LFU

–075HFE, HFU,

–110LFU

–110HFE, HFU

Inverter models:

–150LFU, 185LFU,

–300LFU, –370LFU,

–150 to –550HFE, HFU

Inverter models:

–220LFU, –450LFU, –550LFU

–750 to –1100HFE, HFU,

–1320HFE, –1500HFU

Jumper

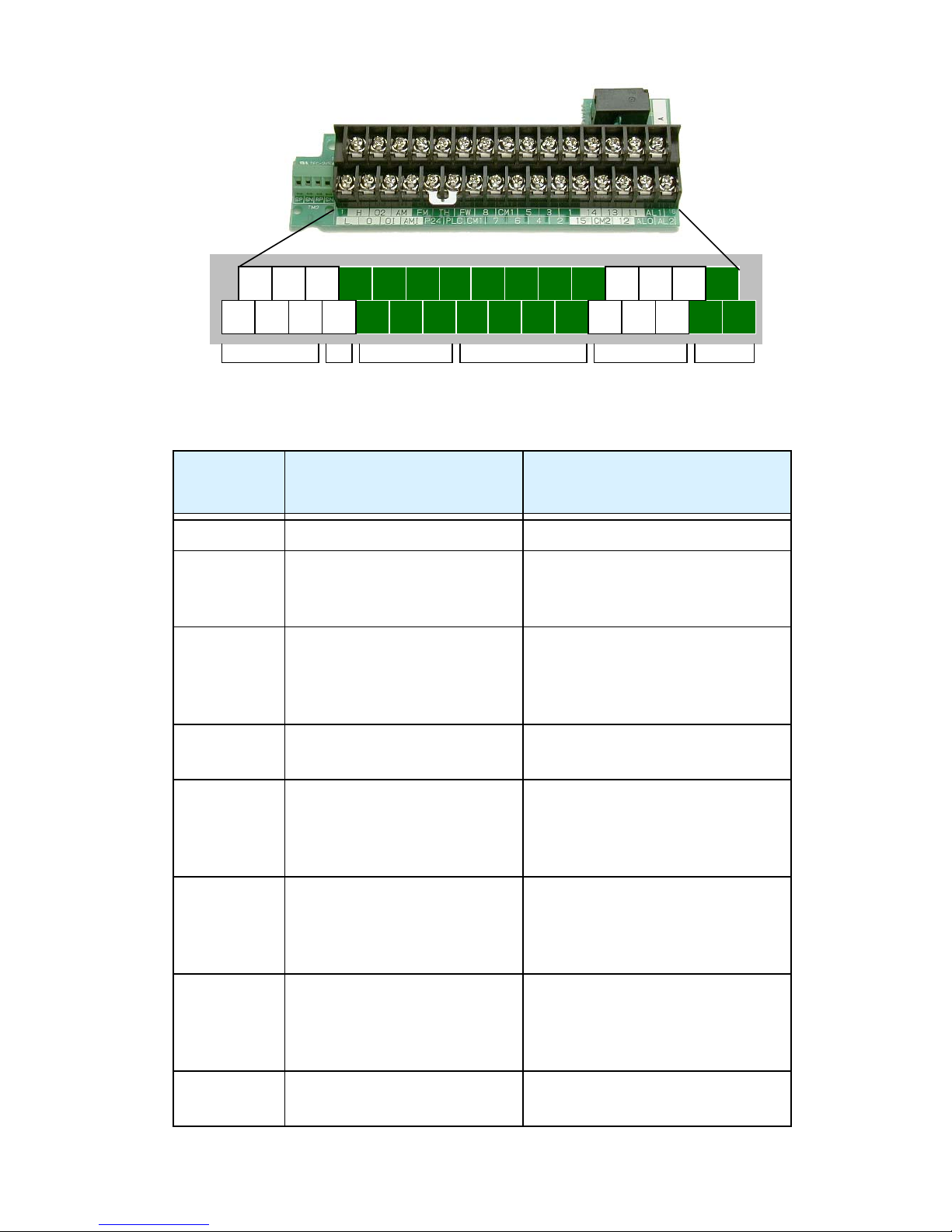

Control Circuit Terminals

Terminal

Name Description Ratings and Notes

P24 +24V power for inputs 24VDC supply, 100 mA max.

CM1 +24V common Common for 24V supply,

FW, TH, inputs 1 to 8, and

FM. (Note: Do not ground)

PLC Common for logic inputs Common for input terminals

1 to 8, jumper to CM1 for

sinking, jumper to P24 for

sourcing

CM2 Common for logic outputs Common for output termi-

nals 11 to 15

1, 2, 3, 4,

5, 6, 7, 8

Intelligent (program-

mable) discrete logic

inputs

27VDC max. (use P24 or an

external supply referenced to

terminal CM1), 4.7kΩinput

impedance

FW Forward/stop command 27VDC max. (use P24 or an

external supply referenced to

terminal CM1), 4.7kΩinput

impedance

11, 12, 13,

14, 15

Intelligent (program-

mable) discrete logic

outputs

Open collector type, 50mA

max. ON state current, 27

VDC maximum Off state

voltage

TH Thermistor input Reference to CM1, min.

thermistor power 100mW

L O OI

P24

PLC

CM1

6 4 2

CM2 ALO

AL2

AL1

115 3 1

CM1

FWFM

AMI

Analog

inputs

Analog

outputs

Power Alarm

relay

Logic

inputs

Logic

outputs

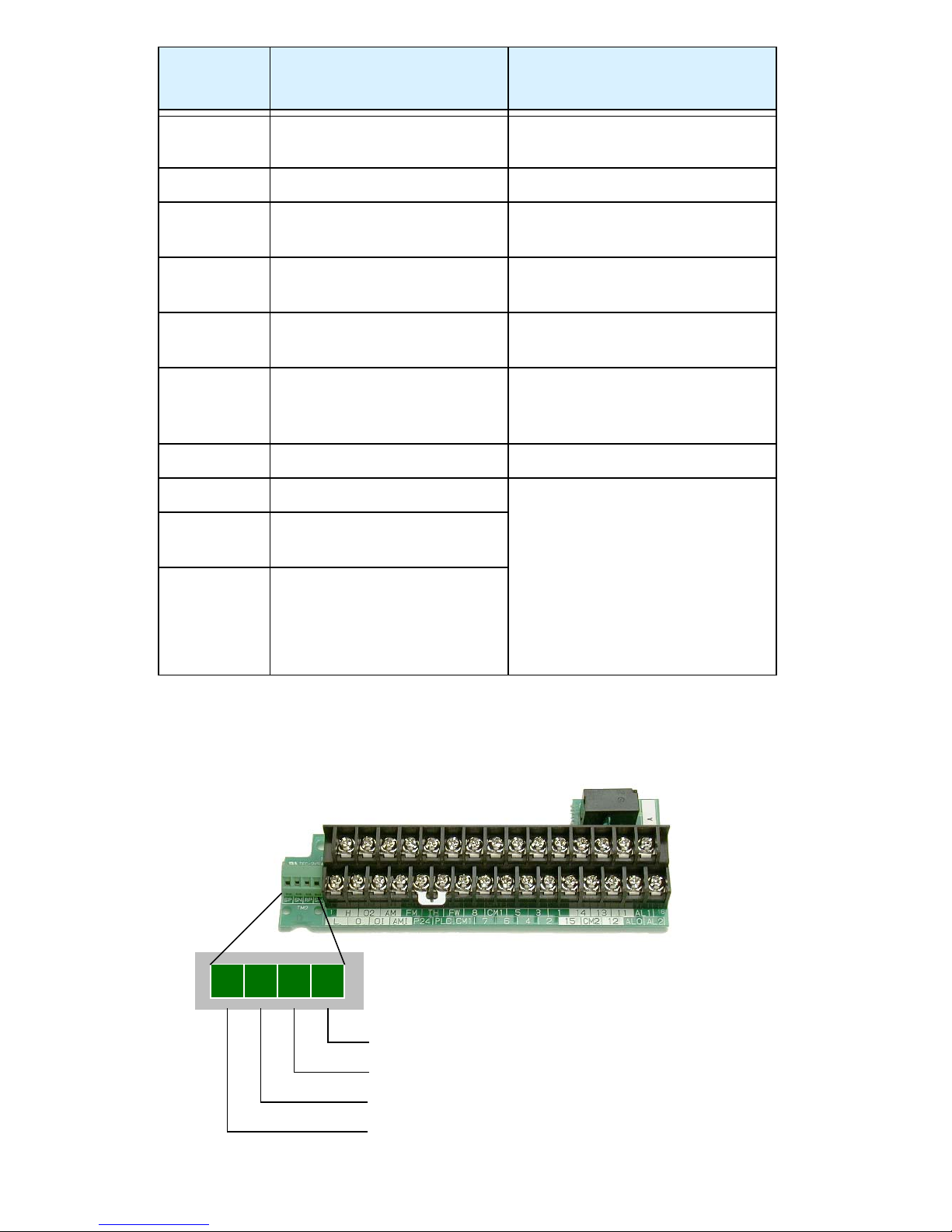

Serial Port Terminals

FM PWM output 0 to 10VDC, 1.2 mA max.,

50% duty cycle

AM Voltage analog output 0 to 10VDC, 2 mA max.

AMI Current analog output 4-20 mA, nominal load

impedance 250Ω

L Common for analog

inputs

Sum of OI, O, and H currents

(return)

OI Analog input, current 4 to 19.6 mA range, 20 mA

nominal

O Analog input, voltage 0 to 9.6 VDC range, 10VDC

nominal, 12VDC max., input

impedance 10 kΩ

H +10V analog reference 10VDC nominal, 10 mA max.

AL0 Relay common contact Contacts AL0–AL1, max resistive

load = 250VAC 2A; 30VDC 8A;

max inductive 250VAC, 0.2A;

30VDC 0.6A

Contacts AL0–AL2, max resistive

load = 250VAC 1A; 30VDC 1A;

max inductive = 250VAC, 0.2A;

30VDC 0.2A

Both contact pairs, min. loads =

100VAC 10mA; 5VDC 100mA

AL1 Relay contact, normally

closed during RUN

AL2 Relay contact, normally

open during RUN

Terminal

Name Description Ratings and Notes

RPSP SN

Termination resistor (–)

Termination resistor (+)

Send/receive (–) Negative

Send/receive (+) Positive
