Hitachi L100 Series User manual

• Single-phase Input 200V Class

• Three-phase Input 200V Class

• Three-phase Input 400V Class

Manual No. NB5412XD • Dec. 2003

Hitachi Industrial Equipment Systems Co., Ltd.

HITACHI

L100 Series Inverter

Quick Reference Guide

Caution: Be sure to read the L100 Inverter Manual and

follow its Cautions and Warnings for the initial product

installation. This Quick Reference Guide is intended for

reference use by experienced users in servicing existing

installations.

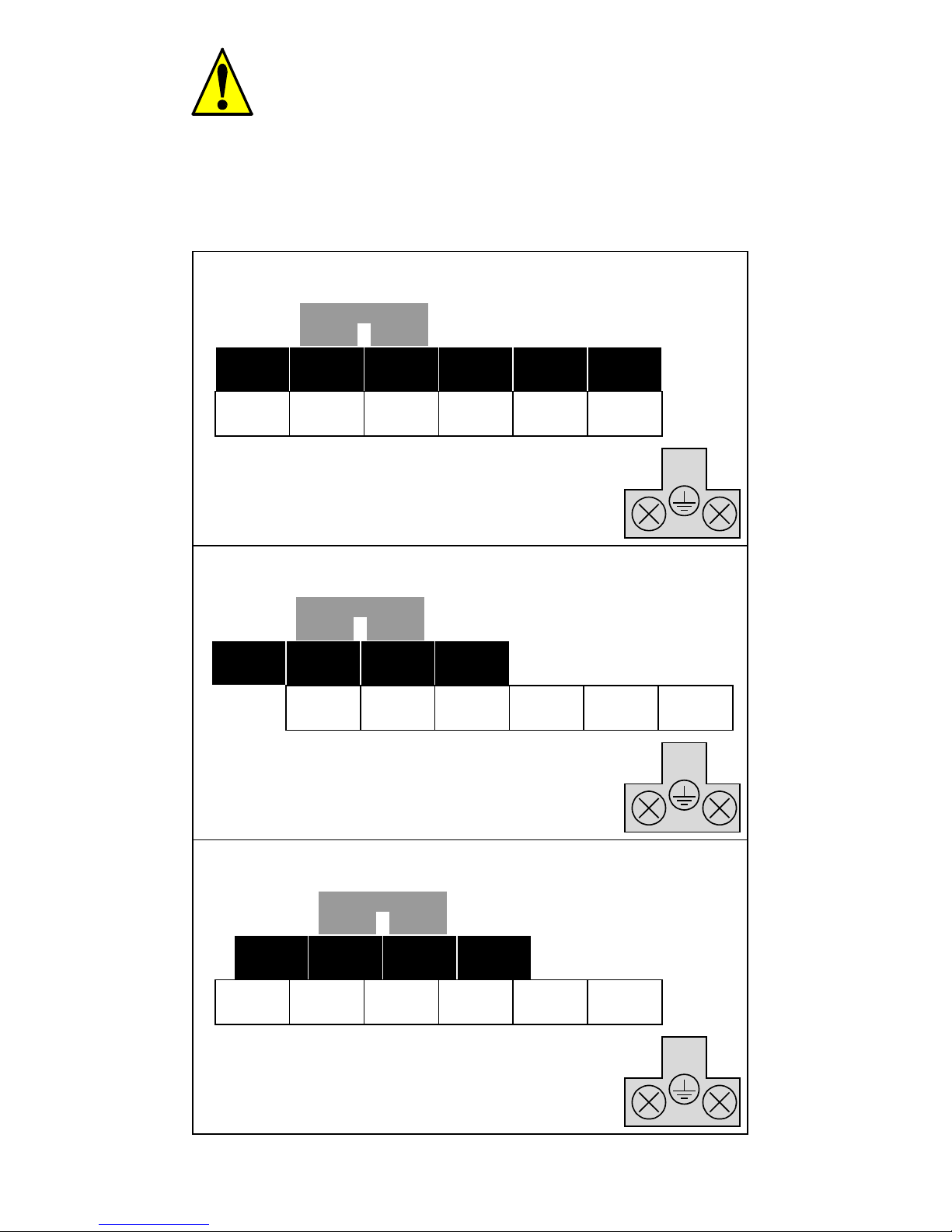

Power Circuit Terminals

–002NFE/NFU, –004NFE/NFU, –005NFE

Jumper

(/) +1 + –

L1 L2 N/L3 U/T1 V/T2 W/T3

Chassis

Ground

–007 to 022NFE/NFU, –037LFU, 004 to 040HFE/HFU

Jumper

(/) +1 + –

L1 L2 N/L3 U/T1 V/T2 W/T3

Chassis

Ground

–055LFU, –075LFU, 055HFE/HFU, 075HFE/HFU

Jumper

(/) +1 + –

L1 L2 N/L3 U/T1 V/T2 W/T3

Chassis

Ground

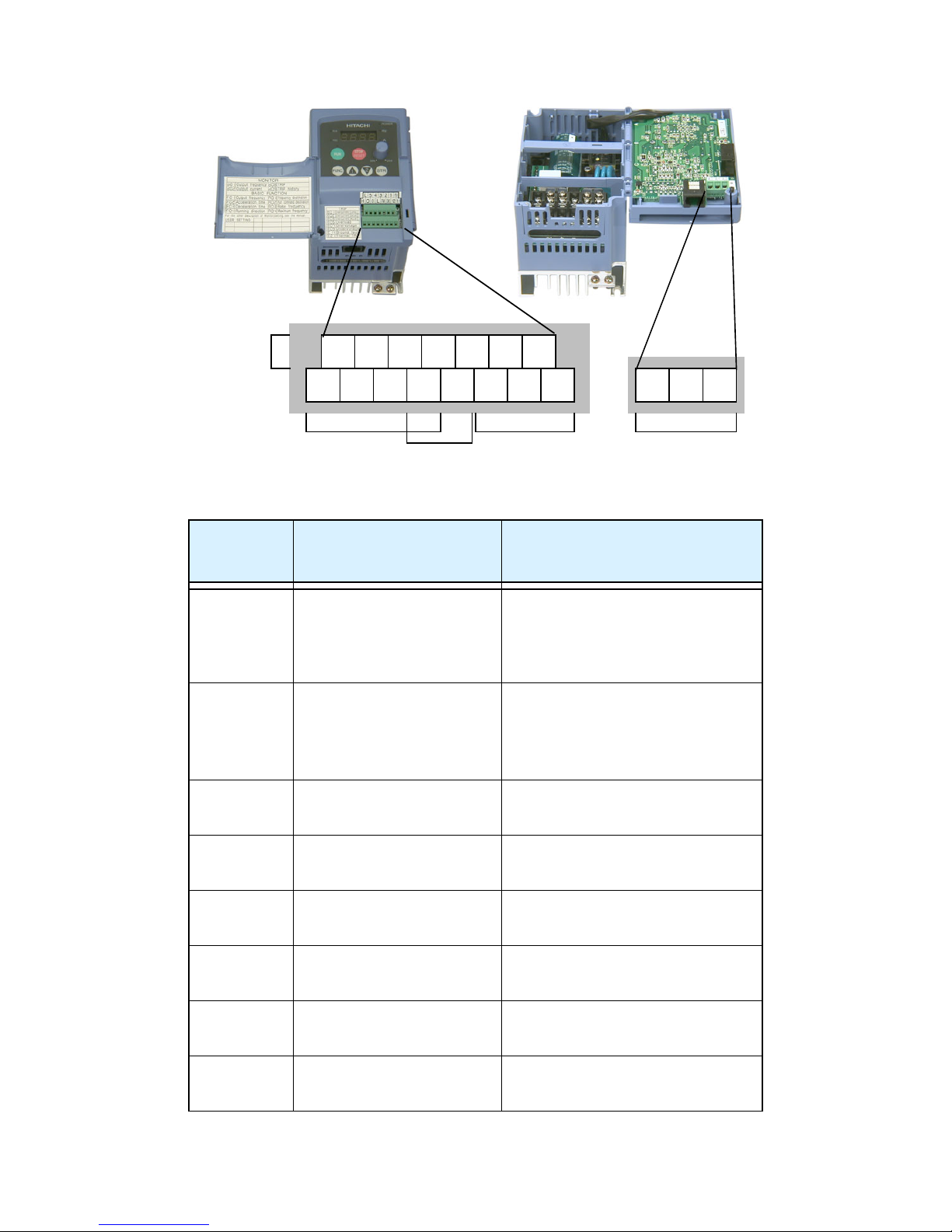

Control Circuit Terminals

Termina l

Name Description Ratings and Notes

P24 +24V for logic inputs 24VDC supply, 30 mA max.

(Notes: Do not use for

network power

Do not short to terminal L)

1, 2, 3, 4,

Intelligent (program-

mable) discrete logic

inputs

27VDC max. (use P24 or an

external supply referenced to

terminal L), 4.7kΩinput

impedance

11, 12 Discrete logic outputs 50 mA max. ON current,

27 VDC max. OFF voltage

L (top

row)

GND for logic inputs Sum of input 1 to 5 currents

(Note: Do not ground)

CM2 Common for logic

outputs

100 mA max for sum of

terminals 11 and 12 currents

FM PWM output 0 to 10VDC, 1 mA max.,

50% duty cycle

L (bottom

row)

Common for analog

inputs

Sum of OI, O, and H

currents (return)

OI Analog input, current 4 to 19.6 mA range, 20 mA

nominal

H O OI

P24

Analog

inputs Analog

outputs

Alarm

relay

Logic

outputs

Logic

inputs

54321

CM2

12 11

AL0 AL1 AL2

O Analog input, voltage 0 to 9.6 VDC range, 10VDC

nominal, 12VDC max., input

impedance 10 kΩ

H +10V analog reference 10VDC nominal, 10 mA

max.

AL0 Relay common contact Contact rating

Max resistive load = 250VAC,

2.5A; 30VDC 3A;

Max inductive load = 250VAC,

0.2A; 30VDC 0.7A

Minimum load = 5VDC 100mA,

100VAC, 10mA

AL1 Relay contact,

normally closed

during RUN

AL2 Relay contact,

normally open during

RUN

Termina l

Name Description Ratings and Notes

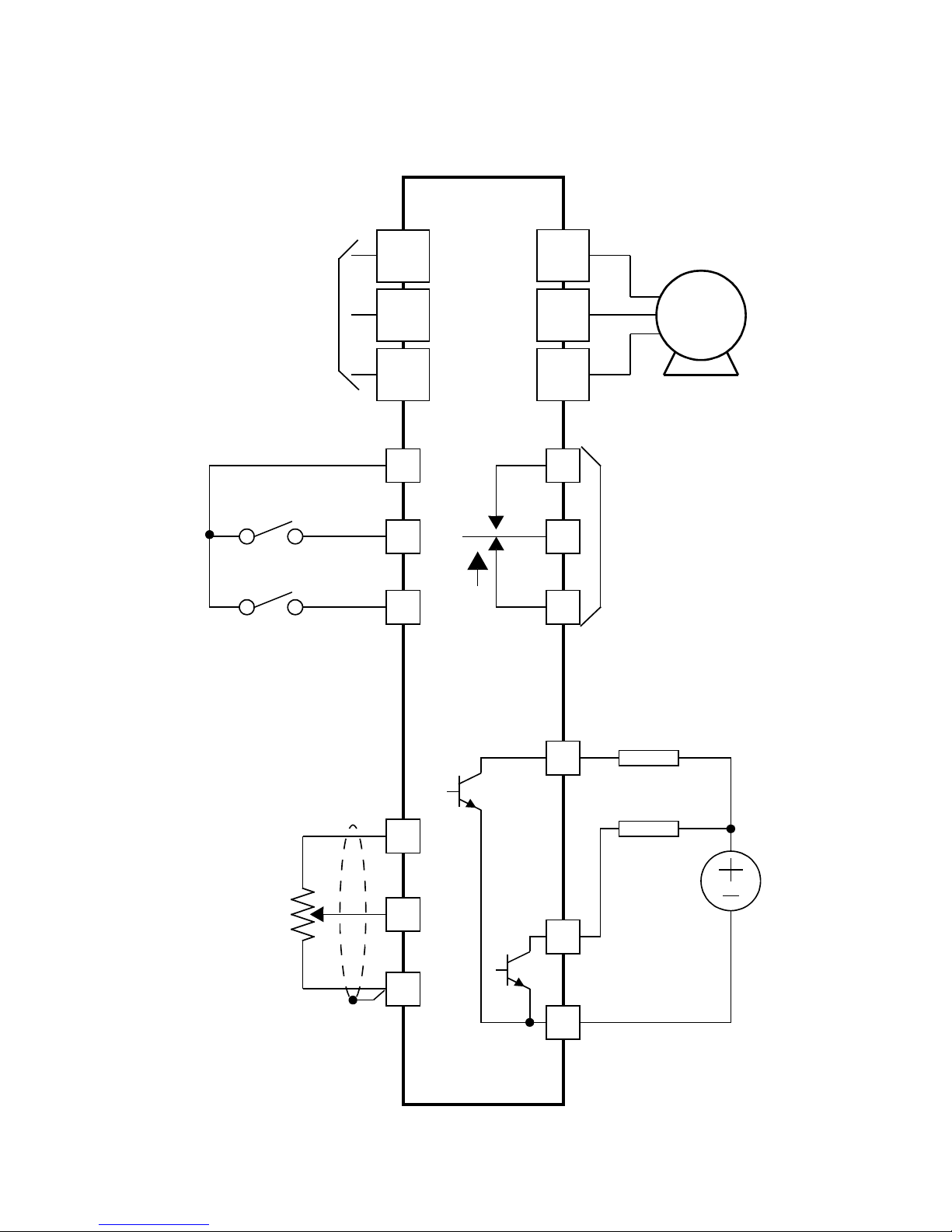

Basic Wiring Diagram

The following wiring diagram shows the power and motor connec-

tions for basic operation. The optional signal input wiring supports

external Fwd and Rev Run command, and a speed potentiometer.

(L1)

(L2)

(N/L3)

(T2)

(T3)

(T1)

Motor

Forward

Reverse

Alarm contacts,

1 Form C

Run signal

Frequency

arrival signal

Open collector

outputs:

External

speed

reference

pot.

L100

From 3-phase

power input

source (See

specifications

label on inverter

for details)

Logic output

common

Load

Analog common

Analog reference

P24

CM2

AL0

AL1

AL2

Inputs:

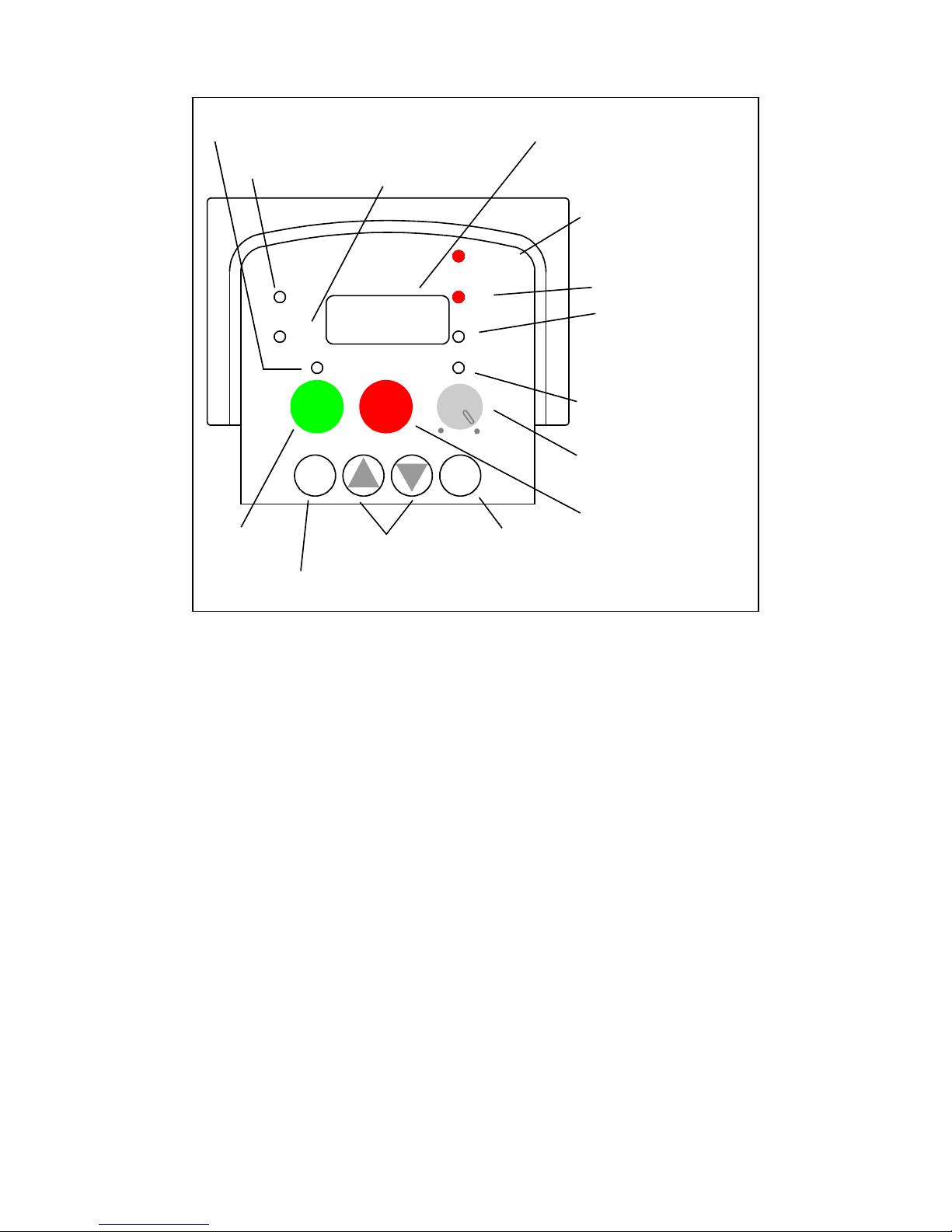

Inverter Keypad Operation

•Run/Stop LED – ON when the inverter output is ON and the

motor is developing torque, and OFF when the inverter output is

OFF (Stop Mode).

•Program/Monitor LED – ON when the inverter is ready for

parameter editing (Program Mode). It is OFF when the parameter

display is monitoring data (Monitor Mode).

•Run Key Enable LED – ON when the inverter is ready to

respond to the Run key, OFF when the Run key is disabled.

•Run Key – Press this key to run the motor (the Run Enable LED

must be ON first). Parameter F_04, Keypad Run Key Routing,

determines whether the Run key generates a Run FWD or Run

REV command.

•Stop/Reset Key – Press this key to stop the motor when it is

running (uses the programmed deceleration rate). This key will

also reset an alarm which has tripped.

(continued, next page...)

POWER

RUN

PRG

RUN STOP

RESET

MIN MAX

HITACHI

FUNC.

STR

50.0

Parameter Display

Run/Stop LED Program/Monitor LED

Run Key Enable LED

Run Key

Power LED

Display Units LEDs

Hertz

Amperes

Potentiometer

Enable LED

Potentiometer

Stop/Reset Key

Function Key

Up/Down Keys Store Key

•Potentiometer – Allows an operator to directly set the motor

speed when the potentiometer is enabled for output frequency

control.

•Potentiometer Enable LED – ON when the potentiometer is

enabled for value entry.

•Parameter Display – A 4-digit, 7-segment display for parame-

ters and function codes.

•Display Units: Hertz/Amperes – One of these LEDs will be ON

to indicate the units associated with the parameter display.

•Power LED – ON when the power input to the inverter is ON.

•Function Key – This key is used to navigate through the lists of

parameters and functions for setting and monitoring parameter

values.

•Up/Down Keys – Use these keys alternately to move up or down

the lists of parameter and functions shown in the display, and to

increment/decrement values.

•Store Key – When the unit is in Program Mode and the operator

has edited a parameter value, press the Store key to write the new

value to the EEPROM.

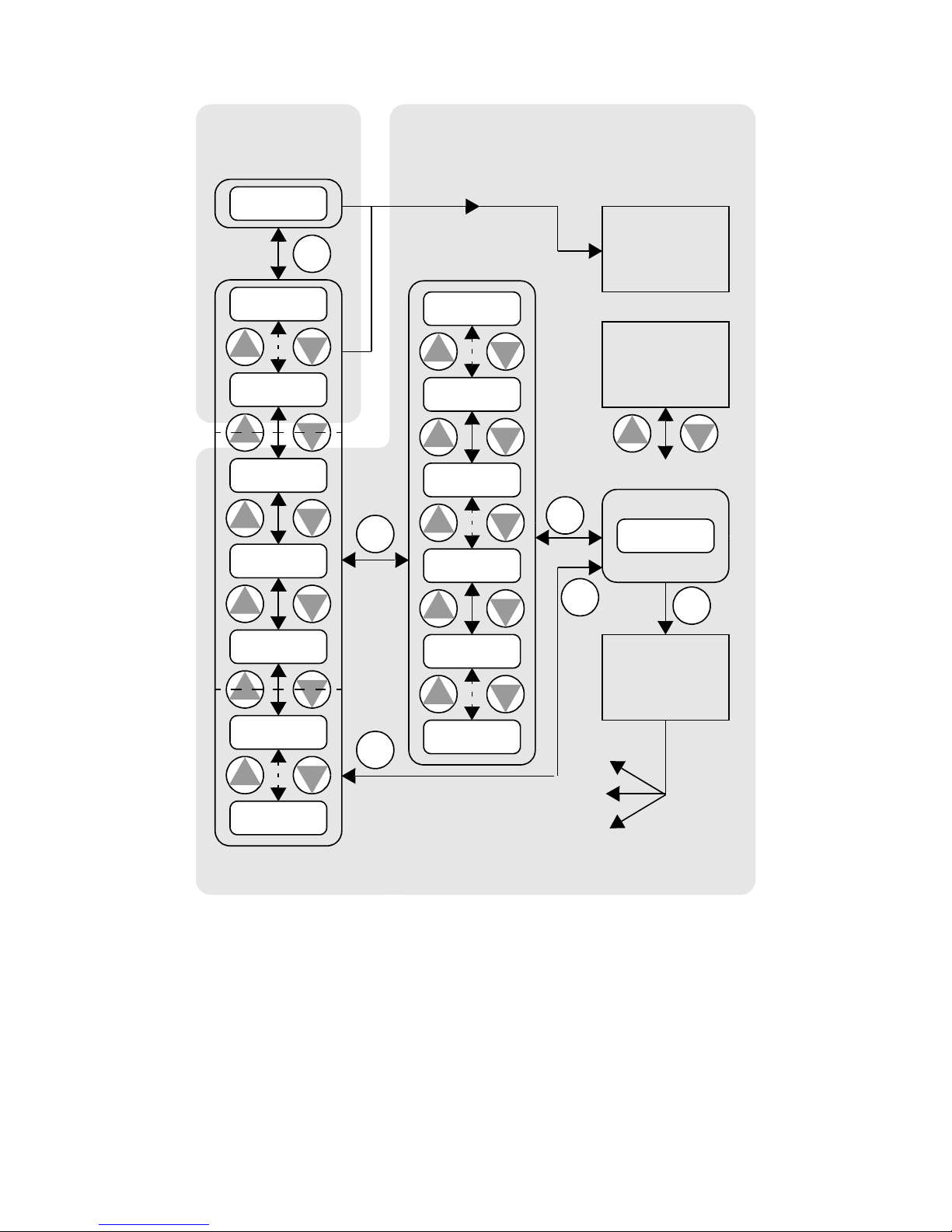

Keypad Navigation Map

c91

c01

A98

A01

C––

––

A––

F04

F01

o.0

123.4

Edit

Increment/

decrement

value

Write data

EEPROM

Display data

Monitor Mode Program Mode

FUNC.

STR

FUNC.

Return to

parameter list

FUNC.

Store as

powerup

default

powerdown

Select Parameter Edit Parameter

Powerup Test

The Powerup Test procedure uses minimal parameter settings to run

the motor. The procedure describes two alternative methods for

commanding the inverter: via the inverter keypad, or via the logic

terminals.

• Check power input and motor output wiring (see page 4 diagram).

• If using logic terminals for testing, verify correct wiring on [P24],

[FW], [H], [O], and [L] (bottom row) per the diagram on page 4.

• Reverse [RV] input wiring (defaults to terminal [2]) is optional.

Step Description Via Keypad Via Logic

Ter minals

1 Set speed command

source setting

A_01 = 00

(keypad pot.)

A_01 = 01,

[H–O–L] input

2 Set Run FW command

source

A_02 = 02

(Run key)

A_02 = 01,

[FW] input

3 Set Run REV command

source

— C_02 = 01,

[RV] input

4 Set motor base freq. A_03 = 60

5 Set keypad display to

monitor freq.

Access D_01, press Func key, display

will show 0.0

Perform safety check Disconnect load from motor

6 Turn keypad pot.

to MIN position

Ensure voltage on

[O]—[L] termi-

nals= 0V

7 Run Forward command Press Run key Turn ON the

[FW] terminal

8 Increase speed Rotate keypad

pot. CW dir.

Increase voltage

at [O]

9 Decrease speed Rotate keypad

pot. CCW dir.

Decrease voltage

at [O]

10 Stop motor Press Stop key Turn OFF the

[FW] terminal

11 Run Reverse command

(optional)

— Turn ON the [RV]

terminal

12 Stop motor — Turn OFF the

[RV] terminal

Error Codes

The L100 series inverters will trip on over-current, over-voltage, and

under-voltage to protect the inverter. The motor output turns OFF,

allowing the motor to free-run to a stop. Press the Stop/Reset key to

reset the inverter and clear the error.

Basic Error Codes

Error

Code Name Probable Cause(s)

E01 Over current event while

at constant speed

• Inverter output was short-circuited

• Motor shaft is locked

• Load is too heavy

• A dual-voltage motor is wired

incorrectly

Note: The L100 will over current trip

at nominally 200% of rated current

E02 Over current event during

deceleration

E03 Over current event during

acceleration

E04 Over current event for

other conditions

• DC braking power(A_54) set too

high

• Current transformer / noise error

E05 Overload protection • Motor overload is detected by the

electronic thermal function

E07 Over voltage protection • DC bus voltage exceeds a threshold,

due to regenerative energy from motor

E08 EEPROM error • Built-in EEPROM memory experi-

enced noise, high temperature, etc.

E09 Under-voltage error • DC bus voltage decreased enough to

cause a control circuit fault

E11

E22

CPU error • Built-in CPU had internal error

E12 External trip • [EXT] input signal detected

E13 USP (Unattended Start

Protection)

• When (USP) was enabled, an error

occurred when power was applied

while a Run signal was present

E14 Ground fault • A ground fault was detected

between the inverter output and the

motor. This feature protects the

inverter, and does not protect humans.

E15 Input over-voltage • Input voltage was higher than the

specified value, 60 sec. after powerup

E21 Inverter thermal trip • Inverter internal temperature is

above the threshold
