Hitachi G 13V Manual

POWER TOOLS

TECHNICAL DATA

AND

SERVICE MANUAL

ELECTRONIC DISC GRINDER

G 13YD

G 13V

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

LIST Nos. E241, E242 Feb. 2001

MODEL G 13YD

G 13V

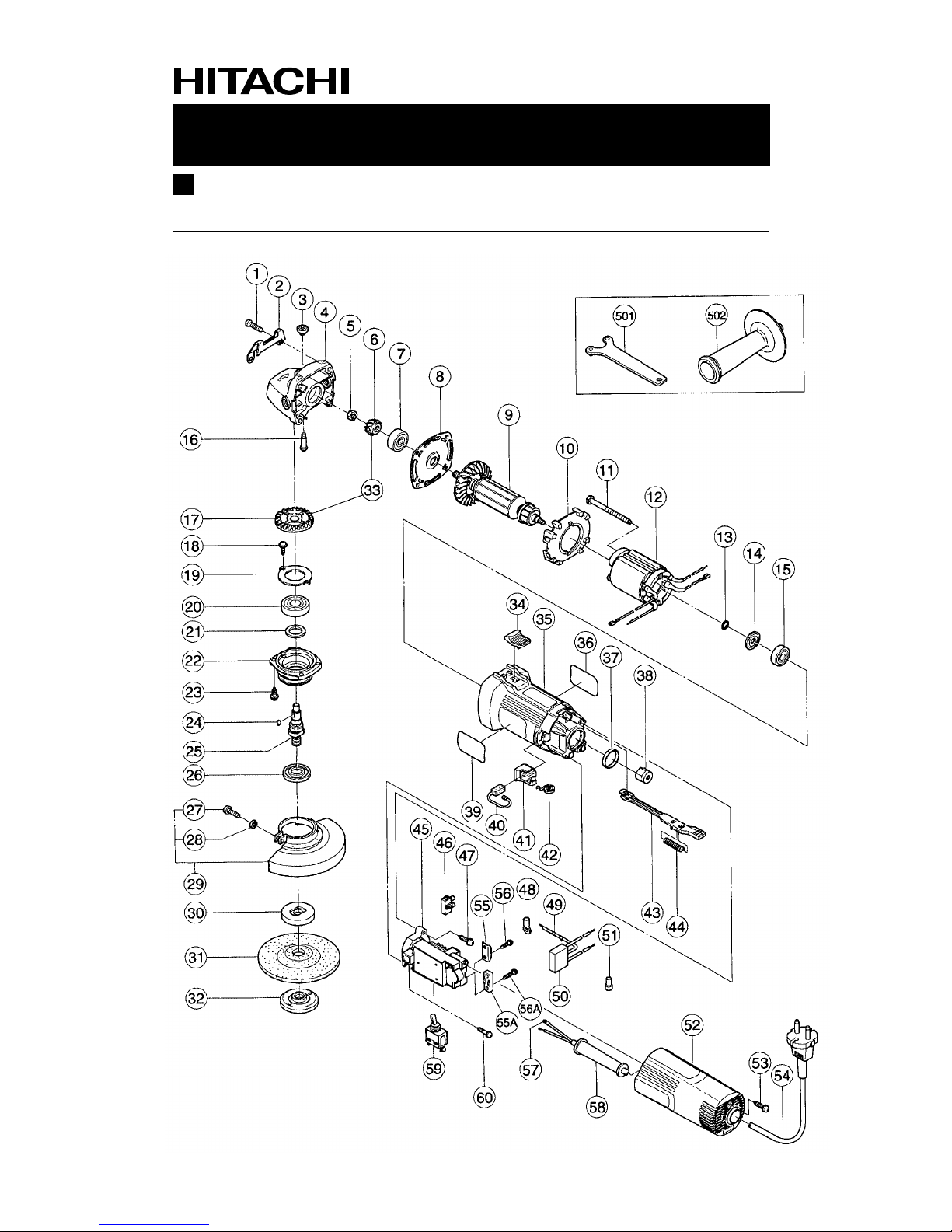

ELECTRIC TOOL PARTS LIST

LIST NO.

ELECTRONIC DISC GRINDER

Model G 13YD

2000

•

(E1)

E241

*ALTERNATIVE PARTS

--- 2 ---

ITEM

NO. CODE NO.

DESCRIPTION REMARKS

NO.

USED

PARTS G 13YD

12 -- 00

1 937-807 TAPPING SCREW D5X25 4

2 317-807 GUARD PLATE 1

3 301-944 PUSHING BUTTON 1

4 316-484 GEAR COVER ASS’Y 1 INCLUD.3,16

5 301-941 SPECIAL NUT M7 1

6 316-437 PINION 1

7 628-VVC BALL BEARING 628VVC2PS2-L 1

8 316-480 BEARING HOLDER 1

9 360-540E ARMATURE 230V 1

10 316-479 FAN GUIDE 1

11 982-021 HEX. HD. TAPPING SCREW D4X70 2

12 340-484E STATOR (A) 230V 1

13 311-737 THRUST WASHER 1

14 319-386 DUST SEAL 1

15 608-VVM BALL BEARING 608VVC2PS2L 1

16 301-943 LOCK PIN 1

17 316-438 GEAR 1

18 997-263 SEAL LOCK SCREW (W/SP. WASHER) M4X10 2

19 316-490 BEARING COVER 1

20 620-1DD BALL BEARING 6201DDCMPS2L 1

21 301-946 FELT PACKING 1

22 317-823 PACKING GLAND 1

23 307-127 SEAL LOCK SCREW (W/SP. WASHER) M4X12 4

24 940-220 WOODRUFF KEY 2.5X8 1

25 317-804 SPINDLE 1

26 301-945 FRINGER 1

27 949-241 MACHINE SCREW M5X20 (10 PCS.) 1

28 949-454 SPRING WASHER M5 (10 PCS.) 1

29 994-323 WHEEL GUARD ASS’Y 1 INCLUD.27,28

30 937-817Z WHEEL WASHER 1

31 316-822 D. C. WHEELS 125MM A36Q (25 PCS.) 1

32 994-324 WHEEL NUT M14 1

33 316-436 GEAR ASS’Y 1 INCLUD.6,17

34 314-428 SLIDE KNOB 1

35 317-802 HOUSING 1

36 NAME PLATE 1

37 995-662 RUBBER RING 1

38 318-721 MAGNET 1

* 39 HITACHI LABEL 1

40 999-076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) 2

41 317-810 BRUSH HOLDER 2

42 308-536 SPRING 2

43 319-370 SLIDE BAR 1

44 314-429 SPRING 1

45 319-897 CONTROLLER SET 1 INCLUD.55A,56A

46 938-307 PILLAR TERMINAL 1

47 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 1

48 311-741 TERMINAL 1

49 314-854 EARTH TERMINAL 1

50 317-491 NOISE SUPPRESSOR 1

51 959-140 CONNECTOR 50091 (10 PCS.) 1

*ALTERNATIVE PARTS --- 3 ---

ITEM

NO. CODE NO.

DESCRIPTION REMARKS

NO.

USED

PARTS G 13YD

12 -- 00

52 319-371 TAIL COVER 1

53 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 1

* 54 500-409Z CORD 1 (CORD ARMOR D8.8)

* 54 500-447Z CORD 1 (CORD ARMOR D8.8) FOR SUI

* 54 500-247Z CORD 1 (CORD ARMOR D8.8) FOR NOR,SWE,DEN

55 930-108 CORD CLIP 1 TILL 1.2001

55A 937-631 CORD CLIP 1 SINCE 2.2001

56 305-720 TAPPING SCREW (W/FLANGE) D4X12 2 TILL 1.2001

56A 984-750 TAPPING SCREW (W/FLANGE) D4X16 2 SINCE 2.2001

57 980-063 TERMINAL 1

58 953-327 CORD ARMOR D8.8 1

59 314-603 SWITCH (1P SOLDER TYPE) 1

60 984-750 TAPPING SCREW (W/FLANGE) D4X16 1

*ALTERNATIVE PARTS

--- 4 ---

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO.

DESCRIPTION REMARKS

NO.

USED

ITEM

NO. CODE NO.

DESCRIPTION

REMARKS

NO.

USED

G 13YD

Printed in Japan

(001225N) 12 -- 00

501 938-332Z WRENCH 1

502 302-142 SIDE HANDLE 1

601 937-825Z RUBBER PAD 1

602 937-826Z WASHER NUT 1

603 314-062 SANDING DISCS 125MM C-P16 (10 PCS.) 1

604 314-063 SANDING DISCS 125MM C-P20 (10 PCS.) 1

605 314-064 SANDING DISCS 125MM C-P24 (10 PCS.) 1

606 314-065 SANDING DISCS 125MM C-P30 (10 PCS.) 1

607 314-066 SANDING DISCS 125MM C-P36 (10 PCS.) 1

608 314-067 SANDING DISCS 125MM C-P40 (10 PCS.) 1

609 314-068 SANDING DISCS 125MM C-P50 (10 PCS.) 1

610 314-069 SANDING DISCS 125MM C-P60 (10 PCS.) 1

611 314-070 SANDING DISCS 125MM C-P80 (10 PCS.) 1

612 314-071 SANDING DISCS 125MM C-P100 (10 PCS.) 1

613 314-072 SANDING DISCS 125MM C-P120 (10 PCS.) 1

614 310-392 DIAMOND WHEEL (SEGMENT) 125MM-D22 HOLE 1

615 310-338 SUPER WASHER 1

ELECTRIC TOOL PARTS LIST

LIST NO.

ELECTRONIC DISC GRINDER

Model G 13V

2000

•

(E1)

E242

*ALTERNATIVE PARTS

--- 2 ---

ITEM

NO. CODE NO.

DESCRIPTION REMARKS

NO.

USED

PARTS G 13V

12 -- 00

1 937-807 TAPPING SCREW D5X25 4

2 317-807 GUARD PLATE 1

3 301-944 PUSHING BUTTON 1

4 316-484 GEAR COVER ASS’Y 1 INCLUD.3,16

5 301-941 SPECIAL NUT M7 1

6 316-437 PINION 1

7 628-VVC BALL BEARING 628VVC2PS2-L 1

8 316-480 BEARING HOLDER 1

9 360-540E ARMATURE 230V 1

10 319-898 FAN GUIDE 1

11 982-021 HEX. HD. TAPPING SCREW D4X70 2

12 340-484E STATOR (A) 230V 1

13 311-737 THRUST WASHER 1

14 319-386 DUST SEAL 1

15 608-VVM BALL BEARING 608VVC2PS2L 1

16 301-943 LOCK PIN 1

17 316-438 GEAR 1

18 997-263 SEAL LOCK SCREW (W/SP. WASHER) M4X10 2

19 316-490 BEARING COVER 1

20 620-1DD BALL BEARING 6201DDCMPS2L 1

21 301-946 FELT PACKING 1

22 317-823 PACKING GLAND 1

23 307-127 SEAL LOCK SCREW (W/SP. WASHER) M4X12 4

24 940-220 WOODRUFF KEY 2.5X8 1

25 317-804 SPINDLE 1

26 301-945 FRINGER 1

27 949-241 MACHINE SCREW M5X20 (10 PCS.) 1

28 949-454 SPRING WASHER M5 (10 PCS.) 1

29 994-323 WHEEL GUARD ASS’Y 1 INCLUD.27,28

30 937-817Z WHEEL WASHER 1

31 316-822 D. C. WHEELS 125MM A36Q (25 PCS.) 1

32 994-324 WHEEL NUT M14 1

33 316-436 GEAR ASS’Y 1 INCLUD.6,17

34 314-428 SLIDE KNOB 1

35 317-802 HOUSING 1

36 NAME PLATE 1

37 995-662 RUBBER RING 1

38 318-721 MAGNET 1

39 HITACHI LABEL 1

40 999-076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) 2

41 317-810 BRUSH HOLDER 2

42 308-536 SPRING 2

43 319-370 SLIDE BAR 1

44 314-429 SPRING 1

45 319-899 CONTROLLER SET 1 INCLUD.55A,56A

46 938-307 PILLAR TERMINAL 1

47 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 1

48 311-741 TERMINAL 1

49 314-854 EARTH TERMINAL 1 FOR NOISE SUPPRESSOR

50 994-273 NOISE SUPPRESSOR 1

51 959-140 CONNECTOR 50091 (10 PCS.) 1

*ALTERNATIVE PARTS --- 3 ---

ITEM

NO. CODE NO.

DESCRIPTION REMARKS

NO.

USED

PARTS G 13V

12 -- 00

52 319-376 TAIL COVER 1

53 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 1

* 54 500-409Z CORD 1 (CORD ARMOR D8.8)

* 54 500-247Z CORD 1 (CORD ARMOR D8.8) FOR NOR,SWE,DEN

* 54 500-447Z CORD 1 (CORD ARMOR D8.8) FOR SUI

* 54 500-439Z CORD 1 (CORD ARMOR D8.8) FOR AUS

55 930-108 CORD CLIP 1 TILL 1.2001

55A 937-631 CORD CLIP 1 SINCE 2.2001

56 305-720 TAPPING SCREW (W/FLANGE) D4X12 2 TILL 1.2001

56A 984-750 TAPPING SCREW (W/FLANGE) D4X16 2 SINCE 2.2001

57 980-063 TERMINAL 1 FOR CORD

58 953-327 CORD ARMOR D8.8 1

* 59 314-603 SWITCH (1P SOLDER TYPE) 1

* 59 955-509 SWITCH (1P SCREW TYPE) 1 FOR AUS

60 984-750 TAPPING SCREW (W/FLANGE) D4X16 1

*ALTERNATIVE PARTS

--- 4 ---

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO.

DESCRIPTION REMARKS

NO.

USED

ITEM

NO. CODE NO.

DESCRIPTION

REMARKS

NO.

USED

G 13V

Printed in Japan

(001225N) 12 -- 00

501 938-332Z WRENCH 1

502 302-142 SIDE HANDLE 1

601 937-825Z RUBBER PAD 1

602 937-826Z WASHER NUT 1

603 314-062 SANDING DISCS 125MM C-P16 (10 PCS.) 1

604 314-063 SANDING DISCS 125MM C-P20 (10 PCS.) 1

605 314-064 SANDING DISCS 125MM C-P24 (10 PCS.) 1

606 314-065 SANDING DISCS 125MM C-P30 (10 PCS.) 1

607 314-066 SANDING DISCS 125MM C-P36 (10 PCS.) 1

608 314-067 SANDING DISCS 125MM C-P40 (10 PCS.) 1

609 314-068 SANDING DISCS 125MM C-P50 (10 PCS.) 1

610 314-069 SANDING DISCS 125MM C-P60 (10 PCS.) 1

611 314-070 SANDING DISCS 125MM C-P80 (10 PCS.) 1

612 314-071 SANDING DISCS 125MM C-P100 (10 PCS.) 1

613 314-072 SANDING DISCS 125MM C-P120 (10 PCS.) 1

614 310-392 DIAMOND WHEEL (SEGMENT) 125MM-D22 HOLE 1

615 310-338 SUPER WASHER 1
