Hisense HE32M2160HTS User manual

English

QUICK SETUP GUIDE

Before using the TV, please read this guide thoroughly

and retain it for future reference. For more detailed

instructions,please see the User Manual.

HE32M2160HTS

HE40M2160FTS

English

Contents

Accessories List

The Pictures are Only for Reference !

Accessories List..............................................................................................................1

Installing the Stand.........................................................................................................

........................................................................................................

TV Front..........................................................................................................................3

TV Rear ..........................................................................................................................4

Making Connections.......................................................................................................5

Remote Control ..............................................................................................................9

Specifications

Other Information

............................................................................................................... 1

Product image is only for reference, actual product may vary in appearance.

Parts of the software function changes with the system upgrade.

User Manual Quick Setup Guide Remote Control Battery × 2

Screw × 4 YPbPr cable × 1 AV INPUT Cable × 1

English

Installing the Stand

NOTES

The TV screen is very fragile,and must be protected at all times when removing the

base stand. Be sure that no hard or sharp object, or anything that could scratch or

damage the screen, come into contact with it.DO NOT exert pressure on the front

of the TV at any time because the screen could crack.

For tabletop use, the TV must be attached to the provided stand as shown on this

page.

Product images are only for reference, actual product may vary in appearance.

WARNING

Be sure to disconnect the AC power cord before installing a stand or wall-mount

brackets.

CAUTION

Carefully place your TV facedown on a soft,cushioned surface to prevent damage

to the TV or scratching to the screen.

Follow the illustrations and textual instructions below to complete the installa-

tion steps:

1. Attach the stand to the TV set as shown in the picture.

2. Use the screws to fix the stand tightly.

40″ Screws: (ST4 × 14F) × 4

32″ Screws: (ST4 × 12F) × 4

English

TV Front

NOTES

The Picture is Only for Reference.

Powering on the TV requires several seconds to load program. Do not rapidly turn

the TV off as it may cause the TV to work abnormally.

Item Description

Remote sensor

Receive remote signals from the remote control.

Do not put anything near the sensor, as its function may

be affected.

Remote indicator Red light up in standby mode. Blue light up in power on

mode.

Touch to select among the different signal sources.

STANDBY/ SOURCE

Press the button to turn on the TV,Press the button for a

few seconds to put the TV in standby mode.

Remote Sensor

Remote Indicator

STANDBY /

English 4

TV Rear

NOTES

The Picture is Only for Reference.

Check the jacks for position and type before making any connections. Loose

connections can result in image or color problems. Make sure that all connections

are tight and secure.

Not all A/V devices have the ability to connect to a TV, please refer to the user’s

manual of your A/V device for compatibility and connections procedure.

Before connecting external equipment, remove the mains plug

from the wall socket. This may cause electric shock.

TV Bottom Panel

TV Side View

English 5

Making Connections

HDMI Connect an HDMI cable from an external A/V equipment.

Some devices such as DVD player require HDMI signal to be set to output in the

device's settings. Please consult your device user manual for instructions.

Please note that the HDMI connector provides both video and audio signals, it’s

not necessary to connect an audio cable.

·Press [Source] button, when the list of Input Source appears, press [▲/▼] to

select the source [HDMI], then press [OK] to connect.

TV JACK

(not included) HDMI

DVD/Blu-Ray/AV receiver/

Set-top Box

HDMI

ANT1 Connect an outdoor VHF/UHF antenna or cable.

TV JACK

Outdoor

Antenna

Antenna Cable (75Ω)

or ANT OUT

Cable

VHF/UHF Antenna

ANT1

DVB-T2/C

(not included)

SCART Connect the Scart cable from an external A/V Device.

·Press [Source] button, when the list of Input Source appears, press [▲/▼] to

select the source [Scart] and press [OK] to connect.

TV JACK

VCR/DVD Player/Recorder/

Set-top box/Satellite Receiver

(not included)

SCART

ANT2 Connecting a satellite antenna.

TV JACK

6English

Making Connections

USB

Connect the USB devices such as hard drives, USB sticks and digital cameras for

browsing photos, listening music and watching recorded movies. At the same time

update is also an easy thing and will be done just by plugging the USB with the

updating files into the same interface.

NOTES

When connecting a hard disk or a USB hub, always connect the mains

adapter of the connected device to the power supply. Exceeding a total current

consumption may result in damage. The maximum current consumption is

500mA.

For individual non-standard high-capacity mobile hard disk, if it's impulse current

is greater than or equal 500mA, it may cause TV-rebooting or self-locking. So

the TV does not support it.

The USB port supports a voltage of 5V.

The maximum supported storage space of the hard disk is 1T.

If you want to store the video streaming of a DTV program, the transfer rate of

the USB storage device must not be less than 5MB/s. At lease a mobile storage

with more than 20G is required to Timeshift and record a 2.5 hour HD video.

TV JACK

PC Connect a VGA cable and an audio cable from the PC.

·Press [Source] button, when the list of Input Source appears, press [▲/▼] to

select the source [PC] and press [OK] to connect.

DC 5V 0.5A(MAX)

USB

(not included)

VGA AUDIO

Computer

English

Making Connections

COMMON INTERFACE

Insert the CI+ module for watching scrambled services like pay-tv channels or

some HD channels.

NOTES

Before you insert/remove the CI+ module, ensure that the TV is switched off.

Then insert the CI card into the CI+ module in accordance with the Service

Provider’s instructions.

Do not repeatedly insert or remove the Common Access Module as this may

damage the interface and cause a malfunction.

You must obtain a CI+ module and card from the service provider of the

channels you want to watch.

Insert the CI+ module with the SmartCard in the direction marked on the module

and SmartCard.

CI+ is not supported in some countries and regions; check with your authorized

dealer.

OPTICAL Connect to an external digital audio device.

Before connecting a digital audio system to the OPTICAL jack, you should

decrease the volume of both the TV and the system to avoid that the volume

suddenly become bigger.

TV JACK

OPTICAL cable (not included)

SMART CARD

CAM CARD

TV JACK

COMMON INTERFACE(CARD FACE FRONT)

HEADPHONE Connect Headphone for audio out of the TV.

TV JACK

Headphone (not included)

HEADPHONE

English 8

Making Connections

AV Connect the Composite cable from an external A/V Device.

Use the audio and video cables to connect the external A/V device’s composite

video/audio jacks to the TV’s jacks. (Video = yellow, Audio Left = white, and Audio

Right = red)

·Press [Source] button, when the list of Input Source appears, press [▲/▼] to

select the source [AV] and press [OK] to connect.

YPbPr Connect acomponent cable and an audio cable from an external A/V Device.

The component output ports Y, PBand PRon the VCD or DVD can sometimes be

identified as Y, CBand CR.

·Press [Source] button, when the list of Input Source appears, press [▲/▼] to

select the source [YPbPr] and press [OK] to connect.

TV JACK

VCR/DVD Player/

Recorder/Set-top box/

Satellite Receiver/Video Camera

Video L

A/V OUT

RL PRPBY

Component

VCR/DVD Player/Recorder/

Set-top box/Satellite Receiver/

Video Camera

AV/COMP(L/R)

COMP(Y/Pb/Pr)

Blue(PB)

Green(Y)

Red(PR)(not included)

(not included)

Blue(PB/CB)

Green(Y)

Red(PR/CR)

White(L)

Red(R)

(not included)

White(L)

Yellow(Video)

Red(R)

Yellow(Video)

English 9

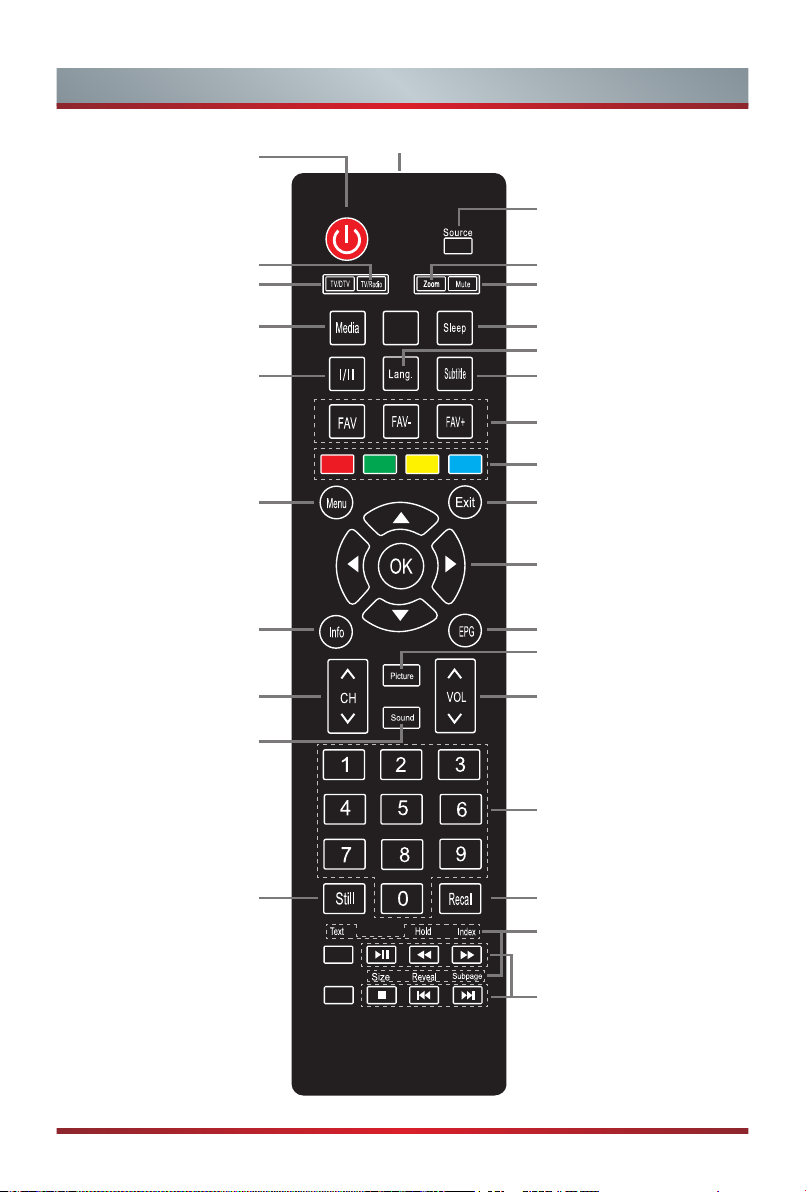

Remote Control

Remote sensing Window

Power button

Switch to DTV Radio

program

Available source selection

Zoom image

Mute the sound

Set the sleep time

Select Audio language

Display the subtitle content

of the signal

Fast access to your saved

favorite programs

Red, Green, Yellow and Blue

are used in media mode

Exit: Exit all menu display

Enter or confirm the

operation, ▲/▼/◄/► Up/

Down/Left/Right

Electronic program guide

Picture mode selecting

Volume Up / Volume Down

1,2,...numbers: For

direct channel access

To return to the last

view program

Text, Size, Reveal, Hold,

Index, Subpage (refer to

teletext function)

Play/ Pause, Stop, etc.

are used in media mode

Analog / Digital TV

Select USB-Digital Media

player mode

Mono/Stereo

operation,Audio select

button

Display the main menu/

Back menu display

Display informations

Channel Up/ Channel

Down

Sound mode selecting

Freeze picture
