Hisense RS694N4BC1 Mounting instructions
RS694N4BC1
RS694N4BB1
2
Contents
Safety and warning information.........2
Installing your new appliance............7
Description of the appliance ............9
Display controls...............................10
Using your appliance.......................14
.......................21
.......................23
Troubleshooting...............................25
Disposaloftheappliance....................27
Cleaning and care....
Helpful hints and tips
This appliance is produced in accordance with the following EU
guidelines: LVD 2014/35/EU, EMC 2014/30/EU, 2009/125/EC,
EC.643/2009 and 2002/96/EC.
Safety and warning information
For your safety, before installing
and first using the appliance,
read this user manual carefully,
including its hints and warnings.
To avoid unnecessary mistakes
and accidents, it is important to
make sure that all people using
the appliance are thoroughly
familiar with its operation and
safety features. Save these
instructions and be sure that
they remain with the appliance if
it is moved or sold, so that
anyone using it, throughout its
life, will be properly informed on
its usage and safety notices.
For the safety of life and
property, keep the warnings
contained within these user's
instructions as the manufacturer
is not responsible for damages
caused by omission.
Safety for children and
others who are vulnerable
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not
play with the appliance.
Cleaning and user
maintenance should not be
carried out by children without
supervision.
Keep all packaging away
from children as there is risk of
suffocation.
3
If you are discarding the
appliance, pull the plug out of
the socket, cut the connection
cable (as close to the appliance
as you can) and remove the
door to prevent children playing
from suffering an electric shock
or from closing themselves
inside the unit.
General safety
WARNING —This
appliance is intended
to be used to be used in
domestic households and not
intended for use in retail or
commercial environments;
WARNING — The water
supply line should only be
connected to a potable water
supply.
WARNING — Do not store
explosive substances such as
aerosol cans with a flammable
propellant in this appliance.
WARNING — If the supply
cord is damaged, it must be
replaced by a qualified
electrician in order to avoid the
risk of electric shock.
WARNING — Keep
ventilation openings, in the
appliance enclosure or in any
built-in structure clear of
obstruction.
WARNING — Do not use
mechanical devices or other
means to accelerate the
defrosting process, other than
those recommended by the
manufacturer.
WARNING — Do not damage
the refrigerant circuit.
WARNING — Do not use
electrical appliances inside the
food storage compartments of
the appliance, unless they are
of the type recommended by
the manufacturer.
WARNING — The refrigerant
and insulation are flammable.
When disposing of the
appliance, do so only at an
authorized waste disposal
center. Do not expose to flame.
Refrigerant
The refrigerant isobutene
(R600a) is contained within the
refrigerant circuit of the
appliance. This is a natural gas
with a high level of
environmental compatibility,
which is nevertheless
4
flammable. During
transportation and installation
of the appliance, ensure that
none of the components of the
refrigerant circuit becomes
damaged. The refrigerant
(R600a) is flammable.
Caution:risk of fire
If the refrigerant circuit is
damaged:
-Avoid naked flames and
sources of ignition.
-Thoroughly ventilate the room
in which the appliance is
situated. It is dangerous to alter
specifications or modify this
product in any way. Any
damage to the cord may cause
a shortcircuit, fire, and/or
electric shock.
Electrical safety
3. Make sure that you can
access the main plug of the
appliance.
4. Do not pull the main cable.
5. If your wall socket is loose,
do not insert the power plug.
There is a risk of electric shock
or fire.
6. You must not operate the
appliance without the interior
lighting lamp cover.
7. The fridge should only be
supplied with single phase
alternating current of
220~240V/50Hz. If the supply
fluctuates outside this range an
automatic A.C. voltage
regulator of more than 350W
should be used. The fridge
should be plugged into an
adequately earthed supply.
1. The power cord must not be
lengthened.
2. Make sure that the power
plug is not crushed or
damaged. A crushed or
damaged power plug may
overheat and cause a fire.
Daily use
Do not store flammable gas
or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical
appliances in the appliance
(e.g. electric ice cream makers,
mixers etc.).
5
When unplugging always pull
the plug from the mains socket.
Do not pull on the cable.
Do not place hot items near
the plastic components of this
appliance.
Do not place food products
directly against the air outlet on
the rear wall.
Store pre-packed frozen food
in accordance with the frozen
food manufacture’s instructions.
The manufactures storage
recommendations should be
strictly adhered to. Refer to
relevant instructions for
storage.
Do not place carbonated or
fizzy drinks in the freezer
compartment as it creates
pressure on the container,
which may cause it to explode,
resulting in damage to the
appliance.
Do not place food directly
against the air outlet on the rear
wall cause it to explode,
resulting in damage to the
appliance.
Frozen food can cause frost
burns if consumed straight from
the freezer compartment.
Do not place the appliance in
direct sunlight.
Keep burning candles, lamps
and other items with naked
flames away from the
appliance.
The appliance is only
intended for keeping food stuff
and/or beverages for normal
household consumption as
explained in this instruction
booklet.
The appliance is heavy. Care
should be taken when moving it
Do not remove nor touch
items from the freezer
compartment if your hands are
damp/wet, as this could cause
skin abrasions or frost/freezer
burns.
Never use the base, drawers,
doors etc. to stand on or as
supports.
Frozen food must not be
refrozen once it has been
thawed out.
6
To avoid items falling and
causing injury or damage to the
appliance, do not overload the
door racks or put too much food
in the crisper drawers.
Caution!
Care and cleaning
Before performing
maintenance, switch off the
appliance and disconnect the
mains plug from the mains
socket.
Do not clean the appliance
with metal objects, steam
cleaner, ethereal oils, organic
solvents or abrasive cleansers.
Do not use sharp objects to
remove frost from the
appliance. Use a plastic
scraper.
Installation Important!
It is advisable to wait at least
four hours before connecting
the appliance to avoid
damaging the compressor.
Adequate air circulation
should be provided around the
appliance. To achieve sufficient
ventilation, please follow the
instructions relevant to
installation.
Wherever possible the back
of the product should not be too
close flammable materials as
some components are hot in
normal operation.
The appliance must not be
locate close to radiators or
cookers.
Make sure that the mains
plug is accessible following
installation of the appliance.
For electrical connection
carefully, follow the instructions
given in this manual.
Unpack the appliance and
check for damage. Do not
connect the appliance if it is
damaged. Report possible
damage immediately to your
retailer. In this case retain
packing.
Service
This product must be serviced
by an authorized Service
Center or Service Agent, and
only genuine spare parts must
be used.
WARNING
fill with potable water only.
50-70
adjusta e bottom f etbl e
adjusta e bottom f etbl e
0.5
15mm

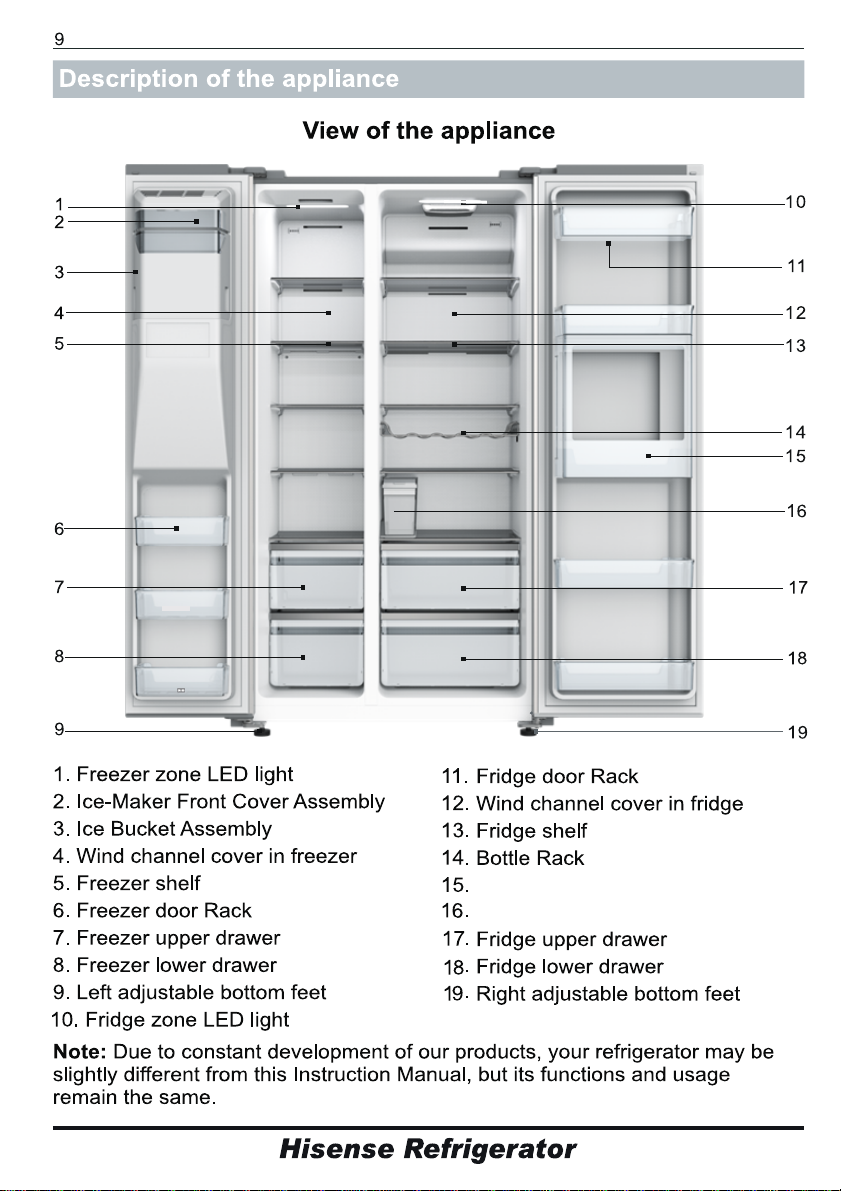

Beverage Compartment
Water storage box part
Use your appliance according to the following control guidelines, your product
has a control panel as shown in the diagram below.
When the appliance is powered on for
the first time, the backlighting of the
icons on the display panel starts
working. If no buttons have been
touched and the doors are closed, the
backlighting will turn off after 60
seconds.
Caution!When you set a
temperature, you set an average
temperature for the whole refrigerator
cabinet. Temperatures inside each
compartment may vary from the
temperatures displayed on the panel,
depending on how much food you
store and where you place it. High or
low room temperature may also affect
the actual temperature inside the
appliance.
The control panel consists of two
areas about temperature, and one
area about different modes.
Display controls
10
Non Plumbing
This manual suits for next models
1
