Hisense HRFD577B Mounting instructions

HRFD577B

Contents

Safety and warning information…........2

Installing your new appliance………....8

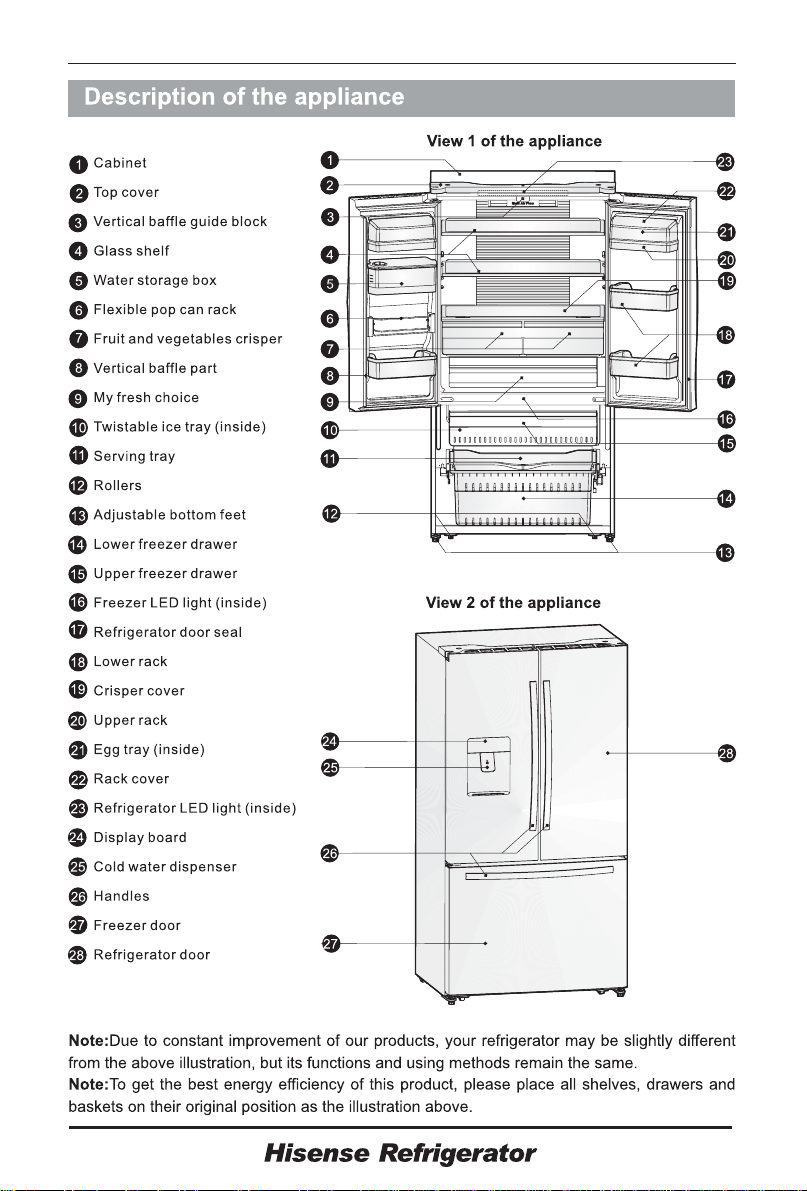

Description of the appliance….......….10

Display controls…………………...…..11

Using your appliance……………........13

Helpful hints and tips……………… 17

Cleaning and care……………………18

Troubleshooting………………………1

Disposal of the appliance……………20

For your safety and correct usage before installing and first

using the appliance, read this user manual carefully, including

its hints and warnings. To avoid unnecessary mistakes and

accidents, it is important to make sure that all people using the

appliance are thoroughly familiar with its

operation and safety features. Save these instructions and be

sure that they remain with the appliance if it is moved or sold,

so that anyone using it throughout its life, will be properly

informed on its usage and safety notices.

For the safety of life and property, keep the precautions of

these user's instructions as the manufacturer is not

responsible for damages caused by omission.

Hisense Refrigerator

Safety for children and otherswho are vulnerable people

According to EN standard

According to IEC standard

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Hisense Refrigerator

Keep all packaging away from children as there is risk of

suffocation.

If you are discarding the appliance, pull the plug out of the

socket, cut the connection cable (as close to the appliance

as you can) and remove the door to prevent children playing

from suffering an electric shock or from closing themselves

inside it.

If this appliance, featuring a magnetic door seals, is to

replace an older appliance having a spring lock (latch) on the

door or lid, be sure to make the spring lock unusable before

you discard the old appliance. This will prevent it from

becoming a death trap for a child.

General safety

WARNING —This appliance is intended to be used in

household and similar applications such as

-staff kitchen areas in shops, offices and other working

environments;

-farm houses and by clients in hotels, motels and other

residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

WARNING — Do not store explosive substances such as

aerosol cans with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

WARNING — Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING — Do not use mechanical devices or other

means to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the

food storage compartments of the appliance, unless they are

of the type recommended by the manufacturer.

Hisense Refrigerator

WARNING — The refrigerant and insulation blowing gas are

flammable. When disposing of the appliance, do so only at

an authorized waste disposal centre. Do not expose to flame.

WARNING —When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING —Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

Refrigerant

The refrigerant isobutene (R600a) is contained within the

refrigerant circuit of the appliance, a natural gas with a high

level of environmental compatibility, which is nevertheless

flammable. During transportation and installation of the

appliance, ensure that none of the components of the

refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

WARNING

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is situated.

WARNING — Refrigerators contain refrigerant andgases in

the insulation. Refrigerant and gases must be disposed of

professionally as they may cause eye injuries or ignition.

Ensure that tubing of the refrigerant circuit is not damage

prior to proper disposal.

Replacing the illuminating lamps

WARNING—The illuminating lamps must not be replaced by

the user! If the illuminating lamps is damaged, contact the

customer helpline for assistance.

This warning is only for refrigerators that contain illuminating

lamps.

:Risk of fire / flammable materials

Hisense Refrigerator

Daily use

Do not store flammable gass or liquids in the appliance,

There is a risk of an explosion.

Do not operate any electrical appliances in the appliance

(e.g.electric ice cream makers,mixers etc.).

When unplugging always pull the plug from the mains

socket,do not pull on the cable.

Do not place hot items near the plastic components of this

appliance.

Electrical safety

1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged.

A crushed or damaged power plug may overheat and cause a

fire.

3. Make sure that you can access the main plug of the

appliance.

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire.

6.You must not operate the appliance without the interior

lighting lamp cover.

7.The fridge is only applied with power supply of single phase

alternating current of 220~240V/50Hz. If fluctuation of voltage

in the district of user is so large that the voltage exceeds the

above scope, for safety sake, be sure to apply A.C. Automatic

voltage regulator of more than 350W to the fridge. The fridge

must employ a special power socket instead of common one

with other electric appliances. Its plug must match the socket

with ground wire.

It is dangerous to alter the specifications or modify this

product in any way.

Any damage to the cord may cause a shortcircuit, fire, and/or

electric shock.

Do not place food products directly against the air outlet on

the rear wall.

Hisense Refrigerator

Store pre-packed frozen food in accordance with the frozen

food manufacture’s instructions.

The appliances manufactures storage recommendations

should be strictly adhered to.Refer to relrelevant instructions

for storage.

Do not place carbonated or fizzy drinks in the freeze

compartment as it creates pressure on the container,which

may cause it to explode,resulting in damage to the

appliance.

Frozen food can cause frost burns if consumed straight from

the freezer compartment.

Do not place the appliance in direct sunlight.

Keep buring candles,lamps and other items with naked

flames away from the appliance so that do not set the

appliance on fire.

The appliance is intended for keeping food stuff and/or

beverages in normal household as explained in this

instruction booklet The appliance is heavy.Care should be

taken when moving it.

Do not remove nor touch items from the freezer

compartment if your hands are damp/wet,as this could cause

skin abrasions or frost/freezer burns.

Never use the base,drawers, doors etc. to stand on or as

supports.

Frozen food must not be refrozen once it has been thawed

out.

Do not consume ice popsicles or ice cubes straight from

the freezer as this can cause freezer burn to the mouth

and lips.

To avoid items falling and causing injury or damage to

the appliance, do not overload the door racks or put too

much food in the crisper drawers.

caution!

Care and cleaning

Before maintenance, switch off the appliance and disconnect

the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam

Hisense Refrigerator

Adequate air circulation should be around the appliance,

lacking this leads to overheating. To achieve sufficient

ventilation, follow the instructions relevant to installation.

Wherever possible the back of the product should not be too

close to a wall to avoid touching or catching warm parts

(compressor, condenser) to prevent the risk of a fire, follow

the instructions relevant to installation.

The appliance must not be locate close to radiators or

cookers.

Make sure that the mains plug is accessible after the

installation of the appliance.

Service

Any electrical work required to do the servicing of the

appliance should be carried out by qualified electrician or

competent person.

This product must be serviced by an authorized Service

Center, and only genuine spare parts must be used.

1)If the appliance is Frost Free.

2)If the appliance contains freezer compartment.

Installation Important!

For electrical connection carefully, follow the instructions

given in this manual.

Unpack the appliance and check if there are damages on it.

Do not connect the appliance if it is damaged. Report

possible damages immediately to the place you bought it. In

this case retain packing.

It is advisable to wait at least four hours before connecting

the appliance to allow the oil to flow back in the compressor.

cleaner, ethereal oils, organic solvents or abrasive

cleansers.

Do not use sharp objects to remove frost from the appliance.

Use a plastic scraper.

Note: Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.(This clause applies only to the

EU region.)

50mm

50mm of clearance

50mm 50mm

Other Hisense Refrigerator manuals

Hisense

Hisense HR6SBS690GW Mounting instructions

Hisense

Hisense RS-47WL4SIB/CLA1-002 Mounting instructions

Hisense

Hisense HR6BMFF519B User manual

Hisense

Hisense LCT43D6ASE User manual

Hisense

Hisense RR195D4DR1 Mounting instructions

Hisense

Hisense HR6AF351B Mounting instructions

Hisense

Hisense RF702N4 I S1 Mounting instructions

Hisense

Hisense RR106D4CBF Mounting instructions

Hisense

Hisense RUL178D4AWE Mounting instructions

Hisense

Hisense RD-65WR4SB Mounting instructions

Hisense

Hisense RIB291F4AWF Mounting instructions

Hisense

Hisense RB372N4CC2 Mounting instructions

Hisense

Hisense RS-09DC4S Series User manual

Hisense

Hisense RQ560N4WBF Mounting instructions

Hisense

Hisense HRCD610TS Mounting instructions

Hisense

Hisense RF21N1 Series Mounting instructions

Hisense

Hisense RQ-52WC4S Mounting instructions

Hisense

Hisense RB645N4BCE User manual

Hisense

Hisense HRBM503S Mounting instructions

Hisense

Hisense RB412N4AI1 Mounting instructions

Hisense

Hisense RS694N4BCE Mounting instructions

Hisense

Hisense H415BSF-WD User manual

Hisense

Hisense RS-36DR series User manual

Hisense

Hisense RF21A3FSE User manual

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use
