Hioki 3441 User manual
*60021860D*
JA/EN
3442
温度ハイテスタ
3441
取扱説明書
Apr.2016 Revised edition 13
3441A980-13 16-04H
Instruction Manual
TEMPERATURE HiTESTER
www. .com information@itm.com1.800.561.8187
3441 3441-02
3442
TEMPERATURE
HiTESTER
INSTRUCTION MANUAL
www. .com information@itm.com1.800.561.8187
Contents
Introduction i
Inspection i
Shipping the Instrument ii
Safety Notes ii
Notes on Use vi
Organization of this Manual viii
Chapter 1 Summary 1
1.1 Product Summary 1
1.2 Features 2
1.3 Names and Functions of Parts 3
Chapter 2 Specification 5
2.1 General Specification 5
2.2 Environmental Conditions 8
2.3 Applica le Standards 8
Chapter 3 efore Measurement 9
3.1 Preparations for the Batteries 9
3.2 Connecting the Temperature Pro e 12
3.2.1 Connecting the 9180 9181 9182 9183
Temperature Probe 13
3.2.2 Connecting the 9472 9473 9474 9475
9476 Temperature Probe 13
3.3 Attaching the Strap Band 14
www. .com information@itm.com1.800.561.8187

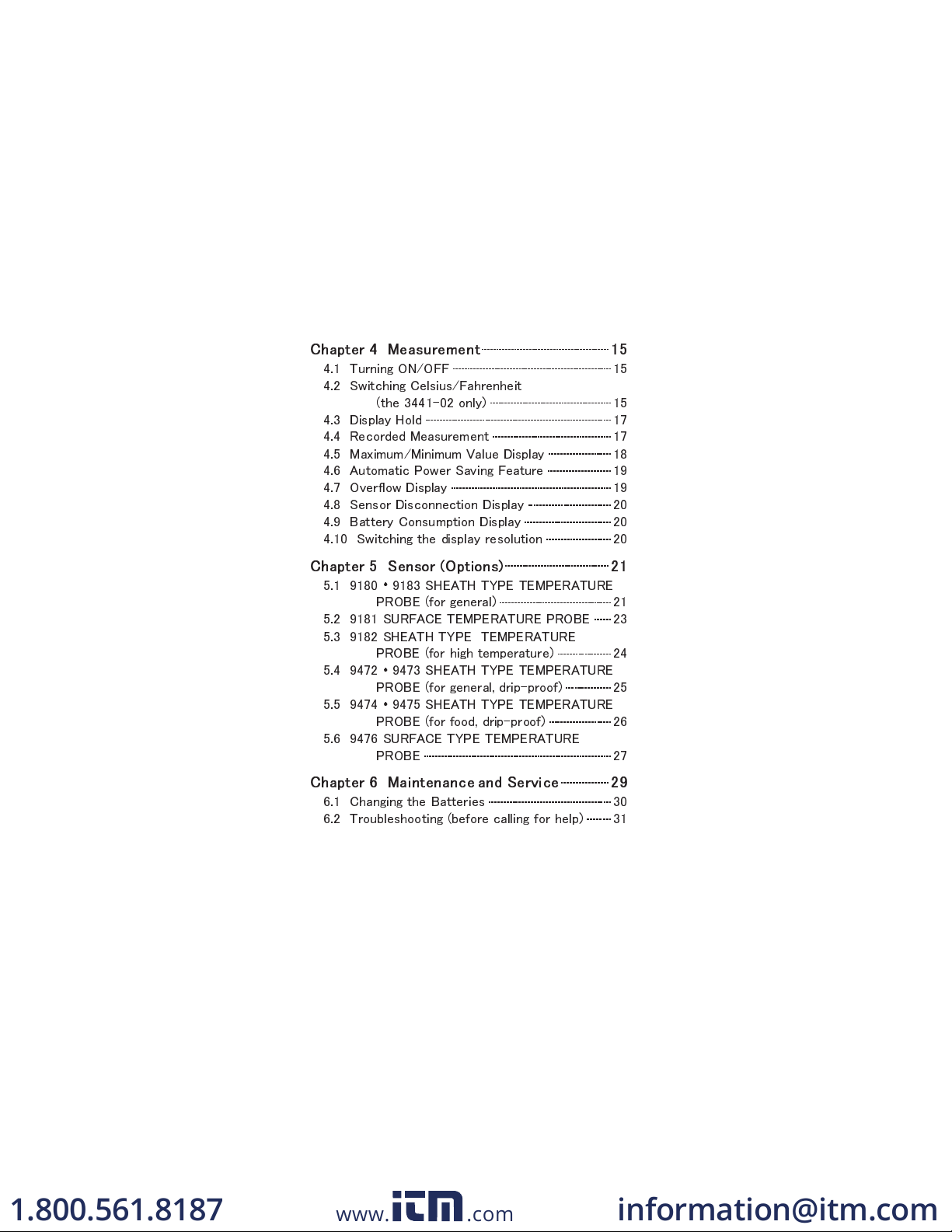

Chapter 4 Measurement 15
4.1 Turning ON/OFF 15
4.2 Switching Celsius/Fahrenheit
(the 3441-02 only 15
4.3 Display Hold 17
4.4 Recorded Measurement 17
4.5 Maximum/Minimum Value Display 18
4.6 Automatic Power Saving Feature 19
4.7 Overflow Display 19
4.8 Sensor Disconnection Display 20
4.9 Battery Consumption Display 20
4.10 Switching the display resolution 20
Chapter 5 Sensor (Options) 21
5.1 9180 9183 SHEATH TYPE TEMPERATURE
PROBE (for general 21
5.2 9181 SURFACE TEMPERATURE PROBE 23
5.3 9182 SHEATH TYPE TEMPERATURE
PROBE (for high temperature 24
5.4 9472 9473 SHEATH TYPE TEMPERATURE
PROBE (for general, drip-proof 25
5.5 9474 9475 SHEATH TYPE TEMPERATURE
PROBE (for food, drip-proof 26
5.6 9476 SURFACE TYPE TEMPERATURE
PROBE 27
Chapter 6 Maintenance and Service 29
6.1 Changing the Batteries 30
6.2 Troubleshooting (before calling for help 31
www. .com information@itm.com1.800.561.8187
i
___________________________________________
Introduction
___________________________________________
Introduction
Inspection
Thank you for purchasing the HIOKI "3441, 3441-
02, 3442 TEMPERATURE HiTESTER." To obtain
maximum performance from the instrument, please
read this manual first, and keep it handy for future
reference.
When you receive the instrument, inspect it
carefully to ensure that no damage occurred during
shipping. In particular, check the accessories, panel
switches, and connectors. If damage is evident, or if
it fails to operate according to the specifications,
contact your dealer.
Supplied accessories
R6P manganese batteries 4
Strap band 1
Instruction manual 1
www. .com information@itm.com1.800.561.8187
ii
___________________________________________
Shipping the Instrument
___________________________________________
WARNING
This instrument is designed to conform to IEC
61010 Safety Standards, and has been thoroughly
tested for safety prior to shipment. However,
mishandling during use could result in injury or
death, as well as damage to the instrument. Be
certain that you understand the instructions and
precautions in the manual before use. We
disclaim any responsibility for accidents or
injuries not resulting directly from instrument
defects.
Shipping the Instrument
Safety Notes
Use the original packing materials when reshipping
the instrument, if possible.
Safety symbols
This manual contains information and warnings
essential for safe operation of the instrument and for
maintaining it in safe operating condition. Before
using the instrument, be sure to carefully read the
following safety notes.
www. .com information@itm.com1.800.561.8187
iii
___________________________________________
Safety Notes
___________________________________________
The symbol printed on the
instrument indicates that the user
should refer to a corresponding topic
in the manual (marked with the
symbol) before using the relevant
function.
In the manual, the symbol indicates
particularly important information that
the user should read before using the
instrument.
Indicates DC (Direct Current).
WARNING
Indicates that incorrect operation
presents a significant hazard that could
result in serious injury or death to the
user.
CAUTION Indicates that incorrect operation
presents a possibility of injury to the
user or damage to the instrument.
NOTE Indicates advisory items related to
performance or correct operation of the
instrument.
The following symbols in this manual indicate the
relative importance of cautions and warnings.
www. .com information@itm.com1.800.561.8187
iv
___________________________________________
Safety Notes
___________________________________________
Accuracy
We define measurement tolerances in terms of rdg.
(reading) values, with the following meanings:
rdg. (displayed or indicated value)
This signifies the value actually being measured,
i.e., the value that is currently indicated or displayed
by the measuring instrument.
Measurement categories
To ensure safe operation of measurement
instruments, IEC 61010 establishes safety standards
for various electrical environments, categorized as
CAT II to CAT IV, and called measurement
categories. These are defined as follows.
CAT II: Primary electrical circuits in equipment
connected to an AC electrical outlet by a
power cord (portable tools, household
appliances, etc.)
CAT II covers directly measuring electrical
outlet receptacles.
CAT III: Primary electrical circuits of heavy
equipment (fixed installations) connected
directly to the distribution panel, and
feeders from the distribution panel to
outlets.
CAT IV: The circuit from the service drop to the
service entrance, and to the power meter
and primary overcurrent protection device
(distribution panel).
www. .com information@itm.com1.800.561.8187
v
___________________________________________
Safety Notes
___________________________________________
Using a measurement instrument in an environment
designated with a higher-numbered category than
that for which the instrument is rated could result in
a severe accident, and must be carefully avoided.
Use of a measurement instrument that is not CAT-
rated in CAT II to CAT IV measurement
applications could result in a severe accident, and
must be carefully avoided.
www. .com information@itm.com1.800.561.8187
vi
___________________________________________
Notes on Use
___________________________________________
Avoid the following locations th at could cause an accident or damage
to the instrument.
Exposed to direct
sunlight
Exposed to high
temperature
In the presence of
corrosive or explosive
gases
Exposed to liquids
Exposedtohigh
humidity or
condensation
Exposed to strong
electromagnetic fields
Near electromagnetic
radiators
Exposedtohigh
levels of particulate
dust
Near induction heating
systems
(e.g., high-frequency
induction heating
Subject to vibration
Notes on Use
Follow these precautions to ensure safe operation and
to obtain the full benefits of the various functions.
Setting up the Instrument
Operating temperature and humidity:
0to40
°
C(32
±
122
°
F), 80%RH or less (non-condensating)
Temperature and humidity range for guaranteed accuracy:
23
±
5
°
C(73
±
9
°
F), 80% RH or less (non-condensating)
Preliminaly Checks
Before using the instrument the first time, verify
that it operates normally to ensure that the no
damage occurred during storage or shipping. If you
find any damage, contact your dealer or Hioki
representative.
www. .com information@itm.com1.800.561.8187
