Hilti SBT 4-A22 User manual
1
2
3
4
5
SBT 4-A22
en Original operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 1
fr Notice d'utilisation originale . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
es Manual de instrucciones original . . . . . . . . . . . . . . . . . . . . . . . 32
pt Manual de instruções original . . . . . . . . . . . . . . . . . . . . . . . . . . 49
*2184702* 2184702 English 1
Original operating instructions
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a
prerequisite for safe, trouble-free handling and use of the product.
• Observe the safety instructions and warnings in this documentation and
on the product.
• Always keep the operating instructions with the product and make sure
that the operating instructions are with the product when it is given to
other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the
product. The following signal words are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal
injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious
injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to
personal injury or damage to the equipment or other property.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use.
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household
waste
2 English 2184702 *2184702*
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:

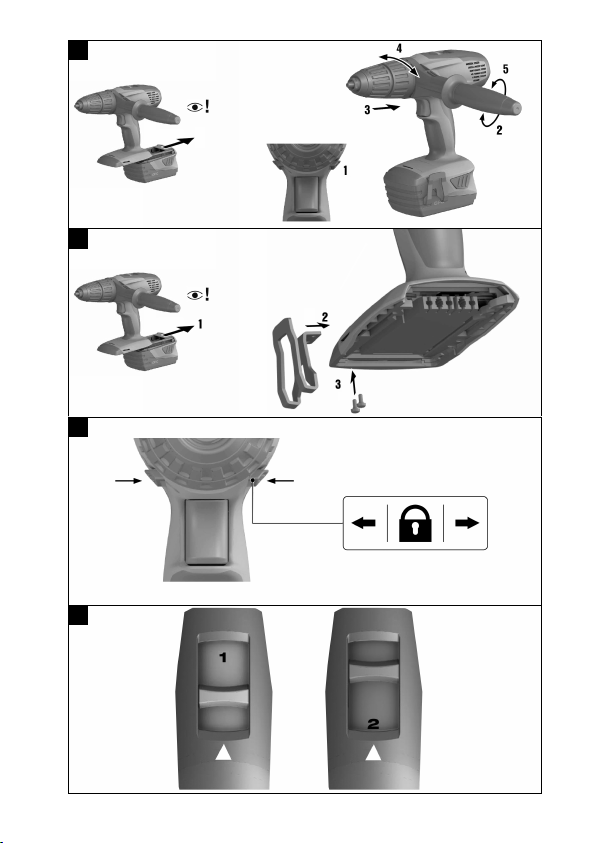

These numbers refer to the corresponding illustrations found at the
beginning of these operating instructions
The numbering reflects the sequence of operations shown in the
illustrations and may deviate from the steps described in the text

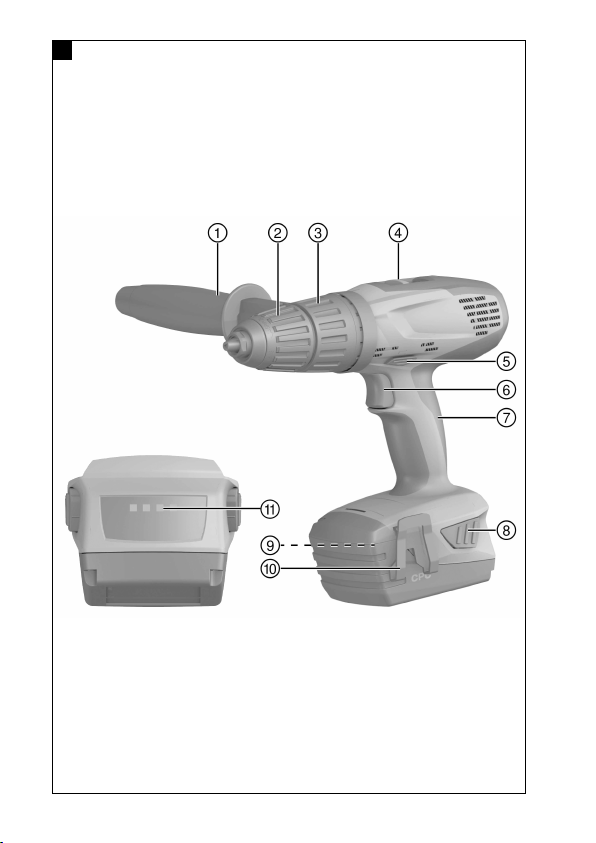

Item reference numbers are used in the overview illustrations and
refer to the numbers used in the product overview section
This symbol is intended to draw special attention to certain points
when handling the product.
1.3 Product-dependent symbols
1.3.1 Symbols on the product
The following symbols are used on the product:
Drilling without hammer action
Revolutions per minute
Rated speed under no load
Direct current (DC)
The power tool supports near-field communication (NFC) technol-
ogy, which is compatible with iOS and Android platforms.
Li-ion battery
Never use the battery as a striking tool.
Do not drop the battery. Never use a battery that has suffered an
impact or is damaged in any other way.
Hilti Li-ion battery type series used. Observe the information given in
the section headed Intended use.
1.4 Product information
products are designed for professional users and only trained,
authorized personnel are permitted to operate, service and maintain the
products. This personnel must be specifically informed about the possible
hazards. The product and its ancillary equipment can present hazards if
used incorrectly by untrained personnel or if used not in accordance with
the intended use.
The type designation and serial number are printed on the rating plate.
*2184702* 2184702 English 3
▶Write down the serial number in the table below. You will be required to
state the product details when contacting Hilti Service or your local Hilti
organization to inquire about the product.
Product information
Drill/driver SBT 4A22
Generation 01
Serial no.
1.5 Declaration of conformity
We declare, on our sole responsibility, that the product described here
complies with the applicable directives and standards. A copy of the
declaration issued by the certification department can be found at the end
of this documentation.
The technical documentation is filed here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916
Kaufering, Germany
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and
specifications provided with this power tool. Failure to follow all instruc-
tions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
▶Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased risk
of electric shock if your body is earthed or grounded.
4 English 2184702 *2184702*
▶Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
▶When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal
injury.
▶Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes, hard
hat or hearing protection used for appropriate conditions will reduce
personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your finger
on the switch or energising power tools that have the switch on invites
accidents.
▶Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your
hair and clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you
to become complacent and ignore tool safety principles. A careless
action can cause severe injury within a fraction of a second.
*2184702* 2184702 English 5
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
▶Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making any
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool
accidentally.
▶Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands of
untrained users.
▶Maintain power tools and accessories. Check for misalignment or
binding of moving parts, breakage of parts and any other condition
that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly
maintained power tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
▶Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe
handling and control of the tool in unexpected situations.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of
fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use
of any other battery packs may create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a
fire.
▶Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If
6 English 2184702 *2184702*
liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
▶Do not use a battery pack or tool that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
▶Do not expose a battery pack or tool to fire or excessive temperature.
Exposure to fire or temperature above 130° C (265 °F) may cause
explosion.
▶Follow all charging instructions and do not charge the battery pack
or tool outside the temperature range specified in the instructions.
Charging improperly or at temperatures outside the specified range may
damage the battery and increase the risk of fire.
Service
▶Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of the
power tool is maintained.
▶Never service damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
2.2 Drill safety warnings
Safety instructions for all operations
▶Use the auxiliary handle(s). Loss of control can cause personal injury.
▶Hold the power tool by insulated gripping surfaces, when performing
an operation where the cutting accessory or fasteners may contact
hidden wiring. Cutting accessory or fasteners contacting a "live" wire
may make exposed metal parts of the power tool "live" and could give
the operator an electric shock.
Safety instructions when using long drill bits
▶Never operate at higher speed than the maximum speed rating of
the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate
freely without contacting the workpiece, resulting in personal injury.
▶Always start drilling at low speed and with the bit tip in contact with
the workpiece. At higher speeds, the bit is likely to bend if allowed
to rotate freely without contacting the workpiece, resulting in personal
injury.
▶Apply pressure only in direct line with the bit and do not apply
excessive pressure. Bits can bend causing breakage or loss of control,
resulting in personal injury.
2.3 Additional safety precautions for screwdrivers
▶Use the product and accessories only when they are in perfect working
order.
▶Never tamper with or modify the product or accessories in any way.
Other manuals for SBT 4-A22
3
Table of contents
Languages:
Other Hilti Power Screwdriver manuals
Hilti
Hilti ST 1800-A22 User manual
Hilti
Hilti SID 4-A22 User manual
Hilti
Hilti ST 1800-A18 User manual
Hilti
Hilti ST 1800-A22 User manual
Hilti
Hilti SFC 14-A User manual
Hilti
Hilti SFH 22-A User manual
Hilti
Hilti SD 2500 User manual
Hilti
Hilti NURON SIW 8-22 User manual
Hilti
Hilti SD 6000 User manual
Hilti
Hilti SID 2-A User manual
Hilti
Hilti ST 1800-A22 User manual
Hilti
Hilti ST 2500 User manual
Hilti
Hilti SBT 4-A22 User manual
Hilti
Hilti SD 4500-A22 User manual
Hilti
Hilti SMD 57 User manual
Hilti
Hilti SID 22--A User manual
Hilti
Hilti SI 100 User manual
Hilti
Hilti ST 1800-A22 User manual
Hilti
Hilti SID 2-A User manual
Hilti
Hilti ST 1800 User manual
