HIK VISION DS-9000HFI-ST User manual

First Choice For Security Professionals

Quick Start Guide

Hybrid DVR

DS-9000HFI-ST Series Hybrid DVR

NVR

DS-9600NI-ST Series

NVR

NOTE: For more detailed information, refer to the User’s Manual on the

CD-ROM. You must use your PC or MAC to access the files.

www.hikvision.com

First Choice For Security Professionals

Quick

Start

NOTE: Connect VGA monitor and mouse before starting.

1. Overview

2. Connection

3. Start Up/Shutdown

4. Formatting a Disk

5. Setting Date & Time

6. Recording

7. Playback

8. Backup

9. Network Connection

10. Configure IP Cameras

(Only for DS-9000HFI-ST Series Hybrid DVR and DS-9600NI-ST Series NVR)

NOTE: For more detailed information, refer to the User’s Manual on the

CD-ROM. You must use your PC or MAC to access the files.

HYBRID

DVR/NVR/ANALOG

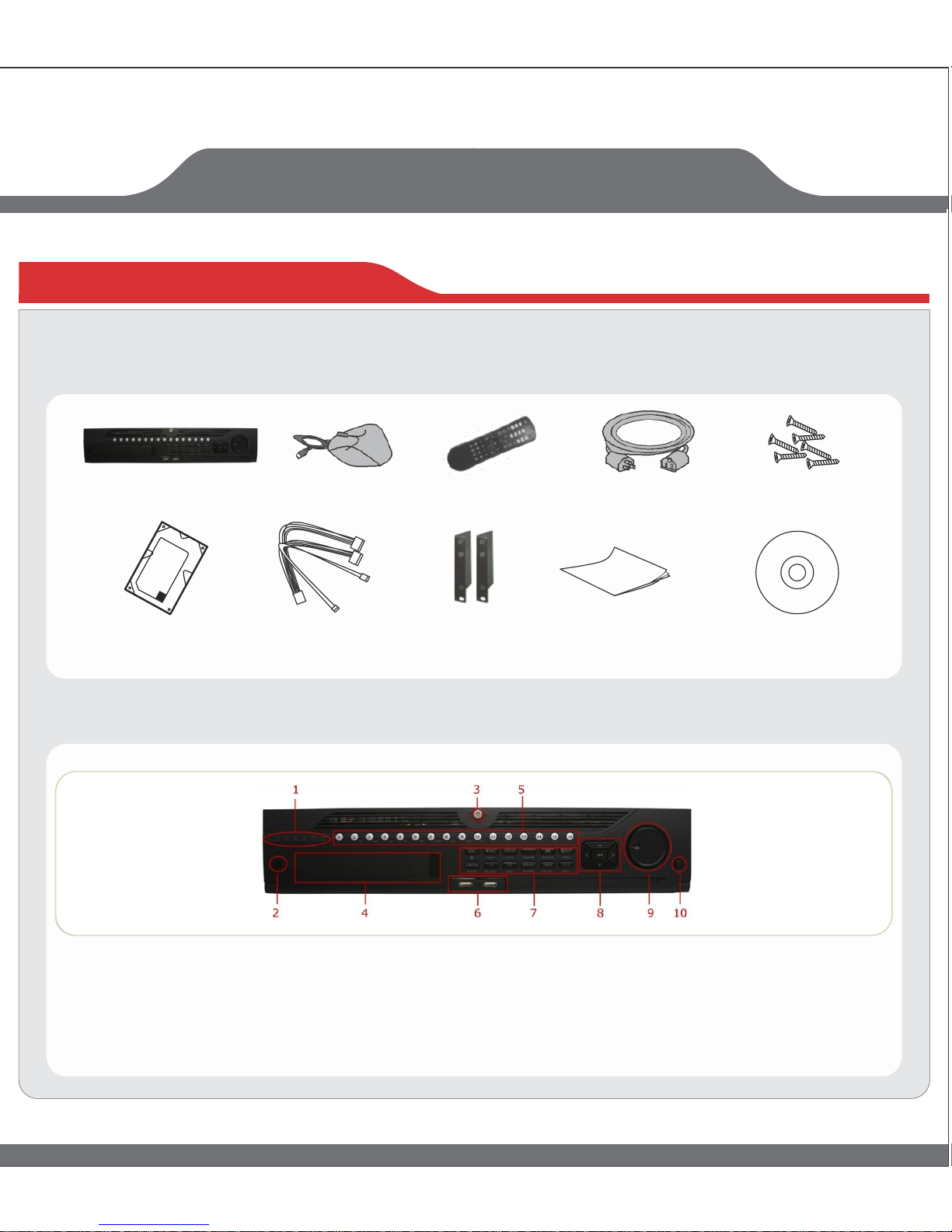

Overview

BEFORE STARTING: Connect VGA monitor and mouse (mouse supplied).

Check that your package includes the following:

Hybrid/Analog DVR Mouse IR Remote Power Cord Screws

Hard Drive (PreInstalled) HDD Cables Rack Mount Ears Quick Start Guide Manual/Software CD

Front Panel Description:

1 4 5 7

3 2 6 8

1. Status Indicators

2. IR Receiver

3. Front Panel Lock

4. DVD-R/W

5. Alphanumeric Buttons

6. USB Ports

7. Control Buttons

8. Direction/Enter Button

9. Jog Shuttle Control

10. Power Button

First Choice For Security Professionals

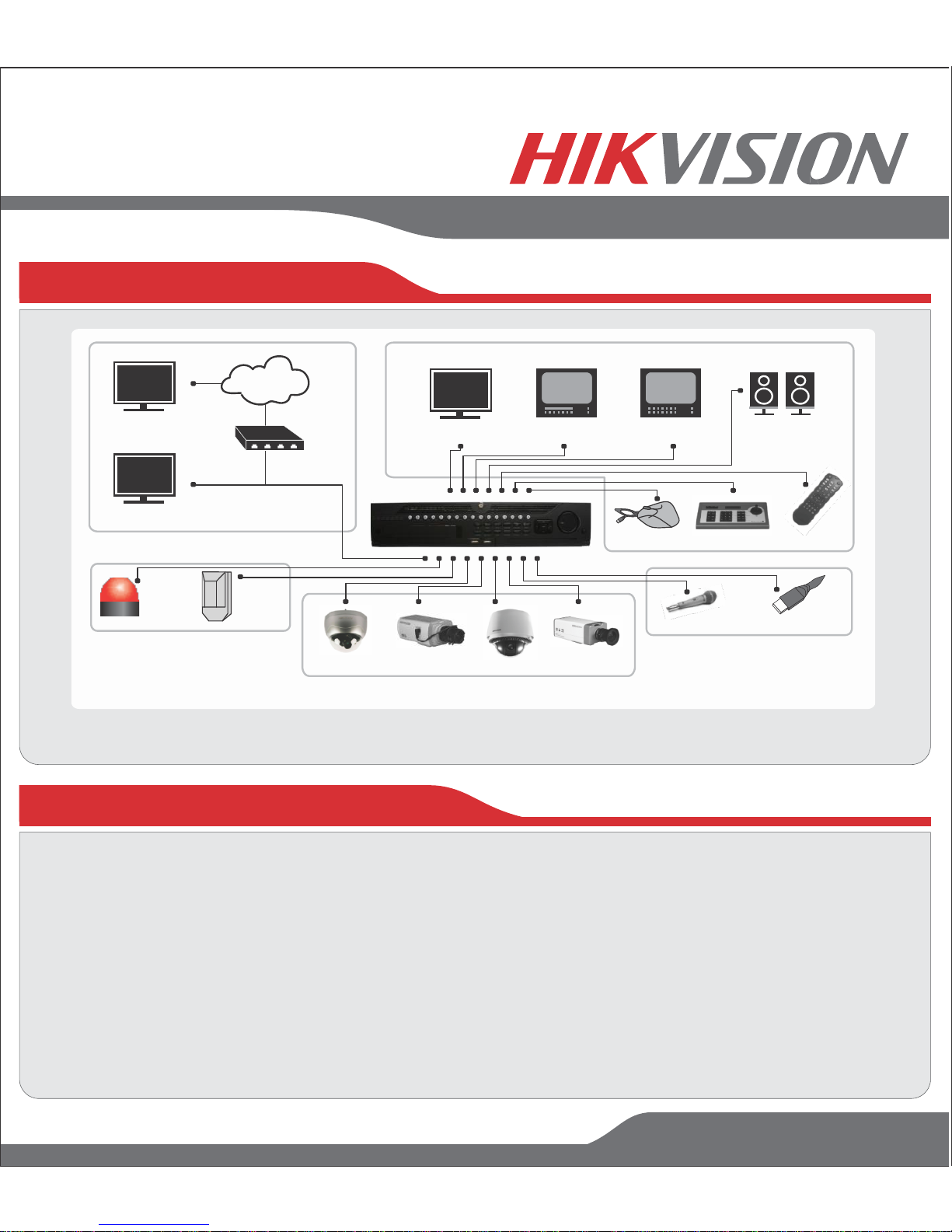

Connection

net

VGA

Monitor

Main

Monitor

Aux/Spot Monitor

Speaker

Router

Ethernet

USB

Mouse

Keyboard

Remote

Alarm

Output

Alarm

Input

Audio Input USB

Device

Analog

Dome

Analog Camera

IP Dome IP

Camera

NOTE:

DS-9000HFI-ST Series Hybrid

DVR

support

both

Analog

and IP

cameras.

DS-9600NI-ST Series

NVR

support

only IP

cameras.

3. Startup and

Shutdown

To startup your DVR:

1. Plug power cord into DVR and electrical outlet. It is HIGHLY recommended to use a surge

protector.

2. Connect a VGA or HDMI monitor and mouse into the DVR. NOTE: Monitor and mouse

need to be plugged in before starting.

3. Switch the POWER button on the back rear panel. The Power indicator LED will turn blue.

The unit will begin to start.

NOTE: Each HDD will start separately to conserve power

NOTE: Default password is 12345

www.hikvision.com

First Choice For Security Professionals

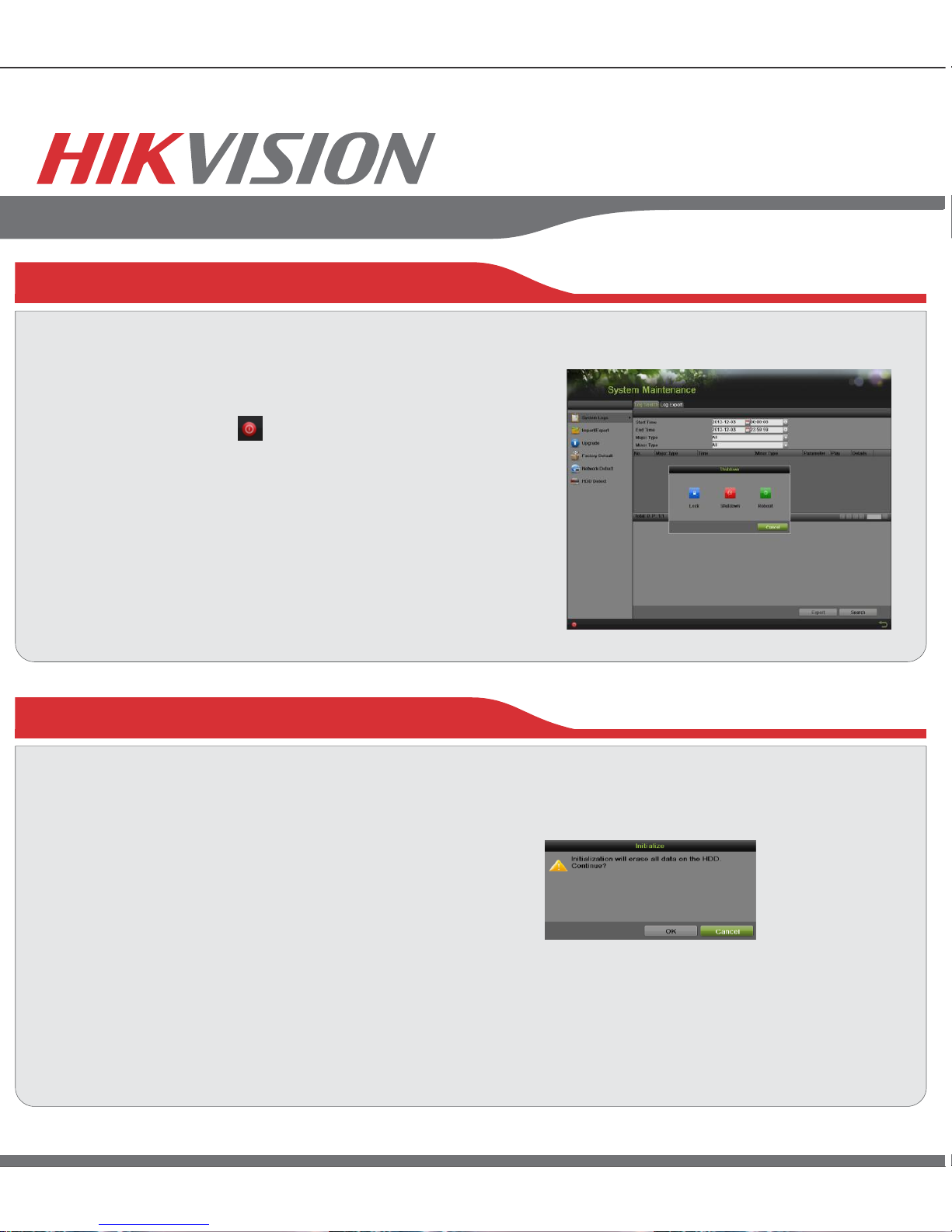

3. Startup and Shutdown (cont.)

To shut down your DVR:

OPTION 1: Standard Shutdown

1. Enter the Shutdown menu by going to Main

Menu > Maintenance.

2. Click Shutdown button to access the Shutdown

menu.

3. Select the Shutdown button.

4. Click the Yes button.

OPTION 2: Manual Shutdown

1. Press and hold the POWER button for 3 seconds.

2. Enter the administrator's username and password

in the dialog box for authentication.

3. Click the Yes button.

NOTE: Do not press the POWER button again

when the system is shutting down.

4. Formatting a

Disk

A newly installed hard disk drive (HDD) must be formatted first before it can be used with your DVR.

NOTE: Formatting the disk will erase all data on it.

To format a new disk:

1. Enter the Disk Management menu by going to Main Menu > System Configuration

> HDD.

2. Place a check next to the disk to format. A disk that has not been formatted will show

Uninitialized as its status.

If the disk is newly installed, the status of the drive will show up as Uninitialized.

HYBRID

DVR/NVR

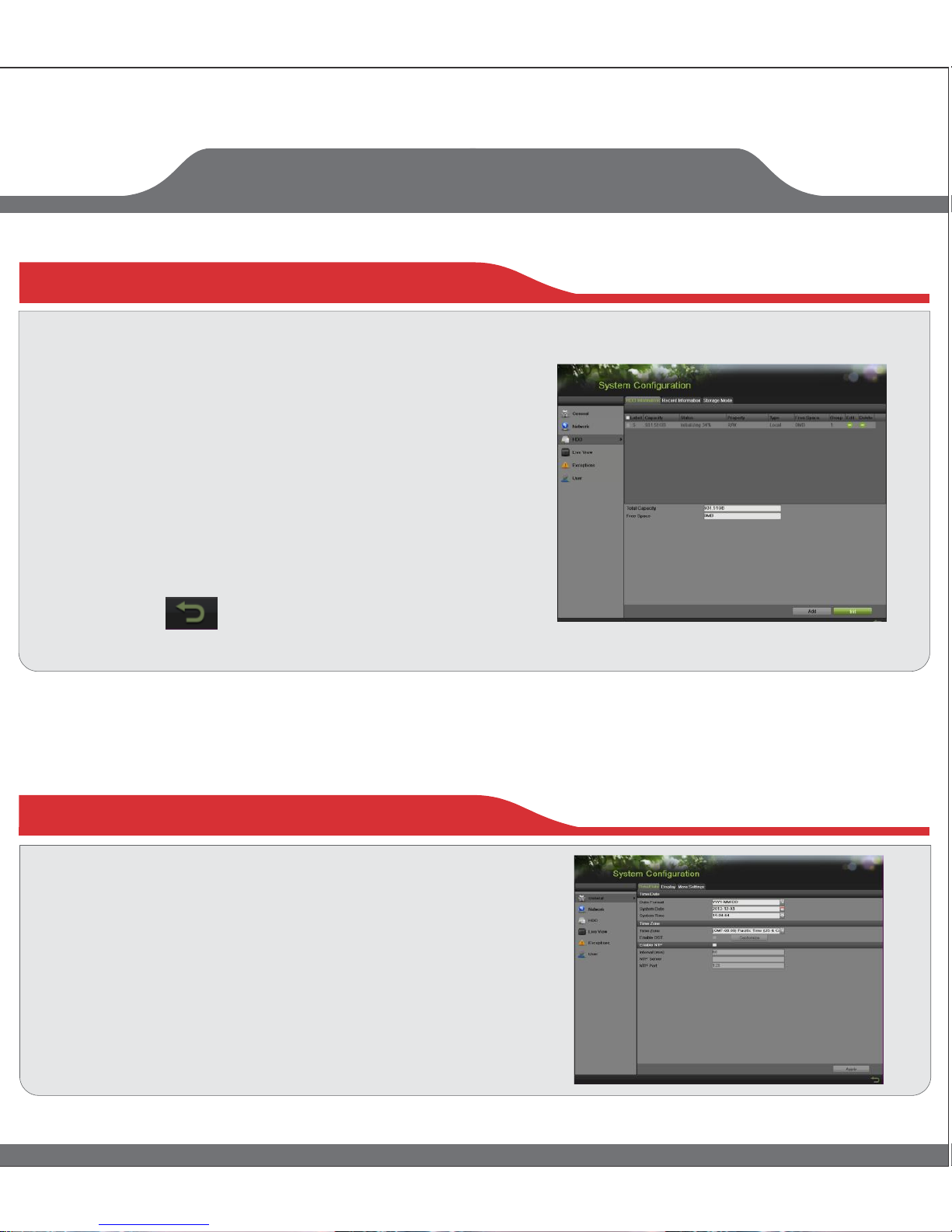

4. Formatting a Disk (cont.)

3. Click the Init button.

4. A confirmation message will appear on the screen.

Click the OK button to continue formatting process.

5. The status column will show the Initialization progress.

After the disk has been formatted, the status of the

disk will change to Normal.

6. Click the button to exit out of Disk Management.

5. Setting Date &

Time

To setup date and time:

1. Enter the Time/Date menu by going to Main Menu

> System Configuration > General > Time/Date.

2. Select the correct time zone. Enter the correct date and time.

3. Click the Apply button to save the settings.

First Choice For Security Professionals

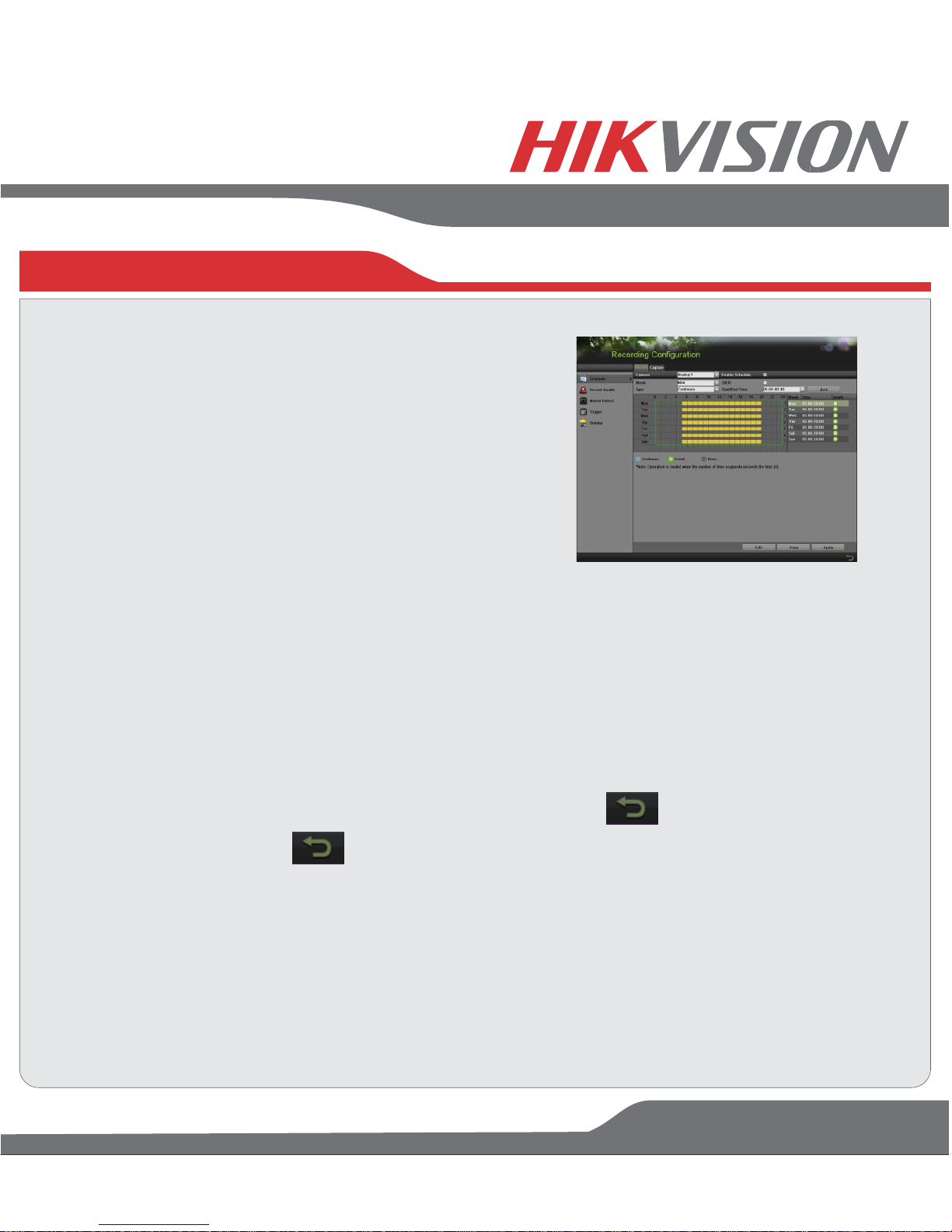

Recording

To setup recording schedule:

You can set the recording through two ways:

OPTION1:

Right click to access the menu. Select Start Recording from

the list, select either Continuous Record or Event Record.

This will apply a 24/7 recording for all active channels.

OPTION2:

1. Enter the Schedule Configuration menu by going

to Main Menu > Recording Configuration

> Schedule.

2. Select a camera to configure from the camera

drop down menu.

3. Check the Enable Schedule checkbox to enable the recording schedule. If the checkbox is

unchecked, the recording schedule will be disabled.

4. Click blue Continuous or yellow Event icon below time table to select recording type. The

time table will switch to editable mode, drag mouse over time table to configure recording

schedule. Different recording types will be marked with corresponding color.

Note: Step 4 scheduling adjustments made to the hour, if recording schedule requires

adjustments to the minutes, move to Step 7.

5. Select Recording Type for each day of the week. Recording type includes Continuous for

continuous recording or Event for recording when an event is triggered (i.e. from detected

motion) for the selected time period.

6. Select the start and stop time for each day of the week. The start and stop time are listed

using a 24 hr cycle (i.e. 18:00 is equivalent to 6:00pm)

7. Select the Apply button to save the schedule settings and click to return to the

previous menu. Clicking without clicking Apply will go out of the menu without saving

settings.

NOTE: Event recordings are recordings that are triggered from motion detection

and/or from an external alarm.

www.hikvision.com

First Choice For Security Professionals

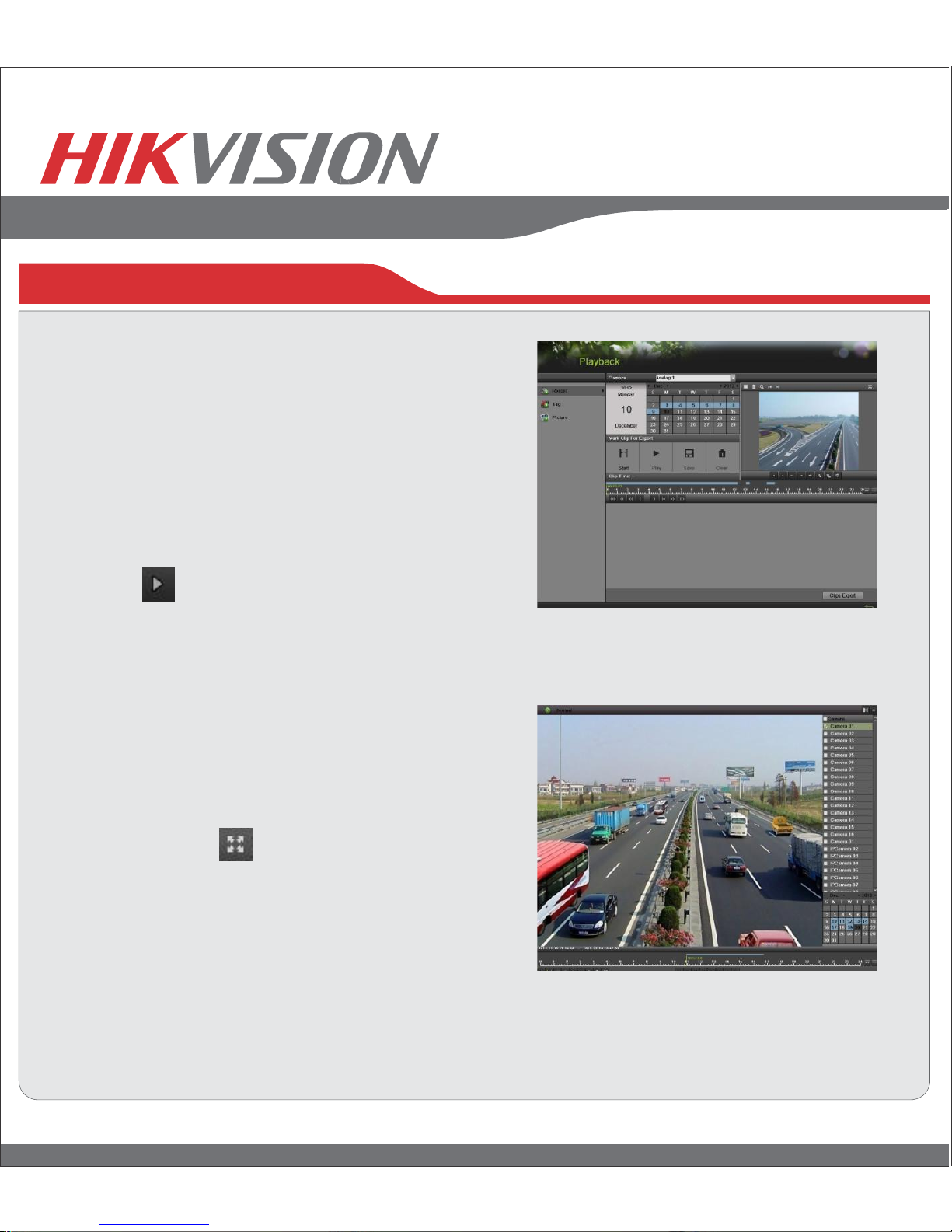

Playback

Playback from Search:

1. Enter the Playback menu by going to

Main Menu > Playback.

2. Select the camera and date you want to

search.

3. The search results will be shown on the timeline

with blue bars designating recorded files.

4. Click a time on the timeline, and then click Play

Forward button below the video preview

window.

Playback Multiple Channels

1. Follow the steps mentioned above to playback the video.

2. Click Full-screen button to enter full-screen mode,

and select additional channels by clicking the checkbox

next to the camera to playback multiple channels.

3. Stop playback on any of channel by un-checking the

corresponding checkbox.

NOTE: Up to 16 channels can be played back at the

same time

HYBRID

DVR/NVR

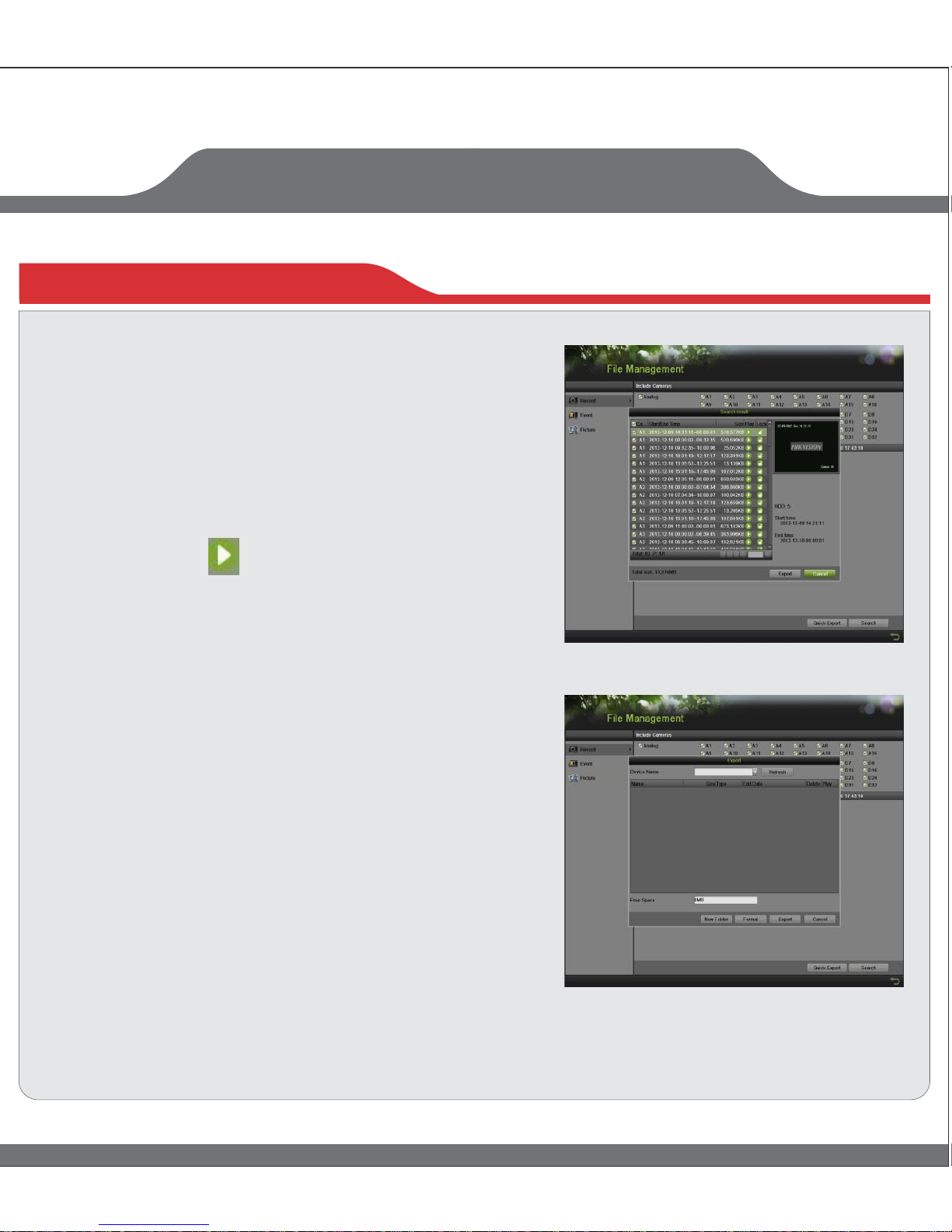

Backup

Backup recorded files (Export):

1. Enter the File Management menu by going to

Main Menu > File Management

2. Place a check next to the cameras you want to

search files for backup. Select the recording type,

date and time range you want to backup. Click

on Search.

3. A search results window will display your results. You

may click the Play button to verify that these files

are indeed the ones you would like to backup. The total

size of backup files will be displayed in lower left hand

corner.

4. Click the Export button.

5. Select device to backup to from drop-down list (USB

Flash Drive, USB HDD, DVD Writer). If backup device

is not recognized:

•Click the Refresh button.

•Reconnect the device.

•Check for compatibility from vendor.

6. The total available free space will be shown. If the

free space is not sufficient, delete files from the

storage device or insert a device with more available

free space.

7. Click the Export button to begin backup process.

After the backup has completed, click the OK button.

First Choice For Security Professionals

9. Network

Connection

Network Connection

Using Web Browsers

All Hikvision products use the default IP address of 192.0.0.64

1. Connect a CAT5 or CAT6 cable from the DVR to a PC or Laptop computer.

Note your laptop or PC computers existing address, such as:

IP: 192.0.0.62

Subnet: 255.255.255.0

2. Open web browser.

3. In the address bar, type 192.0.0.64

If prompted, allow the installation of the Hikvision application.

It may be necessary to add this IP address as a Trusted Site with Low Security.

4. Login to the DVR:

Username: admin

Password: 12345

5. Go to the Configuration tab, then Remote Configuration, then [Network Settings]

6. Click on Network Settings.

7. Enter the IP address you wish the DVR to have, then SAVE.

8. Reset your laptop or PC to its original IP address, subnet and gateway.

9. Type the new address in web browser.

Using Hikvision iVMS-4200 client software

If possible, check http://www.hikvision.com for the latest version of the iVMS-4200 client software.

If internet access is not available, install the software from the CD.

Then follow the instructions included with the software.
