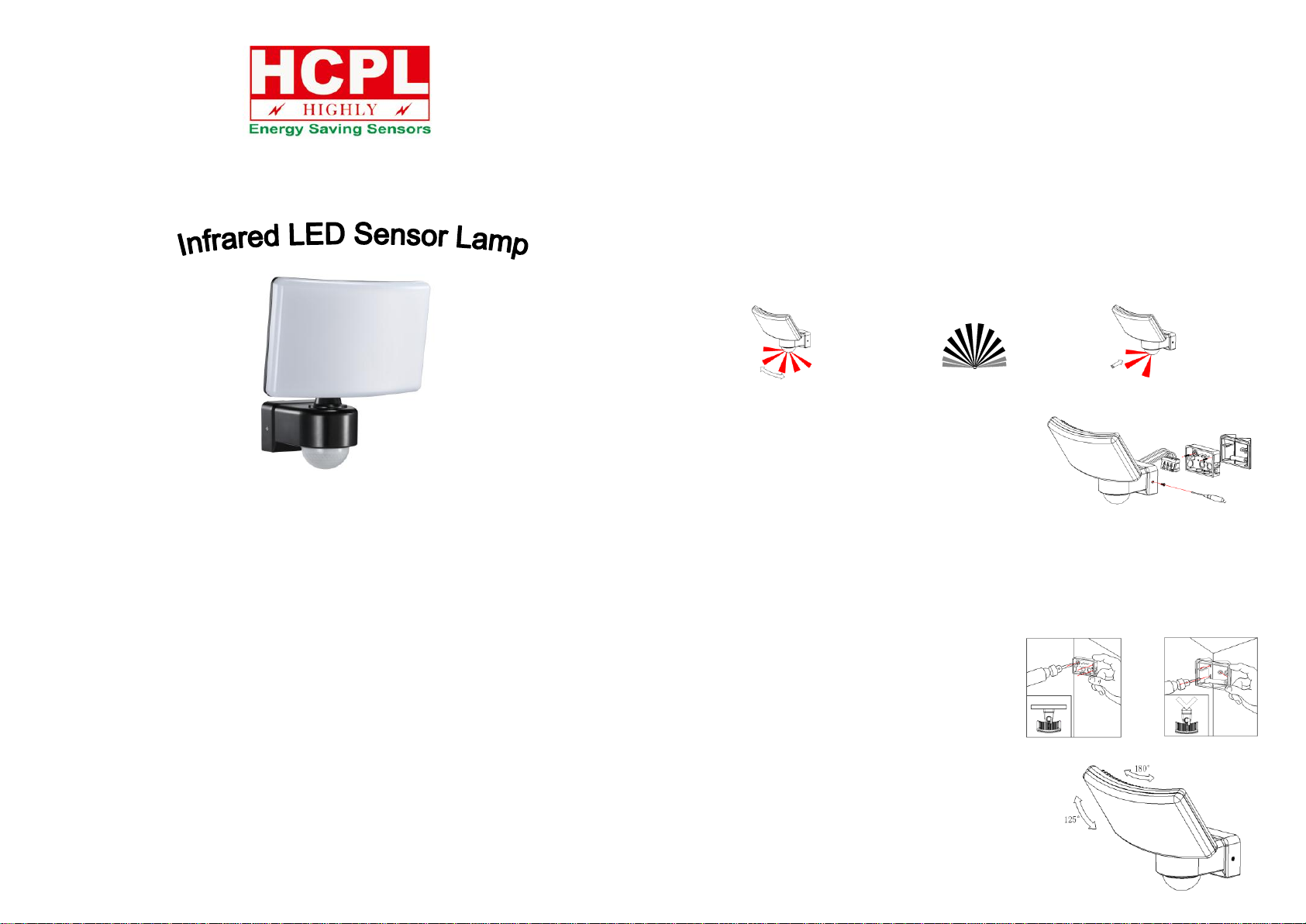

CONNECTION-WIRE DIAGRAM:
Another way as follows if connecting with electric fan or other lamp:
SENSOR INFORMATION:
TEST:
Turn the SENS knob clockwise on
the maximum (+). Turn the TIME
knob anti-clockwise on the
minimum (10s). Turn the LUX
knob clockwise on the maximum
(sun).
Switch on the power; the lamp will
have no signal at the beginning. After Warm-up 30sec, the lamp can start work. If it receives
the induction signal, the lamp will turn on. While there is no another induction signal any
more, the lamp should stop working within 10sec±3sec.
Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3LUX,
the lamp should not work. If you cover the detection window with the opaque objects (towel
etc), the lamp would work. Under no induction signal condition, the lamp should stop
working within 10sec±3sec.
Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the
sensor lamp could not work!
NOTE:
Should be installed by electrician or experienced person;
Avoid installing it on the uneven object;
There should be no hindrance and moving objects in front of the detection windows to affect
detection;
Avoid installing it near air temperature alteration zones such as air condition, central heating,
etc;
Considering your safety, please do not open the cover when you find the hitch after
installation;
If there is difference between instruction and the function the product has, please give
priority to product and sorry not to inform you additionally.
SOME PROBLEM AND SOLVED WAY:
The load does not work:
a. Please check if the connection of power source and load is correct.
b. Please check if the load is good.
c. Please check if the settings of working light correspond to ambient light.
The sensitivity is poor:
a. Please check if there is any hindrance in front of the detector to affect it to receive
the signals.
b. Please check if the ambient temperature is too high.
c. Please check if the induction signal source is in the detection field.
d. Please check if the installation height corresponds to the height required in the
instruction.
e. Please check if the moving orientation is correct.
The sensor can not shut off the load automatically:
a. Please check if there is continual signal in the detection field.
b. Please check if the time delay is set to the maximum position.
c. Please check if the power corresponds to the instruction.
Height of installation: 1.8-2.5m
Detection Distance: Max.10m
