HiBoost Smart Link Series User manual

Smart Link Series

Installation Guide

10K Smart Link

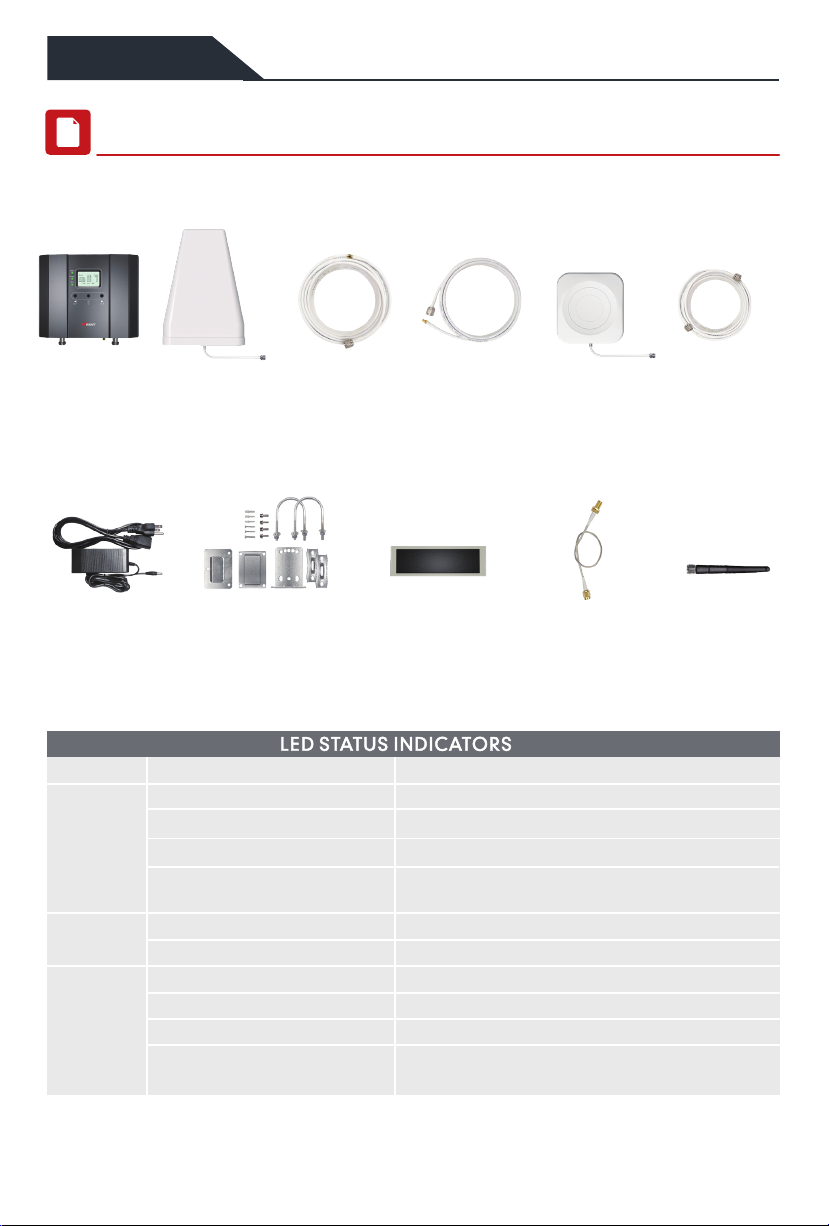

Package Contents

10K Smart Link

Booster Light Patterns

Signal Booster Outdoor Cable Indoor Antenna

Outdoor Cable

Outside Antenna

Power Supply waterproof tape

Accessories for main parts

are all provided to protect connections SMA-Male to SMA-Female

Bluetooth and

Wi-Fi antenna

Through-Window Cable

(No drilled hole)

32.8ft NM-SMAM 16.4ft SMAF-NM 30ft NM-NM

Indoor Cable

ALARM

Power LED

ISO

LED STATUS

Normal

Slight Overload

Overload

Slow Flashing Green

Solid Green

Quick Flashing Green

Quick Flashing Red

Green

Off

Solid Green

Slow Flashing Green

Quick Flashing Green

Quick Flashing Red

Normal

Slight Loopback

Loopback

Booster automatically shut

Normal

DC Power Problem

INDICATION

off due to strong loopback

Booster automatically shut off

Note: If the booster automatically shut off , please manually reboot it.

due to strong overload

Bands contained in the Gauges on Signal Supervisor

Gauge Band Uplink Downlink

LTE700

CELL800

PCS1900

AWS2100 4 1710-1755MHz 2110-2155MHz

12/17 698-716MHz 728-746MHz

13 776-787MHz 746-757MHz

5 824-849MHz 869-894MHz

25/2 1850-1915MHz 1930-1995MHz

Please focus on the gauge that contains the band you are using.

Getting Started

LED STATUS INDICATORS

LED

Bluetooth

Wi-Fi Slow Flashing Green Wi-Fi Connected

STATUS INDICATION

Slow Flashing Green Bluetooth Disconnected

Quick Flashing Green Bluetooth Connected

Solid Green Wi-Fi Disconnected

Step 2

Download the Signal Supervisor App, register ID and

booster.

Connect the Power Supply and the whip antenna to the

Booster

Step 1

Add the booster to the device list.

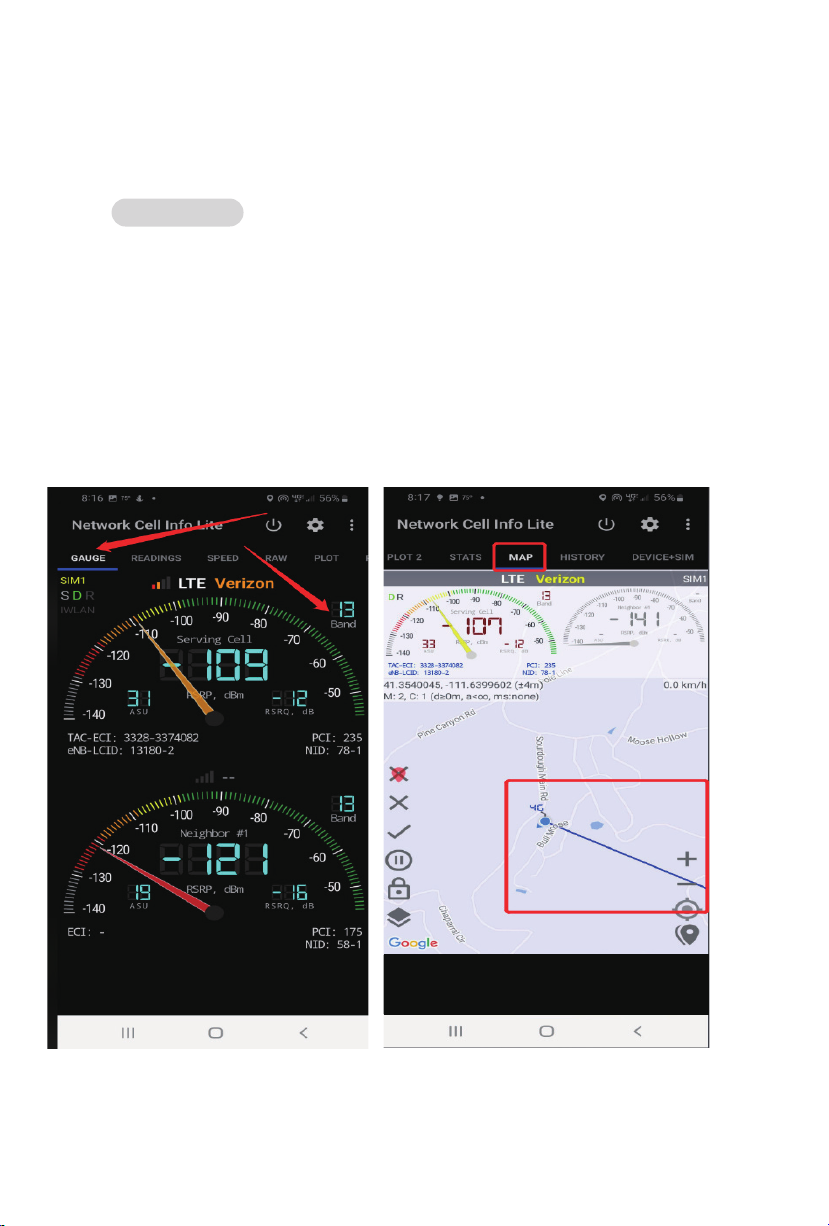

Download NetWork Cell Info Lite in the Google store and open it.

It can be seen from the example picture that the frequency band is band 13.

(According to the form before, you need to pay attention to Gauge LTE700)

Then click MAP. You can see your phone connecting to a tower, and you can try

aiming your outdoor antenna at it. But sometimes this is not accurate. You could also

move to Step 3.2 to find the tower

Note: Please take screenshots at this stage.

Step 3

Find the cell tower & Determine the outdoor antenna’s position

3.1 Find the band you are using

For Android

(1)Dial *3001#12345#*

(2)Follow the instructions, take the screenshots as required.

(1) Enter cellmapper.net

(2) Choose your own carrier and band here.

3.2 Find the cell tower

For ios

AT&T AT&T

(3) Then enter the coordinate of where you are trying to install the signal booster, and press

Enter key.

(In fact when you open Cellmapper, the map on the right will automatically locate your area

if you've given the site permission to access your location. If you found tower sites not even

displayed on the map, it might because the app intercepts the locations for security

reasons.)

(4) After the map jumps to the location, you can scroll the mouse pulley and zoom it out,

then you will see the tower near the location. It would be better to take a screenshot of this

page to guide the following installing steps. Should you have any questions, please contact

our tech support.

Note: If you need help finding the tower, please contact our tech support and provide your

carrier, band and screenshots taken in the last steps.

Step 4

Connect the outdoor antenna with the booster

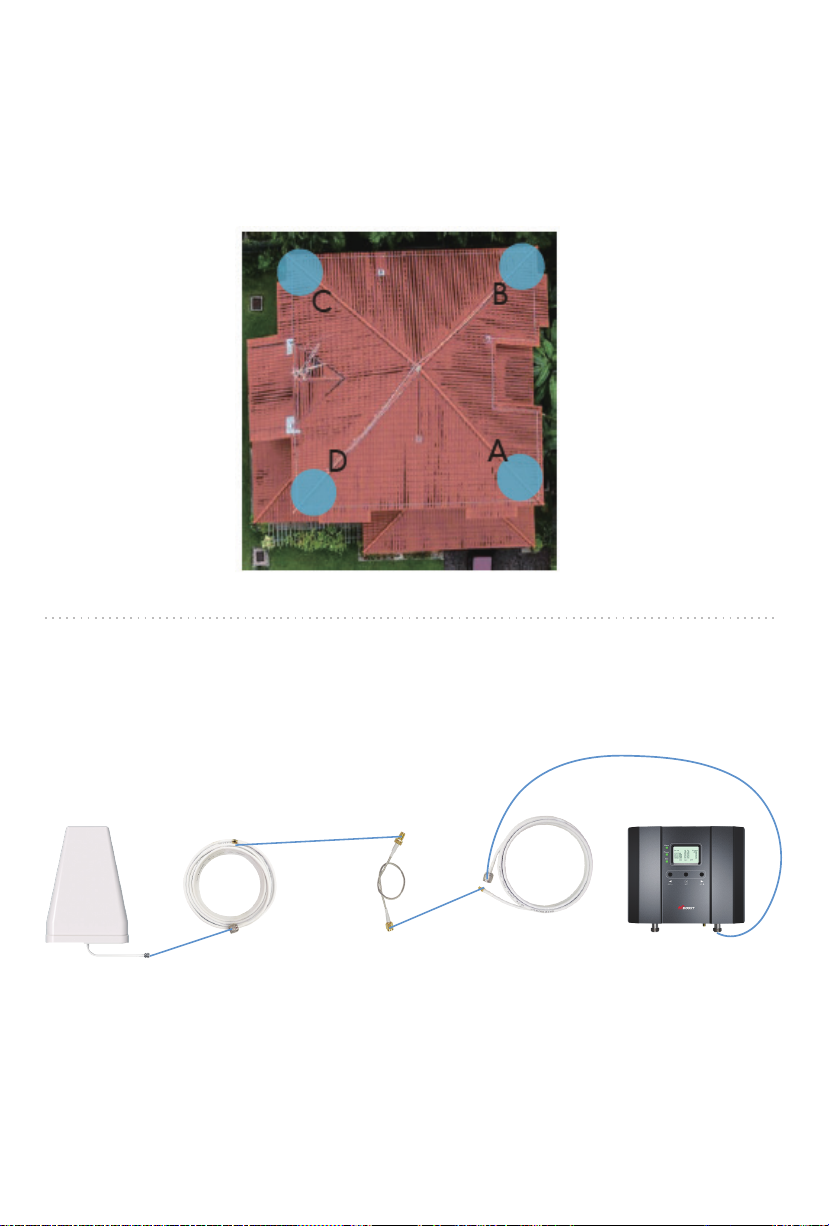

3.3 Determine the outdoor antenna’ s position

The outdoor antenna is usually placed at one of the 4 ends of the roof.

Please choose the position according to the tower’ s location. Make sure there are no barriers

between the antenna and the tower.

Note：At this stage, don’ t connect the indoor antenna to the booster.

SMA-Male to SMA-Female

Through-Window Cable

(No drilled hole)

Signal BoosterOutdoor Cable Outdoor Cable to BoosterOutside Antenna

32.8ft NM-SMAM 16.4ft SMAF-NM

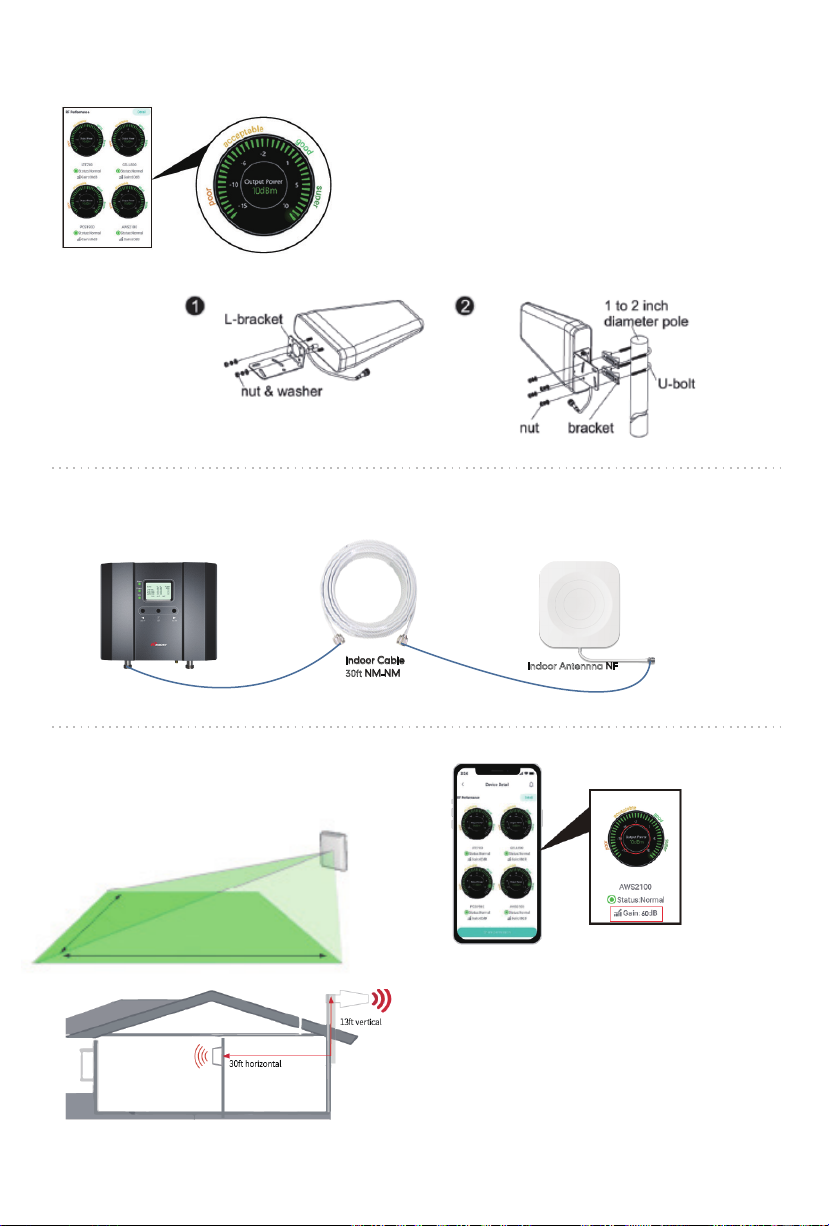

Step 5

Adjust and fix the Outdoor Antenna

Step 6

Connect the indoor antenna with the booster

Step 7

Adjust the indoor antenna

Have your outdoor antenna pointed to the cell tower

you found before and observe the reading on the

app. Adjust the outdoor antenna accordingly.

Notes:

(1) The output power should be the higher the better.

(2) The full output power for 10k Smartlink is 12dBm.

And the full gain is 65dB.

Have your indoor antenna pointed to the area you would

like to cover with signal.

Notes:

(1)It would be best if you could make the two antennas face

opposite directions.

(2)Make sure that the gain reaches about 60dB. If not, please

adjust the direction of the indoor antenna/increase the vertical

and horizontal distance between the two antennas/add some

barriers.

Indoor Antennna NF

Indoor Cable

30ft NM-NM

30ft

Panel antenna

30ft

Step 8

Signal quality test

You could do the following:

(1)First make sure the signal gauge value is unchanged from that during

the outdoor antenna installation.

(2)Do speed tests with the booster on and off, and make a comparison.

(3)Check if the number of signal bars increases.

(4)Make a phone call or send messages and check if the voice and

streaming are better.

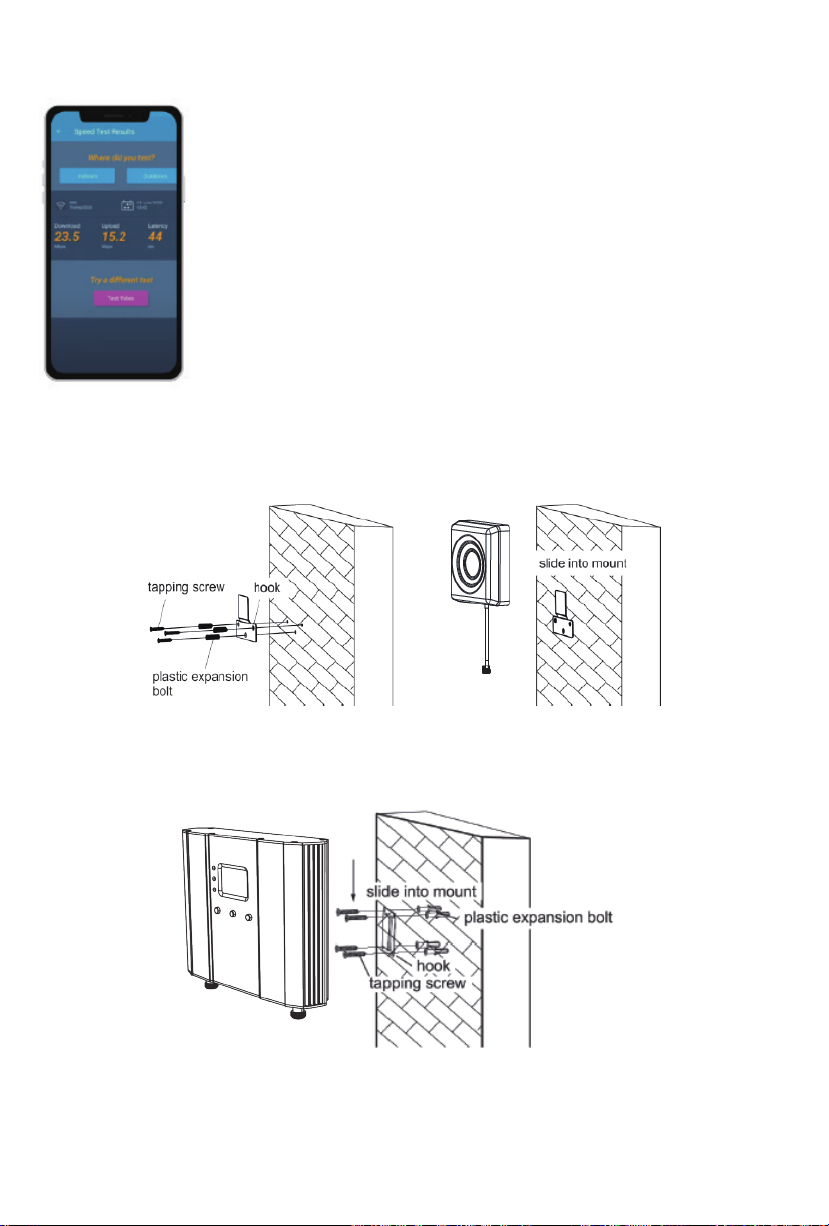

Step 9

Fix the Inside Antenna and the Booster

Fix the booster with the provided expansion bolt and hook.

Fix the indoor antenna with the provided expansion bolt and hook.

　OVERLOAD

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

<60dB >=10dBm

Outdoor signal is

too strong

<60dB

>=10dBm

LTE700

CELL800

PCS1900

AWS2100

4 Regular Problems and 1 normal status

Iftheboosterisworkingnormally,nofurtheradjustmentisrequired

Have your outdoor antenna

pointed slightly away from the

cell tower

Alarm light quick

blinking green or red

ISO light blinking

green or red

Alarm light and

ISO light solid

green

　LOOP BACK

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

<60dB <10dBm

<10dBm

<10 dBm

<60dB

LTE700

CELL800

PCS1900

AWS2100

1、Increase vertical and

horizontal distance.

2、Make the indoor and

outdoor antennas face

opposite directions.

3、Add barriers(e.g. walls)

Please try these solutions until

the gain reaches or is over

60dB.

Inadequate

separation of the

indoor and outdoor

antennas

　POOR SIGNAL

DL GAIN OUTPUT POWER REASON SOLUTIONLED LIGHT PATTERN

>=60dB

--/NEGATIVE

LTE700

CELL800

PCS1900

AWS2100

1、Try adjusting the outdoor

antenna to the best direction

2、Try adjusting the outdoor

antenna to another cell tower

3、Try increasing the height of

the outdoor antenna and make

sure there are no barriers

between the tower and the

outdoor antenna

Please try these solutions until

the output power reaches or is

over -5dBm.

Input signal is too weak
