Hi Sharp Digital video recorder User manual
1
Digital Video Recorder
User’s Manual
2
Contents Index
1. DVR I/O Connection …………………………………………………… 3
2. DVR Operation ………………………………………………………… 9
3. DVR Function Setup …………………………………………………… 18
3.1 System Setup ………………………………………………………… 18
3.2 Network ……………………………………………………………… 24
3.3 Device ………………………………………………………………… 29
3.4 Record ………………………………………………………………… 34
3.5 Event ………………………………………………………………… 37
4. Search & Playback ……………………………………………………… 42
5. Remote Connection ……………………………………………………… 47
5.1 Remote Function Setup …………………………………………… 53
5.2 Remote Search & Playback ………………………………………… 69
6. Player Function ………………………………………………………… 78
7. CMS Function Setup …………………………………………………… 81
3

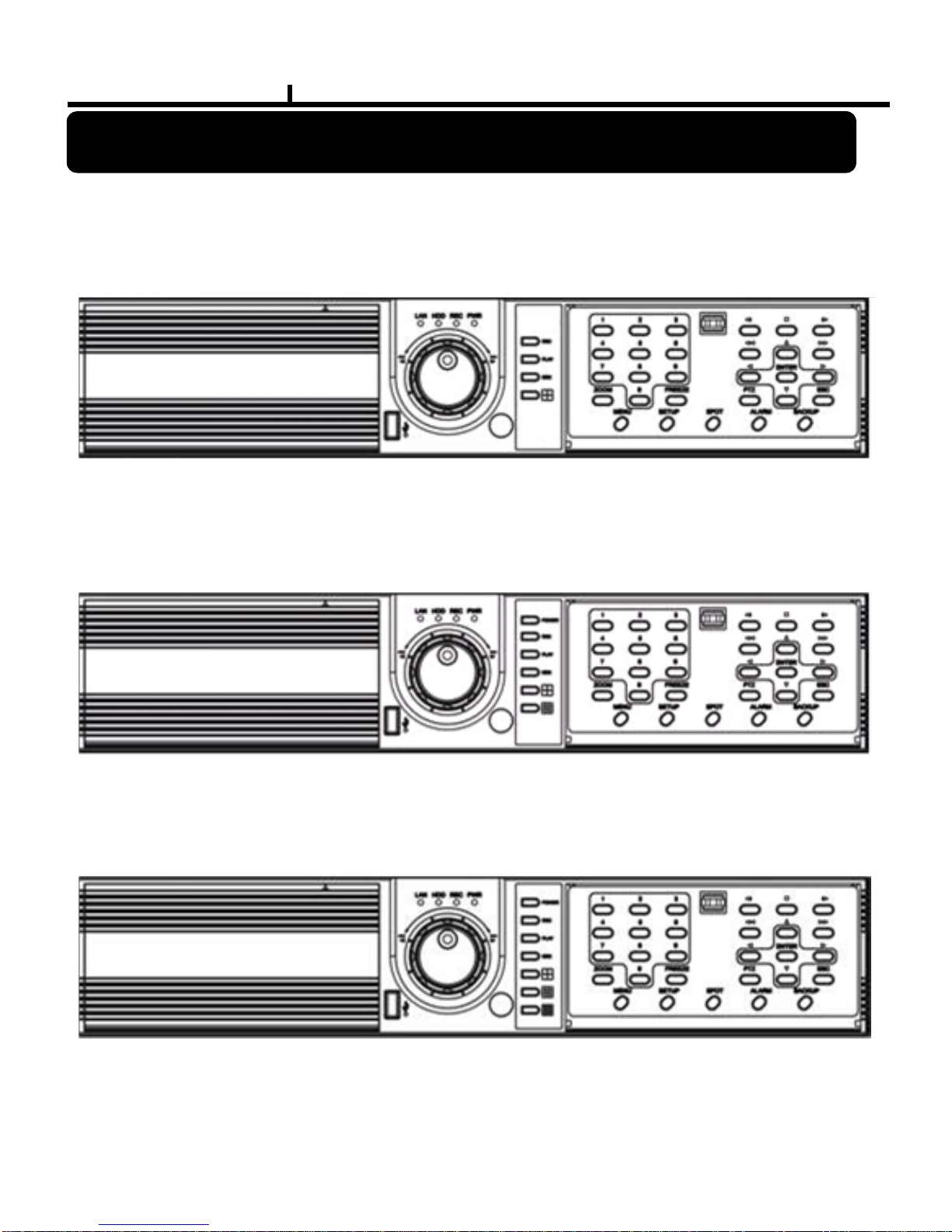

Type A : 4 CH DVR
Type B : 9 CH DVR
Type C : 16 CH DVR
The DVR system front panel with different Type device
1. DVR I / O Connection
4
0 ~ 9: Channel select
Zoom: Live zoom x 2
FREEZE: Live image freeze
REC: Record button
PLAY: Playback button
SEQ.: Channel sequence
Split screen select
MENU: To main OSD setup
Setup: To sub OSD setup
Spot: Call monitor setup
Reverse step Forward step Fast reverse Fast forward
Stop playback
Direction button up/down/left/right
Enter button
PTZ: To PTZ control mode
ESC: Exit menu
Alarm : Call alarm relay
Backup: to backup mode
Power: DVR power On / Off button Type A doesn’t offers this power button
5
2) LOOP OUT Connection
3) Monitor Connection
It connects audio source (mic) to audio
input of RCA and connects speaker to
audio output.
It supports 10/100 BaseT, connects
Cat5 cable with RJ-45
System rear connection detail
1) Video Source Connection
It connects video sources (camera image) to BNC connector via cable.
BNC connector of LOOP OUT can be used other device’s input.
CVBS OUT/SPOT : It connects normal CCTV CRT monitor.
S-VHS : It connects monitor that supports S-VHS(S-VIDEO)
VGA : It connects PC monitor or LCD monitor (not supporting DVI)
4) Audio Connection 5) Network Connection
1. It may cause low quality of picture when connecting cable
from any device to LOOP OUT BNC.
2. Type A doesn’t support Loop out connection.
1.Type A doesn’t support S-VHS output.
2.Type A only offers 1 Spot output .
6
6) RS232 port Connection.
RS232 port is connected to PC and other devices for specific function and After Sales purpose.
It consists of 1 USB (Front), 1 USB (Rear), its supported devices are such as USB mouse, USB
external HDD and USB memory stick
* Alarm output 1~4CH
It can be on/off for buzzer, headlamp etc.
Alarm input mode consists of NORMAL OPEN and NORMAL CLOSE.
Ref : The spec. Max24V/2A
7) USB port Connection
8) ALARM IN(SENSOR) Connection
It consists of ALARM IN(SENSOR) and G(GND).
Ref : The spec. is Max 6V/50mA
9) ALARM OUT Connection
front rear
Type A support 4 Alarm in .
Type B support 8 Alarm in .
Type C support 16 Alarm in .
Type A support 1 Alarm out .
Type B support 4 Alarm out .
Type C support 4 Alarm out .
7
When you need to shift NTSC/PAL mode, turn off the DVR before shift switch, then restart the DVR.
10) Factory Reset Switch and NTSC/PAL Shift Switch
Factory Reset Switch
NTSC/PAL Shift Switch
11) Power Connection
The factory reset switch located at the left side of NTSC/PAL switch is used to return to factory
default setup values.
The button should be pressed during power on. After OSD prompts "Factory reset detected"
message on OSD, the button can be released. The booting procedure would go on after
resetting setup values
Type A , Power Supply is 12 V DC / 5A Main power can be turned on/off by switch.
Type B and C
, Power Supply is Micro ATX 100/240VAC , 60/50Hz , 4A
Main power can be turned on/off by switch.
Type A doesn’t offers this Factory reset function
8
System Power On
•Power on the DVR.
It takes about 100 seconds to boot (It may take more when network cable isn’t connected)
System Shutdown
•Press “Power” button in front panel to shutdown the DVR system .
or [SETUP Menu] -> [SYSTEM] -> [SYSTEM SHUTDOWN] to shutdown the DVR system
•It takes 30 seconds to shutdown.
2. DVR Operation
9
Installation Guide for HDD & ODD devices (SATA Type 4CH)
Description
SATA 1 : HDD#1
SATA 2 : HDD#2
SATA 4 : ODD(CD/DVD)
Installed HDD HDD Position System ODD(CD-RW/DVD-RW)
Device
HDD x 1 HDD#1 SATA 1 SYSTEM
SATA 4
HDD x 2 HDD#1 SATA 1 SYSTEM
HDD#2 SATA 2
ODD
MAIN
BOARD
HDD
1. ODD(CD-RW/DVD-RW) devices should be installed as “SATA 4”.
2. HDD for system needs to be installed as “SATA 1”.
Guide Chart for installing several HDDs
HDD
10
Installation Guide for HDD & ODD devices (SATA Type 16CH)
Description
SATA 1 : HDD#1
SATA 2 : HDD#2
SATA 3 : HDD#3
SATA 4 : ODD(CD/DVD)
1. ODD(CD-RW/DVD-RW) devices should be installed as “SATA 4”.
2. HDD for system needs to be installed as “SATA 1”.
Installed HDD
HDD
System
ODD(CD-RW/DVD-RW)
Devices
Connector Connector
HDD x 1 HDD#1 SATA 1 SYSTEM
SATA 4
HDD x 2
HDD#1 SATA 1 SYSTEM
HDD#2 SAAT 2
HDD x 3
HDD#1 SATA 1 SYSTEM
HDD#2 SATA 2
HDD#3 SATA 3
Guide Chart for installing several HDDs
