hestan AGB122NGTQ User manual
OUTDOOR COOKING
Outdoor Side Burner
AGB
Use & Care Manual
Installation & Operation
HESTAN OUTDOOR, MOST
POWERFUL, VERSATILE
AND RELIABLE OUTDOOR
COOKING AVAILABLE.
EN
©2016 Hestan Commercial Corporation
1
Message from Hestan:
Outdoor cooking is a perfectionist’s pursuit, and with your new investment,
you’ve now taken the ultimate step forward. We sincerely welcome you to
the Hestan Family. We’ve engineered and built our products so that your
guests will rave about your meal, but deep down, our customers know it
could’ve been just a little more tender, juicier – a pinch more salt in the rub
or a few seconds less on the flame. Yes, we’ve taken the time to know our
Hestan customer and we’re excited to be on this journey with you. Hestan
Outdoor was born from this same perfectionist passion. Our engineers
experimented, innovated, tweaked and tinkered until they created the most
powerful, versatile and reliable outdoor products available.
We pride ourselves on restless innovation, superior engineering and
purpose-built designs, but also our in-depth understanding of our target
consumer and the interests and needs of the ultimate end-users we serve
and covet. For many consumers, cooking outdoors is much more than an
act of food preparation. It’s a lifestyle activity that encompasses culinary,
leisure and social pursuits among others.
We are thankful and proud that you have chosen Hestan, and we yearn to
have you as a customer for life. We take your decision to choose Hestan
most seriously, and we promise to deliver the very best to you.
Welcome to Hestan Outdoor
EN
©2016 Hestan Commercial Corporation
2
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Do not try lighting this appliance without reading the LIGHTING
INSTRUCTIONS section of this manual.
For outdoor use ONLY. This cooking appliance is not intended to be
installed in or on recreational vehicles, and/or boats.
Flammable Gas - disconnect all propane or natural gas supplies to this
unit before servicing.
Electrical Parts & Components – disconnect all power supplies and
batteries before servicing.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
DANGER
1. Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance.
2. An LP cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE USING YOUR
GRILL TO REDUCE THE RISK OF FIRE, BURN HAZARD, OR OTHER INJURY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
EN
©2016 Hestan Commercial Corporation
3
4 MODEL NUMBERS
5 RATING LABELS
5 PRECAUTIONS
8 REGULATORY / CODE REQUIREMENTS
8 PORTABLE LP CYLINDERS
9 LOCATION AND ASSEMBLY
9 INSTALLATION
11 CART INSTALLATION
15 GAS CONNECTIONS
22 LIGHTING INSTRUCTIONS
24 USING YOUR SIDE BURNER
24 CLEANING AND MAINTENANCE
27 TROUBLESHOOTING
28 WIRING SCHEMATICS
31 PARTS LIST
31 SERVICE
31 WARRANTY
TABLE OF CONTENTS
EN
©2016 Hestan Commercial Corporation
4

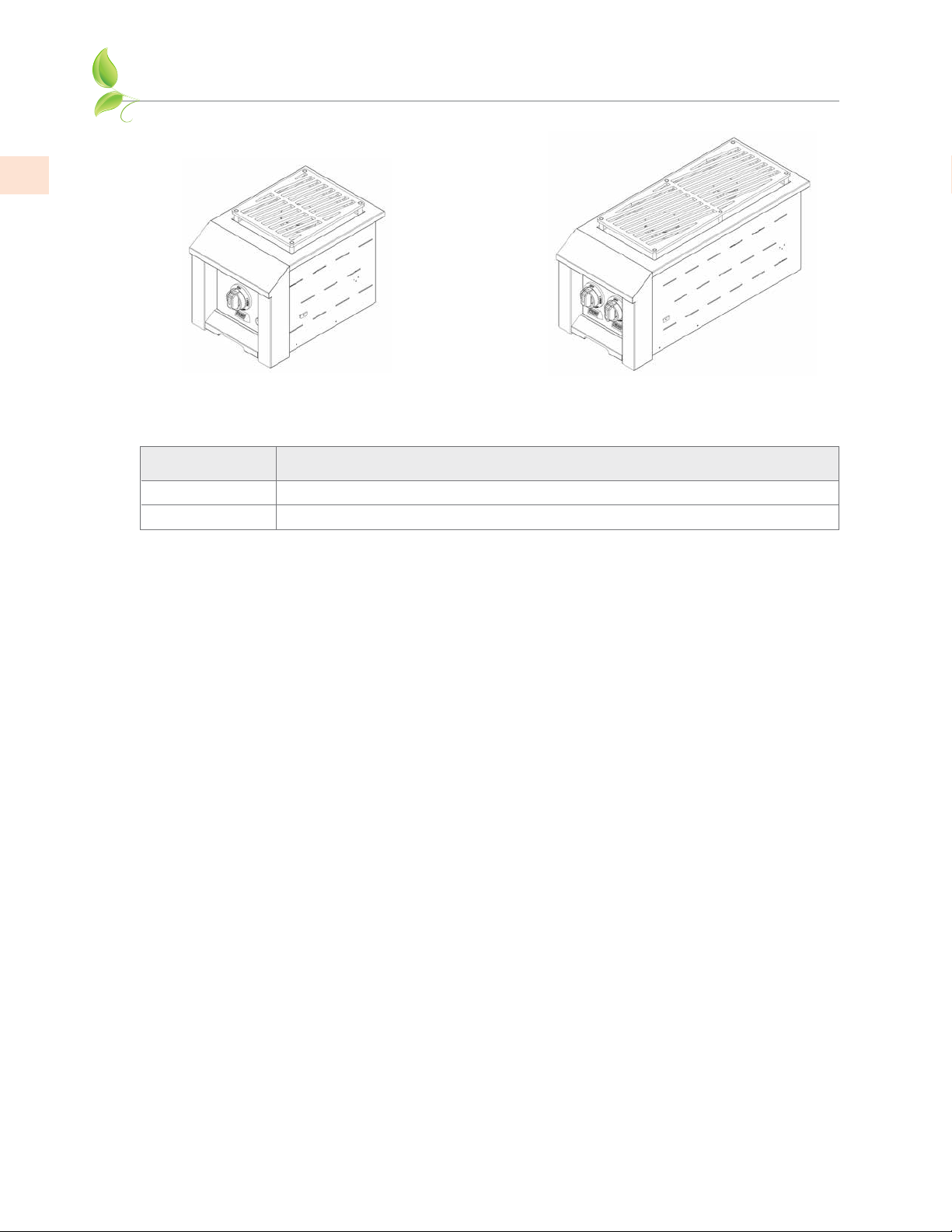

BUILT-IN MODELS
Model No. Description
AGB121-NG / -LP 12” BUILT-IN SINGLE SIDE BURNER
AGB122-NG / -LP 12” BUILT-IN DOUBLE SIDE BURNER
AGB121 AGB122
MODEL NUMBERS
EN
©2016 Hestan Commercial Corporation
5
RATING LABEL
The rating label contains important information about your Hestan appliance such as the model
and serial number, gas type and manifold pressure, the BTU rating for each burner type, and the
minimum installation clearances.
PRECAUTIONS - BEFORE YOU USE YOUR SIDE BURNER
When properly cared for, your Hestan side burner will provide safe, reliable service for many
years. However, extreme care must be used since the side burner produces intense heat, which
can cause serious injury or even death if the instructions are not followed carefully. When using
this appliance, basic safety practices must be followed as outlined below.
1. NEVER LEAVE THE SIDE BURNER UNATTENDED WHILE COOKING.
2. Children should not be left alone or unattended in an area where the side burner is being
used. Never allow them to sit, stand, or play on or around the side burner. Do not store
items of interest to children around or below the side burner or in the cart. Never allow
children to crawl inside of the cart.
3. Never operate the side burner while under the influence of alcohol or drugs.
4. Never use the side burner in windy conditions. If located in a consistently windy area,
oceanfront, mountaintop, etc., a windbreak will be required. Always adhere to the specified
clearances as described in the INSTALLATION section of this manual.
5. The side burner shall be used only outdoors and shall not be used in buildings, garages, sheds,
breezeways, or any enclosed areas. Do not operate the side burner under unprotected,
combustible construction. Use only in well-ventilated areas. See the INSTALLATION section
of this manual.
6. Do not use the side burner unless a leak check has been performed on all gas connections.
See the GAS CONNECTIONS section of this manual.
7. If the side burner is installed by a professional installer or technician, be sure that they show
you where your gas supply shut-off is located. All gas lines must have a shut-off that is easily
accessible. If you smell gas, check for leaks immediately. Check only with a soap and water
solution. Never check gas leaks with an open flame. See the GAS CONNECTIONS section
of this manual.
Hestan Outdoor Side Burner rating label is located on the underside of the drip pan.
HESTAN COMMERCIAL CORP.
ANAHEIM, CA. - USA
MODEL
SER. NO.
120 60 1
AMPSPHASE
Hz
VOLTS
BTU/HOUR/
FRONT BURNER
MAN. PRESS.
INCH W.C.
GAS
TYPE
MIN. CLEARANCES
12” 0”
12” 0”
COMBUSTIBLE NON-COMBUSTIBLE
BACK
SIDES
BTU/HOUR/
REAR BURNER
FOR OUTDOOR USE ONLY. IF STORED INDOORS, DETACH AND LEAVE GAS CYLINDER
OUTDOORS. DO NOT STORE A SPARE LP-GAS CYLINDER UNDER OR NEAR THIS
APPLIANCE. NEVER FILL THE GAS CYLINDER BEYOND 80% FULL. IF THE INFORMATION
ABOVE IS NOT FOLLOWED EXACTLY, A FIRE CAUSING DEATH OR SERIOUS INJURY MAY
OCCUR.
DO NOT LOCATE THIS APPLIANCE UNDER OVERHEAD COMBUSTIBLE SURFACES. ONLY
FOR INSTALLATION IN A BUILT-IN ENCLOSURE CONSTRUCTED OF NON-COMBUSTIBLE
MATERIALS. FOR INSTALLATION IN A BUILT-IN ENCLOSURE CONSTRUCTED OF
COMBUSTIBLE MATERIALS, USE INSULATING JACKET PROVIDED BY MANUFACTURER.
CAUTION: USE ONLY THE GAS PRESSURE REGULATOR SUPPLIED WITH THIS
APPLIANCE.
P/N 008977 REV A
5001516
CONFORMS TO ANSI STD Z21.58
CERTIFIED TO CSA STD 1.6
OUTDOOR COOKING GAS APPLIANCE
HESTAN COMMERCIAL CORP.
ANAHEIM, CA. - USA
MODÈLE
NO. SER.
120 60 1
AMPSPHASE
Hz
VOLTS
BTU / HOUR /
BRÛLEUR AVANT
PRESS. ADM.
INCH W.C.
TYPE DE
GAZ
MIN. DÉGAGEMENTS
12” 0”
12” 0”
COMBUSTIBLE INCOMBUSTIBLE
ARRIÈRE
CÔTÉS
BTU / HOUR /
BRÛLEUR ARRIÈRE
P/N 009273 REV A
À UTILISER À L’EXTÉRIEUR UNIQUEMENT. EN CAS DE REMISAGE DU GRIL À L’INTÉRIEUR,
DÉBRANCHER LA BOUTEILLE DE GAZ ET LA LAISSER DEHORS. NE PAS ENTREPOSER UNE
BOUTEILLE DE GPL DE SECOURS EN DESSOUS NI À CÔTÉ DE L’APPAREIL. NE JAMAIS
REMPLIR LA BOUTEILLE DE GAZ À PLUS DE 80 % DE SA CAPACITÉ. SI LES DIRECTIVES
DONNÉES CI-DESSUS NE SONT PAS APPLIQUÉES À LA LETTRE, UN INCENDIE ENTRAÎNANT
DES BLESSURES GRAVES, VOIRE MORTELLES, PEUT SE PRODUIRE.
NE PAS IMPLANTER CETAPPAREIL SOUS DES SURFACES COMBUSTIBLES EN SURPLOMB.
CONÇU UNIQUEMENT POUR INTÉGRATION DANS UNE ENCEINTE CONSTITUÉE DE MATÉRIAUX
NON COMBUSTIBLES. EN CAS D’INTÉGRATION DANS UNE ENCEINTE CONSTITUÉE DE
MATÉRIAUX COMBUSTIBLES, UTILISER L’ENVELOPPE PROTECTRICE ISOLANTE FOURNIE PAR
LE FABRICANT.
ATTENTION : N’UTILISER QUE LE DÉTENDEUR FOURNI AVEC CET APPAREIL.
CONFORME À LA NORMEANSI Z21.58
CERTIFI
É
A LA NORME CSA 1.6
APPAREIL DE CUISSON AU GAZ
POUR USAGE EN PLEIN AIR
5001516
EN
©2016 Hestan Commercial Corporation
6
8. Check the regulator, hoses, burner ports, and venturi / valve section carefully. Always turn
off gas at the source (tank or supply line) prior to inspecting parts.
9. When lighting a burner, always pay close attention to what you are doing. Be certain you
are turning the correct knob labeled for the burner you intend to use. If any burner does not
light, or goes out during operation, turn off all gas control knobs, and wait five (5) minutes
before attempting to re-light. See the LIGHTING INSTRUCTIONS section of this manual.
10. Portable LP cylinders - Always shut off the main valve on the liquid propane (LP) cylinder
after each use. Never use a dented or rusted LP cylinder. Never attach or disconnect an LP
cylinder, or move or alter gas fittings when the side burner is in operation or is hot.
11. Inspect LP gas supply hose prior to each use of the side burner. The hose must be kept away
from heated areas of the side burner. If there is evidence of excessive abrasion or wear, or the
hose is cut, it must be replaced before using the side burner. The hose and LP regulator are
supplied as a complete assembly and must be replaced together. Do not attempt to repair or
replace the hose itself. Contact your Hestan dealer for genuine replacement P/N 014309.
12. Keep any electrical supply cord away from the heated areas of the side burner. The cord is
provided with a 3-prong grounding plug which should not be removed or altered. Do not
use this appliance with an ungrounded, 2-prong adapter. The cord must be plugged into a
properly grounded GFCI-protected outlet. See INSTALLATION section of this manual.
13. Spiders and insects like to nest in the burners, venturis, valves, and orifices of a side burner,
disrupting the gas flow in the burner. This very dangerous condition can cause a fire
behind the control panel, damaging the side burner and risking personal injury. If your side
burner has been unused for a long time, inspect and clean the burners, venturis, valves, and
orifices. It is recommended you inspect your side burner at least twice a year. See BURNER
ADJUSTMENT section of this manual for details.
14. Keep the areas surrounding the side burner free from combustible materials, trash, or
combustible fluids and vapors such as gasoline or charcoal lighter fluid. Do not obstruct the
flow of combustion gases and ventilation airways (front).
15. If your side burner is mounted on a grill cart, keep the rear area free and clear of debris, extra
LP cylinders, etc. Do not block the ventilation louvers of the cart.
16. If your side burner is mounted on a cart and stored indoors, ensure that it is cool before
moving. If propane is used, the LP cylinder must be disconnected and stored OUTSIDE in a
well-ventilated area, out of the reach of children. A grill cover which covers the entire grill +
side burner is recommended, even when stored indoors.
17. Never move the side burner when hot. When in use, portions of the side burner are hot
enough to cause severe burns.
18. Always have an “ABC” type fire extinguisher accessible – never attempt to extinguish a grease
fire with water or other liquids.
19. Avoid wearing loose-fitting garments or long sleeves while cooking with the side burner.
They could ignite. For personal safety, wear proper apparel while cooking. Some synthetic
fabrics are highly flammable and should not be worn while cooking.
20. Never let pot holders, covers, or other flammable materials come in contact with or too close
to any cooking grate, burner, or hot surface until it has cooled down sufficiently. Fabrics
may ignite and result in personal injury. Use only dry potholders. Moist or damp potholders
on hot surfaces may cause burns from steam. Do not use a towel or bulky cloth in place of
potholders. Do not let potholders touch hot portions of the cooking grates.
21. Never touch the cooking grates or immediate surrounding metal surfaces with your bare
PRECAUTIONS - BEFORE YOU USE YOUR GRILL
(continued)
EN
©2016 Hestan Commercial Corporation
7
hands while cooking with the side burner, as these areas become extremely hot and could
cause burns. Use only the handles and knobs provided for operation of the side burner.
22. Protect your hands with an insulated glove or mitt when operating the side burner. Always
keep your face away and open lids slowly on pots and pans to allow heat and steam to escape
before fully opening. Never lean over an open hot side burner.
23. The side burner metal cover must be removed while lighting. Leaving the cover in place
while lighting can result in an explosion and personal injury, or death. Never lean over a
side burner or look directly into the burner when attempting to light. See the LIGHTING
INSTRUCTIONS section of this manual.
24. Do not heat unopened food containers (cans) as pressure build-up will cause the container to
explode.
25. Do not use aluminum foil to line the burner bowl or the drip tray. This will alter the airflow
to the burner or trap excessive heat in the control area. This can melt control knobs, wiring,
or igniters, and increase the risk of personal injury. Such damage is specifically excluded from
our warranty.
26. Never use the side burner without the drip tray in place and pushed all the way to the back.
Without the drip tray, hot grease or oil from a spill-over can leak downward creating a fire or
explosion hazard.
27. Grease is extremely flammable. Let hot grease cool before attempting to handle or dispose
of it. Avoid letting excessive grease deposits collect by cleaning the drip tray often. Never
clean while the side burner is on, or hot from recent use.
28. Cooking excessively fatty meats and oils will cause flare-ups or grease fires. Damage caused
by them or by the side burner being left unattended, are not covered under the terms and
conditions of our warranty.
29. Only certain types of glass, heatproof glass-ceramic, earthenware, or other glazed utensils
are suitable for side burner use. However, these types of materials may break with sudden
temperature changes. Use only on low or medium heat settings, and according to their
manufacturers’ directions.
30. Do not lean on side shelves or place a load of more than 25 lbs (11.3 kg) on a side shelf.
31. Do not repair or replace any part of the side burner unless specifically recommended in this
manual. All other warranty and non-warranty service should be referred to and performed by
a qualified technician.
32. For proper lighting and performance of the burners, keep the ports clean. It is necessary
to clean them periodically for optimum performance. The burners will operate only in one
position and must be mounted correctly for safe operation. See BURNER ADJUSTMENT
section of this manual.
33. Clean the side burner with caution. Avoid steam burns - do not use a wet sponge or cloth
to clean the side burner while it is hot. Some cleaners produce noxious fumes or can
ignite when applied to a hot surface. Be sure all side burner controls are turned off and
the appliance is cool before using any type of aerosol cleaner on or around the appliance.
The chemical that produces the spraying action could, in the presence of heat, ignite or
cause metal parts to corrode. Clean and perform general maintenance on the side burner
twice a year. Watch for corrosion, cracks, or insect activity. See the CLEANING AND
MAINTENANCE section of this manual.
PRECAUTIONS - BEFORE YOU USE YOUR GRILL
(continued)
EN
©2016 Hestan Commercial Corporation
8
REGULATORY / CODE REQUIREMENTS
Installation of this cooking appliance must be made in accordance with local codes. In the
absence of local codes, this unit should be installed in accordance with the National Fuel Gas
Code
ANSI Z2231.1/NFPA 54
, Natural Gas and Propane Installation code
CSA B149.1
, or Propane
Storage and Handling Code
B149.2
.
All Electrical Components must be electrically grounded in accordance with local codes or in the
absence of local codes with the National Electrical Code
ANSI/NFPA 70
, or Canadian Electrical
code
CSA C22.1
.
CALIFORNIA PROPOSITION 65 - WARNING
The burning of gas cooking fuel generates toxic by-products, which are on the list of substances
which are known by the State of California to cause cancer or reproductive harm. California law
requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to these substances, always operate this unit according to the use and care manual,
ensuring you provide good ventilation when cooking with gas. This warning is issued pursuant to
California Health & Safety Code Sec. 25249.6.
PORTABLE LP GAS CYLINDERS
Use only a standard 20 lb. (9.1kg) liquid propane (LP) gas cylinder - 12.25” diam. X 18.25” H
(31cm X 47cm) which features an Overfill Protection Device. The cylinder must be installed in
the upright position. Do not use a dented or rusty LP cylinder as it may be hazardous and should
be checked by your LP supplier. Never use a cylinder with a damaged valve. Never move or alter
the gas fittings. Check the expiration date on the cylinder collar as well. Do not refill an expired
cylinder, it must be replaced. If you buy refilled (exchange) LP cylinders, check this date as well.
The LP gas cylinder must be constructed and marked in accordance with the specifications for
LP gas cylinders of the U.S. Department of Transportation (DOT). The cylinder must be provided
with a shut off valve terminating in an LP gas supply cylinder valve outlet specified, as applicable,
for connection type QCC1 in the standard for compressed gas cylinder valve outlet and inlet
connections ANSI/CGA-V-I.
Certain liquid propane dealers may fill LP cylinders for use in the grill / side burner beyond
cylinder filling capacity. This “overfilling” may create a dangerous condition due to a build-up of
excess pressure. As a safety device, there is a pressure relief valve which will vent propane gas
vapor to relieve this excess pressure. This vapor is combustible and therefore can be ignited. To
reduce this danger, you should take the following safety precautions:
1. When you have your cylinder filled, be sure you tell the supplier to fill it to no more than 80%
of its total capacity.
2. If you own or use a spare cylinder, you should NEVER store it near or under the grill/cart unit
or burner box, or near any other ignition or heat source (like a water heater or furnace).
IF THE INFORMATION IN 1 AND 2 ABOVE IS NOT FOLLOWED EXACTLY, A FIRE
CAUSING DEATH OR SERIOUS INJURY MAY OCCUR.
3. The LP cylinder must be disconnected and stored OUTSIDE in a well-ventilated area, out of
the reach of children.
4. Do not store a full cylinder in direct sunlight.
This manual suits for next models
12
Table of contents
Languages:
Other hestan Burner manuals
hestan
hestan ASPIRE AEB Series User manual
hestan
hestan AGB Series User manual
hestan
hestan ASPIRE AEB121-NG User manual
hestan
hestan AGB121-NG User manual
hestan
hestan AGPB24 User manual
hestan
hestan AGPB24-LP User manual
hestan
hestan AGB122-LP-BK User manual
hestan
hestan HMB Series User manual
hestan
hestan Aspire AEB122LPOR User manual
hestan
hestan Aspire AEB121NGOR User manual
