Herman Miller Avall User manual
audio visual solutions
Installation instructions for audio visual stand
www.colebrookbossonsaunders.com
AVALL-INST-D MAR 2009
1AVALL-INST-D MAR 2009
Free standing with feet
Dual screen mount
Free standing with castors
Camera mount
AVS/002/GA03
AVS/002/GA04
AVS/002/GA02
AVS/002/GA15 AVS/002/GA07 AVS/002/GA08
AVS/002/GA14
Wall mounted*
Front panel-plain Front panel-perforated
Base Wall mount *
CastorsAdjustable feet
AVS/002/GA12 AVS/002/GA11
Double screen mount
Single screen mount
Shelf
AVM/001/B
* NOTE: wall mount option available soon
AVM/001/B
AVS/002/GA10
Rear panel
AVS/002/GA01
Column

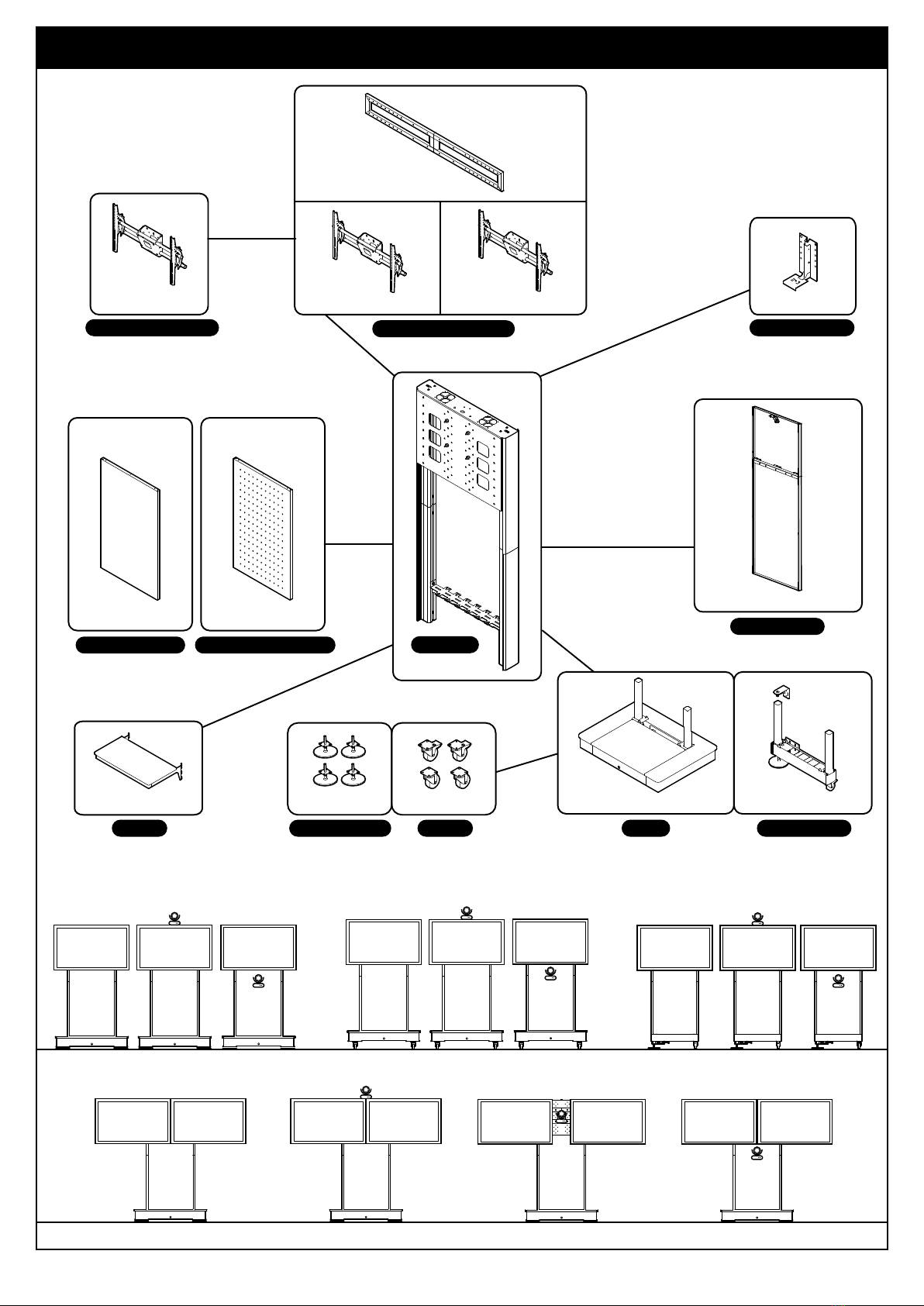

AVALL DIAGRAM WITHALL COMPONENTS
AVM/001/B
2AVALL-INST-D MAR 2009

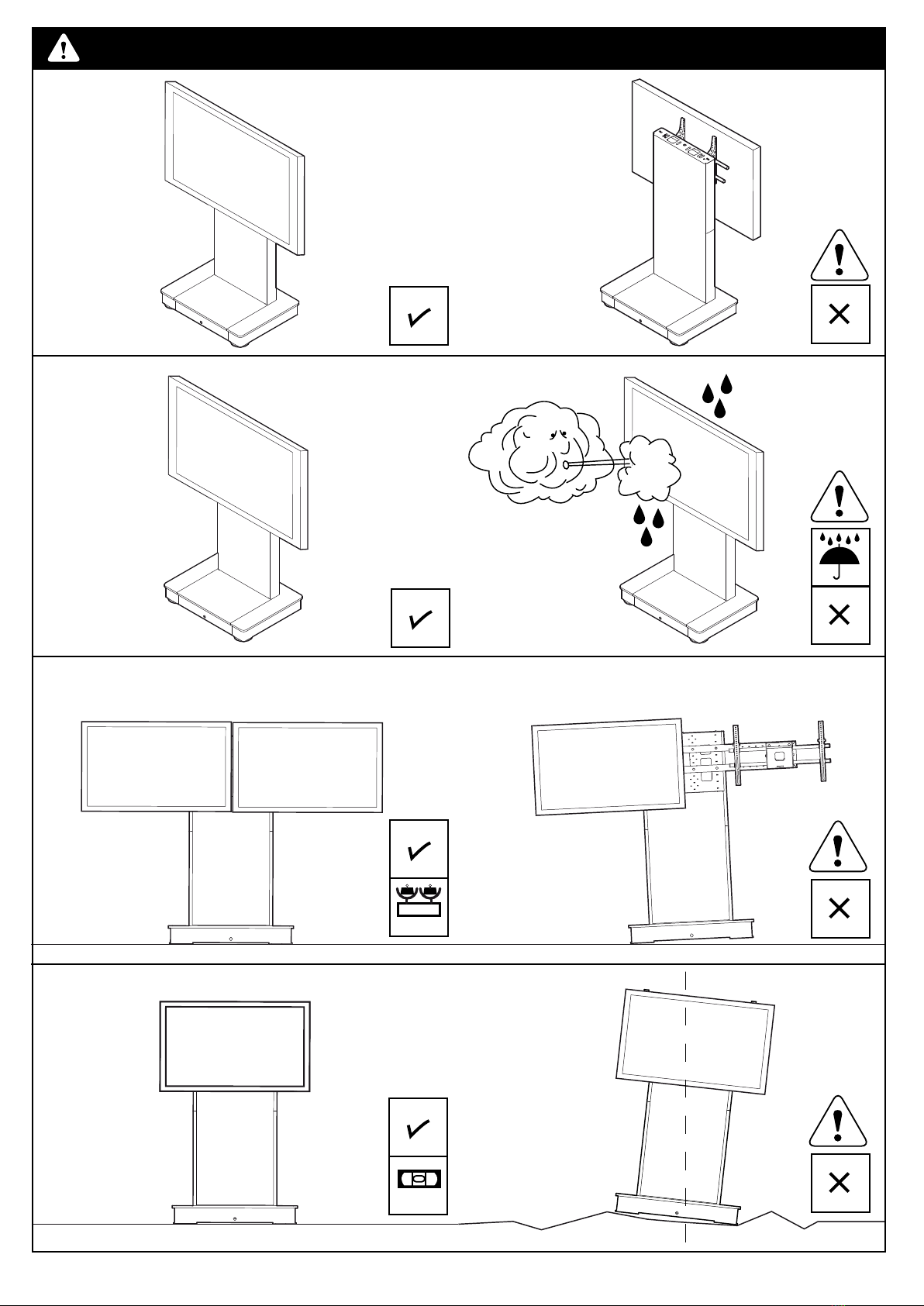

BALANCE
SOME IMPORTANT PRECAUTIONS
LEVEL
3AVALL-INST-D MAR 2009
100 mm
3”
85mm
3 ⅜”
490mm
19 ⅜”
380 mm
14”
920 mm
36 ¼”
110 mm
4 ⅜”
580 mm
22 ⅞”
350 mm
13 ¾”
Internal Equipment Space
SOME IMPORTANT PRECAUTIONS
IMPORTANT NOTE
Remember to support
back panel when
unlocking to prevent
it falling.
IMPORTANT NOTE
Beware of trapping
fingers when closing
base cover.
IMPORTANT NOTE
Apply brakes at all
times (Unless Avall is
being moved)
4AVALL-INST-D MAR 2009

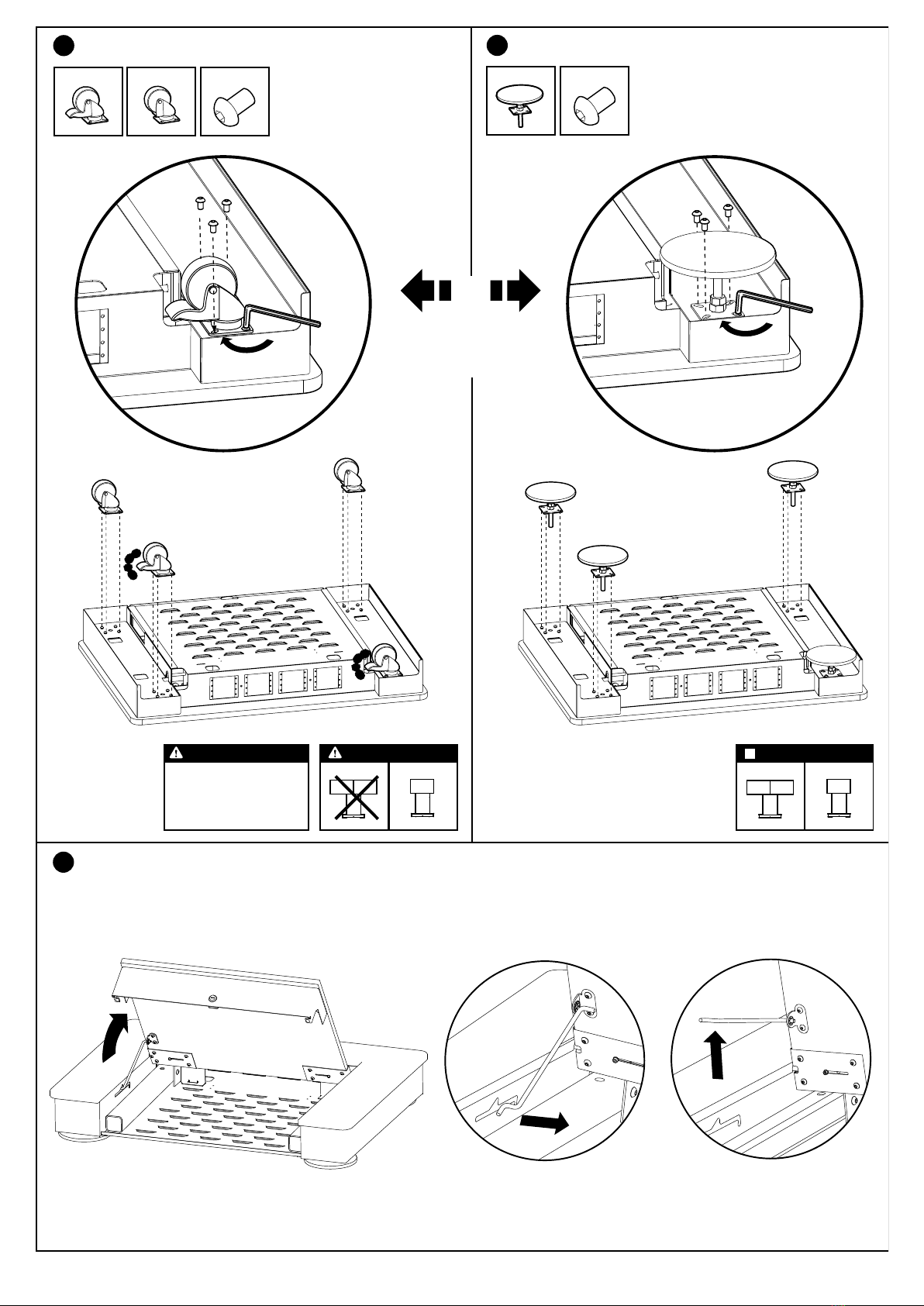

Fit castors to base
2a Release cover
x2 x2 x16
1Fit adjustable feet to base
1
x4 x16
OR
1
1 2
WARNING
1 2 1
NOTE
If AVALL is to be wall
mounted see instruction
in wall-mount kit.
IMPORTANT NOTE
Braked castors fitted
to rear of base.
5AVALL-INST-D MAR 2009

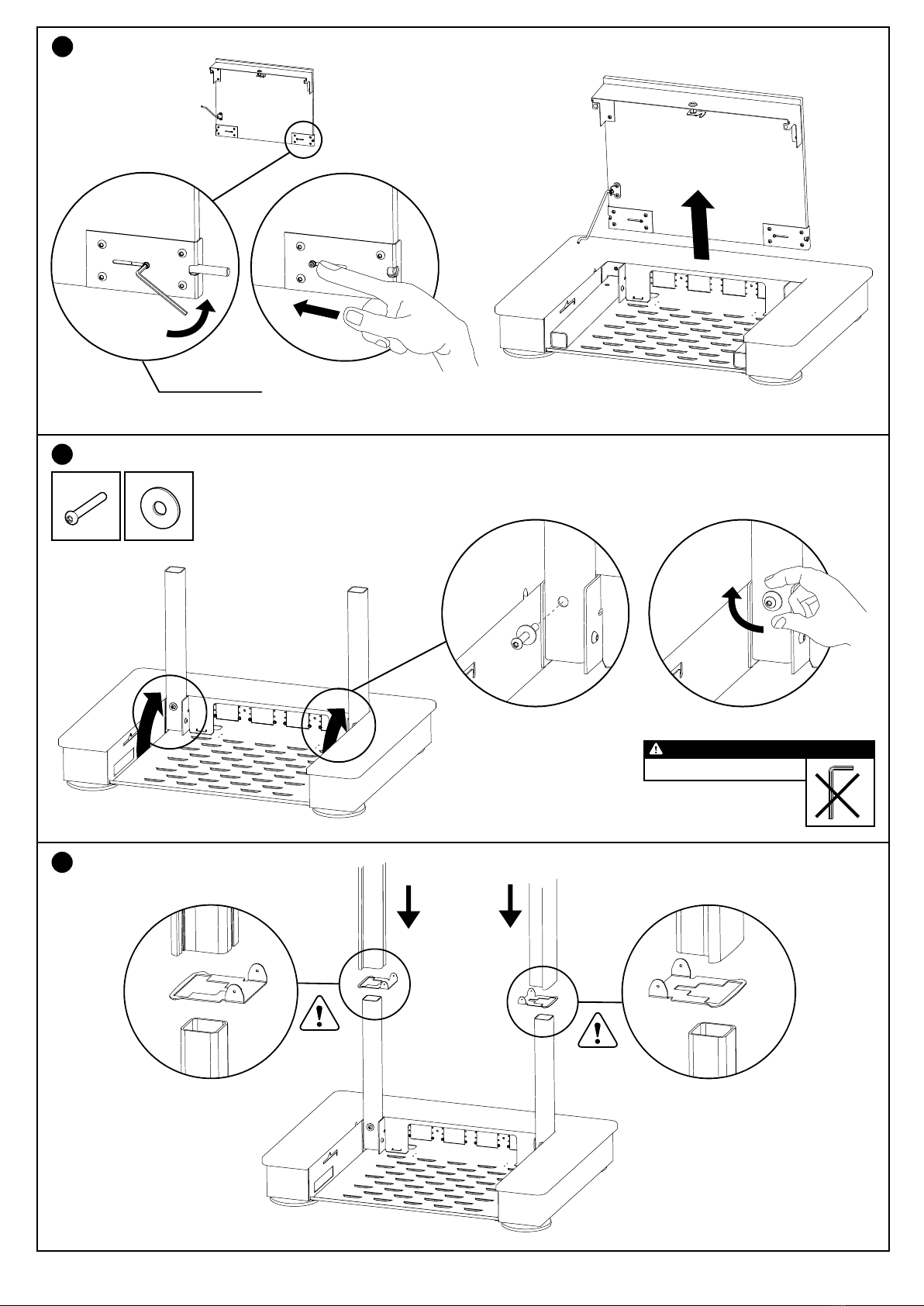

2b Remove cover
3Set column supports
4Fit lower columns
x2 x2
UNLOCK
IMPORTANT NOTE
DO NOT FULLY TIGHTEN
6AVALL-INST-D MAR 2009

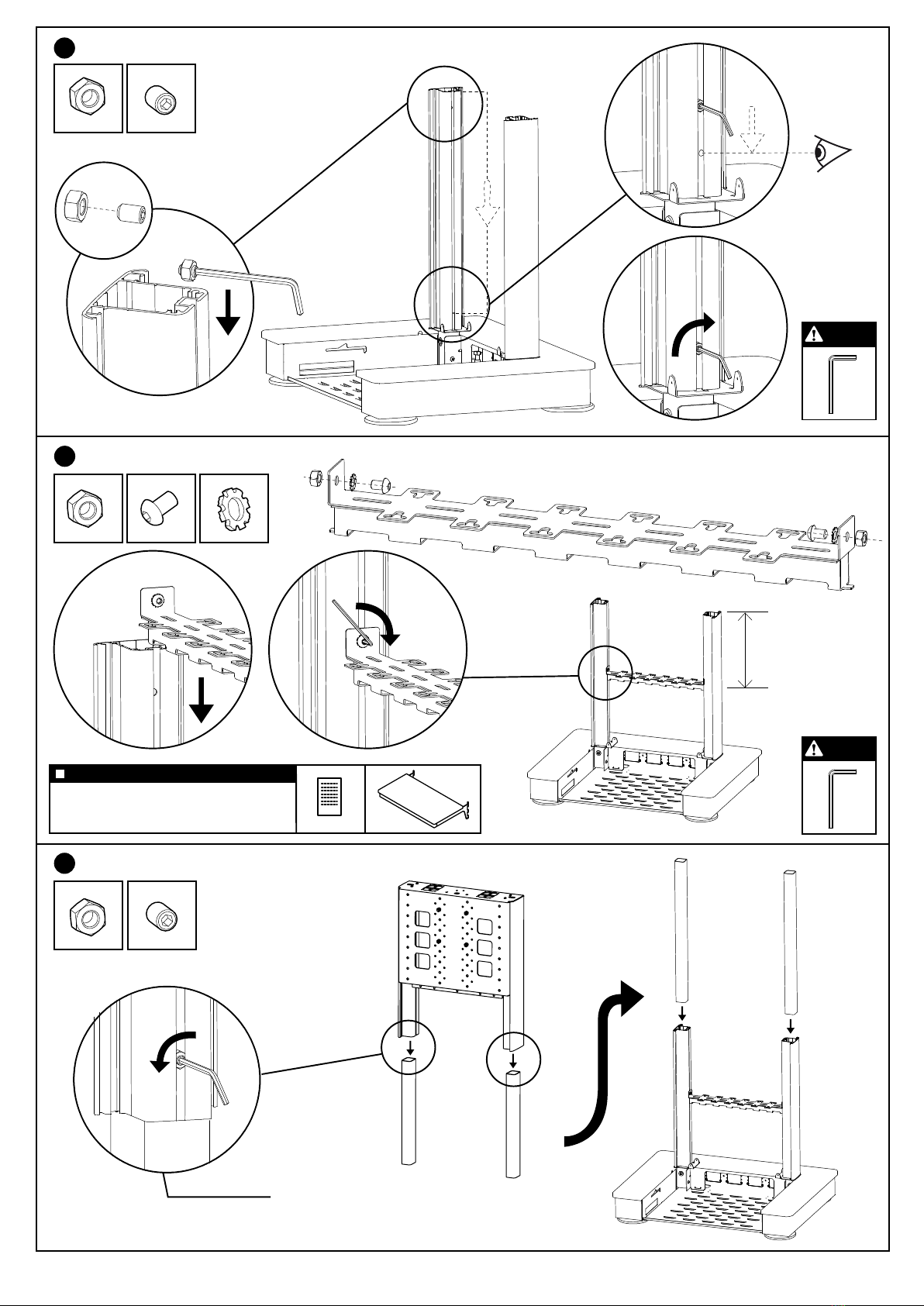

5a Fix lower columns
5b
5c Install column connectors
x2
x2 x2
x2
x2 x2
UNLOCK
x2
TIGHTEN
TIGHTEN
min 150 mm
OPTIONAL ACCESSORY
AVS/002/GA15
If installing Avall Shelf do so at this stage.
See separate shelf instructions.
Install accessory rail
7AVALL-INST-D MAR 2009
5d Fix column connectors
x2 x2
TIGHTEN
6a Install & fix upper column
x2 x2
TIGHTEN
1
2
3
6b Tighten column fixings
IMPORTANT NOTE
PLEASE TIGHTEN SECURELY
1 2
8AVALL-INST-D MAR 2009
7Prepare front panel
8
9
Install front panel
x2
x2
FOR SINGLE SCREEN MOUNT GO TO STEP 10
FOR DOUBLE SCREEN MOUNT GO TO STEP
OR
OPTIONAL ACCESSORY
AVS/002/GA14
If installing Camera Mount do so at this stage.
See separate Camera Mount instructions.
IMPORTANT NOTE
CHOOSE DESIRED FIXING POSITIONS
TO SUIT ACCESS AROUND INTERNAL
EQUIPMENT
9AVALL-INST-D MAR 2009

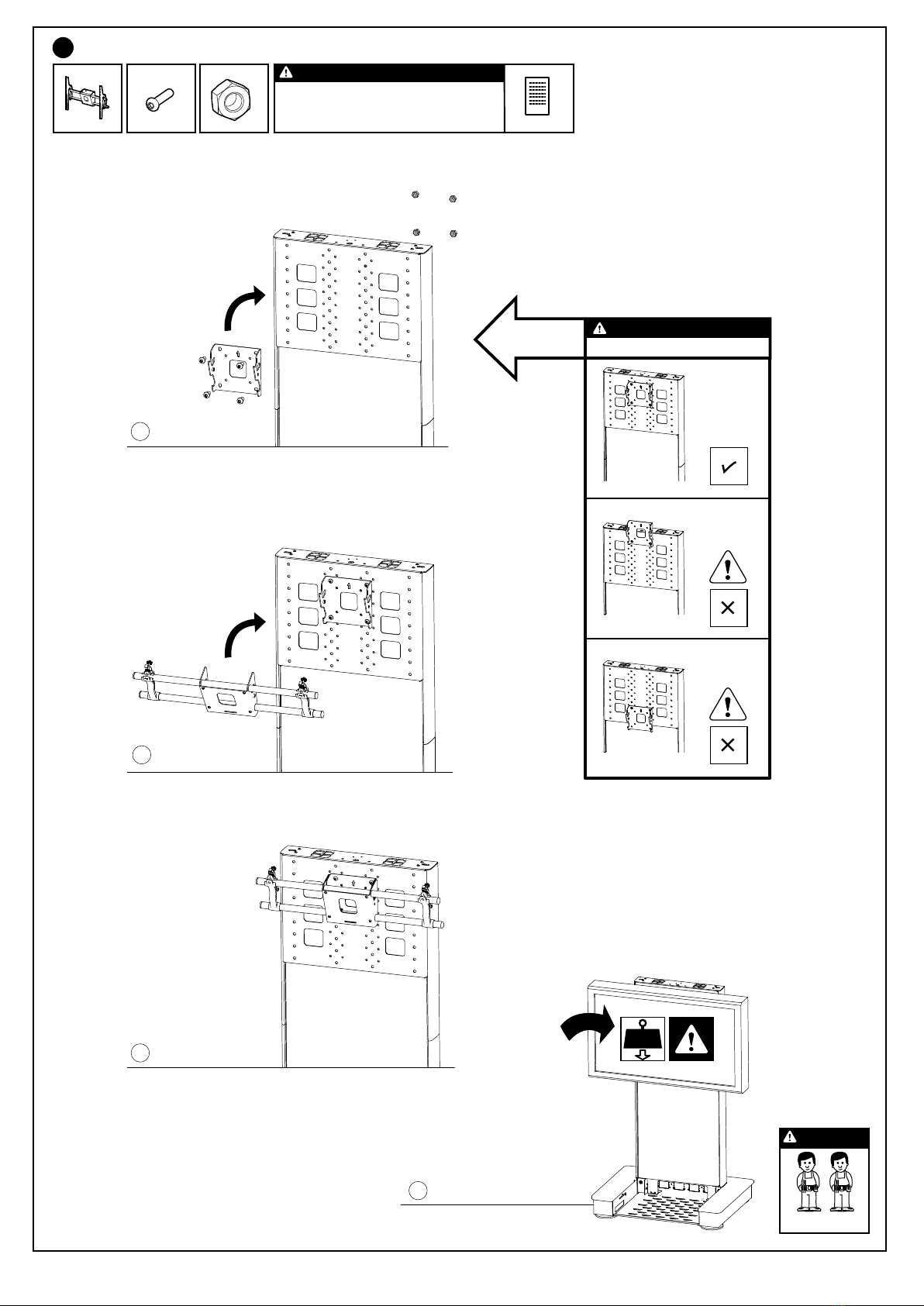

9Fix AVM on AVALL
x4 x4 IMPORTANT NOTE
PLEASE SEE INSTRUCTIONS AVM/001
PLASMA/LCD SCREEN MOUNT
Heavy load
2
1
3
4Mount monitor
MAX
50kg/110lb
IMPORTANT NOTE
ALWAYS USE ALL 4 FIXINGS
2 people required
to mount screen
