HEPER DOMINO AFX 2 Module Installation and operating instructions

1/5 2022-2 / 07/11/2022

Installation & Maintenance

Instructions

HEPER USA LLC

W227 N546 Westmound Drive Waukesha, 53186

Wisconsin, United States

+1 312 910 9740

[email protected]

DOMINO AFX 2 Module (LP4034.862-US)

97.04 lbs (13'), 108.26 lbs (16.5'), 119.48 lbs (20')

https://heperlighting.com/us/lp4034.862-us/

2/5

3/5

4/5

5/5

English ( USA )

Safety

- The product must be installed in accordance with applicable

NEC standards by a qualified electrician familiar with the

installation of exterior lighting fixtures.

- The product must be operated under specified voltage at all

times.

- Do not install if parts are damaged.

- Power must be disconnected while installing or servicing to

avoid electrical shock.

- Failing to comply with warnings and installation steps in this

document might void warranty.

- Do not touch the light source.

- Make sure that temperature of the product is at a safe level before

touching.

- Do not allow cables to touch sharp edges of metal parts or other sharp

objects to avoid damage or abrasion.

- Check all of the cable connections including grounding before

powering the product.

- Check the proper grounding of the metal housing before powering the

product.

- Only use the product for its intended purposes.

- Do not use accessories not approved or recommended by

HEPER.

- Replace any broken/cracked protective surface with a new

one

- The external flexible cable or cord of this LED Module cannot be

replaced; if the cord is damaged, the module shall be destroyed.

- The light source of this LED Module is not replaceable; when the light

source reaches its end of life the whole Module shall be replaced.

- Ethr value of the module according to IEC TR 62778 Standard: 1280 lx

- The LED Module should be positioned so that prolonged staring into

one LED Module at a distance closer than 1,3 m is not expected.

- The maximum working voltage of basic insulation between the active

parts of the LED module and external metallic parts: 260 V.

Installation

- The surface on which the product will be mounted must be flat and

level

- Assemble the product base using the provided or appropriate

hardware.

- Open the holes on the surface as shown in the visual.

- Place the base of the product centered onto the concrete base and

secure the bolts as shown on the visual.

- To assemble the product, use IP 68 rated connector.

- Make the external power line connection as shown on the visual.

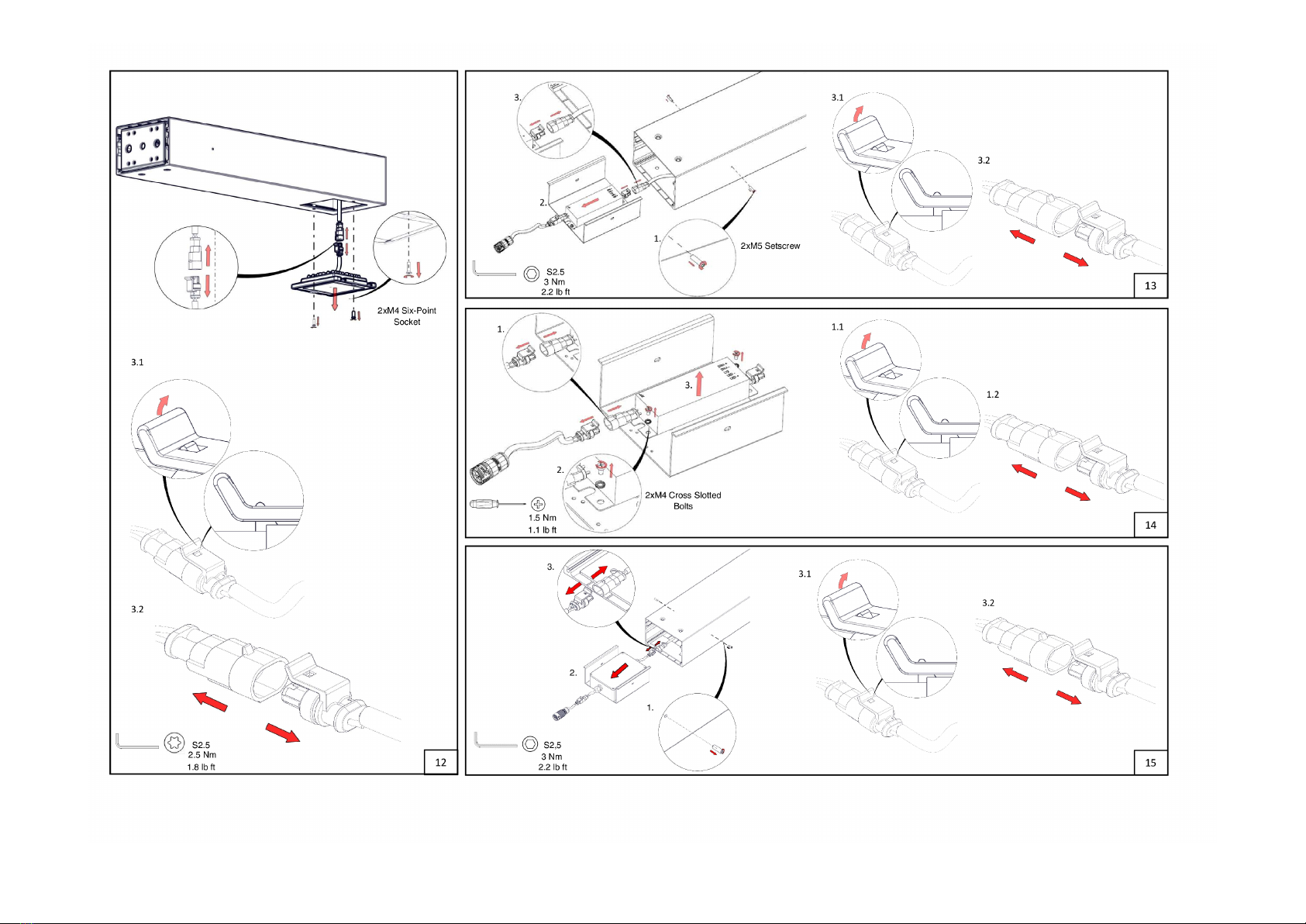

- Disassemble the bolts from the product head. Make the mounting

plate connection of the product to the pole as shown in the visual.

- Make the connector connection as shown in the visual. After that,

assemble the product head on the pole as shown and screw the pole

top cover.

Replacement of the light source

- Disconnect the power coming into the product.

- Remove the light source from the head and unscrew it from the

backplate.

- Reinstall the product following the same steps.

Replacement of the control gear

- Disconnect the power coming into the product.

- Remove the plate to gain access to the driver location.

- Unscrew the driver holder from the housing to be able to pull it out

from the product.

- Detach the driver and place the new one.

- Reinstall the product following the same steps.

- The completed product installation should be as shown on the visual.

Cleaning - Maintenance

- The product was designed and manufactured to operate for a long

period of time. To ensure maximum lifespan of the product, regular (i.e.

every six months) visual inspection and cleaning with a solvent-free

cleaner using a soft cloth is recommended.

- Do not clean or service while the product is power connected.

Disposal

- In accordance with EU Directive WEEE (Waste Electrical and

Electronic Equipment), luminaires must not be disposed of with

other household waste. At the end of their life, luminaires must

be taken to the appropriate local facility available for the

disposal or recycling of electronic products.

Wiring Color Codes

- Ground - GREEN

- Line - BLACK

- Neutral - WHITE

- Dim(+) - RED/PURPLE

- Dim (-) - GRAY/ORANGE

Disclaimer

- HEPER reserve the right to make technical and design changes.

This manual suits for next models
