Helm GT-L 50 User manual

Montageanleitung

Installation instructions

HELM GT-L 50

für Holztüren bis 50 kg

ohne Einzugsdämpfung

einﬂügelig (mit Berechnungen)

Türstärken

von 30 - 50 mm

HELM GT-L 50

for timber doors up to 50 kg

without soft closing device

single leaf (with calculations)

Door thickness from

30 up to 50 mm

MA: DS032023/04.2017

SW 3 / 4 Nm

AF 3 / 4 Nm Größe 2,5 / 3 / 4

Size 2,5 / 3 / 4

SW 8, 10, 13

AF 8, 10, 13

Technische Informationen

• maximalesFlügelgewicht50kg

• alleAbmessungeninMillimeter

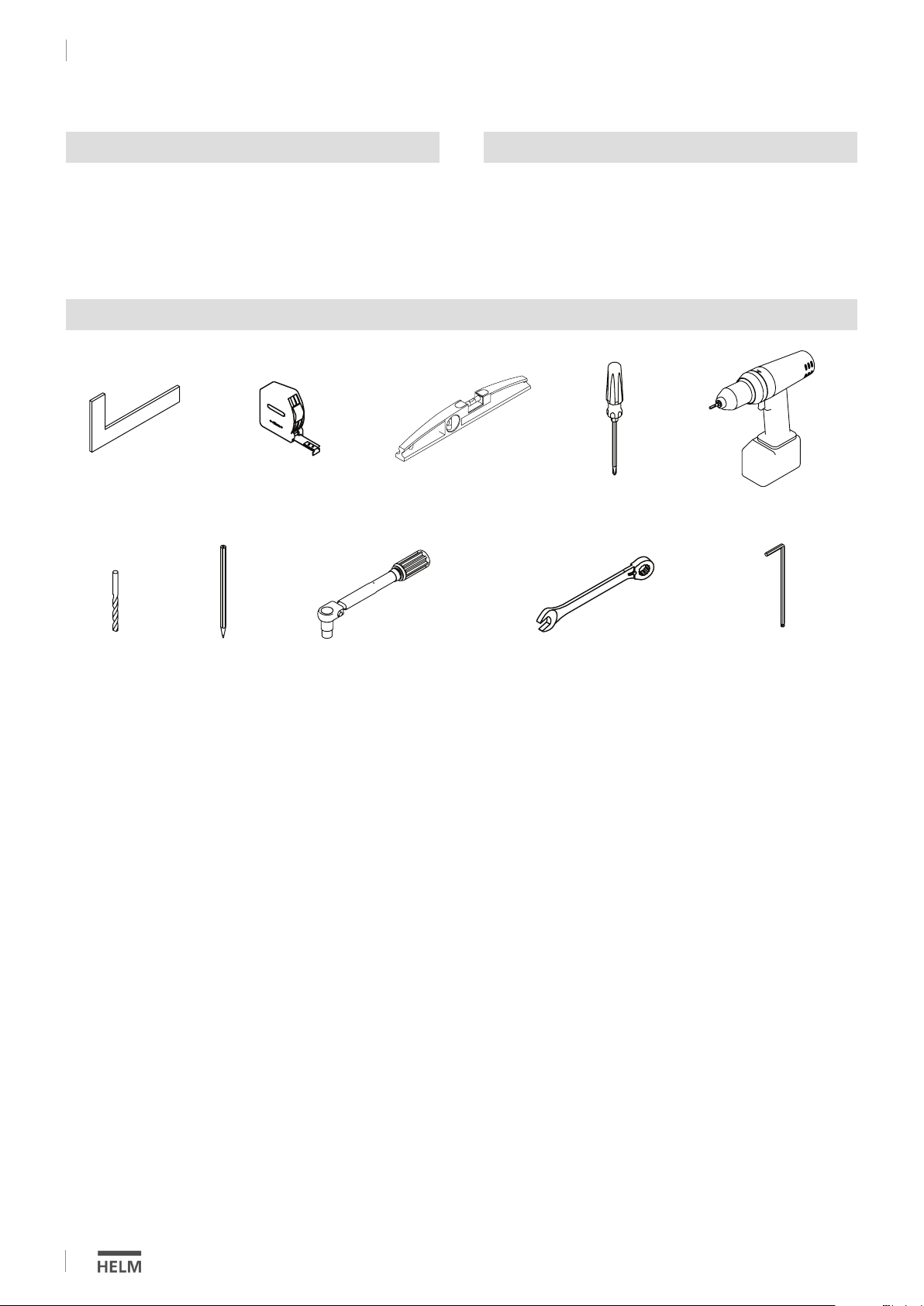

Benötigtes Werkzeug / Required tools

Technical information

• Maximumleafweight50kg

• alldimensionsinmillimeter

DS032023/04.2017

HELM GT-L 50

AllgemeineInformationen/Generalinformation

Lieferumfang

Scope of delivery

1. Laufschiene / Track

2. Blende / Pelmet

3. Abdeckkappen / Caps

4. Rollapparat / Trolley

4a. Zubehörset für Rollapparat / Trolley accessory set

5. Fangstopper links / Door catcher, left-hand side

6. Fangstopper rechts / Door catcher, right-hand side

7. Untere Führung / Bottom guide

8. Befestigungswinkel Rollapparat /

Mounting bracket trolley

9. Klemmadapter / Clamp adapter

DS032023/04.2017

HELM GT-L 50

AllgemeineInformationen/Generalinformation

Türabstand bei Wandmontage

Door space with wall mount

Montage der Befestigungswinkel

Hinweis: Achten Sie bei der Montage auf das geeignete

Befestigungsmaterial.

Installation of mounting brackets:

Note: Please pay attention for the right mounting material.

Türabstand

Door space (TA)

TA = 23,2 – Y

Abstand Führung

Space lead (AF):

AF = (TD : 2) + TA

Legende:

TA = Türabstand

AF = Abstand Führung

Legend:

TA = Door space

AF = Space lead

DS032023/04.2017

HELM GT-L 50

Montage/Installation

Wandmontage

Wall mount

Deckenmontage

Ceiling mount

Bohrhöhe (BH)

Drilling height (BH):

BH = LH + X + 35

Türhöhe (TH)

Door heigth (TH):

TH = BH – 39 – 10

Türhöhe (TH)

Door height (TH):

TH = LH – 61 – 10

Wand-/Deckenmontage, bei durchlaufender Wand und verdecktem Muschelgriff

Wall/Ceiling mount, continuous wall with covered ﬂush pull

1 Flügel

1 Panel

Bsp.: / Example: TH = 2157,00; GA1 = 80,00

LW = 950,00; GA2 = 60,00

Türbreite Schiebetür (TB)

Door width siding door (TB)

TB = LW + 50,00 + 30,00

Bsp.: / Example: TB = 950,00 + 50,00 + 30,00 = 1030,00

Laufschienenlänge (L) MG verdeckt

Track length (L) MG covered

L = TB + LW + 30,00

Bsp.: / Example: L = 1030,00 + 950,00 + 30,00 = 2010,00

Durchgangsbreite (DB) MG verdeckt

Walk-through distance (DB) MG covered

DB = LW

Bsp.: / Example: DB = 950,00

Legende:

LH = lichte Höhe

LW = lichte Weite

BH = Bohrhöhe

TH = Türhöhe

TB = Türbreite Schiebetür

MG = Muschelgriff

L = Laufschienenlänge

GA1 = Griffabstand 1

GA2 = Griffabstand 2

DB = Durchgangsbreite

Legend:

LH = Clear height

LW = Clear width

BH = Drill height

TH = Door height

TB = Door width (sliding door)

MG = Flush pull

L = Track length

GA1 = Handle distance 1

GA2 = Handle distance 2

DB = Walk through distance

DS032023/04.2017

HELM GT-L 50

Montage/Installation

1 Flügel

1Panel

Bsp.: / Example: TH = 2157,00; GA1 = 80,00

LW = 950,00; GA2 = 60,00

Türbreite Schiebetür (TB)/

Door width slinding door (TB)

TB = LW + 50,00 + 30,00

Bsp.: / Example: TB = 950,00 + 50,00 + 30,00 = 1030,00

Laufschienenlänge (L) MG halb verdeckt

Track length (L) Flush pull half covered

L = TB + LW - GA1

Bsp.: / Example: L = 1030,00 + 950,00 - 80,00 = 1900,00

Durchgangsbreite (DB) MG halb verdeckt

Walk-through distance (DB) MG half covered

DB = LW - GA1 - 30,00

Bsp.: / Example: DB = 950,00 - 80,00 - 30,00 = 840,00

Wand-/Deckenmontage bei durchlaufender Wand und halb verdecktem Muschelgriff

Wall/Ceiling mount, continuous wall with half covered flush pull

Wandmontage

Wall mount

Deckenmontage

Ceiling mount

Legende:

LH = lichte Höhe

LW = lichte Weite

BH = Bohrhöhe

TH = Türhöhe

TB = Türbreite Schiebetür

MG = Muschelgriff

L = Laufschienenlänge

GA1 = Griffabstand 1

GA2 = Griffabstand 2

DB = Durchgangsbreite

Legend:

LH = Clear height

LW = Clear width

BH = Drill height

TH = Door height

TB = Door width (sliding door)

MG = Flush pull

L = Track length

GA1 = Handle distance 1

GA2 = Handle distance 2

DB = Walk through distance

Bohrhöhe (BH)

Drilling height (BH):

BH = LH + X + 35

Türhöhe (TH)

Door heigth (TH):

TH = BH – 39 – 10

Türhöhe (TH)

Door height (TH):

TH = LH – 61 – 10

DS032023/04.2017

HELM GT-L 50

Montage/Installation

1 Flügel

1Panel

Bsp.: / Example: TH = 2157,00; GA1 = 80,00

LW = 950,00; GA2 = 60,00

Türbreite Schiebetür (TB)

Door width sliding door (TB)

TB = LW + 50,00 + 30,00

Bsp.: / Example: TB = 950,00 + 50,00 + 30,00 = 1030,00

Laufschienenlänge (L)

Track length (L)

L = TB + LW - GA1 - GA2

Bsp.: / Example: L = 1030,00 + 950,00 - 80,00 - 60,00 = 1840,00

Durchgangsbreite (DB)

Walk-through distance (DB):

DB = LW - GA1 - GA2 - 30,00

Bsp.: / Example: DB = 950,00 - 80,00 - 60,00 - 30,00 = 780,00

Wand-/Deckenmontage bei durchlaufender Wand und Stangengriff

Wall/Ceiling mount, continuous wall with door handle

Wandmontage

Wall mount

Deckenmontage

Ceiling mount

Legende:

LH = lichte Höhe

LW = lichte Weite

BH = Bohrhöhe

TH = Türhöhe

TB = Türbreite Schiebetür

MG = Muschelgriff

L = Laufschienenlänge

GA1 = Griffabstand 1

GA2 = Griffabstand 2

DB = Durchgangsbreite

Legend:

LH = Clear height

LW = Clear width

BH = Drill height

TH = Door height

TB = Door width (sliding door)

MG = Flush pull

L = Track length

GA1 = Handle distance 1

GA2 = Handle distance 2

DB = Walk through distance

Bohrhöhe (BH)

Drilling height (BH):

BH = LH + X + 35

Türhöhe (TH)

Door heigth (TH):

TH = BH – 39 – 10

Türhöhe (TH)

Door height (TH):

TH = LH – 61 – 10

DS032023/04.2017

HELM GT-L 50

Montage/Installation

1 Flügel

1 Panel

Bsp.: / Example: TH = 2157,00; GA1 = 80,00

LW = 950,00; GA2 = 60,00

Türbreite Schiebetür (TB)

Door width sliding door (TB)

TB = LW + 50,00 - 4,00

Bsp.: / Example: TB = 950,00 + 50,00 - 4,00 = 996,00

Laufschienenlänge (L) MG verdeckt

Track length (L) MG covered

L = TB + LW

Bsp.: / Example: L = 996,00 + 950,00 = 1946,00

Durchgangsbreite (DB) MG verdeckt

Walk-through distance (DB) MG covered

DB = LW

Bsp.: / Example: DB = 950,00

Wand-/Deckenmontage bei nicht durchlaufender Wand, mit verdecktem Muschelgriff

Wall/Ceiling mount without continuous wall, with covered ﬂush pull

Wandmontage

Wall mount

Deckenmontage

Ceiling mount

Legende:

LH = lichte Höhe

LW = lichte Weite

BH = Bohrhöhe

TH = Türhöhe

TB = Türbreite Schiebetür

MG = Muschelgriff

L = Laufschienenlänge

GA1 = Griffabstand 1

GA2 = Griffabstand 2

DB = Durchgangsbreite

Legend:

LH = Clear height

LW = Clear width

BH = Drill height

TH = Door height

TB = Door width (sliding door)

MG = Flush pull

L = Track length

GA1 = Handle distance 1

GA2 = Handle distance 2

DB = Walk through distance

Bohrhöhe (BH)

Drilling height (BH):

BH = LH + X + 35

Türhöhe (TH)

Door heigth (TH):

TH = BH – 39 – 10

Türhöhe (TH)

Door height (TH):

TH = LH – 61 – 10

DS032023/04.2017

HELM GT-L 50

Montage/Installation

1 Flügel

1 Panel

Bsp.: / Example: TH = 2157,00; GA1 = 80,00

LW = 950,00; GA2 = 60,00

Türbreite Schiebetür (TB)

Door width sliding door (TB)

TB = LW + 50,00 - 4,00

Bsp.: / Example: TB = 950,00 + 50,00 - 4,00 = 996,00

Laufschienenlänge (L) MG halb verdeckt

Track length (L) MG half covered

L = TB + LW - GA1 + 4,00

Bsp.: / Example: L = 996,00 + 950,00 - 80,00 + 4,00 = 1870,00

Durchgangsbreite (DB) MG halb verdeckt

Walk-through distance (DB) MG half covered

DB = LW - GA1 + 4,00

Bsp.: / Example: DB = 950,00 - 80,00 + 4,00 = 874,00

Wand-/Deckenmontage bei nicht durchlaufender Wand, mit halb verdecktem Muschelgriff

Wall/Ceiling mount without continuous wall, with half covered ﬂush pull

Wandmontage

Wall mount

Deckenmontage

Ceiling mount

Legende:

LH = lichte Höhe

LW = lichte Weite

BH = Bohrhöhe

TH = Türhöhe

TB = Türbreite Schiebetür

MG = Muschelgriff

L = Laufschienenlänge

GA1 = Griffabstand 1

GA2 = Griffabstand 2

DB = Durchgangsbreite

Legend:

LH = Clear height

LW = Clear width

BH = Drill height

TH = Door height

TB = Door width (sliding door)

MG = Flush pull

L = Track length

GA1 = Handle distance 1

GA2 = Handle distance 2

DB = Walk through distance

Bohrhöhe (BH)

Drilling height (BH):

BH = LH + X + 35

Türhöhe (TH)

Door heigth (TH):

TH = BH – 39 – 10

Türhöhe (TH)

Door height (TH):

TH = LH – 61 – 10

DS032023/04.2017

HELM GT-L 50

Montage/Installation

1 Flügel

1 Panel

Bsp.: / Example: TH = 2157,00; GA1 = 80,00

LW = 950,00; GA2 = 60,00

Türbreite Schiebetür (TB)

Door width sliding door (TB)

TB = LW + 50,00 - 4,00

Bsp.: / Example: TB = 950,00 + 50,00 - 4,00 = 996,00

Laufschienenlänge (L)

Track length (L)

L = TB + LW - GA1 - GA2 + 4,00

Bsp.: / Example: L = 996,00 + 950,00 - 80,00 - 60,00 + 4,00 = 1810,00

Durchgangsbreite (DB)

Walk-through distance (DB)

DB = LW - GA1 - GA2 + 4,00

Bsp.: / Example: DB = 950,00 - 80,00 - 60,00 + 4,00 = 814,00

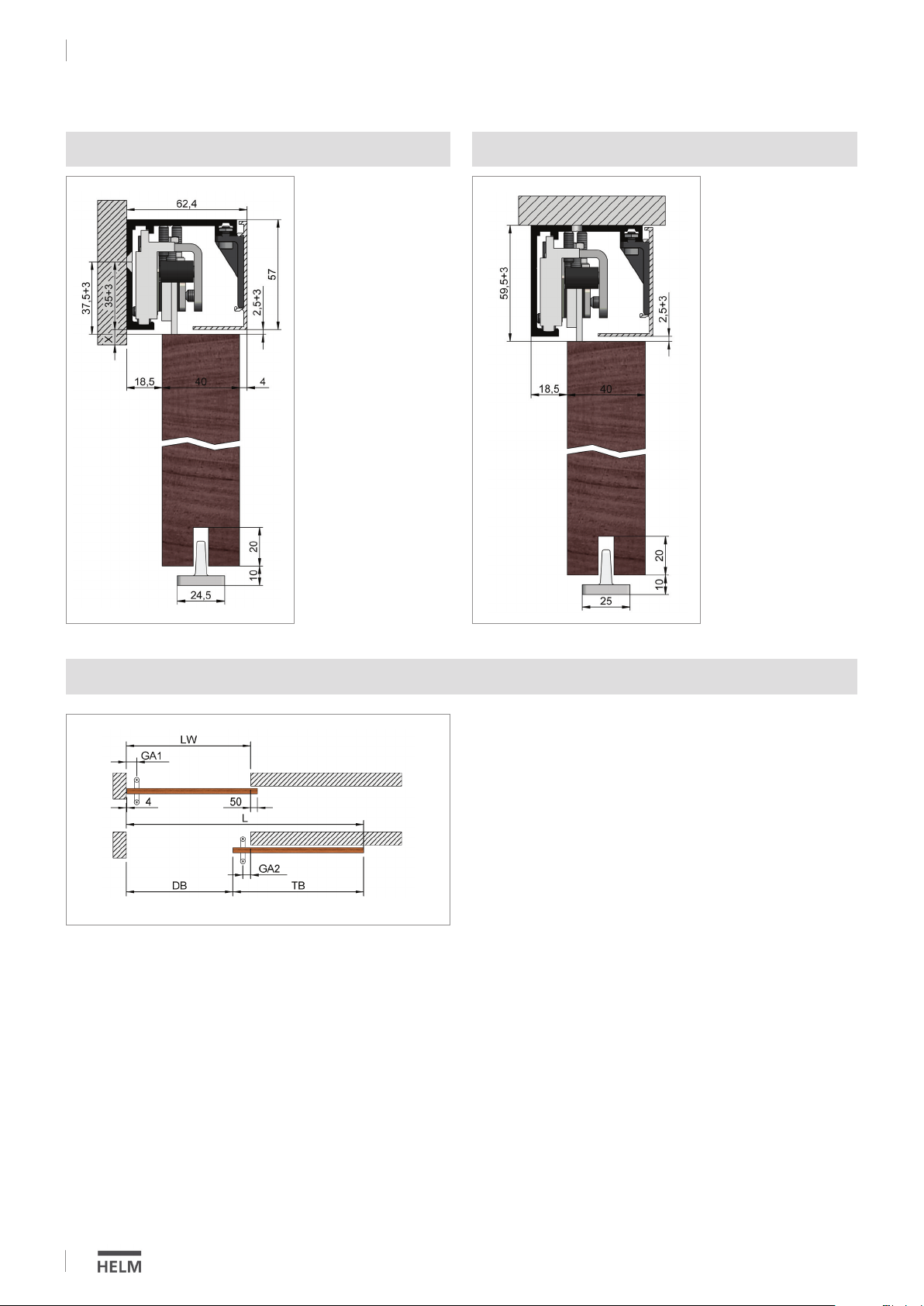

Wand-/Deckenmontage bei nicht durchlaufender Wand, mit Stangengriff

Ceiling mount without continuous wall, with door handle

Wandmontage

Wall mount

Deckenmontage

Ceiling mount

Legende:

LH = lichte Höhe

LW = lichte Weite

BH = Bohrhöhe

TH = Türhöhe

TB = Türbreite Schiebetür

MG = Muschelgriff

L = Laufschienenlänge

GA1 = Griffabstand 1

GA2 = Griffabstand 2

DB = Durchgangsbreite

Legend:

LH = Clear height

LW = Clear width

BH = Drill height

TH = Door height

TB = Door width (sliding door)

MG = Flush pull

L = Track length

GA1 = Handle distance 1

GA2 = Handle distance 2

DB = Walk through distance

Bohrhöhe (BH)

Drilling height (BH):

BH = LH + X + 35

Türhöhe (TH)

Door heigth (TH):

TH = BH – 39 – 10

Türhöhe (TH)

Door height (TH):

TH = LH – 61 – 10

DS032023/04.2017

HELM GT-L 50

Montage/Installation

Table of contents

Other Helm Door Opening System manuals

Helm

Helm GT-L 80 G 413 User manual

Helm

Helm MK-L 80 G 154 User manual

Helm

Helm GT-L 80 H 412 User manual

Helm

Helm GT-L 50 G 412 User manual

Helm

Helm MK-L 80 G 114 User manual

Helm

Helm MK-L 80 G 112 User manual

Helm

Helm MK-L 80 G 160 User manual

Helm

Helm MK-L 80 G 159 User manual

Helm

Helm MK-L 80 G 120 User manual

Helm

Helm MK-L 80 G 148 User manual

Helm

Helm MK-L 80 G 152 User manual

Helm

Helm MK-L 80 G 111 User manual

Helm

Helm MK-M 140 G 169 User manual

Helm

Helm GT-L 80 G 412 User manual

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

Assa Abloy

Assa Abloy SARGENT 1431 Series instructions

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual
