HELGI HLGMOVMIFMOTMNZR Programming manual
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
1
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL

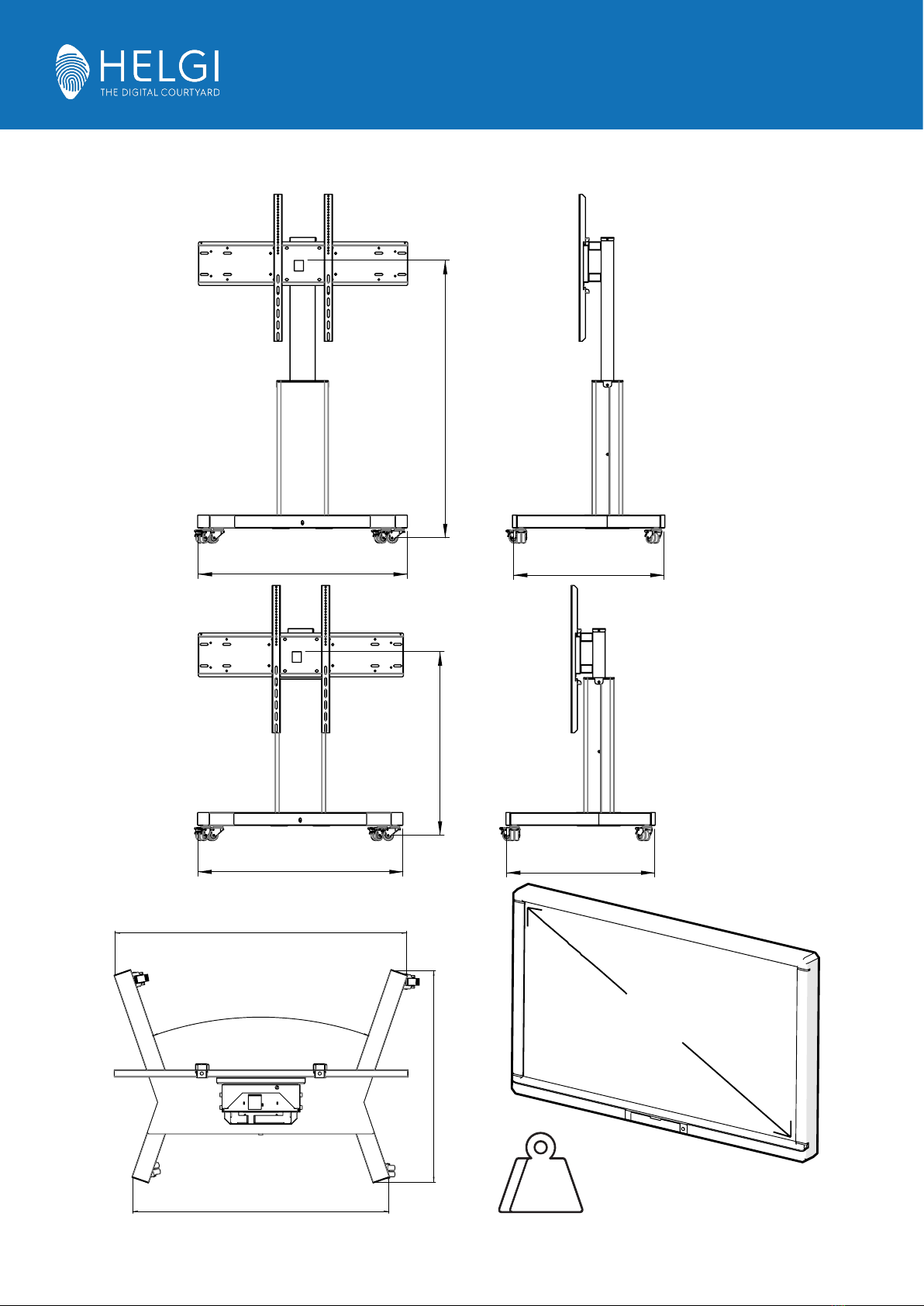

38°
720
996
871
100 kg
MAX
1320
996 718
871,7
996 718
32” - 75”
HELGI HLGMOVMIFMOTMNZR
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
2
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL
x2
x2
x2
x4

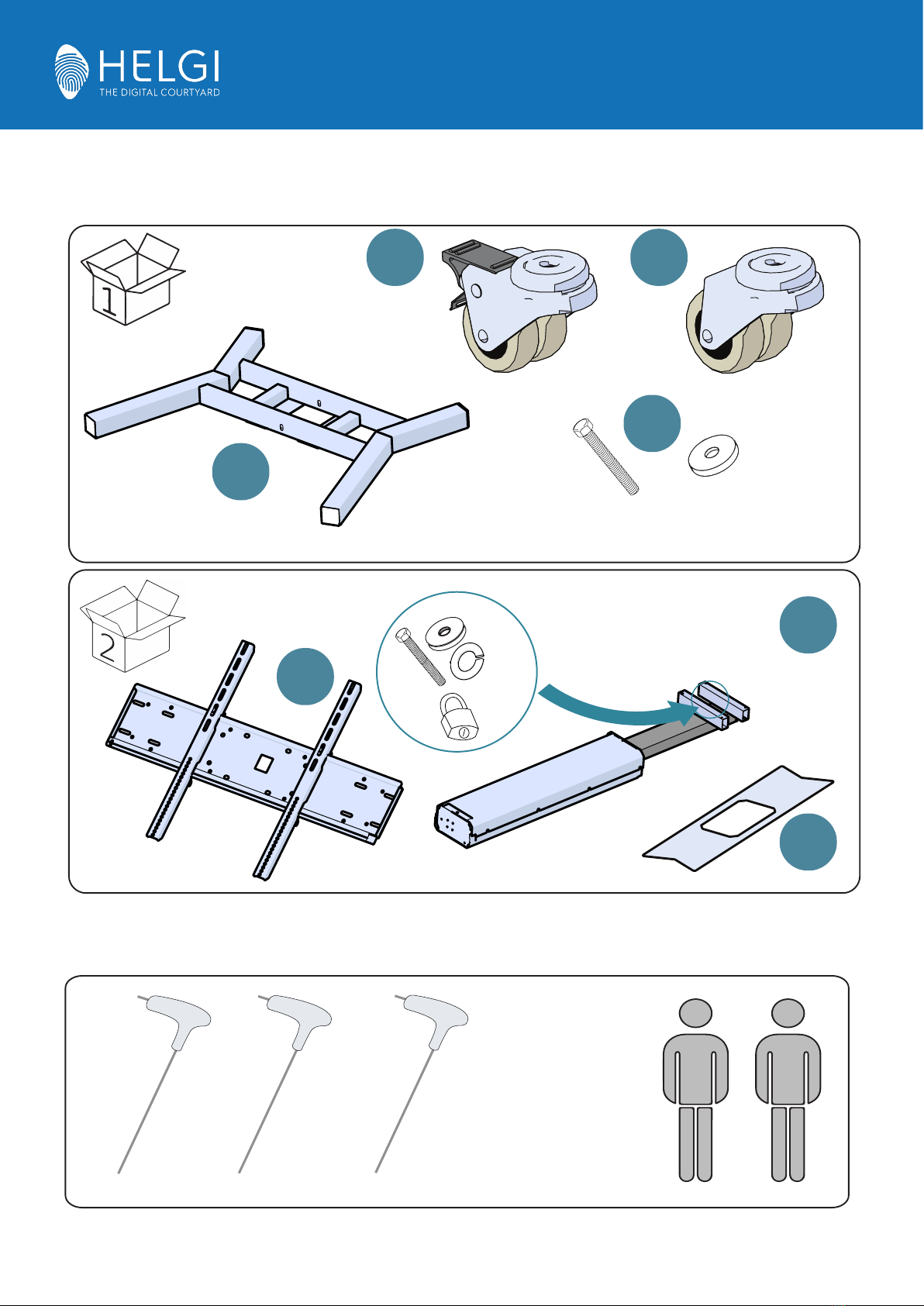

CONTENIDO/CONTENTS/CONTENUTO/SISÄLLYS/CONTENU:
DIN 912 M10x20
HERRAMIENTAS NECESARIAS/TOOLS NEEDED/ATTREZZI
NECESSARI/TARPEELLISET TYÖKALUT/OUTILS NÉCESSAIRES:
ALLEN M8
ALLEN M6 ALLEN M10
x1
x1
x1
x1
Packing Ring(x4)
DIN 912 M8x70 (x4)
Self-locking nutt(x4)
LOCKER (x1)
3
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
3
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL

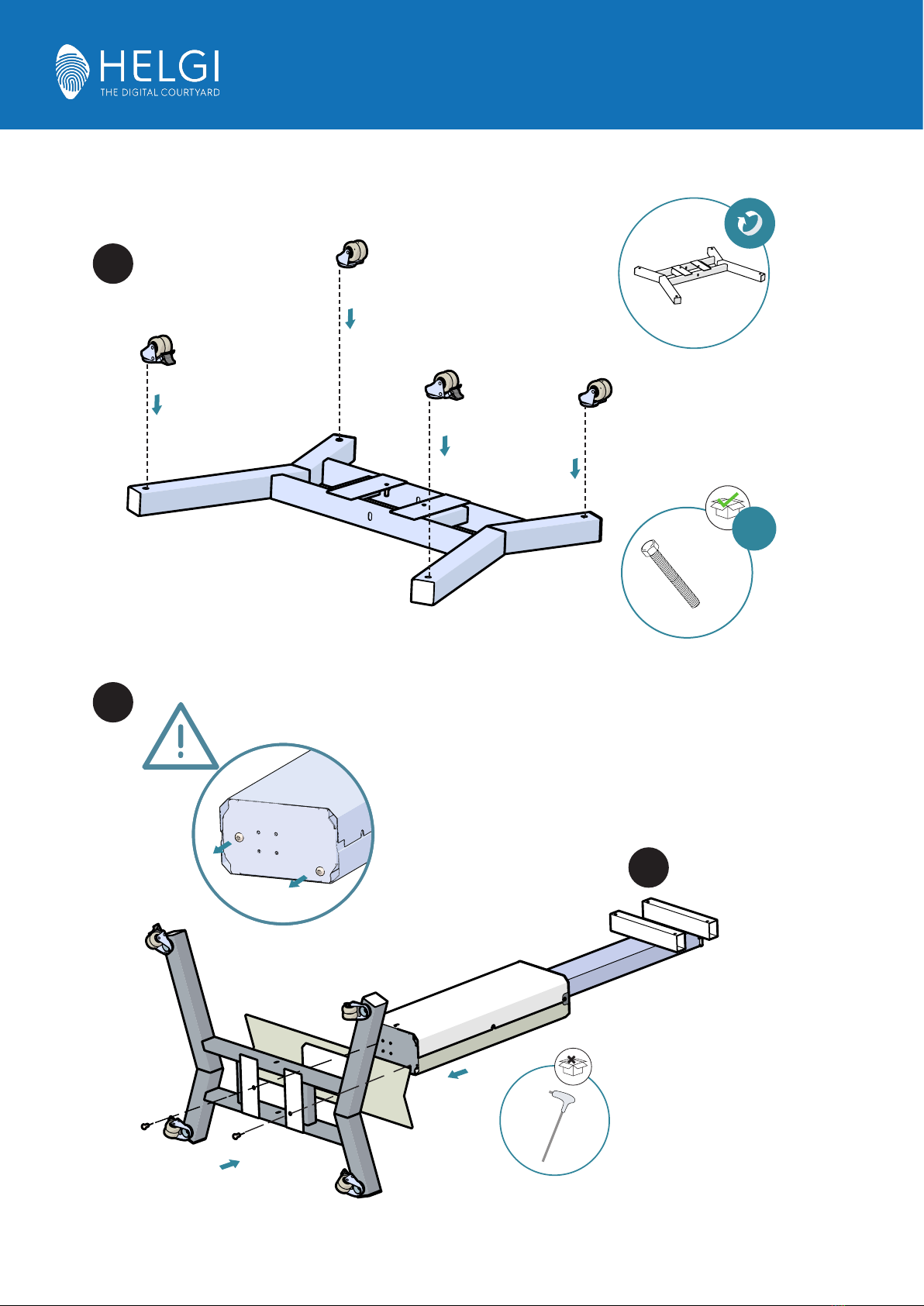

1
2
x4
DIN 912 M10x20
3
ALLEN M6
HELGI HLGMOVMIFMOTMNZR
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
4
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL

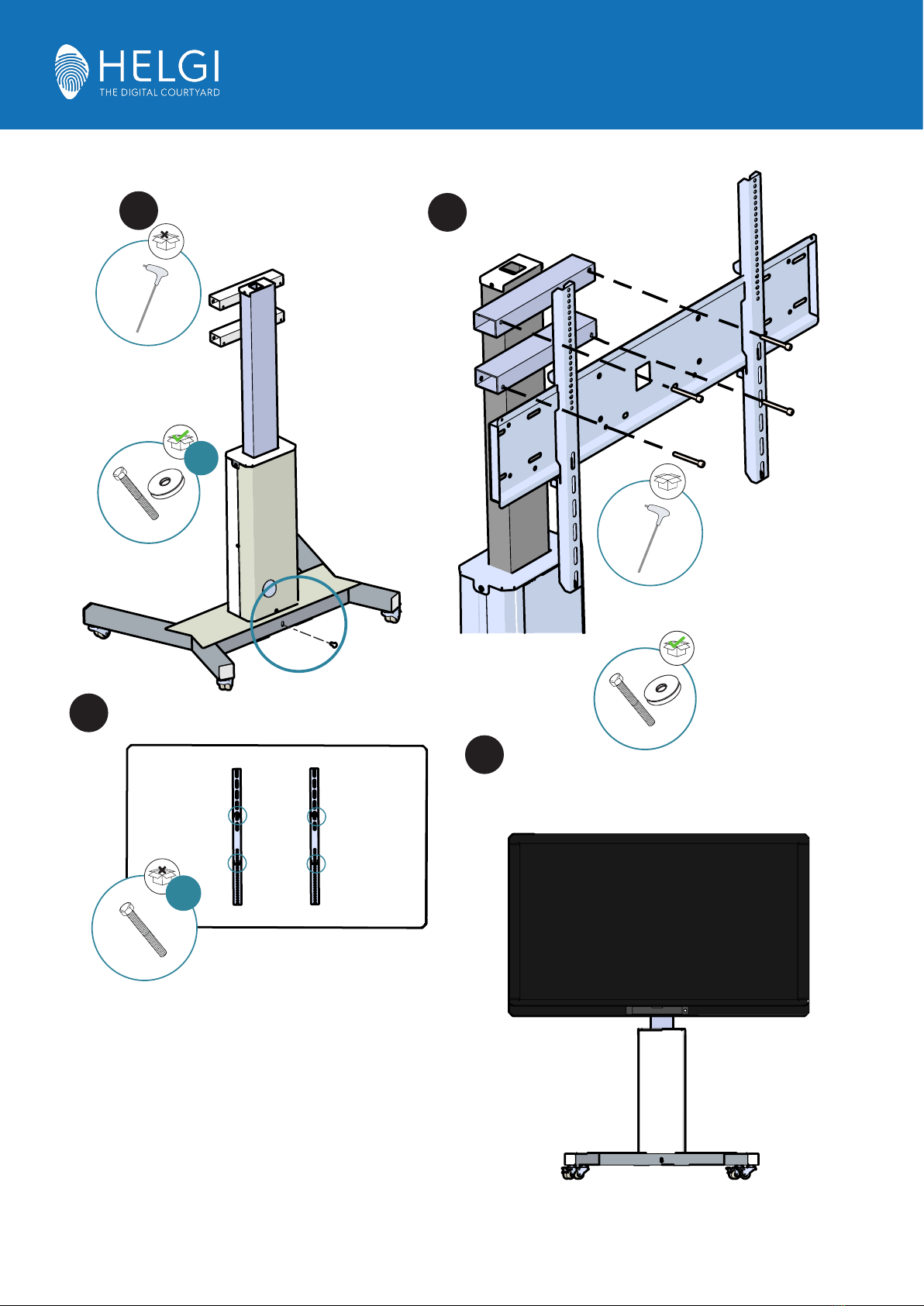

45
DIN 912 M8x50
x1
ALLEN M6
ALLEN M8
DIN 912 M8x70
Self-locking nut M8
Packing Ring
6
x4
7
5
HELGI HLGMOVMIFMOTMNZR
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
5
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL
9
x1
8
HELGI HLGMOVMIFMOTMNZR
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
6
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL
10
ON
OFF

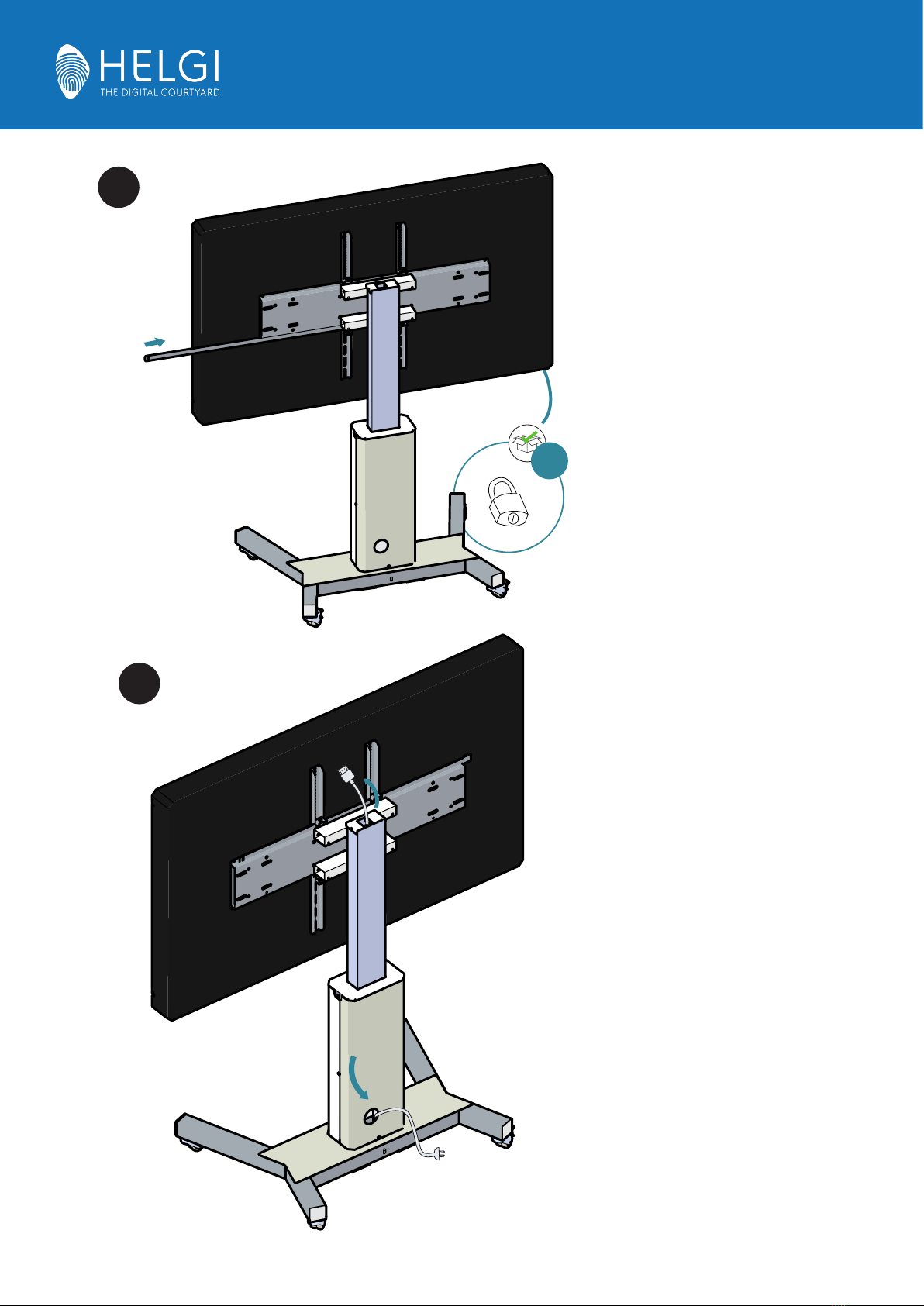

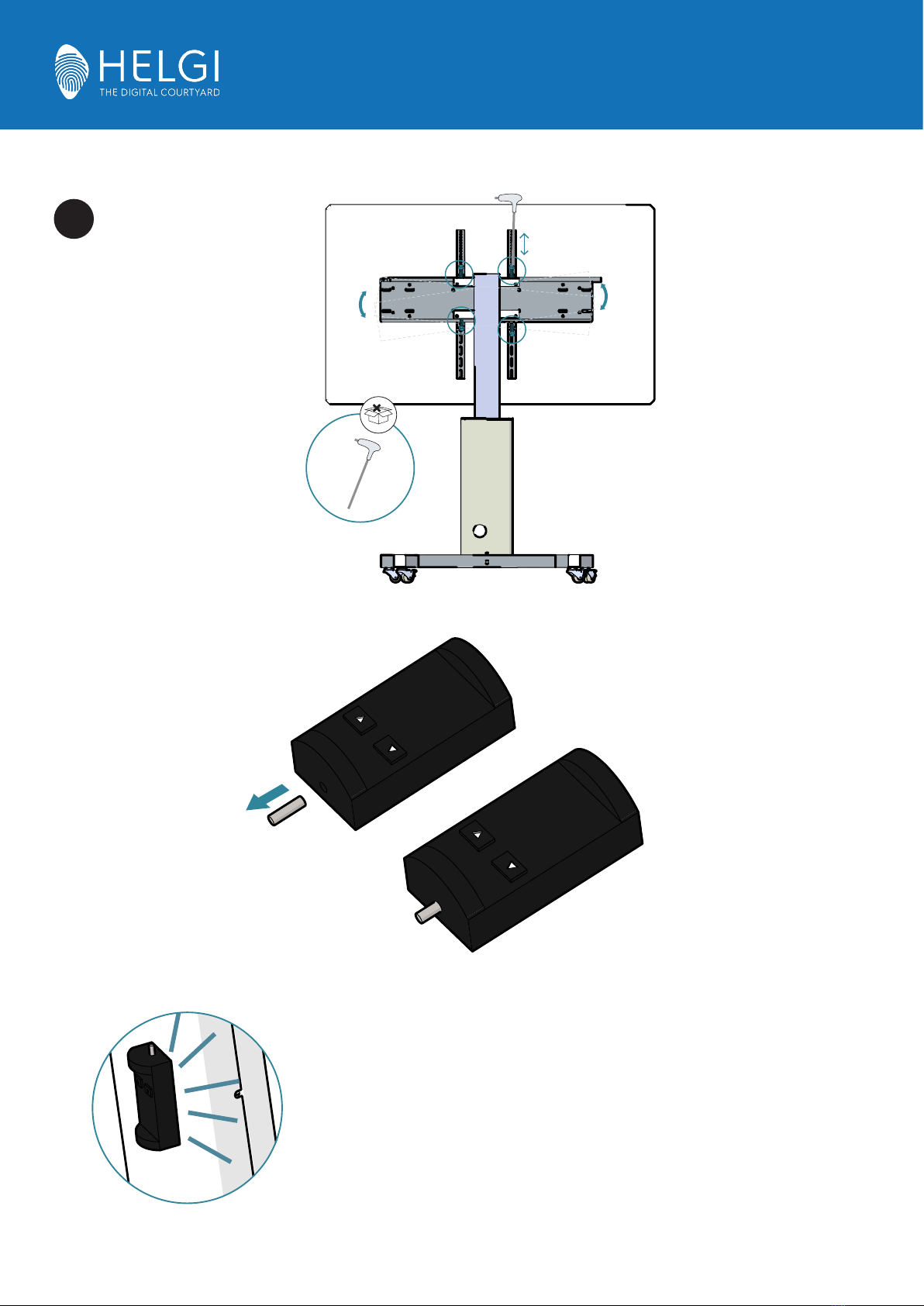

Enganchar el mando a distancia en la columna.
Remote control will magnetically stick to metal column .
Il telecomando si aggancerà magnéticamente alla colonna in metallo.
Kauko-ohjain kiinnittyy automaattisesti metalliseen pylvääseen.
La télécommande sera maintenue magnétiquement sur la colonne.
ALLEN M6
7
HELGI HLGMOVMIFMOTMNZR
HELGI - The Digital Courtyard Via Artigiani 29/31 29020 Vigolzone (PC) Italy
7
HLGMOVMIFMOTMNZR
ASSEMBLING MANUAL

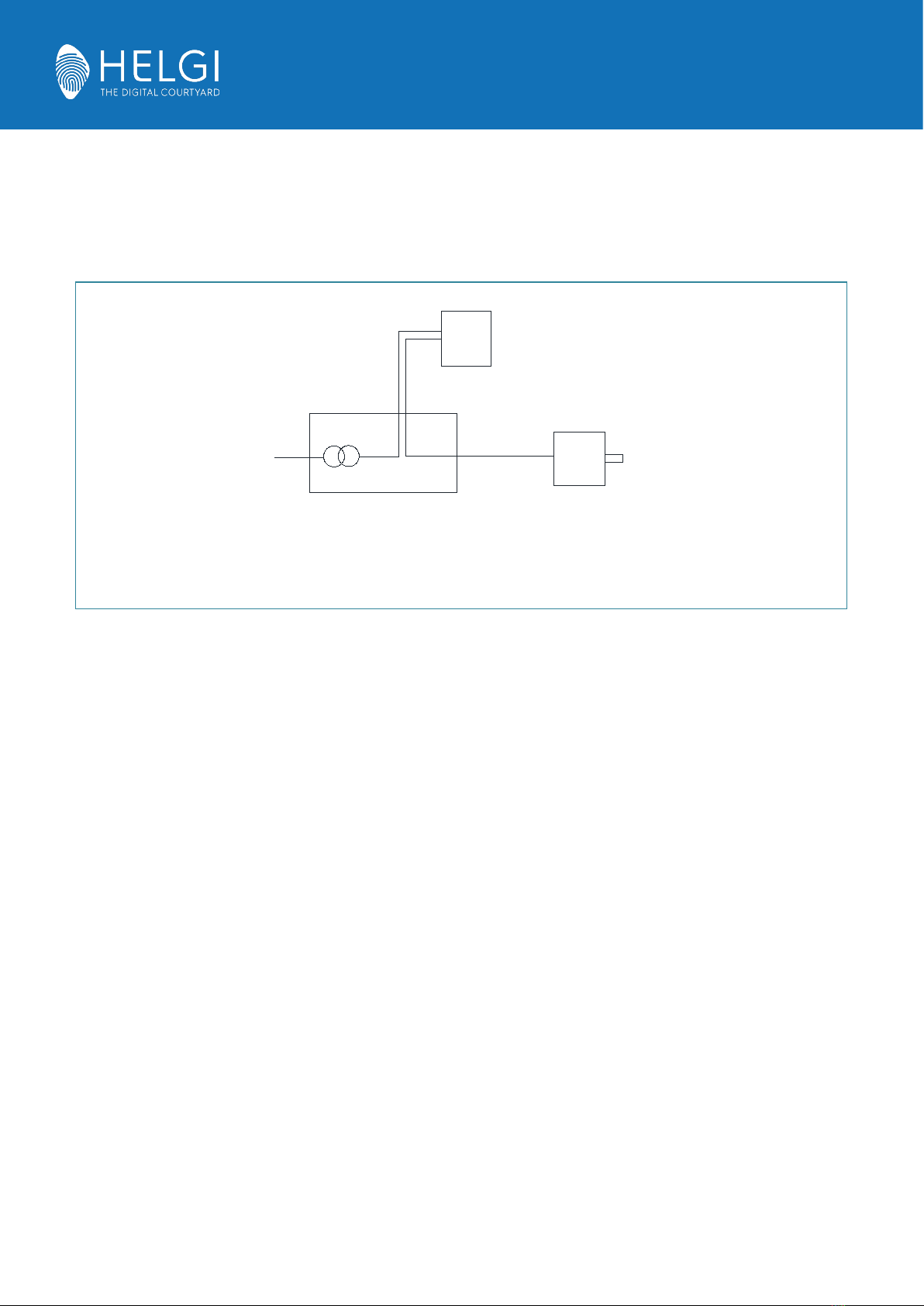

DIAGRAMA ELÉCTRICO DEL MOTOR / ELECTRICAL DIAGRAM OF THE LIFTING SYSTEM / DIAGRAMMA DELL’IMPI-
ANTO ELETTRICO DI SOLLEVAMENTO / NOSTOJÄRJESTELMÄN TEKNINEN KAAVA
/ SCHÉMA ÉLÉCTRIQUE DU SYSTÈME DE REHAUSSE.
Input: AC 100V-240V, 1.500mA;
50/60Hz
Output: DC29V - 2A
Max. Load: 6.000N; IP44
Power Rating 24 DVC, Max: 2AMP
HELGI HLGMOVMIFMOTMNZR
HELGI Europe
Via Artigiani 29/31
29020 Vigolzone (PC) ITALY
www.helgi-solutions.com
