Heatilator Icon I100 User instructions

60-5/8" [1540]

20-3/4"

[527]

11-5/8"

[295]

29-1/2"

[749]

14-3/4"

[375]

Gas

Knockout

9-7/8"

[251]

19"

[483]

10-1/2"

[267]

Outside

Air

14-3/4"

[375]

Gas

Knockout

9-7/8"

[251]

19"

[483]

10-1/2"

[267]

Outside

Air

50" [1270]

33"

[838]

68-1/8"

[1730]

effective height

8-3/4

[222]

70-1/2"

[1791]

60-1/4"

[1530]

54-3/8"

[1381]

41-5/8" [1057]

Top View

Front View

Left Side View Right Side View

* Framing must be filled in to top of front

standoff after unit is installed.

Specifications

Additional information can be found online at www.heatilator.com or www.fireplaces.com

I100

Please consult the manufacturer’s

installation manual for all details and

requirements before making a ﬁnal

design layout decision.

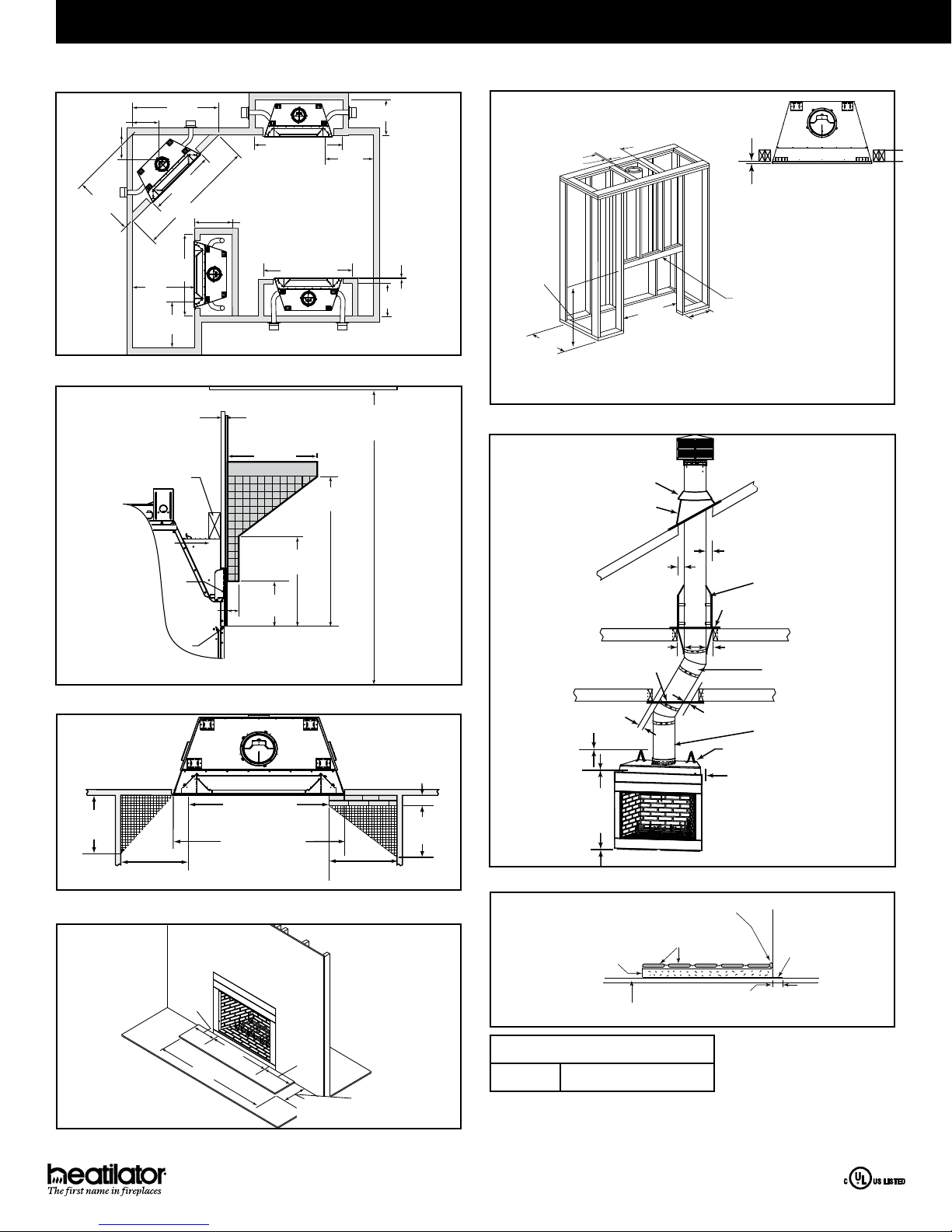

Icon I100

50" Wood Fireplace

MODEL FRONT WIDTH BACK WIDTH HEIGHT DEPTH FIREPLACE OPENING

I100 Actual Framing Actual Framing Actual

Rough

Opening

Framing*

Actual Framing 50 x 33

60-5/8 61-5/8 41-5/8 61-5/8 70-1/2 71 29-1/2 30-1/2

CLEARANCES TO COMBUSTIBLES

FRAMING DIMENSIONS

MANTEL LEG/WALL PROJECTIONS

HEARTH EXTENSION CONSTRUCTION

APPLIANCE LOCATION

MANTEL PROJECTIONS

HEARTH EXTENSIONS

30-1/2"

[775]

77-5/8" [1972]

1/2" [13] all

configurations

In an exterior chase

or projecting into

a garage

Across a

corner

Along a wall

30-1/2"

[775]

24"

[610]

77-5/8" [1972]

As a

room

divider

30-1/2"

[775]

48"

[1219]

77-5/8"

[1972]

52-1/2"

[1334]

61-5/8"

[1565]

104-7/8"

[2664]

24-3/8"

[619]

74-1/4"

[1886]

24"

[610]

Use only non-combustible

material below the top of

the front standoffs.

**30-1/2"

[722]

*8"

[203]

61-5/8"

[1565]

* Extra space needed (both sides)

for outside air connection. If outside

air duct has no bend, this dimension

may be reduced as long as minimum

clearances are met.

** If interior of chase will be

drywalled, add the thickness

to this measurement

Header will sit

on top of front

standoffs after

fireplace is

installed.

2" [51]

17"

[432]

60-5/8" [1540]

50" [1270]

24"

[610]

24"

[610]

19-3/4"

[502]

22-3/8"

[568]

FLUSH

FRONT

[102]

BRICK

FRONT

50° angle

39° angle

Grid represents

1" scale

2" [51]

required

Continuous, non-combustible

sealant

Tile, stone or other

non-combustible material

Floor constructed of wood or

other combustible material

1/2" [13] Micore or

equivalent insulation

See Install Manual

Fireplace

Protective

Metal Hearth

Strip

74"

[1880]

50"

[1270]

12"

[305]

12"

[305]

Raised Hearth

20" [508]

minimum

Flush Hearth

30" [762]

minimum

0" from

floor

Attic

Insulation

Shield

Ceiling Firestop

(ceiling)

(roof)

(attic)

(ceiling)

2" [51]

minimum

2" [51]

minimum

2" [51]

minimum

2" [51]

minimum

2" [51]

minimum 2" [51] minimum

to header

2" [51]

minimum

Ceiling Firestop Offset/Return with

hanger straps

Storm Collar

Roof Flashing

0" to level

of standoffs

1-1/2" [38] from

back of unit

1-1/2" [38] from side of unit

(except at nailing flanges

where it is 1/2" [13]

7 ft [2134] minimum

base of fireplace

to ceiling

Combustible Wall

2 x 4 stud wall

Front Standoffs

Measured from top of fireplace opening

12" [305]

minimum

Mantel

1-1/ 2" [38]

maximum

6" [152]

minimum

20" [508]

minimum

Combustible

Decorative Facing

Non-combustible

Decorative Facing

such as: steel, iron

brick, tile, concrete,

slate, plasters

Seal joint with

non-combustible

sealant

Grid represents 1" squares

1/2"

[13]

Fireplace must be set out

1/2 [13] in front of the face

of the framing material.

Specifications

WS/HTL/I100_0615

Additional information can be found online at www.heatilator.com

PRODUCT LISTING CODES

US UL 127

Product information provided is not

complete and is subject to change without

notice. Product installation must adhere

strictly to instructions accompanying

product to avoid risk of ﬁre and potential

injury.

Lakeville, MN Phone: (800) 927-6841

Web: www.heatilator.com
