HeartSaver AED7000 Setup guide
LCD Screen
Heart Saver AED7000
QUICKSTART USER GUIDE
info@heartsaver.co.nz • 0800 233 342 • www.heartsaver.co.nz
Green On/Off button
Green Power LED
In case of emergency
1. Press Green On/Off button to turn the debrillator on.
2. Follow the prompts.
3. If a shock is required you will be prompted to press the Red Shock button
4. Continue to follow the prompts.
Self Testing Indicator
Speaker
Pads socket
Red Shock button
Red LED
Indicator Light Prompts

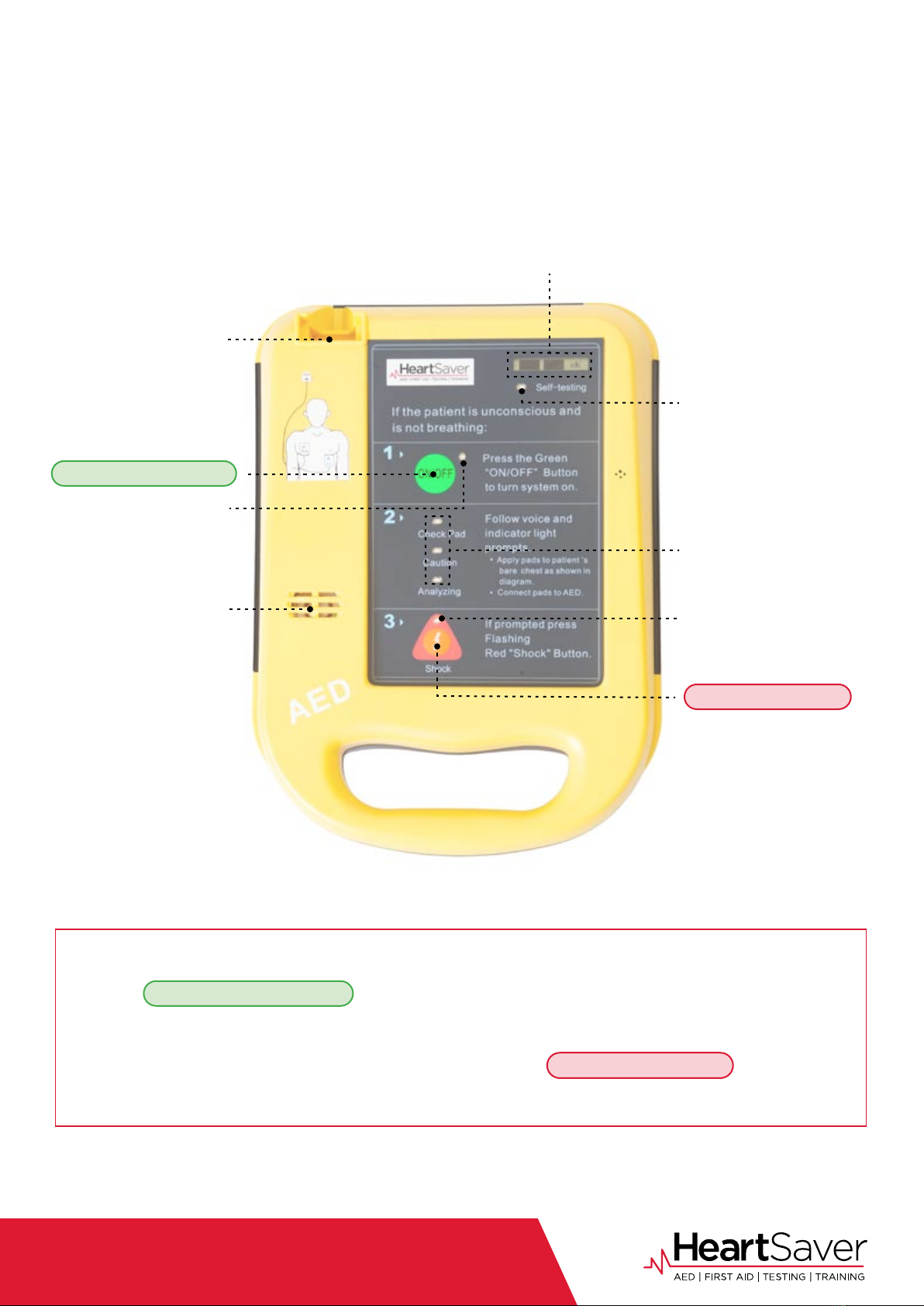

Overview / Using Your AED
LCD Screen displays self test results:
Heart Saver AED7000
QUICKSTART USER GUIDE
info@heartsaver.co.nz • 0800 233 342 • www.heartsaver.co.nz
Green Power LED
• LED is bright
–Indicates the
charge left in the
battery is full
• LED ashes slowly
– Indicates the
charge left in the
battery is partially
depleted
• LED ashes fast
– Indicates the
charge left in the
battery
Self Testing Indicator
On commencement of the
daily/monthly self-test, this
LED indicator will turn on;
and automatically turn off
on completion. Results will
be displayed in the LCD.
Low Battery
If the battery is low this
icon will appear:
ORDER NEW BATTERY
System Normal
If all is normal this icon
will appear:
NO ACTION REQUIRED
oK
System Malfunction
If there is a fault this icon
will appear:
CONTACT HEART SAVER
Red LED
ashes when debrillator
is fully charged.
Indicator Light Prompts
• Check Pad LED
Flashes
– Debrillator pads are
not properly attached
to the patient or
are not properly
connected to the
AED7000
• Caution LED Flashes
– DO NOT TOUCH OR
MOVE THE PATIENT
• Analyzing LED Flashes
– ECG leads are
properly connected
and the system is
assessing the patient’s
heart rhythm

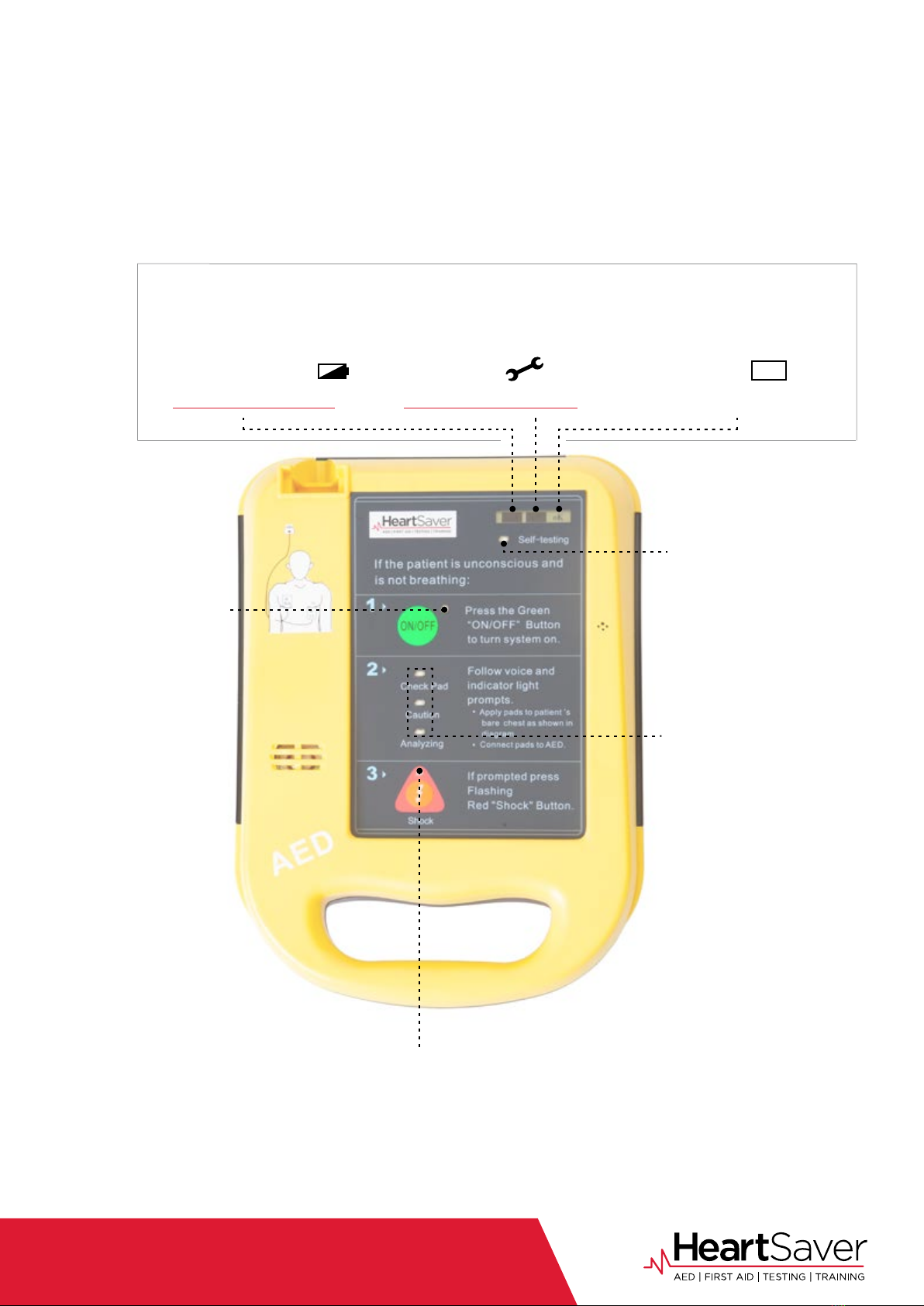

LED / LCD Screen Indicators
Heart Saver AED7000
QUICKSTART USER GUIDE
info@heartsaver.co.nz • 0800 233 342 • www.heartsaver.co.nz
Replacing the Battery
Battery replacement at recommended at 5 years. You can order a new battery for your AED7000 on
our website by clicking here (or go to: https://www.heartsaver.co.nz/products/heart-saver-aed7000-
replacement-battery). Please follow the below instructions to replace the battery. You can also watch
a short video here.
PLEASE NOTE: Use only M&B Part No. CR123A-4x2 non-rechargeable lithium batteries. Use of any
other battery can damage the AED7000.
When you have installed the new battery, the AED unit will take a minute or two to boot back up.
When it has completed its self-test, please check the LED screen on the front of the unit - you
should be able to see “OK” and two black-shaded boxes (covering the spanner and battery icons).
To replace the battery follow the steps below:
1. Write the date of installation on the “New
Battery Installed” sticker.
2. Open the battery compartment (located near
the bottom of the backside of the AED7000)
by removing the thumbscrews. Slip the plate
up before pulling plate off.
3. Unplug the existing battery by gently pulling
out the white battery connector.
4. Turn the unit over and press the ON/OFF
button. Wait until LED screen goes blank (you
will still be able to see the battery/spanner
icons). Leave unit like this for 60 seconds.
5. Connect the new battery by pushing the 3-pin
battery connector onto the contact pins.
6. Place the battery into the battery
compartment .
7. Replace the battery cover by sliding the cover
back so that the screw holes are aligned.
8. Replace the thumbscrews.
