Hayward TigerShark User manual
Copyright 2010 Hayward Industries Inc.
Robotic Cleaner Troubleshooting Guide
Table of Contents
TigerShark & TigerShark QC
Important safety instructions Page 1
Service Tools Page 2
Filter Removal/Cleaning and Drain Flaps Pages 4-6
Handle Removal Page 7
Venturi Removal Page 8
Bottom Lid Disassembly Pages 9-10
Side Cover Removal Pages 11-12
Drive Track and Idlers Pages 13-16
Power Cord and Motor Box Pages 17-27
Wheel Tube Brush and Bearings Pages 28-30
Using the Scanner Tool Pages 31-34
Power Supply and Flotation Cord Testing Page 35
Basic Operation Pages 36-37
Troubleshooting Pages 38-43
Table of Contents Continued
SharkVAC & E-Vac
Service Tools Page 44
Power Supply Page 45
Filter Removal Pages 46-47
Filter Replacement Page 48
Wheel and Tire Removal Page 49
Side Cover Removal Page 50
Drive Track and Idlers Page 51
Main Drive Pulley Removal Page 52
Wheel Tube Removal Page 53
Wheel Tube Brush Page 54
Power Cord Removal Pages 55-60
Motor Box Removal Pages 61-62
Power Supply and Flotation Cord Testing Page 63
Troubleshooting Pages 64-68
Safety
!
Page 1

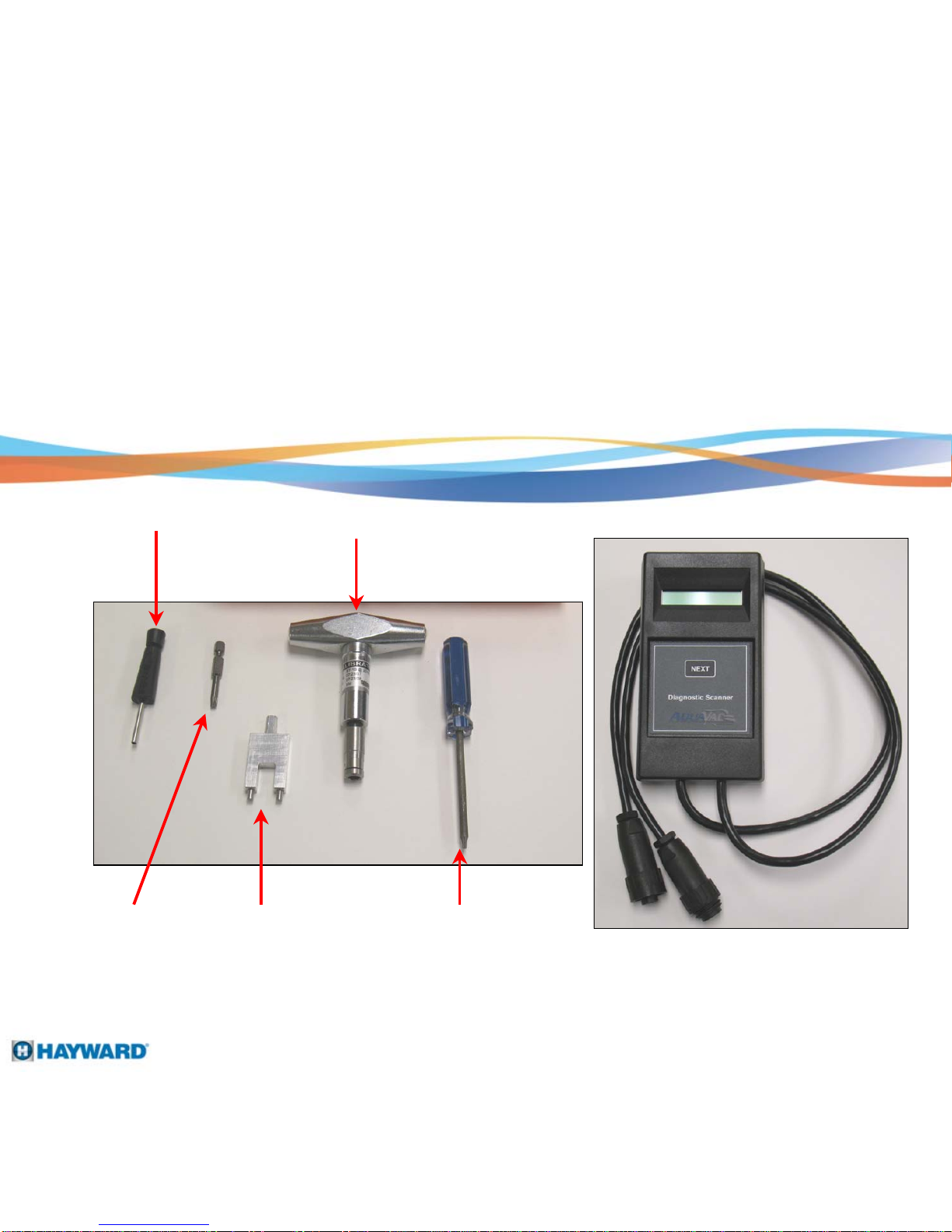

Service Tools
Scanner
Torx DriverTorx Bit Spanner Tool
Torque DriverPin Removal Tool
Page 2

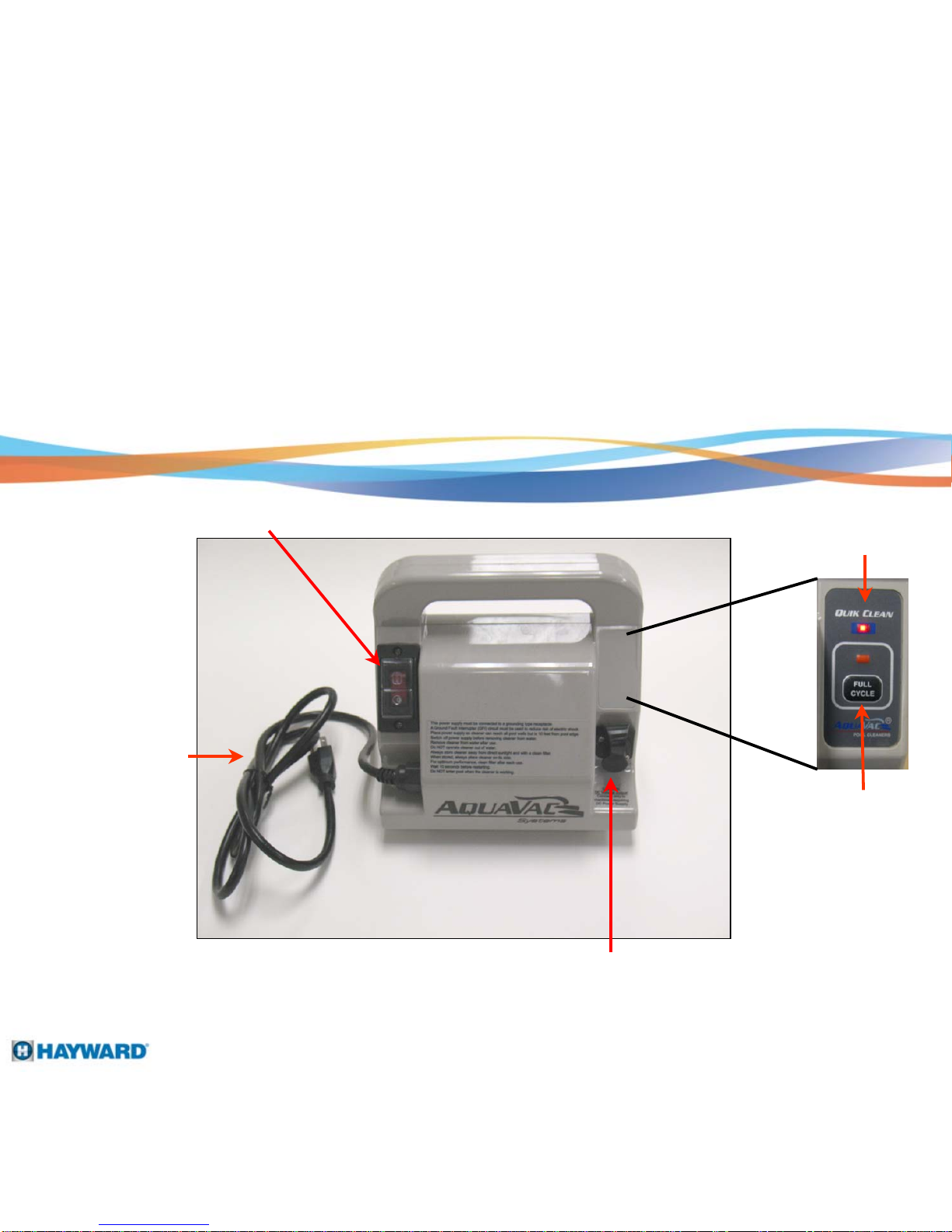

Power Supply
On/Off Switch - Lighted
Flotation Power Cord Connector
Page 3
Power Cord
Quick Clean LED
(QC Models Only)
Full Cycle Button
and LED
(QC Models Only)

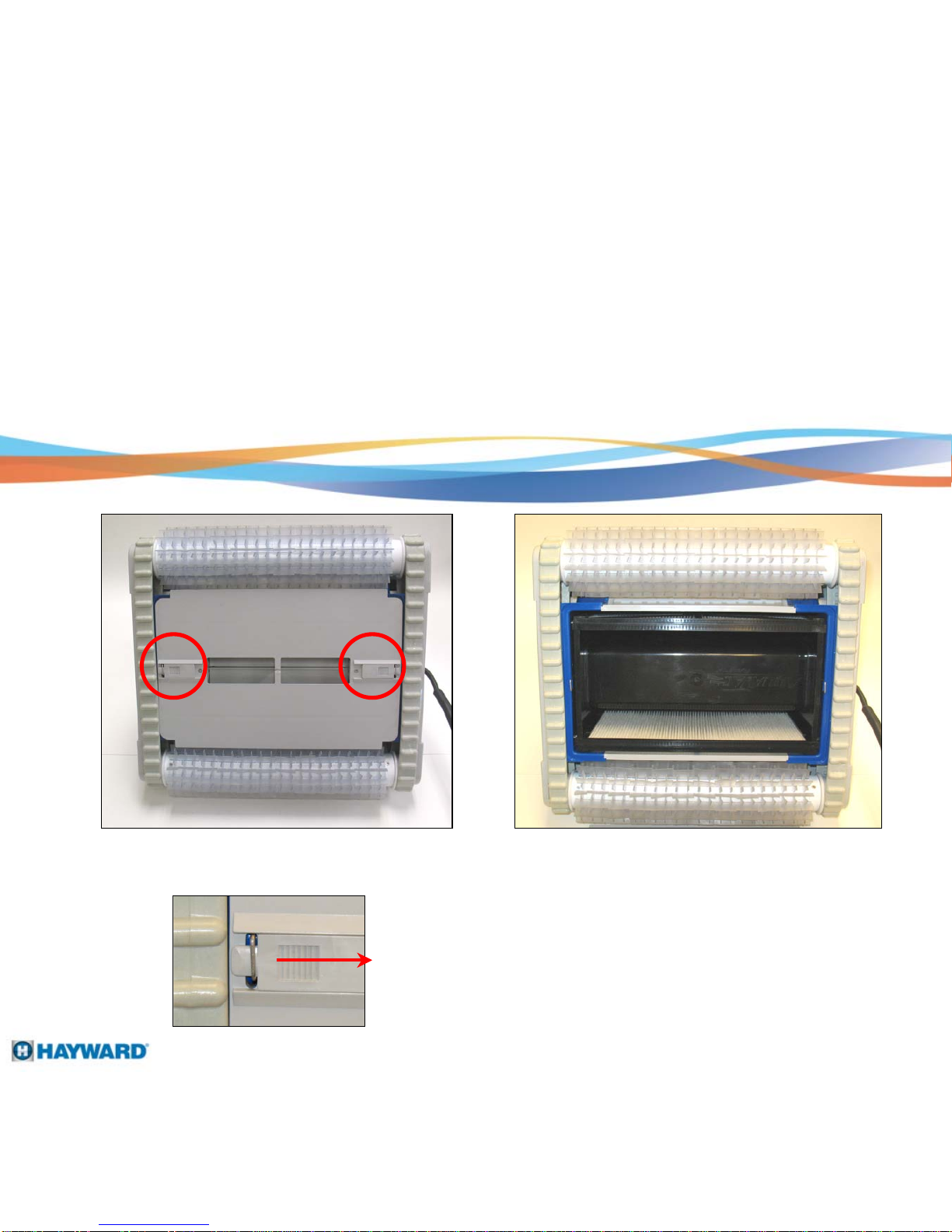

Disassembly – Filter Removal
Remove bottom lid by sliding
LH and RH latch towards center. Bottom lid removed providing
access to filter cartridge assembly
Page 4

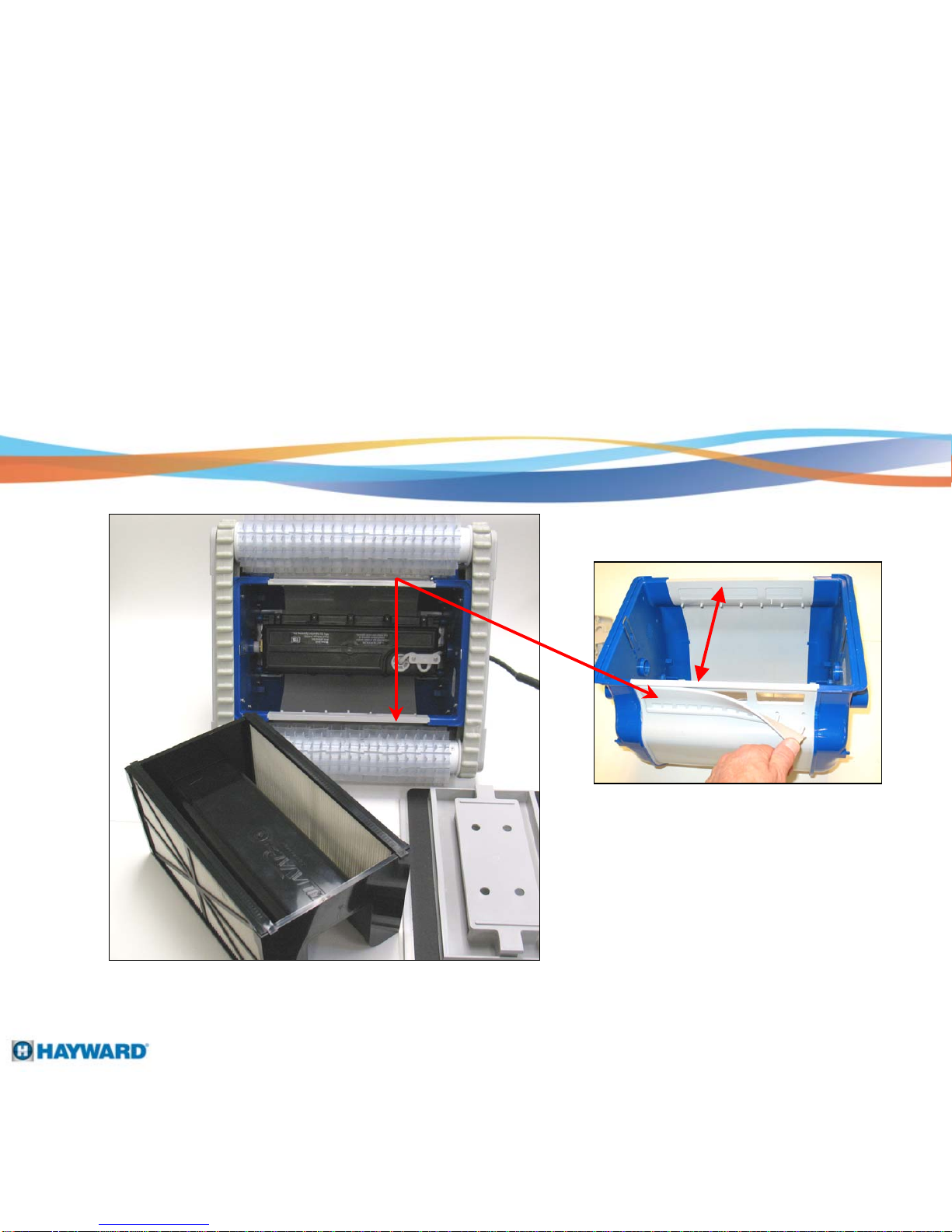

Filter cartridge removed
Filter Removal
Page 5
Note the drain flaps, one per side. Not
required to remove for filter cleaning, but
visually inspect when filter is removed.

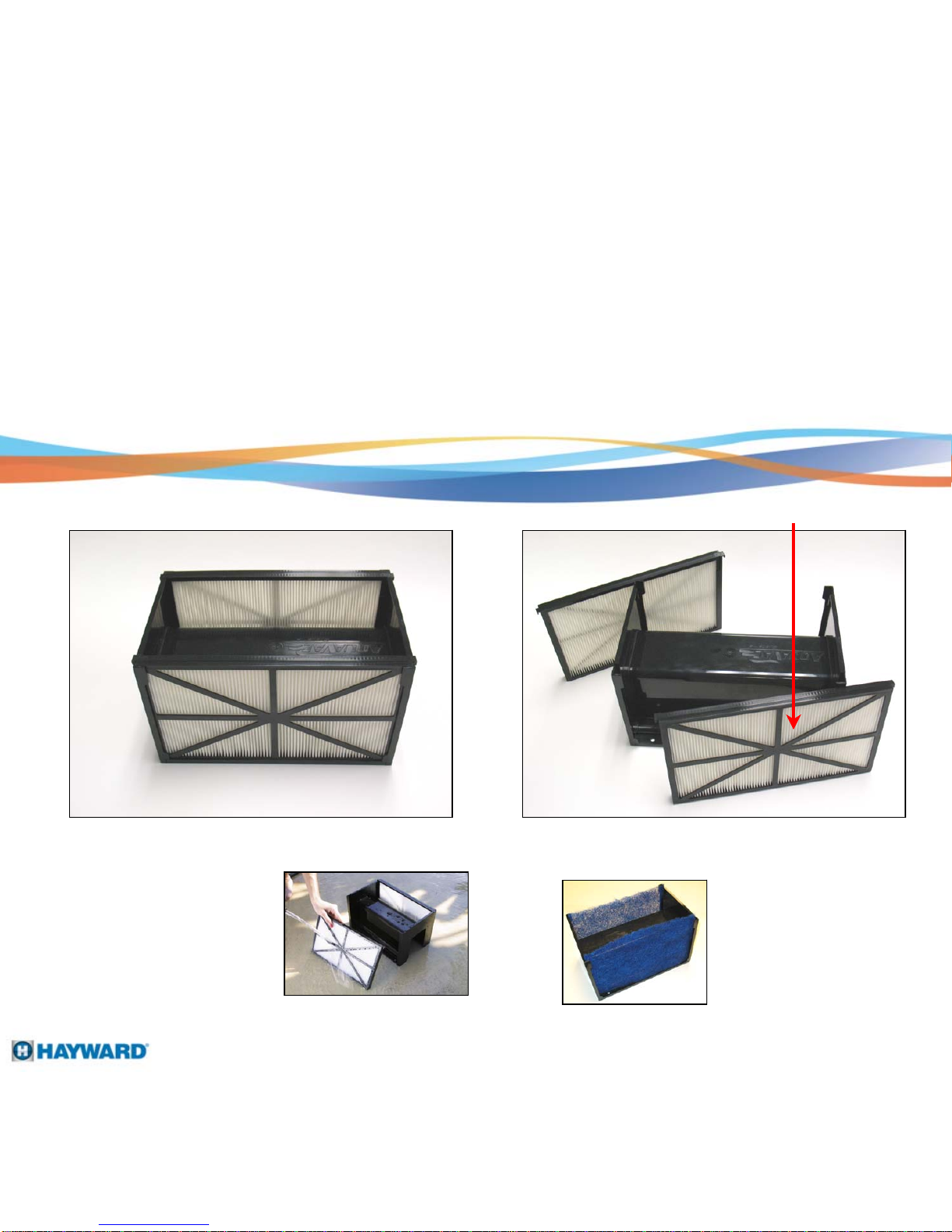

Filter cartridge assembly Filter elements removed
Note: Elements must be installed with support ribs facing outward
Filter Removal
Page 6
Note: Elements can be cleaned
by gently spraying with a
garden hose.
Be careful not to use high
pressure or this may damage
the element.
Spring cleanup filter
elements. For temporary use
in heavy spring cleaning.

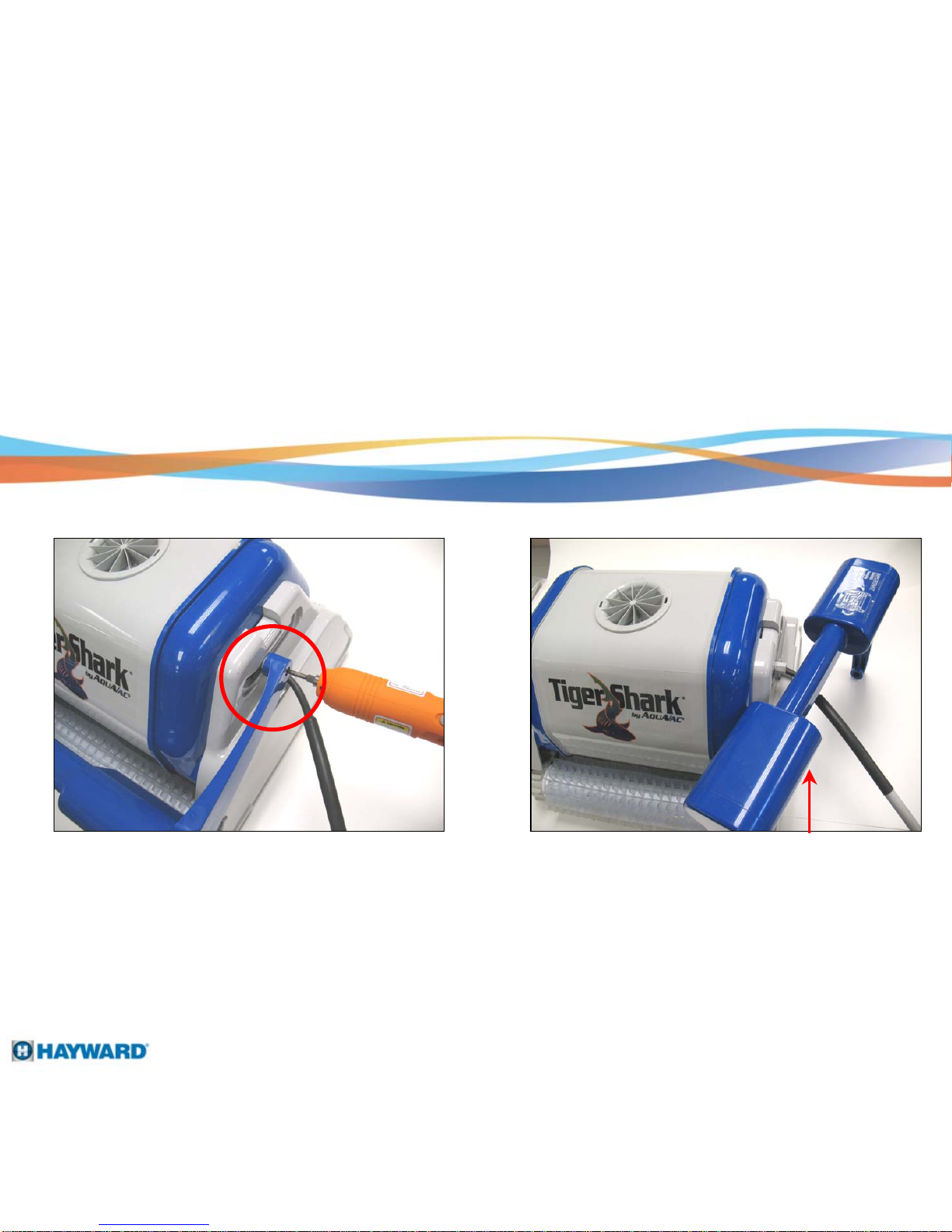

Handle removal
1 screw each end Handle removed
Note: Handle is watertight.
If water is heard sloshing around
in handle it must be replaced.
Handle Removal
Page 7
