IS-15 Issue: 6 Date: 15.06.2012 C/Note: 11756 Page 3 of 4
8. Keeping the cable steady in the crimp, fully close the hand crimp tool until the ratchet
releases. Let the crimp tool open.
9. After crimping remove the assembly. The process is then repeated for each crimp required.
RECOMMENDED CRIMP HEIGHTS
M20-11600XX:
Using 22 – 24AWG, recommended conductor crimp height = 0.86±0.03mm
Using 26 – 30AWG, recommended conductor crimp height = 0.72±0.03mm
TOOL MAINTENANCE
1. Keep the tool clean and free from dirt and foreign matter. Ensure that all retaining pins and
clips are in place before use, and that signs of wear are not visible. If the pivots are worn,
the tool must be replaced, or crimp integrity will be compromised.
2. Oil at all pivots and bearings using a light cycle oil.
3. At regular intervals, check the crimp tool jaws for wear or damage, and inspect sample crimps
for form and function. Minimum pull-off forces (as shown in the previous table) should be
achieved when sample is tested. If forces are not achieved, calibrate the tool.
TOOL CALIBRATION
The operating force at the point shown should be 150N (15kg, 33lbs) min.
40mm

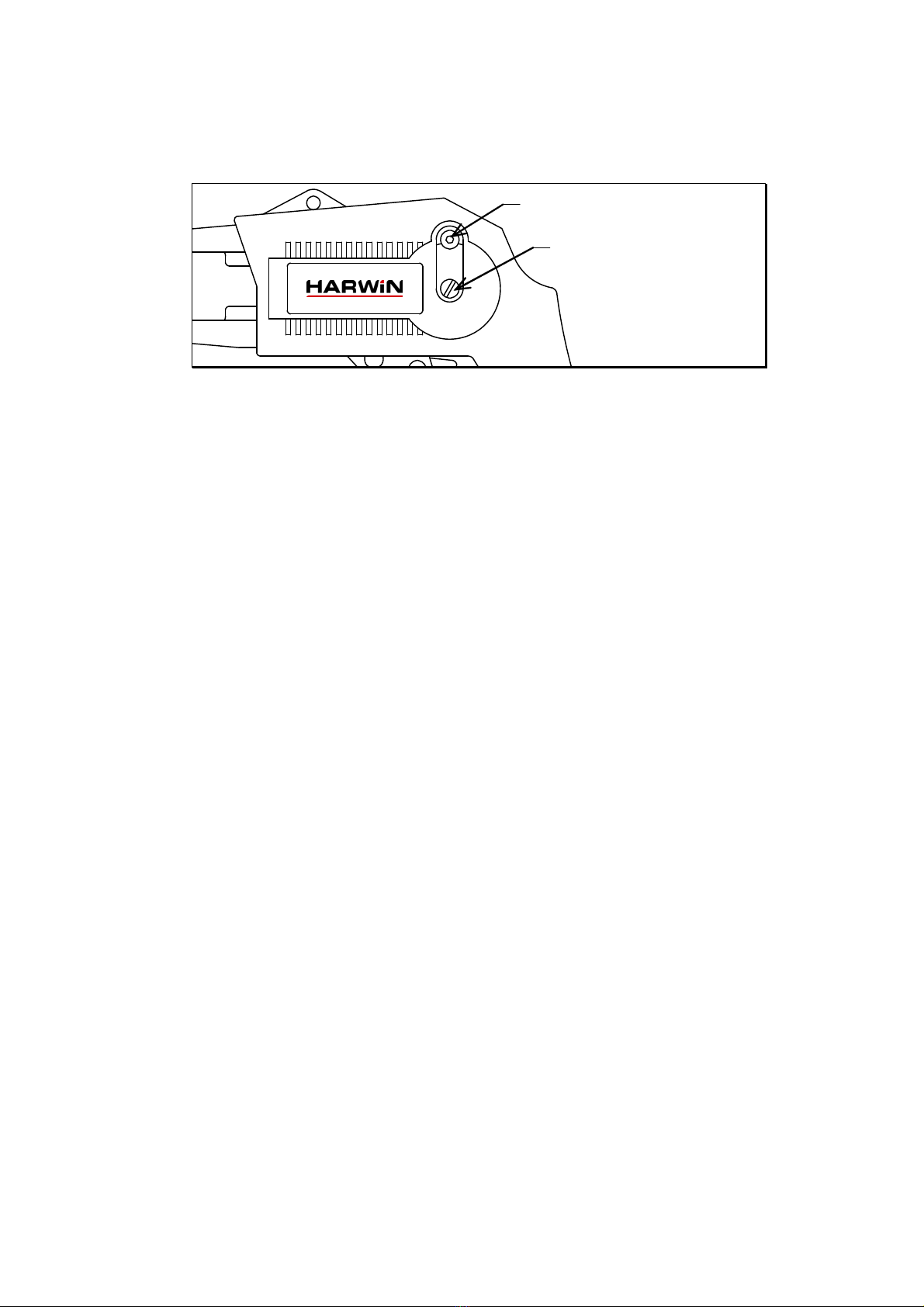

If adjustment of the tool becomes necessary due to pull-off forces not being maintained, the
following instructions should be followed.
1. Remove Hex socket grub screw using a 2mm A/F Hex key.
