Harman JBL TUNE660NC User manual

quick

start

guide

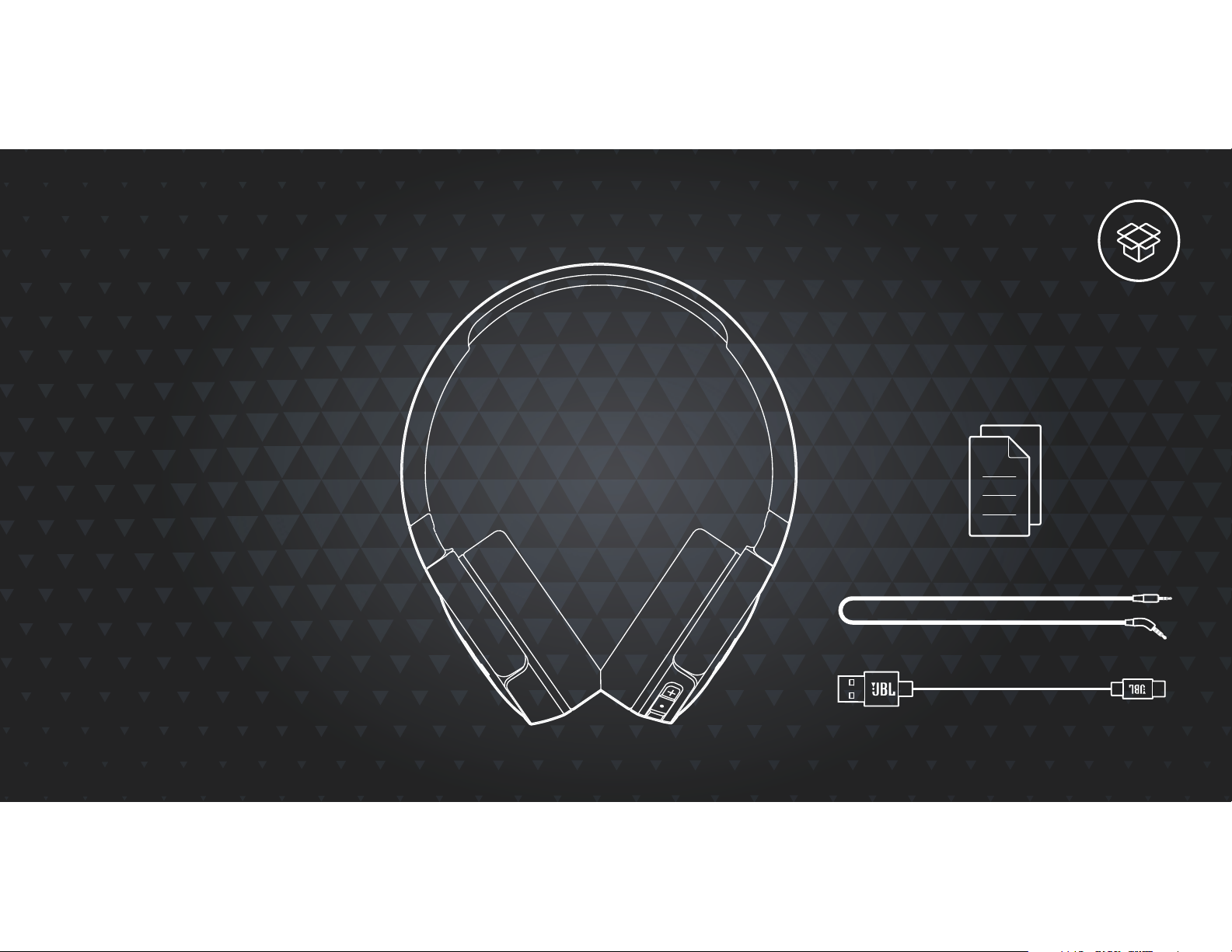

WHAT’S

IN THE

BOX

POWER ON AND

AUTOMATICALLY ENTER PAIRING MODE

Choose

"JBL TUNE660NC"

to connect

power

on &

connect

• now

JBL TUNE660NC

Tap to pair. Device will be tied to

Your Google Account

Settings

Bluetooth

DEVICES

Now Discoverable

Connected

JBL TUNE660NC

OTHERS Android 6.0+

>2S

Manual

Pairing

Choose "JBL TUNE660NC" to connect

Manual pairing mode

POWER OFF

>5S

Manual

Pairing

Settings Bluetooth

Bluetooth

DEVICES

Now Discoverable

Connected

JBL TUNE660NC

BUTTON COMMAND

×22

×1

Siri®

Google Assistant

Bixby

×1×1

×1

>2S

ANC ON/OFF

>2S

×1

Multi-point

connection

ENTER PAIRING MODE WITH THE 2nd DEVICE

(Maximum 2 devices)*

>2S

1To switch music source, pause the

music on the current device and select

play on the 2nd device.

2Phone call will always take priority.

3If one device goes out of bluetooth range

or powers off, you may need to manually

reconnect the remaining device.

4SELECT “forget this device” on your

bluetooth devices to disconnect

multi-point.

1st

bluetooth device

2nd

bluetooth device

Choose "JBL TUNE660NC" to connect

Settings Bluetooth

Bluetooth

DEVICES

Now Discoverable

Connected

JBL TUNE660NC

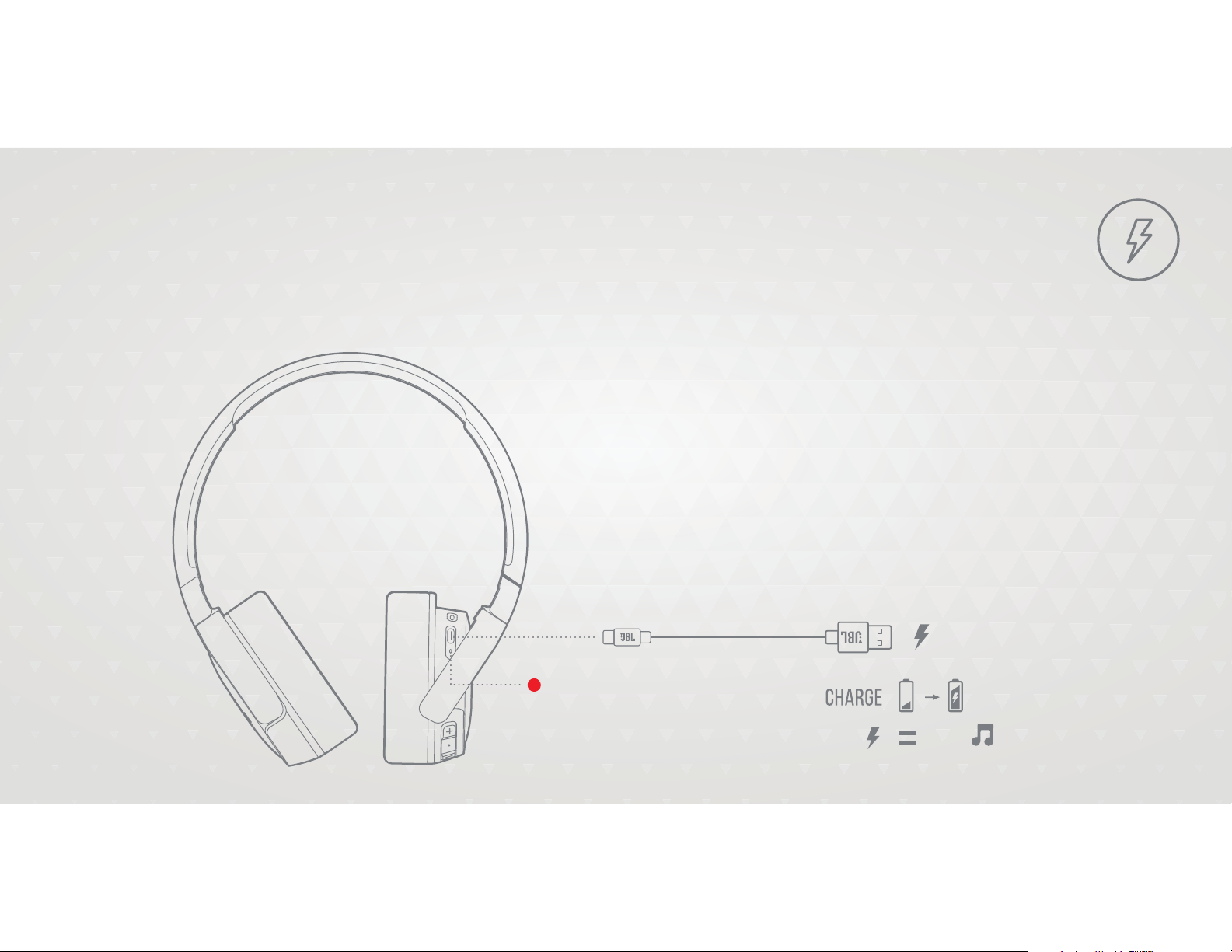

Charging

2HR

2HR5MIN

led

behaviors

Low battery

CHARGING

FULLY CHARGED

ANC ON

BT CONNECTING

BT connected

POWER ON/OFF

TECH

SPEC

Model: TUNE660NC

Driver Size: 32 mm / 1.26 ”Dynamic Driver

Power supply: 5V 1 A

Weight: 166 g / 0.366 lbs

Headset battery type: Polymer lithium-ion battery (610 mA / 3.7V)

Charging time: < 2 hrs from empty

Music playtime with BT on: up to 55 hrs

Music playtime with BT on and ANC on: 44 hrs

Music playtime with AUX and ANC on: 35 hrs

Frequency Response: 20 Hz – 20 kHz

Impedance: 32 ohm

Sensitivity: 100 dB SPL @ 1 kHz / 1 mW

Maximum SPL: 96 dB

Microphone sensitivity: -42 dBV @ 1 kHz / Pa

Bluetooth version: 5.0

Bluetooth proﬁle version: A2DP 1.3, AVRCP 1.5, HFP 1.6

Bluetooth transmitter frequency range: 2.402 GHz – 2.480 GHz

Bluetooth transmitter power: < 10 dbm

Maximum operation temperature: 45 °C
