Harman JBL ARENA SUB100P User manual

Service Manual

ARENA SUB100P

100-Watt 10”Powered Subwoofer

CONTENTS

ontrols and Operation

Specifications

S 1Spare Parts List

Released 2015 Rev. 1.401/2016

harman/kardon, Inc.

13Schematics Diagrams

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

SUBWOOFER REAR-PANEL CONTROLS AND CONNECTION

POWER

MODE

PHASE

NORMAL

CROSSOVER

VOLUME

SUBWOOFER

INPUT

AUTO

REVERSE

PWR

BLUE: ON

RED: STANDBY

50Hz 150Hz MIN MAX

SUB 100P

POWER

OFF

POWER

INPUT

Power Mode:

When switched to 'Auto' position, the subwoofer will automatically turn on when an audio signal is detected and

will return to the Standby

mode when no audio signal is detected after approximately 10 minutes. Setting this switch to ‘On’ keeps the

subwoofer powered until Power

Switch is turned 'Off.'

On/Standby LED:

When the Power Switch is in the ‘On’ position, this LED indicates whether

the subwoofer is in the On or Standby state.

●

Blue, the subwoofer is turned On.

●

Red, the subwoofer is in the Standby mode.

Phase Switch:

This switch determines whether the subwoofer transducer's piston-like

action moves in and out in phase with the main speakers..

CrossoverControl:

This control determines the highest frequency at which the subwoofer

reproduces sounds.

Volume:

Use this control to adjust the subwoofer’s volume level.

Subwoofer Input:

Connect the subwoofer to the dedicated subwoofer / LFE output of a

receiver/processor.

Power Switch:

Set this switch in the ‘On’ position to turn the subwoofer on.

AC Power Input:

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

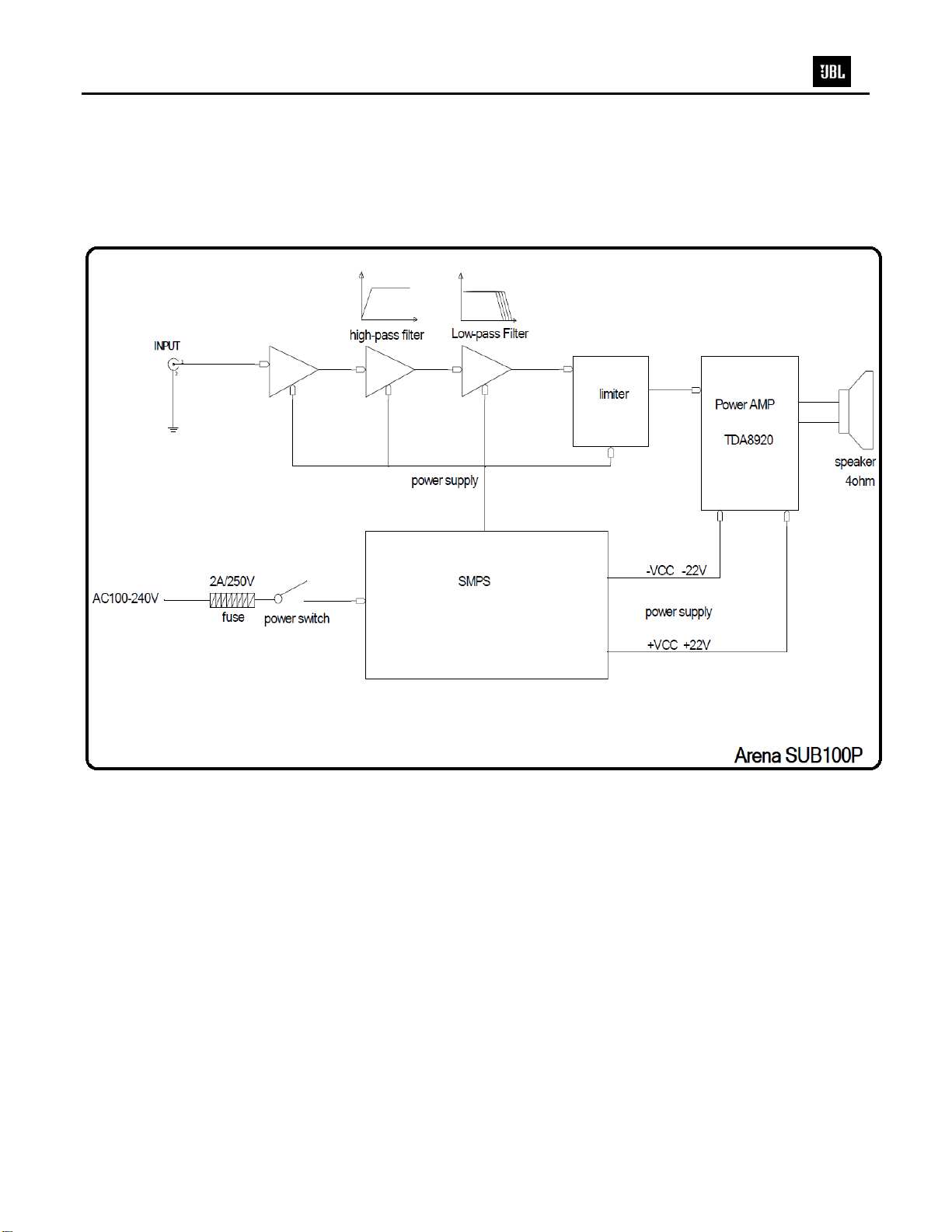

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

ARENA SUB100P

JBL

Released 2015 8500 Balboa Blvd. Northridge, CA 91329 Rev0 3/2015

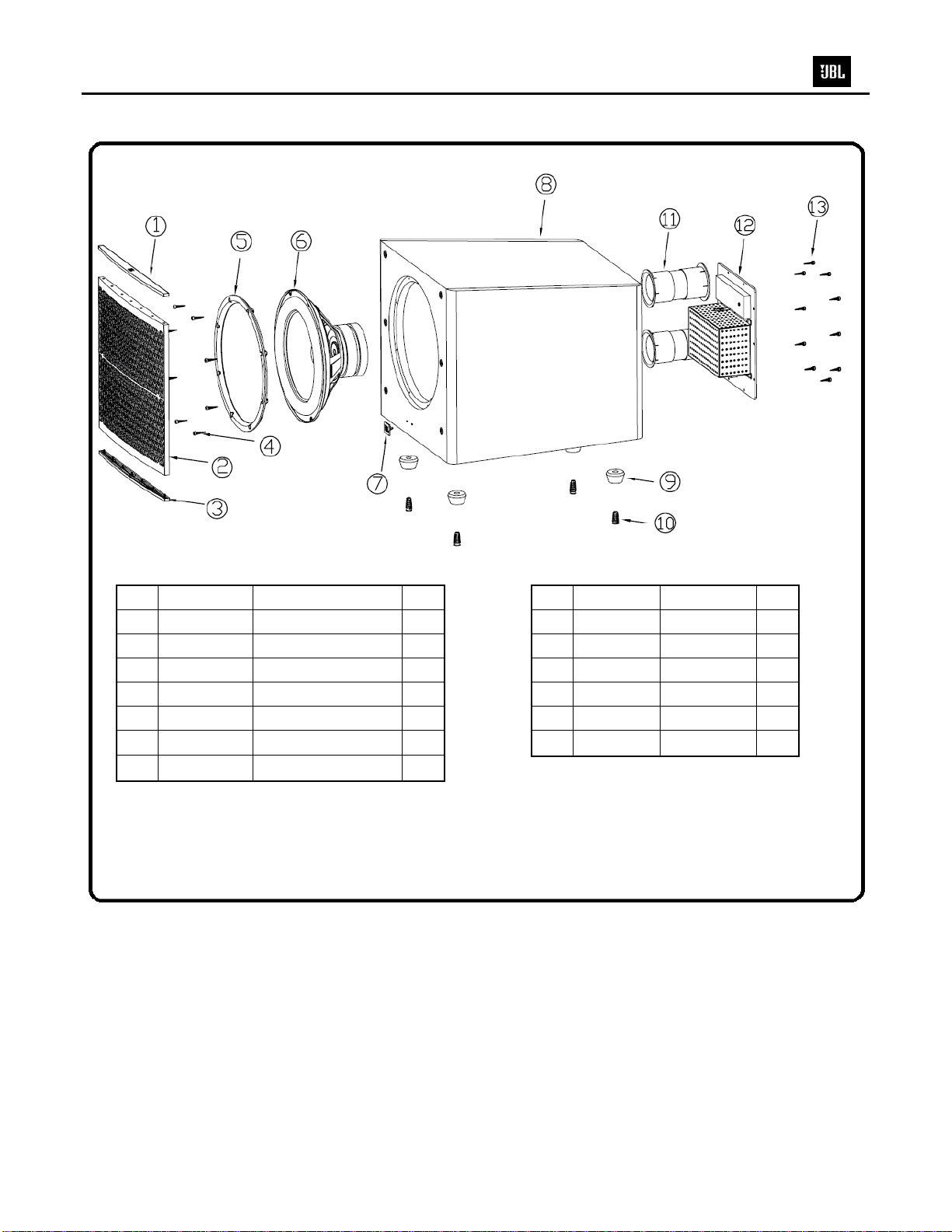

Exploded View

No. PartNo.DescriptionQty

120020063Topdecobrace1

202090031Grille1

3020020062Bottomdecobrace 1

4N/ASelfTappingScrew8

502340057Woofertrimring1

6SP100028Woofer1

701400073Logo1

No.PartNo.DescriptionQty

8N/ACabinet1

902620108SilicaFeet4

1007140027Footinsert4

1102160012Porttube2

12BB000185  Amplifier1

13N/AScrew10

23030592 Carton Box Arena SUB100P

2090042

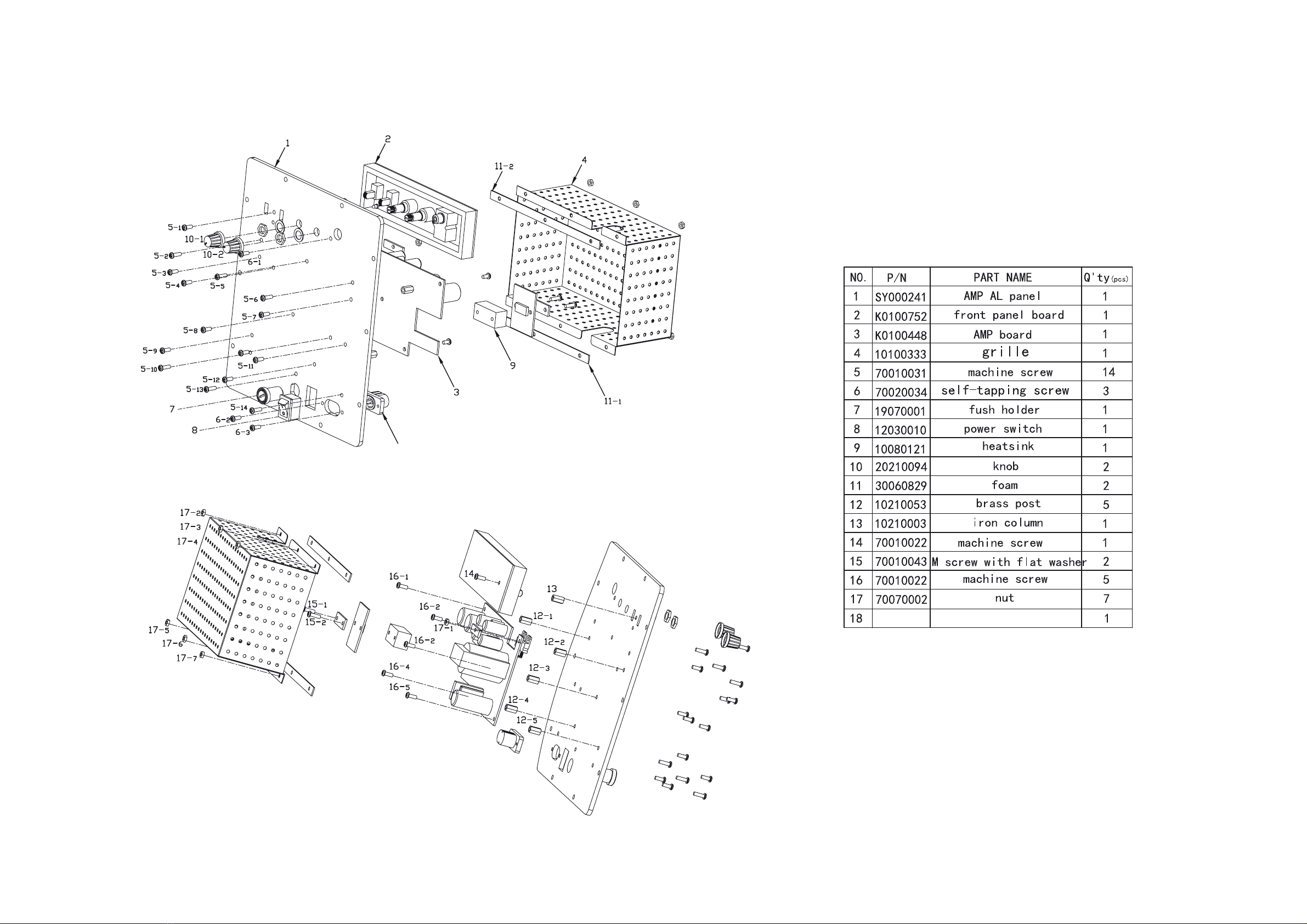

AMPLIFIER PART EXPLODED VIEW

40010007 MAIN POWER CONNECTOR
