Hardi TWIN BOOM User guide

TWIN BOOM

Air bag

Original

Mounting Instruction

67218400-100, version 1.00

GB - 06.2018

www.hardi-international.com

We congratulate you for choosing a HARDI plant protection product. The reliability and

efficiency of this product depend upon your care. The first step is to carefully read and pay

attention to this mounting instruction. It contains essential information for the efficient use and

long life of this quality product.

Mounting Instruction Formalities

The original mounting instruction is approved and published in English. All other languages are translations of the

original mounting instruction. In the event of any conflicts, inaccuracies or deviations between the English

instruction and other languages, the English version shall prevail.

Illustrations, technical information and data in this book are assumed to be correct at the time of printing.

Published and printed by HARDI INTERNATIONAL A/S.

All rights reserved.

3

Instructions

Before Mounting

Mounting Kit

The delivered parts are to be mounted on your HARDI sprayer.

They are used for leading the air from the TWIN blowers to the air channels on the boom wings.

Where on the Sprayer

On the boom wings.

Tools and Materials Needed

•Steel hooks for pulling the air bags onto the boom by hand.

Preparations

Use the support leg on the sprayer.

Prevent the sprayer from rolling.

Keep children at a distance.

Unfold the spray boom.

Sliding agent

Instructions

4

Mounting Instructions

Mounting the Parts

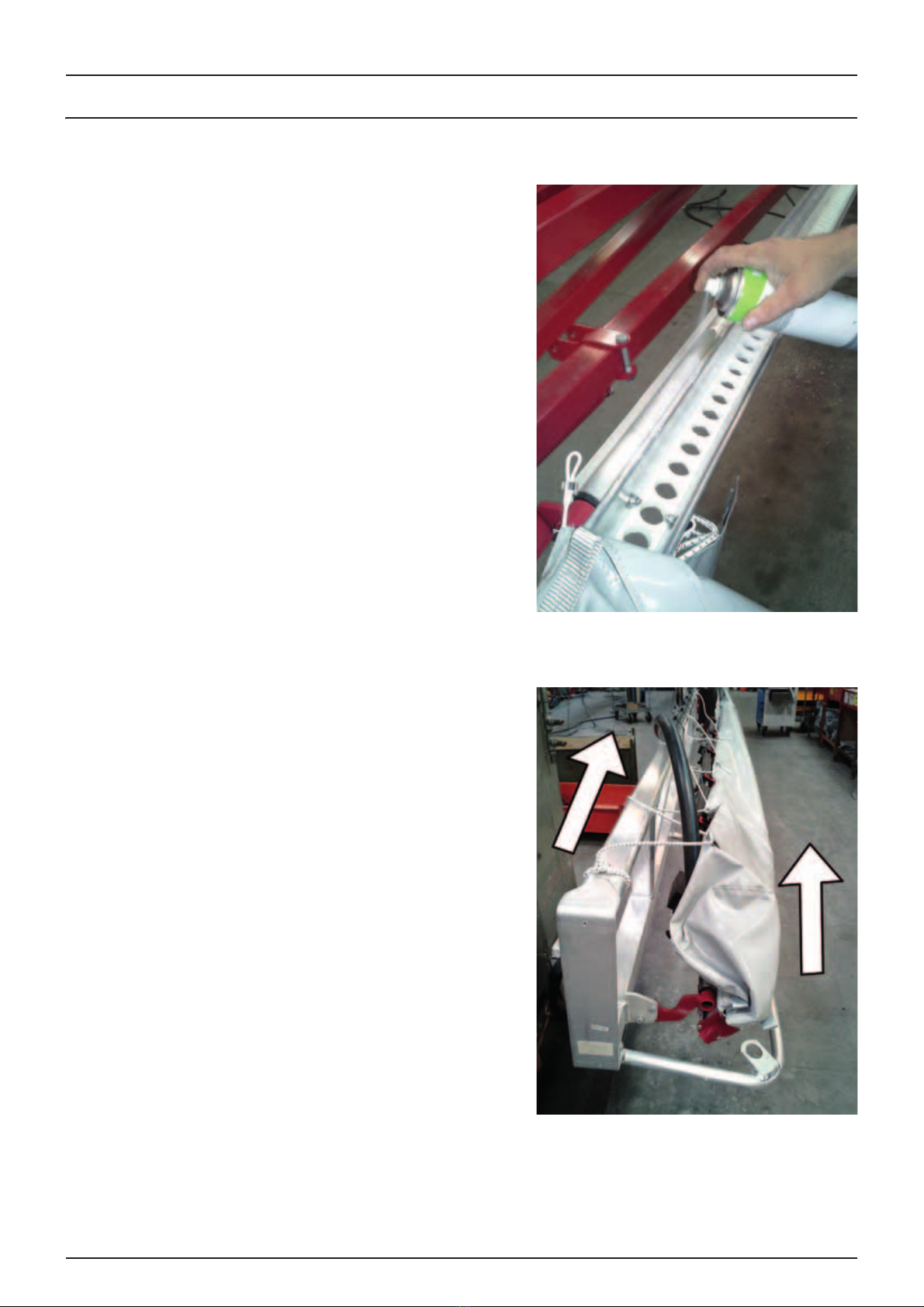

Prepare the aluminium rails by applying sliding agent.

This will facilitate pulling the air bags onto the rails.

Start with mounting the air bag at the boom tip (breakaway), and work

you way towards the boom centre.

Note what is the inside and outside of the air bags before mounting.

Instructions

5

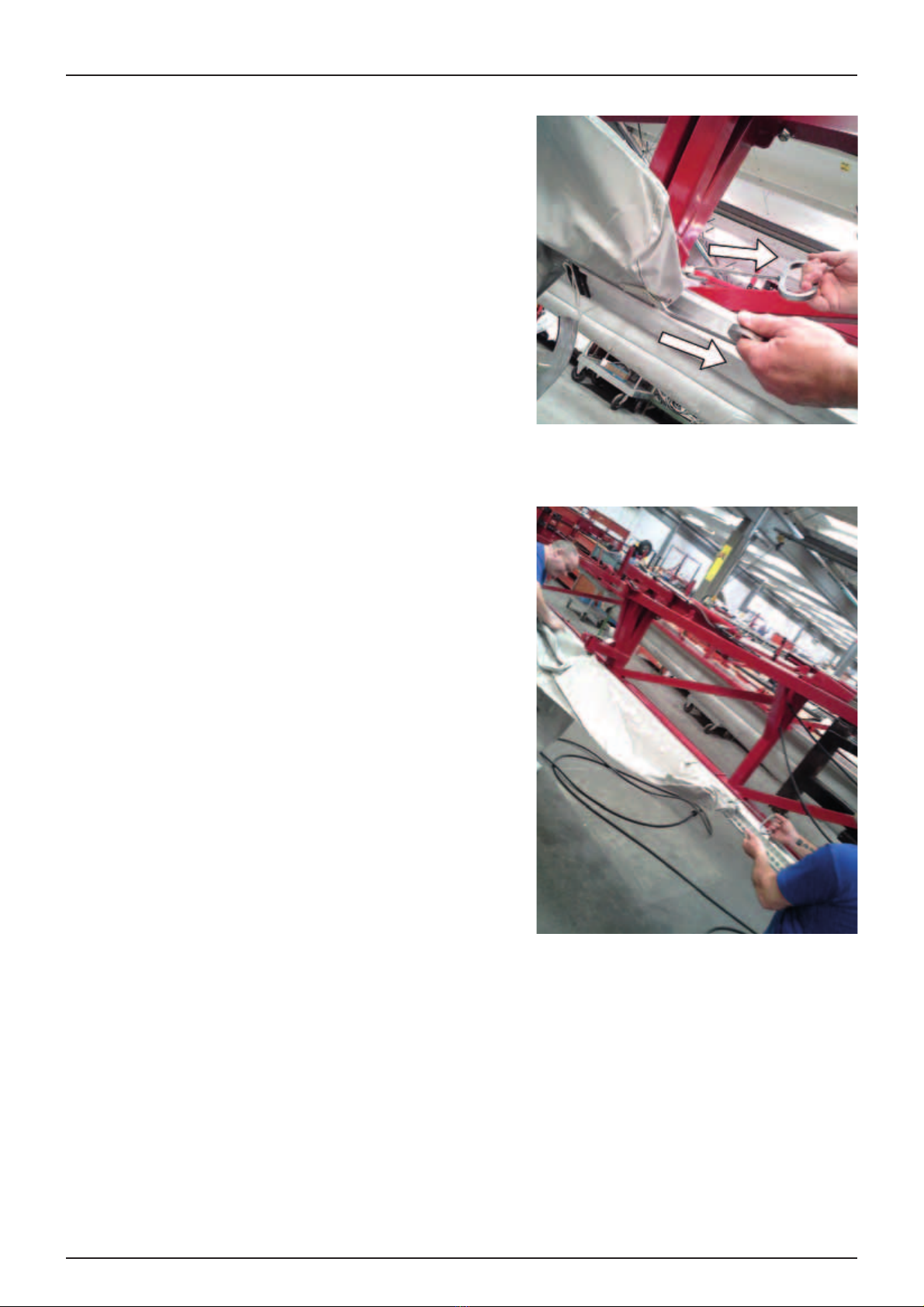

When mounting an air bag, lead the string into the channel in the

aluminium profile.

Push it forward by hand while making sure that the air bag does not exit

this channel anywhere.

Get a colleague to help pulling the air bag on to the air channel.

Use steel hooks in the air bag straps for easier handling.

Instructions

6

Instructions

7

Between the breakaway and outer boom section, ensure that the air

holes in the air bag is fitted precisely in line with the air holes in the air

channel.

Instructions

8

Tie the strings in a knot using the black brackets.

At the end of the boom, tie a knot and put on a metal clamp.

Instructions

9

Use sharp pliers to fasten the metal clamps.

At the positions for boom folding, the air bag is attached like this.

Do not tie the strings by crossing over the boom folding point, or over

to another boom section, as this will cause the strings to break during

use.

Instructions

10

Tie the air bag to the boom below the folding joints.
