1. The Default Arm/Disarm switch for Moblite7 is AUX1(Channel 5),and you can alsoHDZERO
customize it with Betaflight Configurator.
3.The default channel map for Moblite7 HDZERO version is TAER1234. Please make sure your
transmitter is matched, otherwise it wouldn't be armed. Toggle the AUX1 Switch ,the Green LED
on the flight controller will getting to be solid, this indicates the motor was armed . And also you
can found Armed" notice displayed on your FPV Goggles or the FPV Monitor. Please make sure
keep the Moblite7 HDZERO level before arming .Be careful and Happy flying !

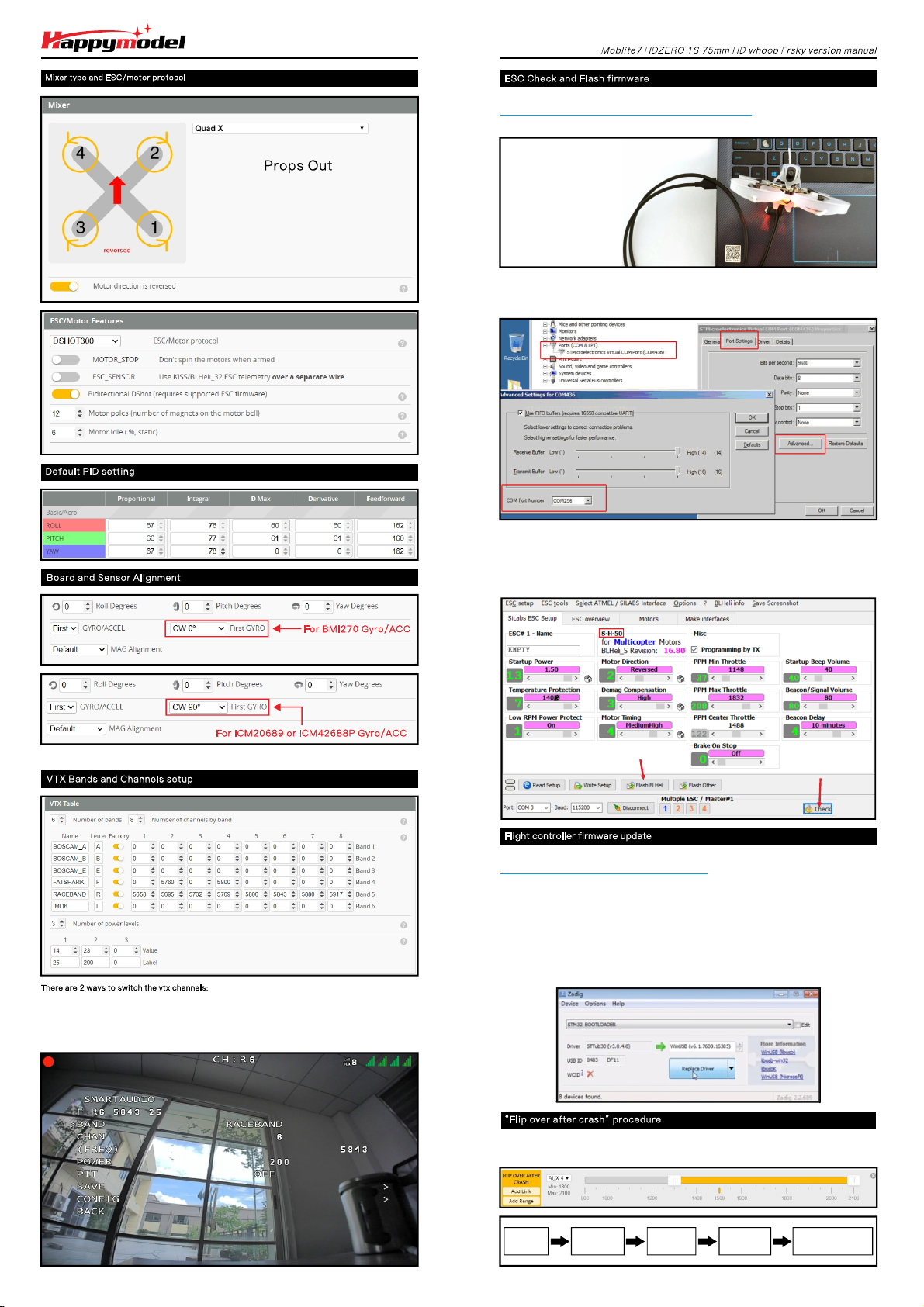

The following settings are reserved from out of factory. Sometimes maybe you need it after you
updated firmware.Please set Receiver mode to be SPI RX Support from the Configuration tab of
the Betaflight Configurator, then select Frsky_D for Frsky D8 protocol or Frsky_X for Frsky D16
protocol .Don't enable Serial RX since the Superbee F4 Frsky Flight controller is integrated SPI
Receiver.
2.Turn on the Radio transmitter (Use TX16S as an example) and move to the MIXES interface, Set
CH5 channel to "SF" or other aux channel to ARM/DISARM the motor
Bind procedure video
https://bit.ly/39SvE0r
1). Connect Moblite7 HDZERO with computer by Plug USB. Running Betaflight configurator and
then move on Receiver tab then hit Bind Receiver”. Or move to CLI command and then type "
bind_rx" code .The Red LED on the flight controller would get to be solid, it means the onboard
SPI Frsky receiver is in bind mode.
Notice: The HDZERO whoop lite vtx and nano lite camera can only working while battery was
connected. USB couldn't supply for the whoop lite vtx module and nano lite camera.
TX1 pad was used for Smartaudio
TX2 and RX2 were used for MSP
2).The default SPI Receiver provider is set to Frsky_D, that means you need to bind with your Frsky
D8 radio transmitter or other radio with Frsky D8 tx module. Turn on your radio and move to model
setup ,then hit B . The RED LED of the flight controller would start to blinking , it means bindind
successfully.
If you want to use other protocol , Please change Receiver provider to "FRSKY_X" for D16 radio,
and Change to "REDPINE" or "SFHSS" to match REDPINE TX module or Futaba Radio.
Frsky D8
Frsky D16
TX2
RX2
+5V GND
VIDEO_OUT
TX1
LIPO_IN+
GND
+5V(BUZ+) LED_strip
BUZ-
VIDEO_IN
Superbee F4FR V1.2
+5V
GND RX1
GND
Qty
1
1
4
1
1
1
1
1
1
Item Name
Brand Name: Happymodel
Model: Moblite7 HDZERO
Frame wheelbase: 75mm
Weight: 29.5 gram without battery
Size: 98mm*98mm*50mm
Receiver option:
SPI ELRS 2.4GHz
SPI FRSKY 2.4GHz
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: PH2.0
Mobula7 v4 75mm frame +Canopy
SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX
SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX
EX1002 KV20000 Unibell brushless motor
Gemfan 1610-2 bi-blades propeller(4cw+4ccw)
HDZero Nano Lite Camera
HDZero Whoop Lite VTX
Spare Canopy
Propeller disassemble tool
Screw driver
