HANNspree HF-229HPB User manual

2 3

5 6 7 8

PART NAME

PART. NO.

DRAWING NAME

REV.

1.0

VERSION

DESCRIPTION

APPROVED BY

CHECKED BY

SCALE

1:1

DRAWN. BY

UNIT

DATE

SHEET

1/1

Hermia Hsu 12/06/07

Hannspree QSG Cover

PN:

22”/HF229H

Liquid Crystal Display

Monitor

料號字型:Arial,Regular,7pt

成品尺寸:148(W)x210(H)mm±5

印刷顏色:封面 P 382C,Black

內頁 Black

紙質:封面-米色道林紙(双膠紙) 150磅

內頁-米色道林紙(双膠紙) 80磅

上光方式: NA

裝訂方式:騎馬釘

2002370172P

Control Buttons

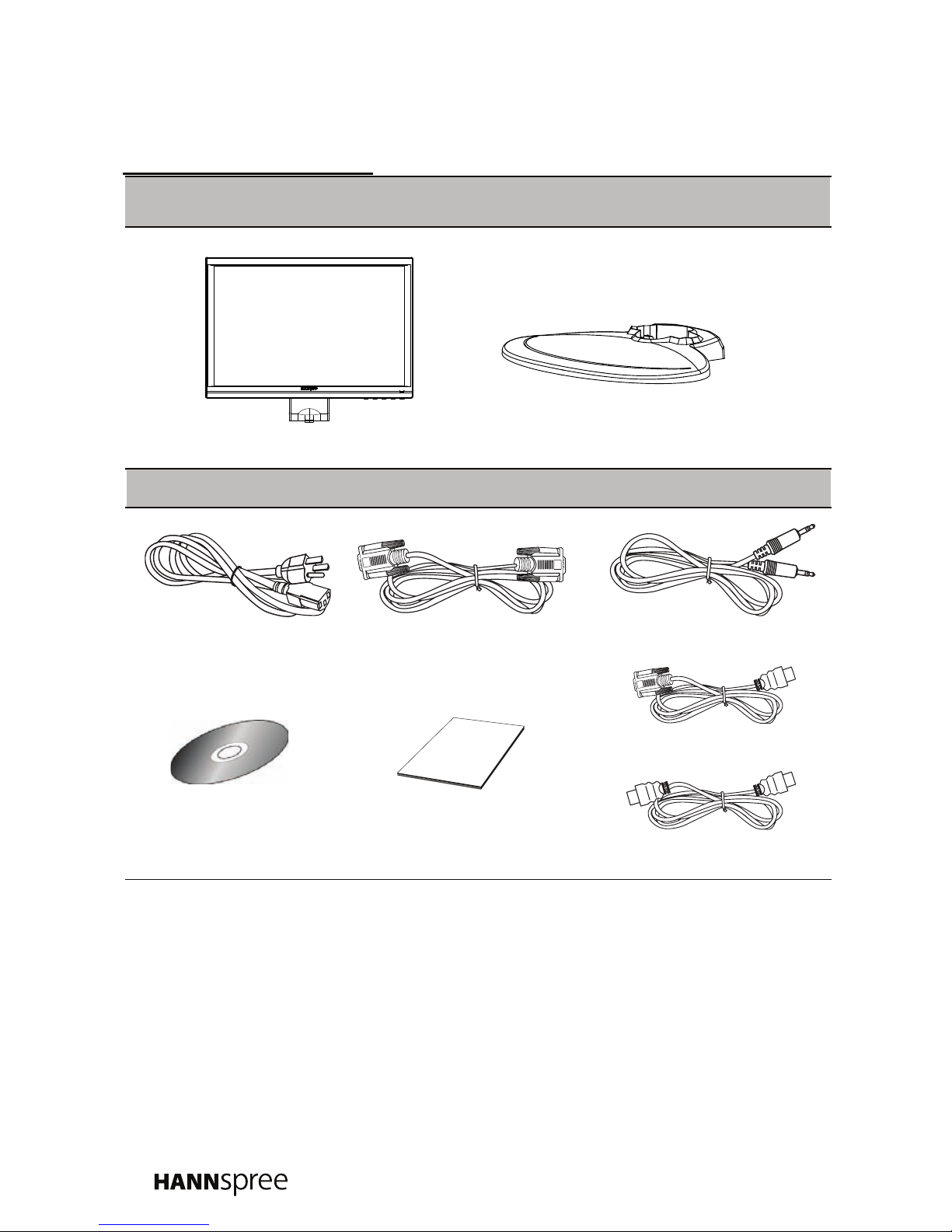

Contents of the Package *LCD Mo

Base

Screen

nitor

*Accessory

Power Cord D-SUB Cable Audio Cable

User’s Manual Warranty and Service Manual

DVI-D /HDMI ptional)

Warranty andservice

manual

HDMI Cable (Optional)

(Reference only, the real feature is depended on selected model)

Install Remove

INSTALLATION:

1. Align the monitor with the opening in the base.

2. Note that the longer section of the base points forward.

3. Snap the monitor into its base. A clear click sound will affirm that the base is

connected correctly.

4. Verify that the monitor is securely attached to the base by looking at the bottom

of the base and making sure that the clips are fully engaged in the base.

1. Put on the desk and press the hook that hold the monitor in place.

2. Gently press and hold the hook while pulling the base from the monitor

unit they are unattached.

REMOVAL:

Installation and Removal

I/O Ports Connection

Audio Cable

DVI Cable

(optional)

HDMI cable

(optional)

Player

HDMI

output

HDMI

AC IN

HDMI D-SUB AudioIN

Headphone

jack

Headphones

Speakers

D-SUB Cable

Power outlet

Control Buttons

EXTERNAL CONTROLS:

13456

1. Menu / Return 2.

3. Brightness adjustment button / [+] 4.

Volume adjustment button / [-]

5. Power Button 6. Power Indicator

INPUT / Enter

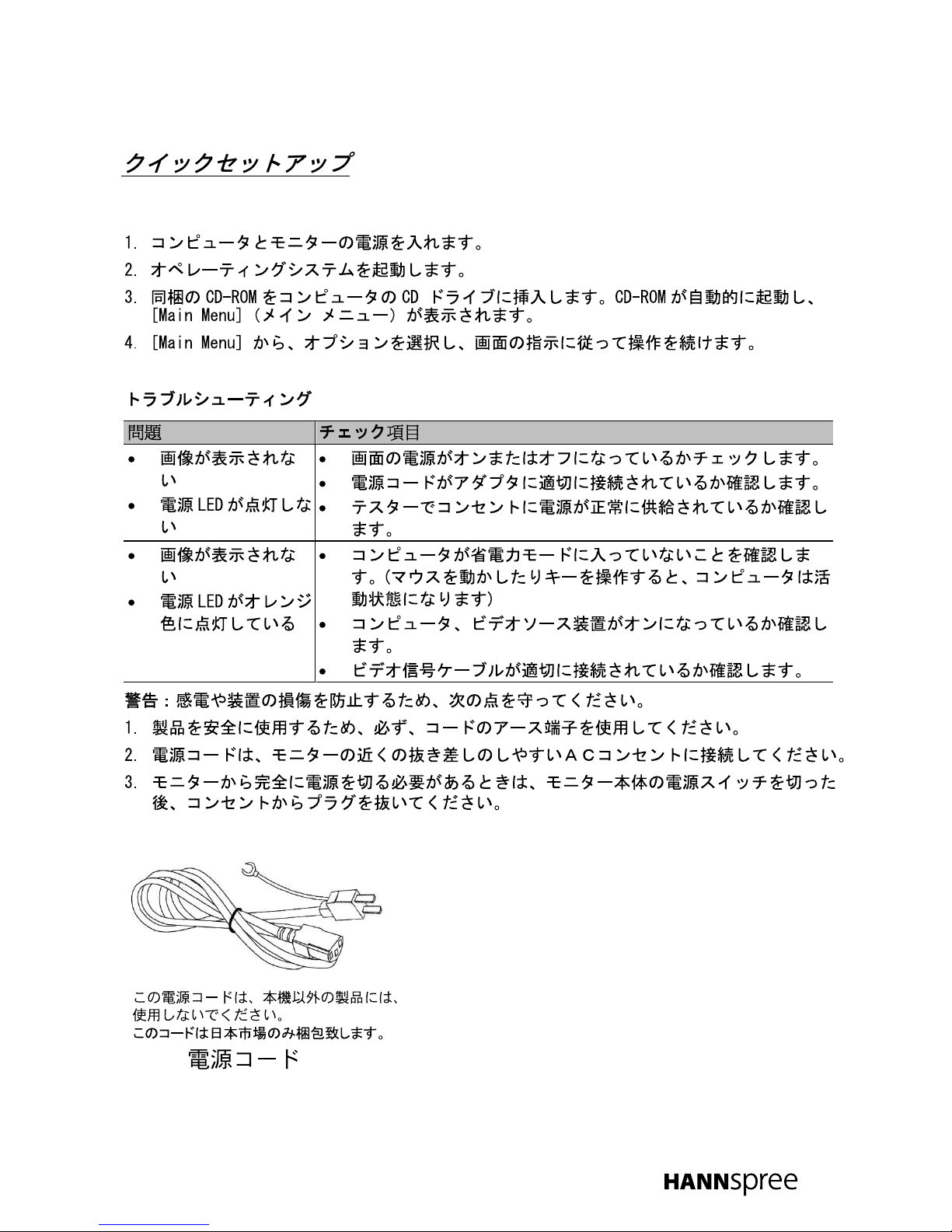

Quick setup

1. Power on the computer and monitor.

2. Start the operating system.

3. Insert the CD-ROM into the CD drive on your computer. The CD-ROM will automatically

execute and display the Main Menu.

4. From the Main Menu, click on the options you would like to perform and follow the

directions on the screen.

Troubleshooting

Problems Check items

• No video

• The power LED

is not lit.

• Check whether the power of screen is on or not.

• Ensure the power cord is connected to screen properly.

• Ensure the power supply is normally in the outlet by tester.

• No video

• The power LED is

orange.

• Ensure the computer is not in power save mode.

(Move mouse or hit any key to wake up the computer)

• Ensurethe computer or video source equipment is on.

• Ensurethe video signal cable is connected properly.

Warning:To reduce the risk of electric shock or damage to your equipment:

1. Do not disable the power cord grounding plug. The grounding plug is an important safety

feature.

2. Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all

times.

3. Disconnect power from the monitor by unplugging the power cord from the electrical outlet.
