Instruction Manual

HI 143 T-LOGGER

WARRANTY

HI 143 loggers and communication interfaces are warranted for two

years against defects in workmanship and materials when used for their

intended purpose and maintained according to instructions. This warranty

is limited to repair or replacement free of charge. Damages due to acci-

dent, misuse, tampering or lack of prescribed maintenance are not covered.

If service is required, contact the dealer from whom you purchased the

instrument. If under warranty, report the model number, date of purchase,

serial number and the nature of the failure. If the repair is not covered by

the warranty, you will be notified of the charges incurred. If the instrument

is to be returned to Hanna Instruments, first obtain a Returned Goods

Authorization Number from the Customer Service department and then

send it with shipment costs prepaid. When shipping any instrument, make

sure it is properly packaged for complete protection.

All rights are reserved. Reproduction in whole or in part is prohibited

without the written consent of the copyright owner.

Hanna Instruments reserves the right to modify the design, construction

and appearance of its products without advance notice.

Recommendations for users

Before using these products, make sure that they are entirely suitable for

the environment in which they are used. Operation of these instruments in

residential areas could cause unacceptable interferences to radio and TV

equipments, requiring the operator to take all necessary steps to correct

interferences. Any variation introduced by the user to the supplied equip-

ment may degrade the instruments’ EMC performance. To avoid damages

or burns, do not perform any measurement in microwave ovens.

IST143 12/05

Dear Customer,

Thank you for choosing a HANNA product.

This manual will provide you with all necessary instructions for

correct operation.

If you need additional technical information, do not hesitate

to e-mail us at [email protected].

This instrument is in compliance with the EMC Directive 89/

336/EEC and Low Voltage Directive 73/23/EEC for electrical

equipments, and with the EN 12830 guidelines for tempera-

ture data loggers as follows:

- Suitability: S (Storage), T (Transport)

- Location: C (Food storage and distribution systems)

- Accuracy class: 1

- Measuring range: -30 to 70°C (-22 to 158°F)

Remove the instrument from the packing material and exam-

ine it carefully. If any damage has occurred during shipment,

immediately notify your dealer.

According to the part number, you will receive:

HI 143 T-logger complete with CR2032 lithium bat-

tery, wall cradle, lock and instructions

HI 143-00 T-logger complete with HI 143001 RS232 com-

munication cradle, Windows®compatible

application software, CR2032 lithium battery,

wall cradle, lock and instructions

HI 143-10 T-logger complete with HI 143002 USB com-

munication cradle, Windows®compatible

application software, CR2032 lithium battery,

wall cradle, lock and instructions

HI 143001 RS232 communication cradle complete with

Windows®compatible application software

HI 143002 USB communication cradle complete with Win-

dows®compatible application software

Note: Conserve all packing material until the instrument has

been observed to function correctly because any defec-

tive item must be returned to the Dealer in its original

packing.

GENERAL DESCRIPTION

HI 143 is a temperature data logger with internal NTC

sensor. The user interacts with the logger, programming the

device or downloading logged data, through a serial or USB

port on a PC. The Windows®compatible application software

supports the communication between the logger and the PC

through a transmitter (HI 143001 with RS232 or HI 143002

with USB connector).

The main features of the HI 143 thermologger include:

• Logging start through PC, button pressed or at set time

• Selectable sampling interval, from 1 minute to 24 hours

• Up to 4000 logged samples

• Selectable measure unit, °C or °F

• Min/max measured values are stored and displayed

• Programmable high and low alarms

• Non-volatile storage of logging parameters and data

• Battery level indicator on display

• Security password

• IP 65 protection

www.hannainst.com

PRELIMINARY EXAMINATION

SPECIFICATIONS

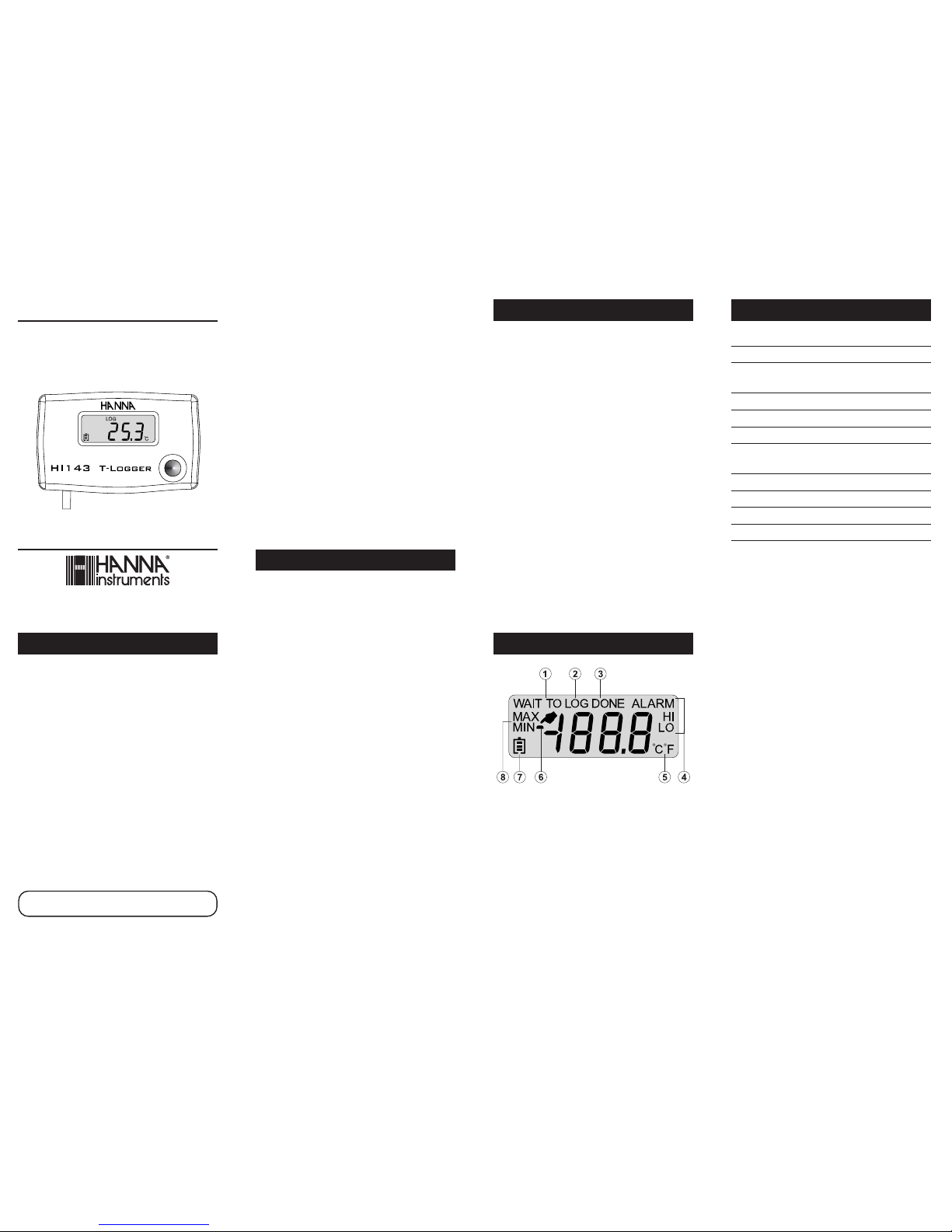

LCD FUNCTIONAL DESCRIPTION

1. “WAIT TO LOG”: Waiting to start logging

2. “LOG”: Logging in progress

3. “LOG DONE”: Logging completed

4. High and Low alarm values

5. Measure unit

6. Start by pressing the logger button

7. Battery level indicator

8. Maximum and Minimum logged values

Range -30.0 to 70.0ºC / -22.0 to 158.0ºF

Resolution 0.1°C / 0.1°F

Accuracy ±0.4°C (-20 to 60°C); ±0.6°C (outside)

±0.7°F (-4 to 140°F); ±1.1°F (outside)

Typical EMC Dev. ±0.3°C / ±0.5°F

Calibration Factory calibrated

Data Logging Up to 4000 samples

Logging Interval User selectable,

from 1 minute to 24 hours

Battery Type 1 x CR2032 3V lithium battery

Battery Life 2 years

Protection IP 65 (watertight)

Dimensions 60 x 37 x 17 mm (2.4 x 1.5 x 0.7’’)

BATTERY REPLACEMENT

Each time the battery is installed,

the logger enters in reset status

and displays the “PC” message.

Then it starts calculate the remain-

ing battery life and displays the

level through a 4-tag indicator.

When the last tag (empty battery) starts blinking,

the battery level is below 5%. It is recommended

to change the battery with a new one.

Battery replacement must only take place in a safe area and

using the appropriate battery type (CR2032 3V lithium battery).

Note: It is recommended to use a new battery for replace-

ment, otherwise the battery level indication could be

not reliable.

When the battery needs to be replaced, open the battery

compartment cover on the rear of the logger using a small coin.

Turn counter-clockwise to open.

Insert the new battery with the

+ sign facing up, tight back the

compartment cover and program

the instrument.

Note: Dispose of the lithium (Li) battery according to local

regulations.

DATA TRANSFER TO PC

To download logged data, remove the logger from its instal-

lation and place it on HI 143001 or HI 143002 communication

cradle connected to an RS232 or USB port of your PC.

The memory content can then be downloaded from the

instrument to the PC using the Windows®compatible applica-

tion software offered by Hanna Instruments.

This software allows you to use the powerful capabilities of

most spread sheet programs (e.g. Excel©, Lotus 1-2-3©) and

to make any elaboration available (e.g. graphics, statistic

analysis, etc.).

The user-friendly on-line help and clear messages will support

you throughout any situation.

During the data transfer the yellow LED on the cradle blinks

to indicate that the communication is active. Do not remove

the logger while the LED is blinking.

TECHNICAL SERVICE

This instrument has been accurately pre-calibrated at the

factory; anyway, it is generally recommended to have all

thermometers recalibrated at least once a year.

For an accurate recalibration, contact the nearest Hanna

Customer Service Center.

OPERATIONAL GUIDE

INITIAL OPERATION

The logger is supplied complete with a CR2032 lithium

battery. Open the battery comparment cover on the rear of

the logger (see “Battery Replacement” section for details),

insert the battery with the + sign facing up and tight back

the compartment cover.

The display will show the “PC” message

to indicate that the logger needs to be

programmed through a PC.

STARTUP

In order to communicate with the logger, the application

software must be installed on your PC.

Connect the HI 143001 or HI 143002 communication cradle

to your computer through an available RS232 or USB port,

and place the HI 143 on the cradle.

Run the application software. The yellow LED on the cradle

blinks to indicate that the communication is active. Do not

remove the logger while the LED is blinking.

The following operating parameters can be set:

• Measure unit: °C or °F

• Starting type: PC, button or at time (hh:mm:ss)

• Logging type: wrap-around, until memory is full (4000

samples) or number of samples (max 4000)

• Logging interval: from 1 minute to 24 hours (10 sec. steps)

• High and Low alarm thresholds

• Protection password

Click on the “PROGRAM” key to program the logger with the

selected options.

If the starting type was set to “PC”, then the “START” key will

become active. Click to start.

If the starting type was set to “button”, then the logger

display will indicate that the logger button has to be pressed

to start logging. Keep the button pressed for about 3 seconds.

If the starting type was set to “at time”, then the logger will

automatically start logging at the programmed time.

BUTTON FUNCTIONS

Pressing the logger button will give different outputs depend-

ing on the logger status.

• If the logger is in “WAIT TO LOG” condition, then pressing

the button will cycle through current measurement, high

and low alarm thresholds.

• If the logger is in “LOG” or “LOG DONE” condition, then

pressing the button will cycle through current measure-

ment, maximum and minimum recorded values.

If you keep the button pressed, after 2 seconds the display

will show alternatively (toggle every 2 seconds) the high

and low alarm thresholds.

Notes:

• If an alarm threshold has not been

set, then the logger will display the

“diS” (disabled) message.

• If an alarm condition has been occurred during logging,

then in the “LOG” or “LOG DONE” status the correspond-

ing alarm indication (ALARM HI or ALARM LO) will blink.

WALL INSTALLATION

The logger is supplied complete with wall cradle and lock

(mounting materials as screws and dowels are not included).

Position the wall cradle at the desired

location and fix it to the wall with

proper screws.

Insert the logger into the cradle and secure it with the

supplied lock.
