Hammond Manufacturing C4RR User manual

PAGE 1 OF

REV.

BUL86894

C4RR

visit our website:

visitez notre site Web:

ASSEMBLY INSTRUCTIONS

INSTRUCTIONS DE MONTAGE

PRODUCT SERIES

SÉRIE DE PRODUIT

www.hammondmfg.com

DATA CONFIGURATION

(FRONT VIEW) SERVER CONFIGURATION

(REAR VIEW)

ITEM NUMBER DESCRIPTION DATA CONFIG. SERVER CONFIG.

1PLEXI DOOR 1 0

2PERF. BARN DOORS (PAIR) 0 1

3PERF. DOOR 1 1

4FAN CUTOUT TOP 1 1

5MOUNTING RAILS (PAIR) 2 2

6VERTICAL CABLE MANAGER 1 2

7SIDE PANELS (PAIR) 1 1

PAGE OF

REV.

BUL86894

ASSEMBLY INSTRUCTIONS

INSTRUCTIONS DE MONTAGE

C4RR

PRODUCT SERIES

SÉRIE DE PRODUIT

IMPORTANT SAFETY CAUTIONS

NOTE

: Read all instructions before installing and using the product.

LOADING RACK SYSTEM

NOTE

: When loading equipment into the

enclosure or rack system ensure weight is

distributed so that heavier loads are placed

towards the bottom of the rack to avoid

unstable conditions.

The following parts are not effectively bonded to the Protective Earth

Terminal (PET): Doors, Rails, Side Panels, Top and Bottom Panels. If

any part needs to be bonded to the PET it shall be done in accordance

with Article 250 of the National Electric Code.

To reduce risk of personal injury and product damage always ensure a

a sufficient amount of personnel are present when loading, unloading,

and moving the enclosure or rack system.

Evenly distribute all mounted loads and equipment to ensure stability

within the system.

Always fully mount and secure enclosure or rack system before loading

equipment.

Ensure unit is plumb and level for proper operation.

Route all chords and cables away from moving parts and all possible

pinch points.

Ensure that the floor/wall structure is able to withstand the weight of

the cabinet while fully loaded.

Installation and assembly must be performed by qualified personnel.

NOTE

: Seismic weight load rating is only

applicable when the rack has been secured

using the seismic bolt down kit: C4K-Z4

Suitable for mounting on concrete or other noncombustible surface only.

Static Load Capacity: 3000lbs

Rolling Load Capacity: 2000lbs or to Max. caster rating

IBC 2012 Zone 4 Seismic Rating: 1000lbs.

PAGE OF

REV.

BUL86894

ASSEMBLY INSTRUCTIONS

INSTRUCTIONS DE MONTAGE

C4RR

PRODUCT SERIES

SÉRIE DE PRODUIT

GROUNDING AND BONDING

INSTRUCTIONS

NOTE

: PROTECTIVE EARTH TERMINALS (PET) ARE LABELLED

WITH THE PROPER SYMBOL SHOWN IN FIGURE 1 AND ARE

THE ONLY TERMINALS TO WHICH THE PROTECTIVE EARTH

GROUND CONNECTION SHALL BE ATTACHED TO.

NOTE

: ALL PROTECTIVE EARTH AND BONDING CONNECTIONS

SHALL BE IN ACCORDANCE WITH ARTICLE 250 OF THE

NATIONAL ELECTRIC CODE.

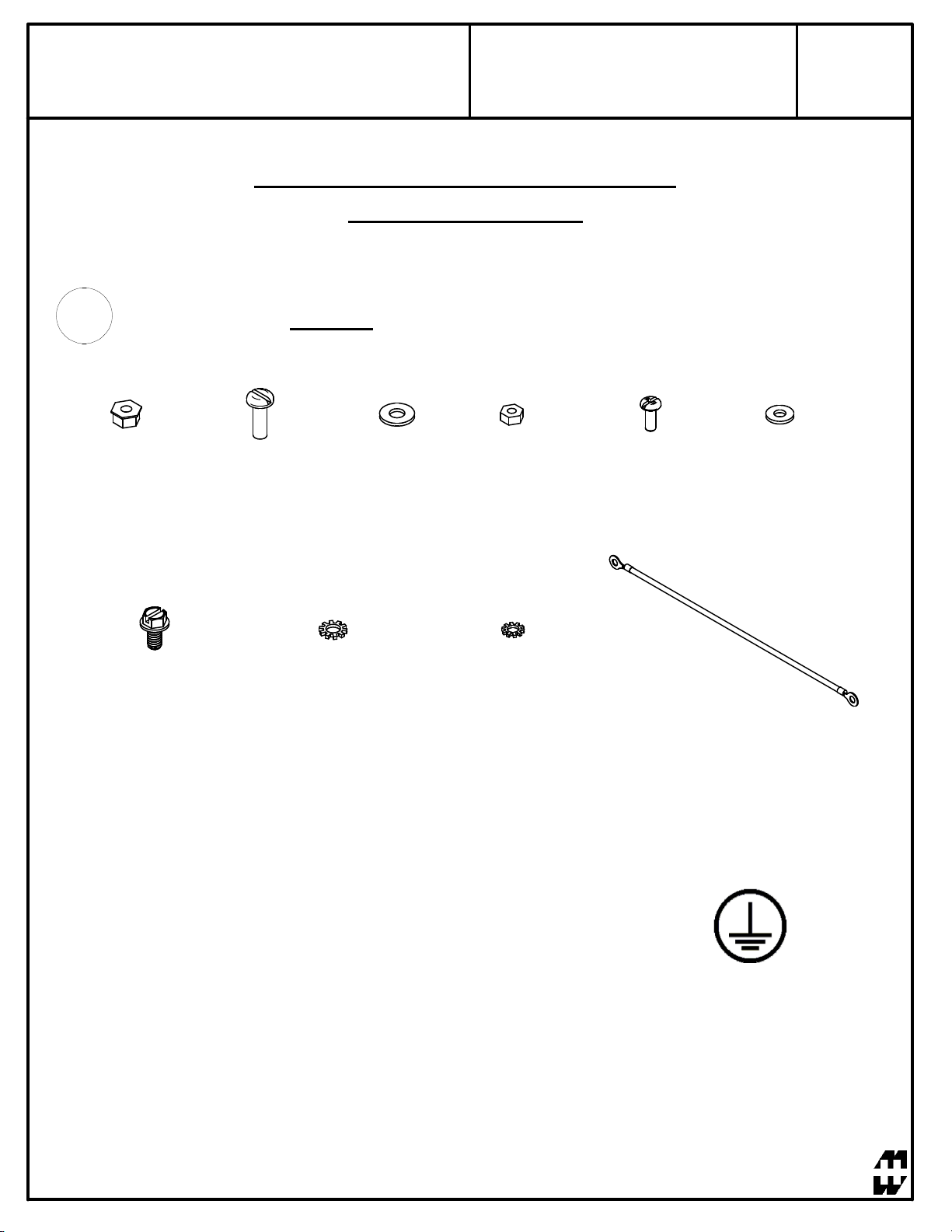

Included within optional grounding kit (GRDKIT01):

2 x Bonding Wire

10 Gauge

1/4" Ring Terminals

4 x 10-32

Phillips

Screw

Pan Head

4 x 10-32

Locking Nut

4 x 1/4"

Flat Washer

4 x 1/4-20

Slotted Screw

Pan Head

4 x 1/4-20

Locking Nut 4 x #10

Flat Washer

4 x 1/4"

Tooth Lock

Washer

4 x #10

Tooth Lock

Washer

6 x 1/4-20

Thread Cutting

Screw

FIGURE 1

PAGE OF

REV.

BUL86894

ASSEMBLY INSTRUCTIONS

INSTRUCTIONS DE MONTAGE

C4RR

PRODUCT SERIES

SÉRIE DE PRODUIT

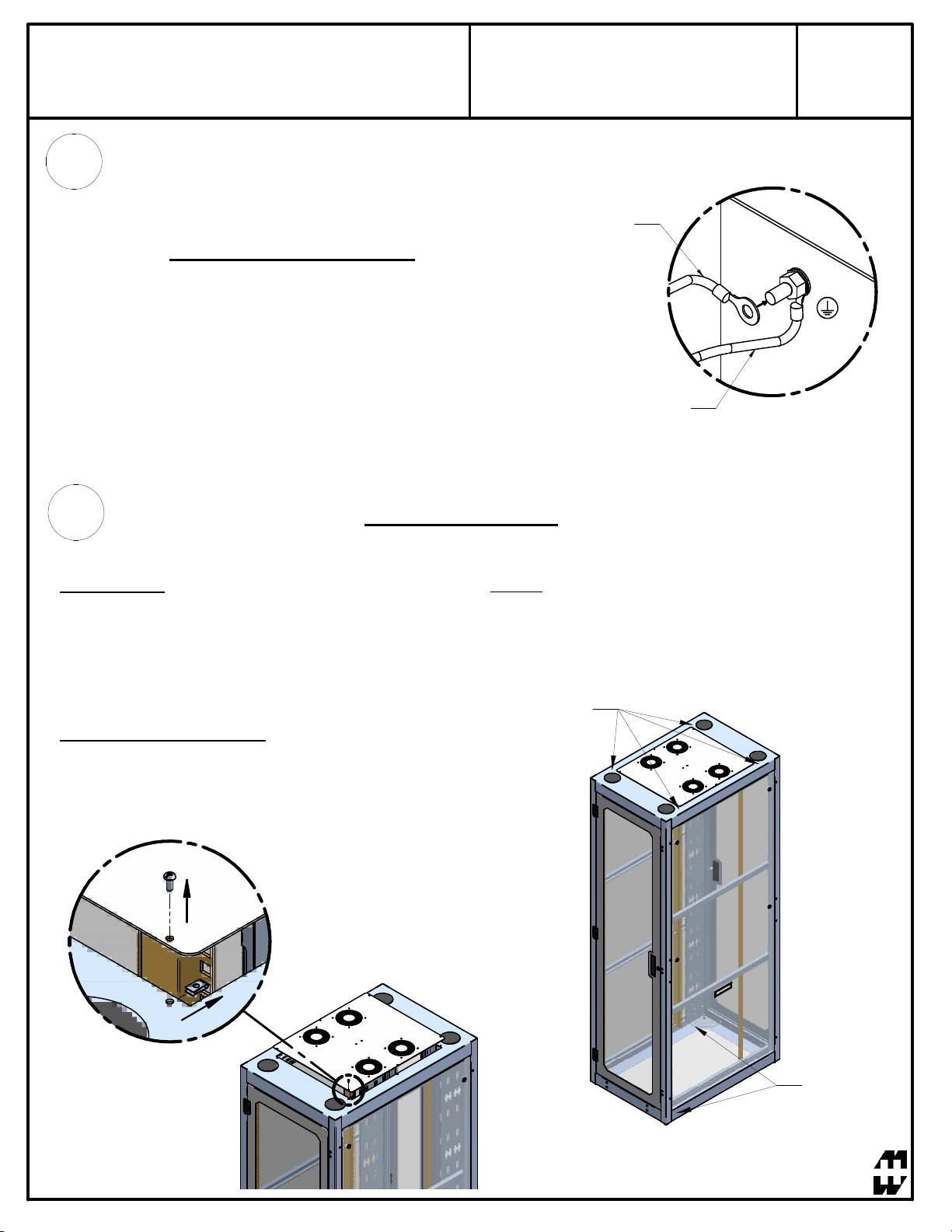

Main Protective Grounding

When grounding the rack system or enclosure it

is essential that the main protective ground is

connected and secured first with its own nut

before any bonding connections are made on

top. (Figure 2)

Bonding Connection

Protective Earth Ground

Figure 2

Side Panels: Attach bonding wire found in

ground kit to a bonding stud on the side panel

using the ring terminal and hardware provided.

Attach opposite end of wire to the nearest PET

on the rack frame.

Doors: Attach bonding wire to the door stud

using the same method described previously.

Attach the opposite end to the nearest front

section bonding stud.

Bonding Instructions

Top and Bottom Panels: Remove one clip nut

from the frame along with the corresponding

screw. Replace with thread cutting screw,

ensuring it penetrates both the panel and the

frame.

DATA CONFIGURATION

TOP PET

STUDS

(INTERNAL)

BOTTOM PET

STUDS

(INTERNAL)
