Hall Research Technologies UH-2D-3S User manual

UMA1219 Rev. N/C

FREE technical support, call 714-641-6607

Hall Research, 1163 Warner Ave. Tustin, CA 92780

www.hallresearch.com info@hallresearch.com

CUSTOMER

SUPPORT

INFORMATION

User’s Manual

UH-2D-3S

3-Port HDMI on Dual UTP Extender

1 input, 1 Local HDMI output + 3 Dual UTP Outputs

Supports 4K Video. HDCP Compliant. EDID Routing

User’s Manual

Contents

1. Introduction............................................................................................3

2. Connection Block Diagram ....................................................................4

3. Package Contents .................................................................................4

4. Controls, Functions and Indicators ........................................................4

5. EDID Handling.......................................................................................5

6. Installation .............................................................................................5

7. Troubleshooting.....................................................................................6

8. Contacting Hall Research and Shipping/Packaging...............................6

9. Specifications.........................................................................................7

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo are trademarks of Hall Research.

Any other trademarks mentioned in this manual are acknowledged as the property of the

trademark owners.

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment generates, uses, and can radiate radio frequency energy and if not installed

and used properly, that is, in strict accordance with the manufacturer’s instructions, may

cause interference to radio communication. It has been designed to comply with the limits

for a Class A computing device in accordance with the specifications in Subpart B of Part 15

of FCC rules, which are intended to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of this equipment

in a residential area is likely to cause interference, in which case the user at their own

expense will be required to take whatever measures may be necessary to correct the

interference.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

SP-HDMI-4A

1. Introduction

General

Hall Research’s Model UH-2D-3S is a member of the Mini-CAT® video extension product

line. The UH-2D-3S is used to extend HDMI™ audio/video signals on Cat6 cables to 3

remote receivers (Model UH-2D-R). The device provides one local HDMI output and 3 sets

of RJ45 pairs for connection to the remote receivers.

The UH-2D-3S is compatible with HDMI™ versions 1.2a, 1.3 and 1.4 in terms of 3D, deep-

color, and 4K video support. The remote receiver (UH-2D-R) includes state of the art

automatic equalization to compensate for signal losses in the cables and produces a crisp

image as clear as the original.

The unit is housed in a compact sturdy metal enclosure that is 1RU high. Two can be

mounted side-by-side using Hall Research Model RMS-1U-1A rack shelf (UH-2D-3S has

threaded holes on the bottom for this purpose), or a single unit can be mounted using the

Model RMK-05 Rack Mount Kit

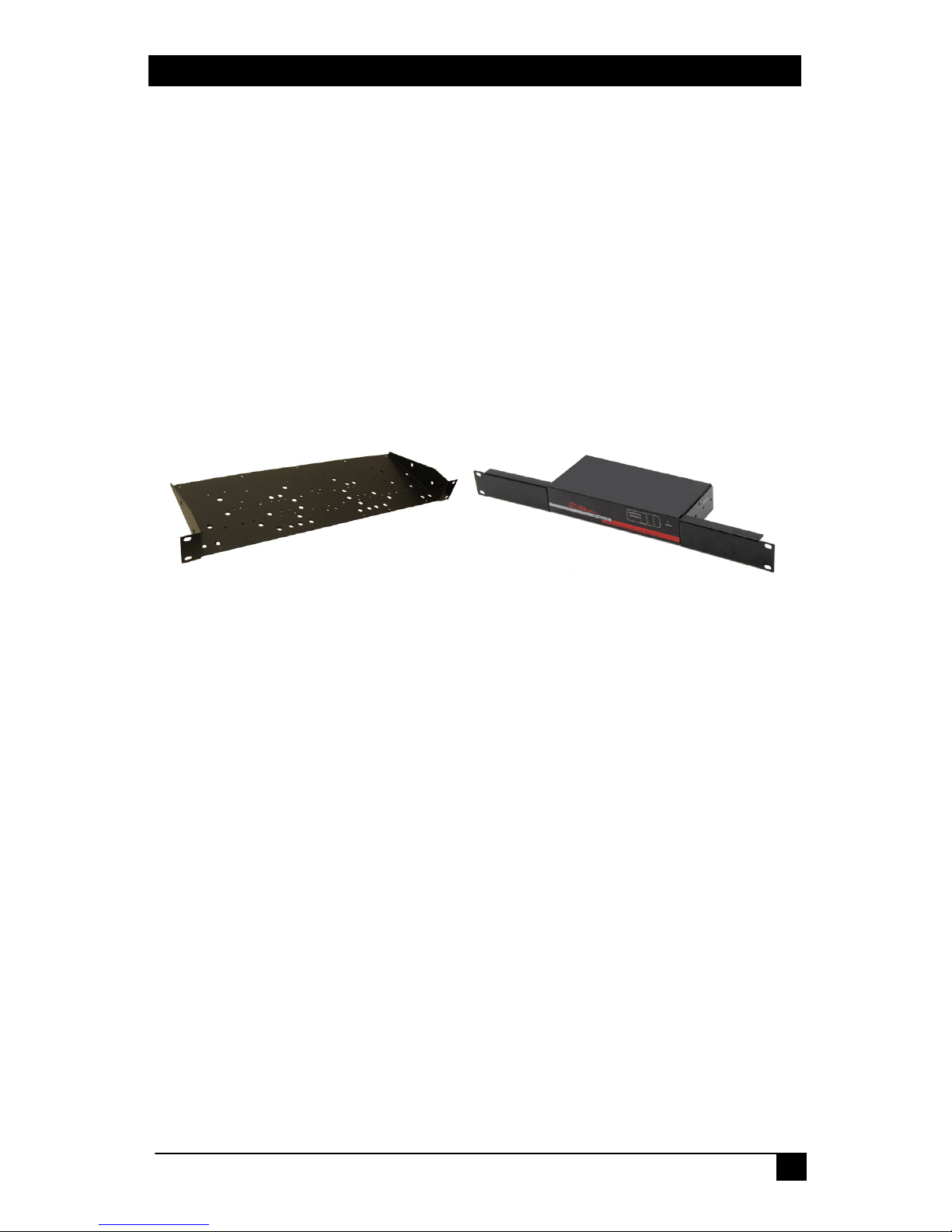

RMS-1U-1A rack shelf RMK-05 Rack Mount Kit

Features

•Compact unit sends uncompressed HDMI video to 3 remote displays on 2 Cat6

•Drives cables to 170 ft @ 1080i/720p or 130 ft at 1080p 60 Hz 24 bit

•Local HDMI output for direct connection to a local display

•Supports HDMI 1.4 Deep-Color (up to 12 bits per color) and 3D formats

•Supports PC & HDTV resolutions, VGA~WUXGA and 480p~4Kx2K

•LED indicators for power and status of 3 remotes (power and HPD detection)

•Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

•Built-in power supply with standard IEC320/C14 AC power jack

•Includes HDMI input cable

•1 RU, half-wide compact size with optional mounting tray and ears

•Supports DVI-D single link extension with optional adapter cables

•Intelligent EDID Pass-through or EDID Emulation (user selectable)

•Low power (consumes less than 6 watts fully loaded)

User’s Manual

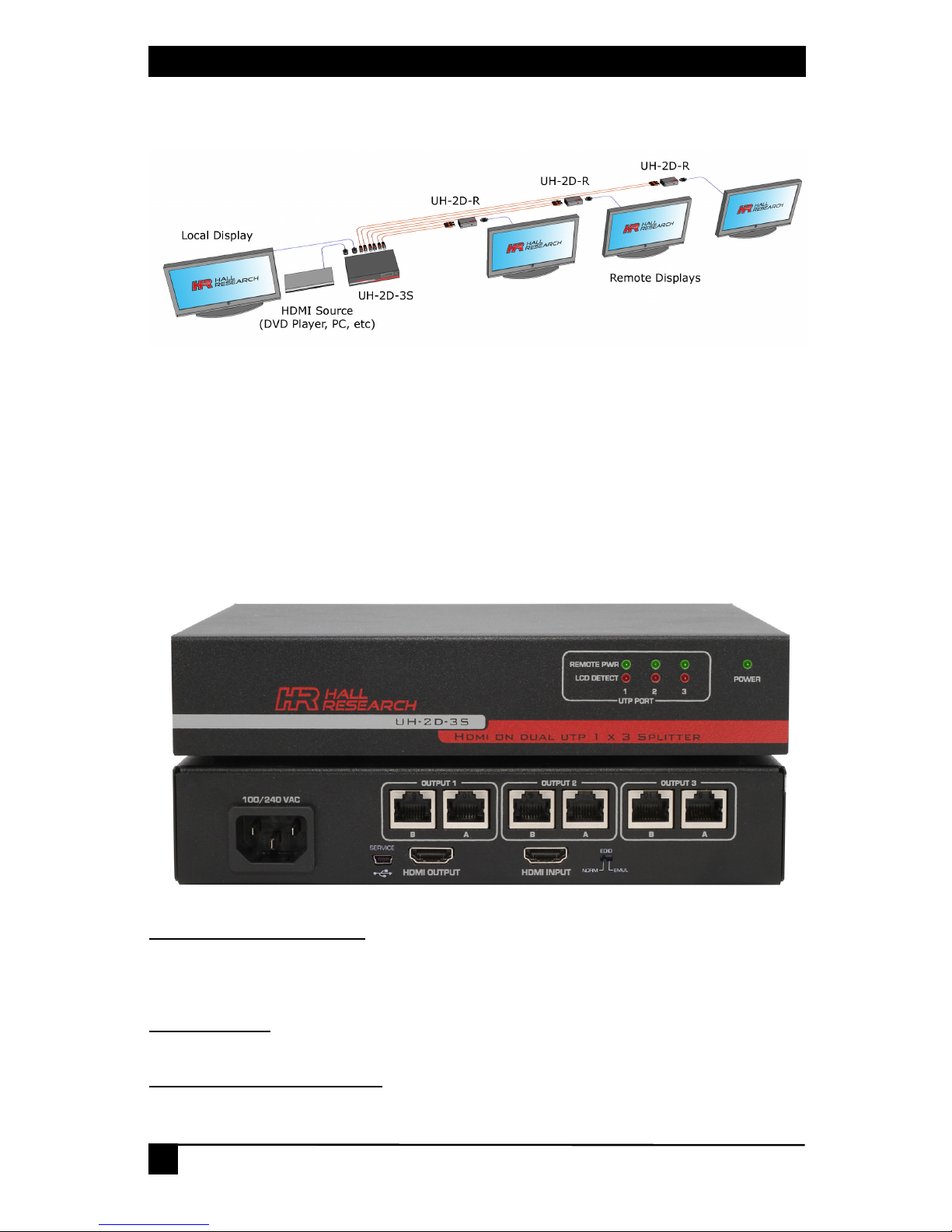

2. Connection Block Diagram

3. Package Contents

•One UH-2D-3S HDMI Splitter/Extender

•HDMI input cable, 1m (3.28ft)

•Power Cord with IEC320/C13 plug (some export models may not have this cord)

•One User’s Manual

4. Controls, Functions and Indicators

UTP PORT Status Indicators

Each of the 3 UTP outputs has two LED indicators

REMOTE PWR: Indicates that the UH-2D-R remote receiver is powered up

LCD DETECT: Indicates that HPD (Hot-Plug Detect) signal is active

Power Indicator

The power indicator is illuminated when power is applied to the unit.

100/240 VAC Power Input Jack

Connect this jack to AC using standard power cables

SP-HDMI-4A

HDMI Input Connector

Connect the HDMI SOURCE to this connector using the provided cable.

UTP Output #1 thru #3

These outputs are labeled as A and B (on some units A is labeled as CAT6-1 and B as

CAT6-2). The UH-2D-R remote receivers have corresponding RJ45’s. Connect A to A and

connect B to B

HDMI Output (loop out)

Connect a compatible HDMI Display device to this connector. Note the order of HDMI output

connections determines the EDID presented to the HDMI SOURCE described below.

Service Connector

No user functionality- for factory use only.

EDID Selection Switch

Default position is NORM. In this mode the unit will scan the outputs and create an EDID

based on connected LCD’s. In EMUL mode the unit will use a generic EDID that is

independent of connected LCD’s. Read more about EDID in the next section.

5. EDID Handling

NORM (pass-thru EDID)

After power-up, the unit scans the outputs and looks for connected display devices (SINK).

The local HDMI output has priority and if the unit detects a connected sink its EDID is read

and recorded in internal memory and is passed on to the input source. If no display is

connected to this output then the unit will look for a display on the UTP outputs and the first

one discovered will have its EDID read.

If no display is found on any of the outputs, an internal pre-programmed EDID is used and

passed on to the input source.

EMUL (Emulated EDID)

After power-up, the unit uses an internal pre-programmed generic EDID and passes it on to

the source. Please contact Hall Research Support for further details or questions.

6. Installation

Refer to the block diagram and the rear panel connections above. Place the sender by the

video source. Use the supplied HDMI™ cable to connect the source to the sender. Use (2)

Cat6 cables to connect the sender to the receiver. Do not cross the connections as this may

cause damage to the unit or the power supply. The RJ45 outputs are labeled as A and B, so

please label the ends of your UTP cables so that the end can be identified correctly.

The UH-2D-R remote receivers require power supplies attached to them (they come with

a 5v power supply). So make sure to plug in the power supply to each receiver.

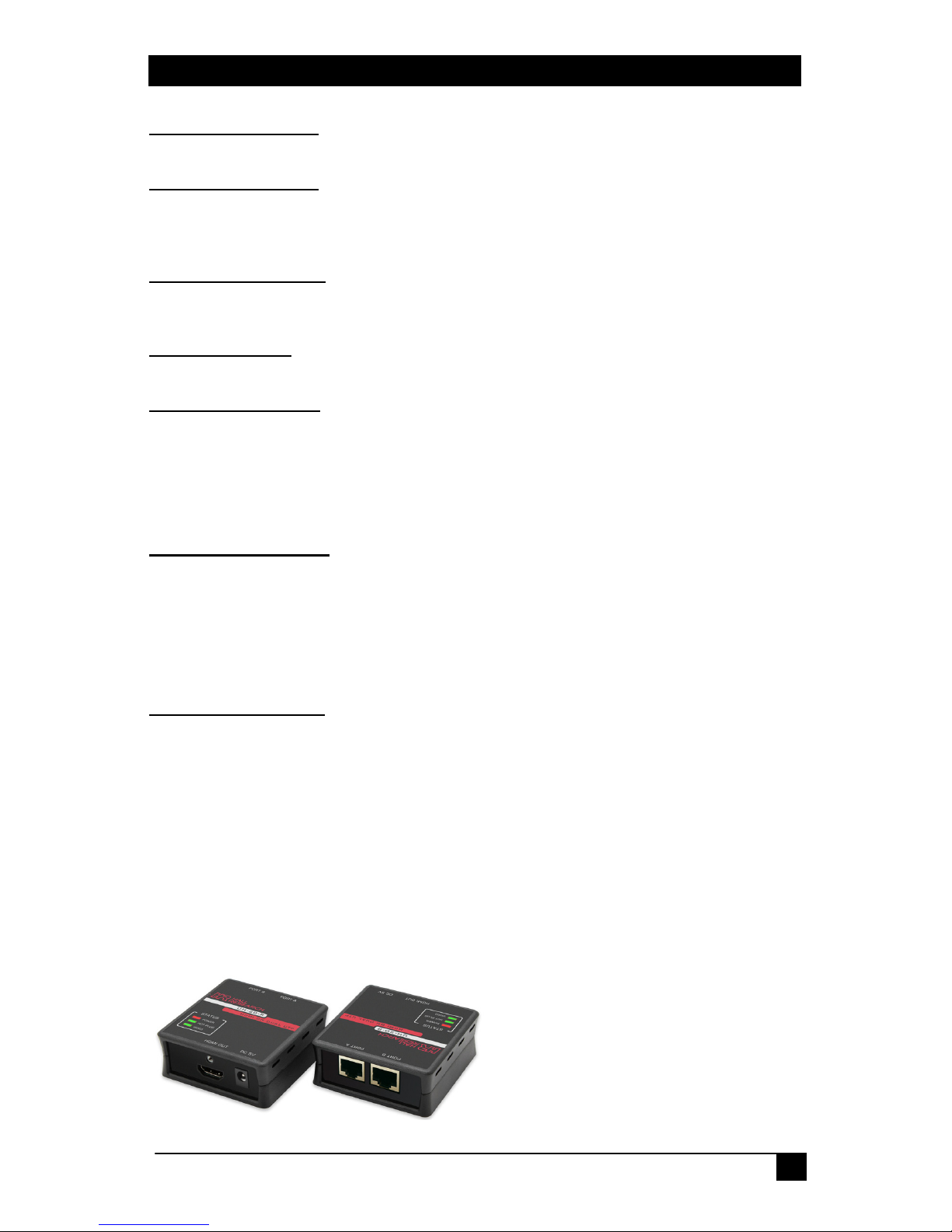

Receiver’s front and rear views

User’s Manual

Note about Twisted-Pair Cables

For best results we recommend using Shielded 23 gague Cat6 cables (STP). Unshielded

23 gague Cat 6 Cables also provide acceptable results and can be used in noise free

environments.

Use TIA/EIA 568B straight through wiring termination. Avoid using Zero-skew or low

skew cables. The low skew cables work well for analog video extension but since the

UH-2D is a pure digital system, the cross-talk of the low skew cables will actually shorten

the maximum achievable cable length

With 23 Gague Cat6 cables the maximum length of cable depends on the resolution as

shown below:

Resolution

Max Cable length

480i, 480p, 576i, 576p, 720p, 1080i

170 ft (52 m)

1080p @ 60 Hz 8 bit per color (24 bit)

130 ft (40 m)

1080p deep-color 12 bit per color (36 bit) 80 ft (25 m)

4Kx2K

40 ft (12 m)

7. Troubleshooting

There are no field serviceable parts or circuits in the device. If you think that the device is

malfunctioning, please try the following steps first:

Make sure the 2 Cat6 cables are not crossed and RJ45 ends are fully inserted.

Check the video connections. HDMI cables can come loose and cause video loss

Unplug the power supply and re-attach it to cycle power

Check the indicator lights on the front panel and on the top of the Receivers for clues

Try placing the EDID routing switch in EMULATE mode (particularly if you don’t have a

local LCD hooked up).

Connect the display directly to the source and make sure that an image is present

without the extender. If so, then use the menus of the video source to lower the output

resolution (such as 480p). Insert the extender and verify that you get an image. If so,

then set the resolution to the next higher value (such as 720p). Continue this process

until you get the highest possible resolution without loss of image or audio.

The quality of the UTP cables is very important 23 gage Cat6 is recommended

8. Contacting Hall Research and Shipping/Packaging

If you determine that your HDMI video splitter/Extender is malfunctioning. contact Hall

Research Technical Support at 714-641-6607 or send an email to

support@hallresearch.com

Before you do, make a record of the history of the problem. We will be able to provide a

more efficient and accurate assistance if you have a complete description of problem.

If you need to transport or ship your unit:

•Package it carefully. We recommend that you use the original container.

•Before you ship the units back to Hall Research for repair or return, contact us to get a

Return Authorization (RMA) number.

SP-HDMI-4A

9. Specifications

Input Port

1x HDMI Female (Type A)

Output Ports

1x HDMI Female (Type A), 3 sets of 2 RJ45 connectors (total of 6 RJ45)

Power Supply

Internal 90-260 VAC, 50-60 Hz, with IEC320/C14 AC power jack

Actual power consumption: 3.5 ~ 6 watts depending on # outputs plugged in

at 1080p

Video Resolutions PC Resolutions : VGA - SVGA – XGA – SXGA – UXGA -WUXGA

HDTV Resolutions : 480i - 480p - 720p - 1080i - 1080p, 4Kx2K@30

Bandwidth

10.2 Gbps total (or 3.4 Gbps per color, or 340 MHz TMDS clock)

Video Standards

HDMI 1.4 (for 3D, Deep-Color & 4K), HDCP1.1 and DVI1.0

Audio Formats

All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and

DTS-HD Master Audio (32-192kHz sample rate)

Max UTP Cable Length

Using 23 Gauge Cat6:

480i, 480p, 576i, 576p, 720p, 1080i 170 ft (52 m)

1080p @ 60 Hz 8 bit per color (24 bit) 130 ft (40 m)

1080p deep-color 12 per color (36 bit) 80 ft (25 m)

4Kx2K 40 ft (12 m)

Temperature/humidity

Storage: -40 to +185 °F (-40 to +85°C) / 10% to 90%, non-condensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing

Mounting

Threaded nuts on bottom for rack-shelf mounting or optional rack ears

Enclosure type

Metal

Dimensions

1.66" H x 8.42" W x 6.04" D

(42mm H x 214mm W x 154mm D)

Product weight

Product – 2.5 lbs (0.386kg)

Shipping – 3 lbs (0.681 kg)

EMI/EMC

CE, FCC Class A

MTBF 90,000 hours (Estimate)

Warranty

2 years parts and labor

Specifications are subject to change without notice

Table of contents

Other Hall Research Technologies Extender manuals

Hall Research Technologies

Hall Research Technologies UH-1C User manual

Hall Research Technologies

Hall Research Technologies UV-1 User manual

Hall Research Technologies

Hall Research Technologies U22-160-DP User manual

Hall Research Technologies

Hall Research Technologies HR-733 User manual

Hall Research Technologies

Hall Research Technologies UHBX-S User manual

Hall Research Technologies

Hall Research Technologies UD2A-EDID User manual

Hall Research Technologies

Hall Research Technologies EXHD-RG6 User manual

Hall Research Technologies

Hall Research Technologies UH-2C User manual

Hall Research Technologies

Hall Research Technologies U2-160-DP User manual

Hall Research Technologies

Hall Research Technologies Mini-Cat UH1-BT User manual

Hall Research Technologies

Hall Research Technologies EX-HDMI-2A User manual

Hall Research Technologies

Hall Research Technologies ULTRA-4K Series User manual

Hall Research Technologies

Hall Research Technologies ECHO Series User manual

Hall Research Technologies

Hall Research Technologies UV232A User manual

Hall Research Technologies

Hall Research Technologies U3CAT6 Series User manual

Hall Research Technologies

Hall Research Technologies UHBX-S-WP User manual

Hall Research Technologies

Hall Research Technologies U97-ULTRA User manual

Hall Research Technologies

Hall Research Technologies FXT-460 User manual

Hall Research Technologies

Hall Research Technologies U97-ULTRA-2B User manual

Hall Research Technologies

Hall Research Technologies UH-1D User manual

Hall Research Technologies

Hall Research Technologies UU-2X4 User manual

Hall Research Technologies

Hall Research Technologies ULTRA-4K Series User manual

Hall Research Technologies

Hall Research Technologies U97-H2 User manual

Hall Research Technologies

Hall Research Technologies VERSA-4K Series User manual

Popular Extender manuals by other brands

SY HDBT-60T installation guide

Appsys ProAudio

Appsys ProAudio ADX-16 user manual

Atlona

Atlona RS232 user manual

IDK

IDK OPF-TH1000-A user guide

Enable-IT

Enable-IT 824WP quick start guide

Worx

Worx Landroid RadioLink WA0864 Get started

TP-Link

TP-Link TL-WA730RE user guide

Camplex

Camplex CMX-HDMI-SFPL user manual

SC&T

SC&T HE03-4K user manual

Marmitek

Marmitek MegaView70 user manual

Samsung

Samsung SCS-26UC4 user guide

Foxun

Foxun SX-GES24 operating instructions

MuxLab

MuxLab 500771 Operation manual

foxunhd

foxunhd SX-AEX01 operating instructions

TERK Technologies

TERK Technologies LFIRX2 owner's manual

Devolo

Devolo Audio Extender supplementary guide

Edimax

Edimax EW-7438RPn V2 instructions

Shinybow USA

Shinybow USA SB-6335T5 instruction manual
