Haier JC-110GD User manual
１
JC-110GD JC-160GD
Wine Cellor
Service Manual
●Features
●Optimized for Preservation of Wine Flavors .
●Humidity Display.
●Temperature adjustable,electrical control
● Interior lights.
●
Wood Wine rack Haier Group
JC-110GD
JC-160GD
２
CONTENTS
Contents
1. Contens………………………………………………………………….…….1
2. Product Code Illuminnation and Series Introduction……………………..2
3. Features ……………………………………………………………………...3
4. Specifications…………………………………………………………………4
5. Safety Precautions(including Warning and Cautions)…………………....5
6. Net Dimension……………………………………………………..………....7
7. Installation andAccessory Parts…………………… ……………..…….…8
8. Parts and Functions………………………………… ………….….………13
9. System Flow Chart………………………………………………....………14
10. Circuit Diagram………………………………………………..….….….15
11. Maintenance Service and Trouble Shooting…………………..…..….16
３
PRODUCT CODE ILLUMINNATION AND SERIES INTRODUCTION
Product Code Illuminnation and Series Introduction
J
C-□G D
A B C D E
A:The first letter of “wine” in Chinese spelling.
B:Abbreviation of Cooler or Celler.
C:Capacity .(Unit:Litre).
D:G stands for “Freon free”.
E:D . stands for show
４
FEATURES
Features
1. Optimized for Preservation of Wine Flavors
The wine cooler can be set to any temperature you desire to accommodate
your wine storage requirements.
2. Humidity Display
The level of humidity inside the cooler is displayed on the LED screen.
3. Temperature adjustable, electrical control.
The wine cooler can be set to any temperature you desire to accommodate your
wine storage requirements.
4.Interior lights.
To complement the look of your wine collection, soft light has been built into the
wine cooler. Simply push the “Light” button on the electronic controlled unit, and
the light comes on, push again for off. On the mechanical control units ,the light
switch is on the front for your convenience. For maximum energy efficiency, leave
light off when not viewing your collection.
4. wine rack.
The shelves are designed for flexibility and easy cleaning. To accommodate different
sized bottles the shelves slide out and can be moved up or down into any of the tracks
molded into the cooler cabinet. Larger bottles or Magnums can be more easily
accommodated on the cross shelves of the bottom basket of the cooler, You will
notice tat the shelves are designed so the bottles do not line-up directly over one
another, This allows free air movement and provides more space.
５
SPECIFICATIONS
Specifications
Model JC-110GD JC-160GD
Power Supply(V/Hz) 220-240V~/50Hz 220-240V~/50Hz
Unit Dimersion(W*D*H) 506*615*980 506*615*1280
Unit Weight(Lbs.) 45 49
Box Dimensions(W*D*H) 586*616*1010 586*616*1310
Box Weight(Lbs) 50 54
Container Quantity(40HC’) 156 156
６
SAFETY PRECAUTIONS
Safety Precautions
Read all of the instructions before using this appliance. When using this
appliance ,always exercise basic safety precautions, including the
following:
1. Use this appliance only for its intended purpose as described in this use
and care guide.
2. This wine cooler must be properly installed in accordance with the
installation section. instructions before it is used ,See grounding
instructions in the installation section.
3. Never unplug your wine cooler by puling on the power cord, Always
grasp the plug firmly and pull straight out from the outlet.
4. Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged ,Do not sue a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
5. Unplug your wine cooler before cleaning or before making any repairs,
Note: If for any reason this product requires service ,we strongly,
recommend that a certified technician performs the service.
6. If your old wine cooler is not being used, we recommend that you
remove the door and leave the shelves in place ,This will reduce
thepossibility of danger to children.
7. This wine cooler should not be recessed or built-in an enclosed
７
SAFETY PRECAUTIONS
cabinet ,It is designed for freestanding installation only
8. Do not operate your wine cooler in the presence of explosive fumes.
9. Do not store foods in wine cooler as interior temperature may not be
cool enough to prevent spoilage.
８

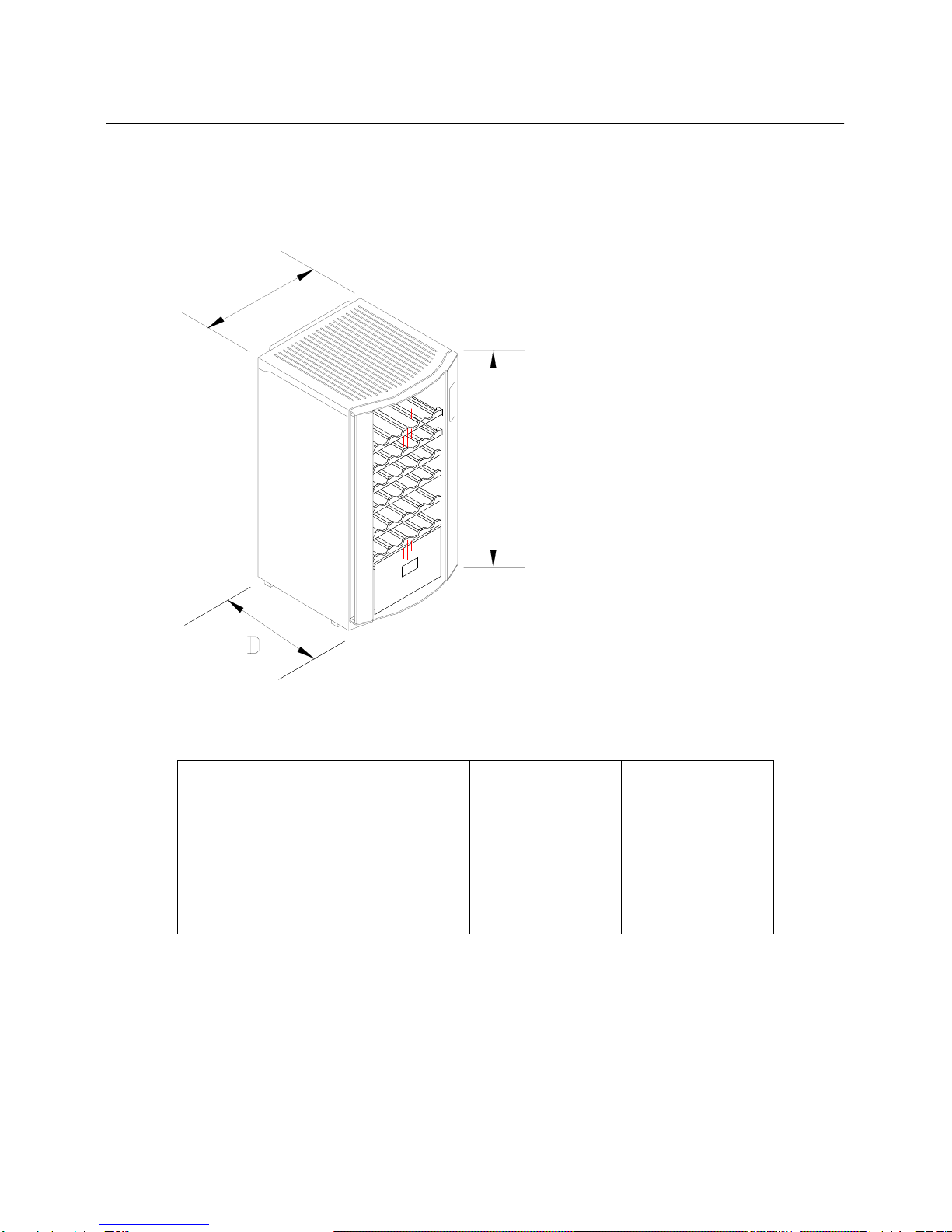

NET DIMENSION
Net Dimesion
H
W
Model JC-110GD JC-160GD
Unit Dimersion(W*D*H) 506*615*980 506*615*1280
９
INSTALLATION AND ACCESSORY PARTS
Unpacking Your Wine Cooler
1.Remove all packaging material, This includes the foam base and all adhesive
tape holding the wine cooler accessories inside and outside ,compressor from
shipping damage due to vibration and shock.
2.Inspect and remove any remains of packing ,tape or printed materials before
powering on the wine cooler.
Leveling Your Wine Cooler
Your wine cooler has four leveling legs which are located in the front and rear
Corners of your wine cooler . After properly placing your wine cooler in its final
position ,you can level your wine cooler.
Leveling cooler or by turning them clockwise to lower your wine cooler, The wine
cooler door will close easier when the leveling legs are extended.
Proper Air Circulation
zTo assure your wine cooler works at the maximum efficiency it was designed
for ,you should install it in a location where there is proper air
circulation ,plumbing and electrical connections.
zThe following are recommended clearances around the wine cooler:
Sides…………..2”(50mm)
Top ……….……2”(50mm)
Back…………..2”(50mm)
zDo not over fill your wine cooler for proper internal air circulation.
１０
INSTALLATION AND ACCESSORY PARTS
Electrical Requirement
zMake sure there is a suitable power Outlet(220-240V)with proper grounding to
power the wine cooler.
zAvoid the use of three plug adapters or cutting off the third grounding in order
to accommodate a two plug outlet ,This is a dangerous practice since it
provides no effective grounding for the wine cooler and may result in shock
hazard.
Install Limitations
zDo not install your wine cooler in any location not properly insulated or heated
e.g. garage etc, Your wine cooler was not designed to operate in temperature
settings below 13℃Centigrade.
zSelect a suitable location for the wine cooler on a hard even surface away
from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking
appliances etc, Any floor unevenness should be corrected with the leveling
legs located on the front and rear bottom corners of the wine cooler.
zYour wine cooler is designed for free-standing installation only, It is not
designed for built-in application.
Initial Setup
Electronic Controlled Units:
Once you have plugged the unit into an electrical outlet, Let the unit run for at
least 30 minutes to acclimate itself before making any adjustments, during this
time the Red Wine light may stay on. During this time the Red Wine light will stay
