OWNER'S MANUAL

COMBINED 14" TV AND DVD PLAYER

DTA1492

Please read this manual carefully

before using this TV set and keep it

for future reference.

CONTENTS

Before Operation

Basic operation

Warning and cautions.................................................................................1

Installation...................................................................................................2

Aerial connection........................................................................................2

Preparation of the remote control...............................................................2

Function buttons and external sockets.....................................................3

Front panel of the TV set...........................................................................3

Rear panel of the TV set.............................................................................3

Using the remote control............................................................................4

Switching the TV set on/off........................................................................5

Watching TV ................................................................................................6

Watching TV program................................................................................6

Program swap and auto scan functions.....................................................7

Searching channel.......................................................................................8

Full automatic mode.................................................................................8

Semi-automatic search..............................................................................9

Manual fine tune......................................................................................10

Program skip ...........................................................................................11

Convenient picture and sound control functions...................................12

Multiple picture modes ...........................................................................12

Black stretch and noise reduce................................................................13

Mute and Fade ........................................................................................14

Time functions............................................................................................15

Clock setting and timer on/off functions................................................15

Sleep timer and program preset ...........................................................16

Setup function .........................................................................................17

Screen saver and Calendar.....................................................................17

AVL .........................................................................................................18

Organise function......................................................................................19

Seting the lock...........................................................................................20

DVD Operation

Basic Playback..........................................................................................22

Advanced Playback...................................................................................23

Special Function Playback ......................................................................24

DVD System Setup....................................................................................25

Playable Discs...........................................................................................29

Disc Protection and DVD Characteristics...............................................30

Others

Connection to the external audio and video equipment.......................31

Troubleshooting guide .............................................................................32

Specifications............................................................................................33

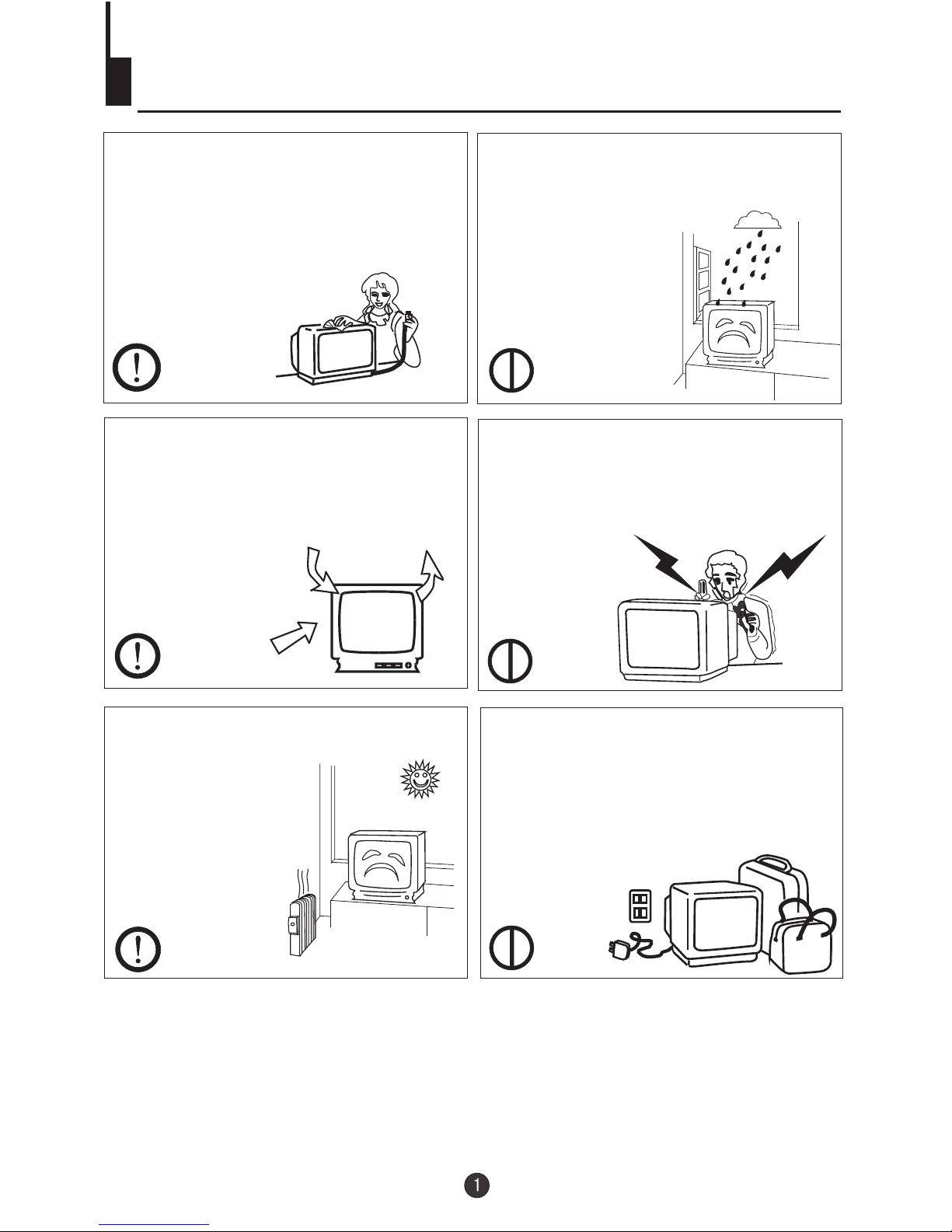

Warning and cautions

1. When you clean the TV set, please

pull out the power plug from AC outlet.

Don't clean the cabinet and the

screen with petrol, paraffin or other

powerful solvents. Permanent damage

will result !

4. Do not place the TV set near rain or

moisture as it may cause an electric

shock, or the TV set to catch fire. The

TV set must only

be used in dry in

door locations.

5. The back cover must only be

removed by a registered electrical

service person. Removing the back

cover may result in electric shock, fire

or damage to

the TV set.

3. Don't place the

TV set in direct

sunlight or near a

heat source.

6. If the TV set is not going to be used

for a long time, or there is a severe

thunder & Lighting storm, we

recommended that the TV set be

disconnected you disconnect the TV

set from the AC power outlet and

remove the aerial plug.

Cleaning the tube

If the picture tube require cleaning, disconnect the power and use a dry

soft cotton cloth. Do not use any cleaner or abrasive cloths.

2. In order to prolong the life of the

product, please use in a well

ventilated location. Leave a 10cm gap

around it. Do not

obstruct air flowwith

soft furnishings

above or beneath.

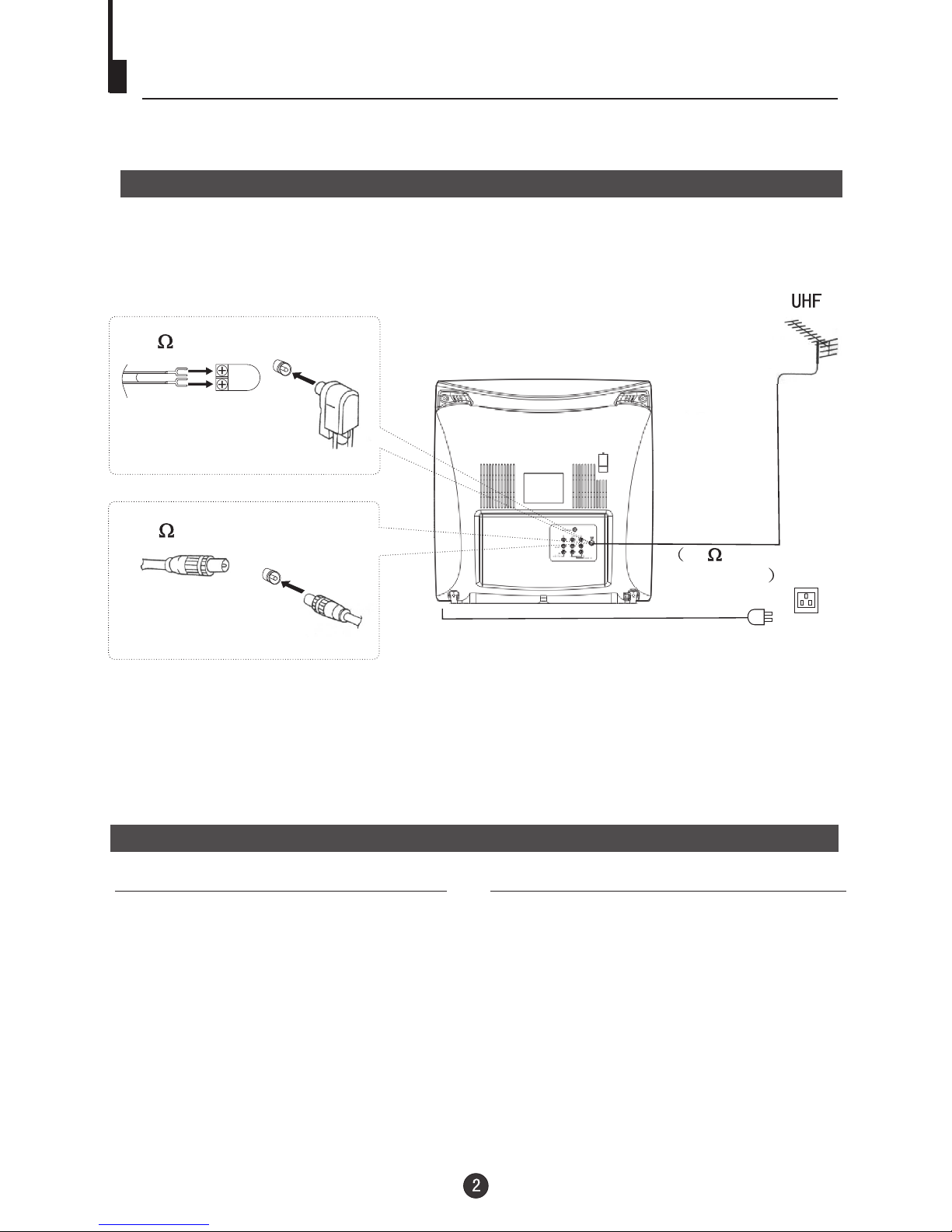

Installation

Aerial Connection

If the picture is not clear or snowy, we recommend that you use an outdoor

aerial.In different places, the suitable antenna type and position are different.

Preparation for the remote control

Battery installation Tips for remote operation

Remove the battery cover. !When the remote control will not be used

for a long period of time or when the

batteries are worn out, remove the

batteries to prevent leakage.

! Do not throw the batteries into fire.

Dispose of used batteries at your local

recycling centre.

! Do not drop, dampen or disassemble

the remote control.

Insert two size AA batteries matching

the +/-polarities of the battery to the +/-

marks inside the battery compartment.

300 twin-lead cable

Antenna adapter

75 coaxial cable

Plug

AC power socket

Aerial input

75 standard

coaxial type

Note:

* It is recommended that a 75 ohm coaxial antenna is used to avoid

interference.

*To avoid interference from electrical signals, do not bind the antenna

cable together with any mains lead.

(Not supplied)

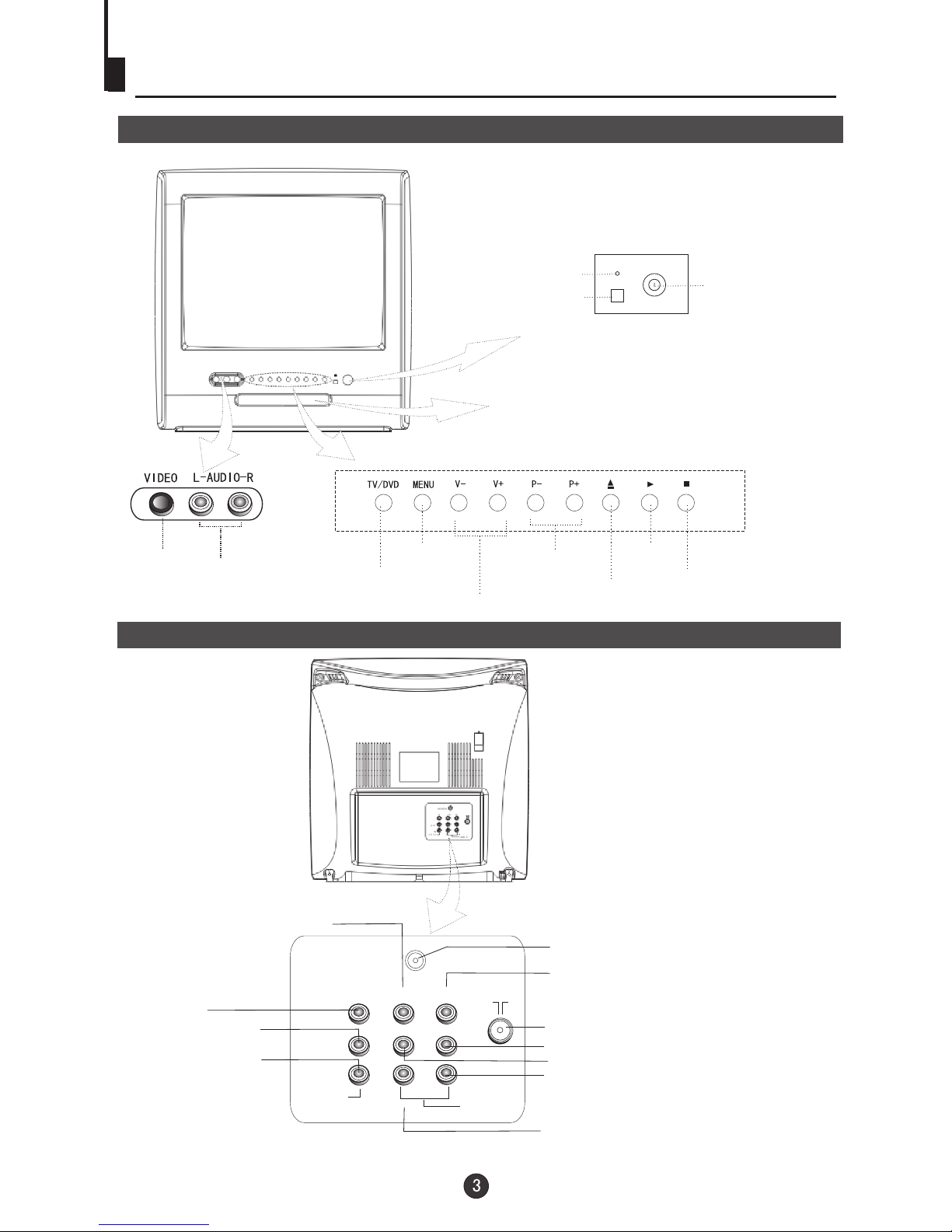

Function Buttons and External Sockets

Rear panel of the TV set

Front panel the TV set

DVD component

Y terminal

DVD component Cb terminal

DVD component Cr terminal

OUT

VIDEO L RAUDIO

Y Cb Cr

Audio left channelinput terminal

Audio right channelinput terminal

Audio left channeloutput terminal

Audio right channeloutput terminal

Antenna input socket

Video input terminal

Video output terminal

Power Switch

Power Indicator

Signal Receiver

Video R/L

Audio

TV/DVD

Switching Volume up/ down

Channel Position

up/down

Open/close

the DVD

Play

the DVD

Stop

the DVD

The DVD Player

COAXIAL

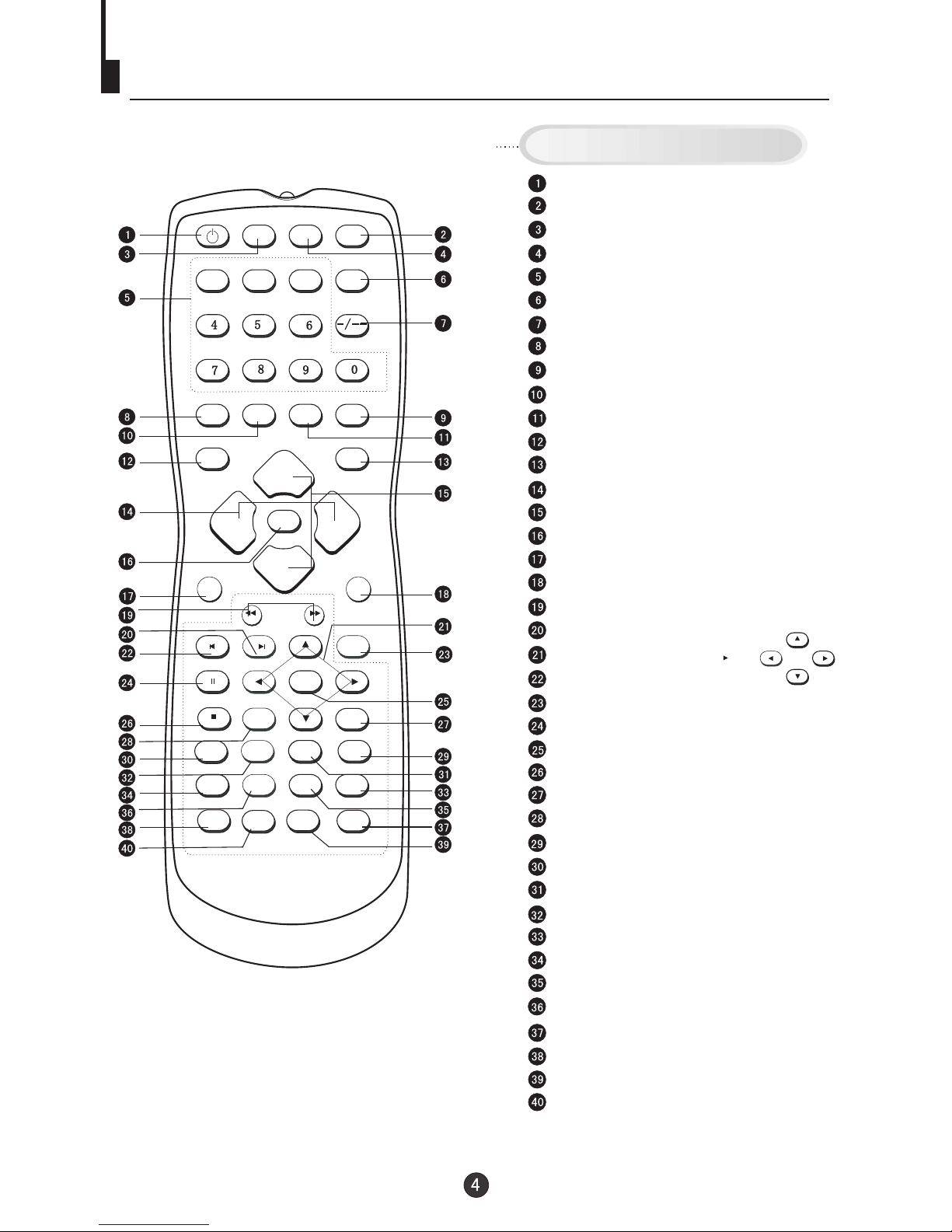

Using the Remote Control

DVD/TV OPEN/CLOSE

NEXTNEXTPREVPREV

REVREV FWDFWD

STOPSTOP

PAUSE/STEPPAUSE/STEP

D.MENUD.MENU

P+P+

P-P-

PLAY/ENTERPLAY/ENTER

VOL+VOL+

VOL-VOL-

SETUPSETUP

CAPTIONCAPTION

A-BA-B REPEATREPEAT

112233

PROGRAMPROGRAMTITLE/PBCTITLE/PBC

ANGLEANGLE

CALENDARCALENDAR

AUDIOAUDIO

MUTE

SCAN

SWAP

EXIT

TV/AVP.STD

TIMETIME

SLOWSLOW

CALL

POWER

SLSL

SEARCHSEARCH

H.LOCKH.LOCK

D.CALL

10+

DVD SEARCH

DVD SETUP

Stand By

DVD Open/close

TV/DVD

Mute

Number Buttons

(Not available)

Digital Selector

Call Screen Display

Former Program

Exit TV Menu

Time Menu

Picture Mode

TV/AV Exchange

Volume Adjust

Channel Selection

TV MENU

Calendar

Scan through TV channels

DVD FAST REVERSE / FAST FORWARD

DVD NEXT

DVD Cursor Move button

DVD PREVIOUS

H.LOCK

DVD PAUSE/STEP

DVD PLAY/ENTER

DVD STOP

DVD MENU

1O+

DVD SUBTITLE

DVD SLOW

DVD REPEAT

DVD PROGRAM

DVD ANGLE

DVD TITLE

DVD AUDIO

(Not available)

DVD Status display CALL

Buttons on the remote control

DVD A-B REPEAT

DOWN

LEFT RIGHT

AUTO

Switching on/ off the TV set

Switching the TV set on/ off

2 If the indicator is lighting in red, press the button

on the remote control again.

Note

1 When you can't operate the TV set with a

remote control, you can turn it pressing

the P+ on the TV set (Child Lock must

be turned off).

on by

/- buttons

2 If you want to change to standby mode,

press down the button on the remote

control. Press again to switch back on.

3 If you want to fully switch off the power supply

for the TV set, please press the power switch

button on the front panel.

Auto switch off function

POWER

This section explains the use of the power button and remote handset

to turn your unit on and off.

1 Press the AC power switch on the front of the

TV. The power indicator will light.

If transmissions are finished for the day, the

Automatic Power Off feature will put the TV to

standby automatically. The Automatic Power

Off feature will not operate in AV mode or

when the background is set to off (see page

17).

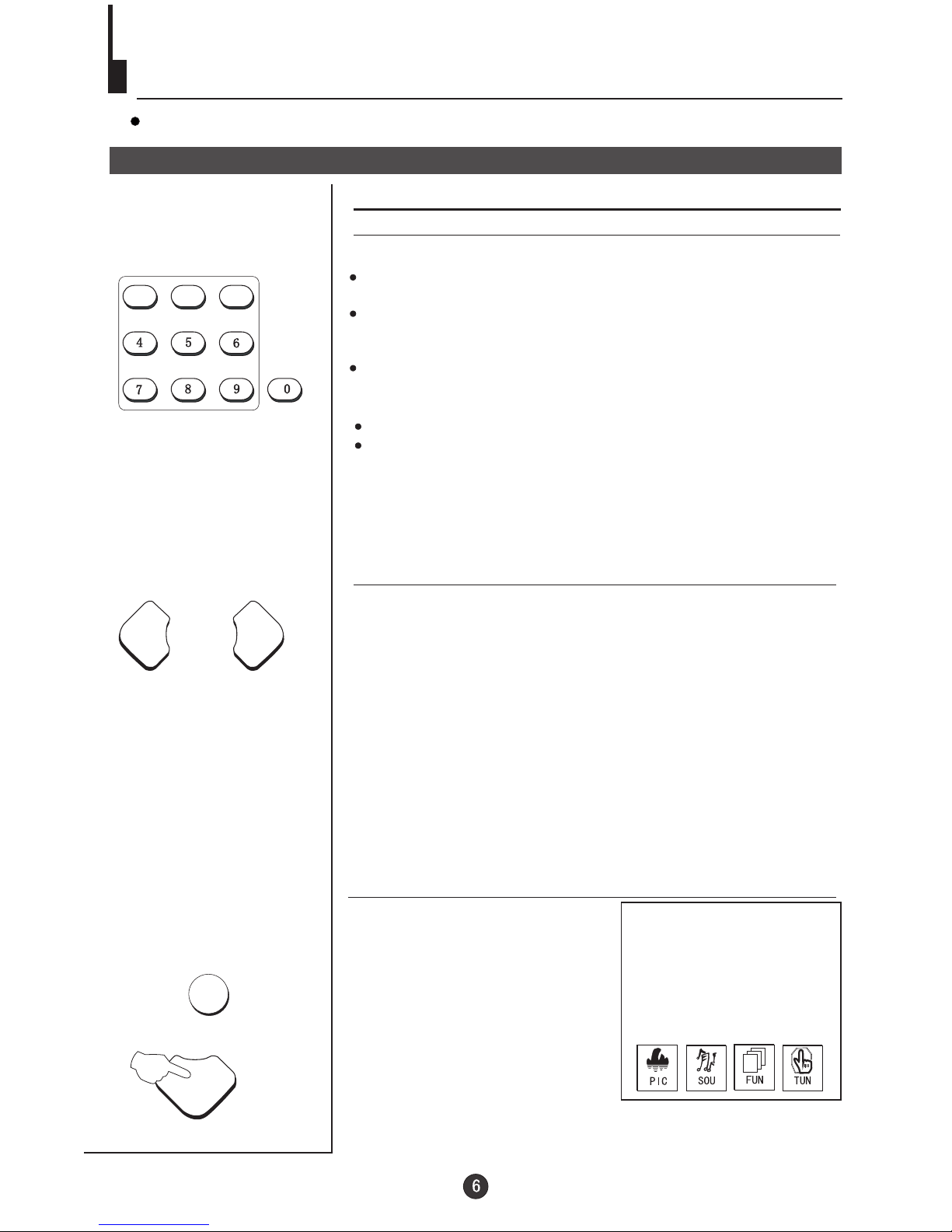

Watching TV

Watching TV programs

How to select TV program

Select the desired program

Select the desired sound

You can watch a TV program on a channel which has been tuned to a broadcast.

1 Using number buttons

2 Using the P+/- buttons

Press the P+button to increase channel number.

Press the P-button to decrease channel number.

Press the VOL-/+ buttons on the remote or the front of the

TV set to adjust the volume level. The range is 0~100. When

the volume buttons are pressed the volume level is

displayed automatically on the TV screen.

Directly enter thechannel number with the numeric keypad

on the remotecontrol.

Toselect channel numbers between 10 ~99 press [-/--] button

and enter thetwo digit channel number

Toselect channel numbers between 100 ~218 press [-/--] button

twice and enterthe 3 digit channel number

112233

How to select the menu

P-

Press the MENUbutton and

the menus willappear at the

bottom of thescreen. The

PIC icon willinitially be

flashing. Each subsequent

press of themenu button

will highlight SOU(sound),

FUN (function), TUN

(tuning) icons respectively.

Press the P-button to display

the appropriate menu.PressEXIT to exit.

VOL+VOL+

VOL-VOL-

AUTO

Watching TV continued

Press the SWAP button to select the channel you were watching previously.

Auto scan functionscans through allprograms in memory including those with

"skip" set to"off" (see "Program skip"on page 13).

Program swap and auto scan functions

Program swap

Auto program scan

1 Press the SCAN button to

scan through all the memorised

TV programs. The scan will

pause for about 2 seconds on

each channel.

2 If you want to stop the

function during auto tunning,

simply press the SCAN button

again.

SWAP

SCAN

Press the SWAP button to

select the channelyou were

watching previously.

BROWSE

AUTO

BROWSE

VOL+VOL+

AUTO SEARCH

152.25MHz

Searching channel

This TV set has three methods to set the channels, which are respectively full

automatic, semi automatic and manual fine tune.

In this section, how to use the remote control to set the channel is explained. You

can also use the buttons on the TV set to set channel.

Full automatic mode

Automatic search

1 Press the MENU button. The

MAIN MENU will appear with the

PIC (picture) icon flashing. Press

the MENU button a further 3 times

until the TUN (tuning) icon is

flashing.Press P- to enter the

TUNING menu.

2 buttons to

select "AUTO SEARCH".

Press the P+/-

3 Press the VOL+ button to

start automatic search function

operates. All channels that are

locally available will be preset in

the order that they are found.

Depending in which location you

are, this is generally not in the

order you expect. Please see

Page 19 (Organise).

Display function

Press the CALL button, then

the channel number and the

systems will be displayed on

the screen.

AUTO

PROG NO

ORGANISE

FINE TUNE

AUTO SEARCH

CALL

P+

P-

PROG NO

ORGANISE

FINE TUNE

AUTO SEARCH

Table of contents

Popular TV DVD Combo manuals by other brands

Memorex

Memorex MVDT2002SM Service manual

Samsung

Samsung UW-17J11VD Owner's instructions

Akai

Akai ALED2609TWE user manual

JVC

JVC LT-32D210 owner's manual

Toshiba

Toshiba VTD1432 user guide

Philips

Philips DVD 580M Directions for use

RCA

RCA RLEDV2238A-B instruction manual

LENCO

LENCO DVT-1933 user manual

LG KU-17WDVD Service manual

Sylvania

Sylvania SKCR2706BT instruction manual

Memorex

Memorex MVDT2002A owner's manual

Akura

Akura AXDVD1515W-ID instruction manual

Wintal

Wintal 27LDVD05 operating manual

Toshiba

Toshiba 23HLV84 owner's manual

LENCO

LENCO DVT-2441 Specifications

AOC

AOC LC19W060C user manual

iLive

iLive ITDE2288 user guide

Magnavox

Magnavox CD130MW9 owner's manual
