Refrigerator
SERVICE MANUAL
Features:
1. Spacercraft insulation technology saving
2. Digital temperature with VFD disply
3. full-out fridge tray
4. Ice and water dispenser
5. Super freezing
6. Direct current vairable-frequency
7. Direct current vairable-frequency blower fan
8.Deluxe bar ,ice machine
9. Cold drink outside access design
10. Deluxe deep bottle holderr
11.Detachable door seal
MODEL: HRF-661FF/ASS
Haier Group
2
Part1.Specifications
Model HRF-661FF/ASS HRF-661FF/A
Cavity Supply(V/Hz) 220~240/50 220~240/50
Power
Consumption(Kw.h/year) 537 537
Unit Dimensions (WDH
WDH/mmXmmXmm) 770*890*1768 770*890*1768
Unit Weight(Kg) 138 132
Box
Dimensions(WDH/mmXmmX
mm)
960*770*1894 960*770*1894
Box Weight(Kg) 156 156
Container Quantity(40’Hc) 36 36
Specifications are subject to change without prior notice.
Model HRF-661FF/ASS，HRF-661FF/A
3
4
Part3. Principle of Electric Control

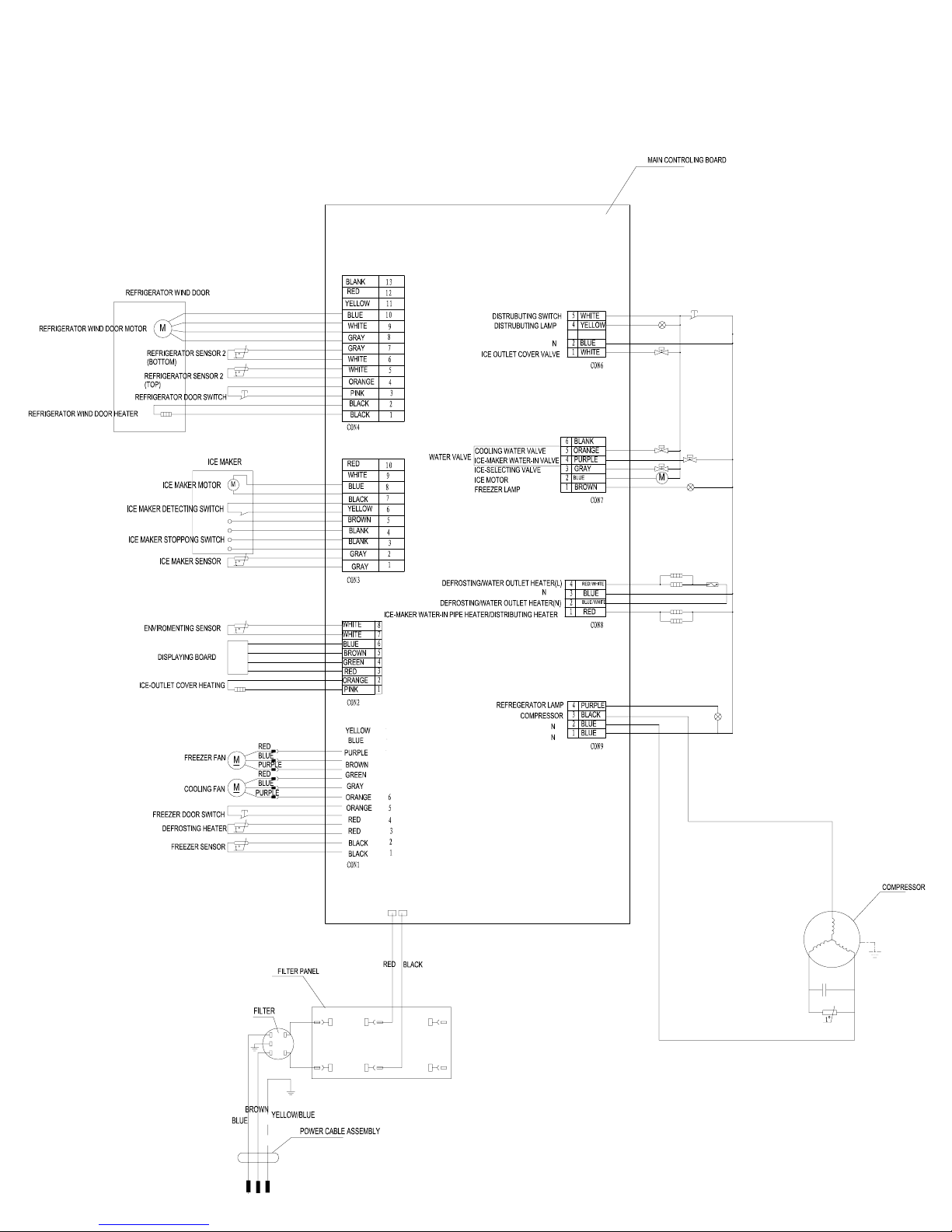

Schematic Circuit Diagram
Brief Description of Control Principle
HRF-661FF/ASS ，HRF-661FF/A ，is the forced air cooling
refrigerator with two doors(side by side). A mechanical type of all the
control is generally adopted. The thermostat directly controls the
start and stop of compressor, and hence the refrigerator
temperature.
Low Temperature Compensation in the above schematic
diagram, when the ambient is below the set temperature, the switch will
be closed and the heating will work, thus ensuring the normal start,
and operation of refrigerator at lower ambient temperature, in such case,
the freezer compartment temperature can reach a good point.
6
Part4. Assembly figure
8
9
10
11
1
12
