Haier HBF80G User manual
MODEL HBF80G
BAR CHILLER
OPERATING
INSTRUCTIONS
The manufacturer keeps on developing various
types of refrigerators, so he has the right to modify
designs, products and technical data without further
notice.
*
1

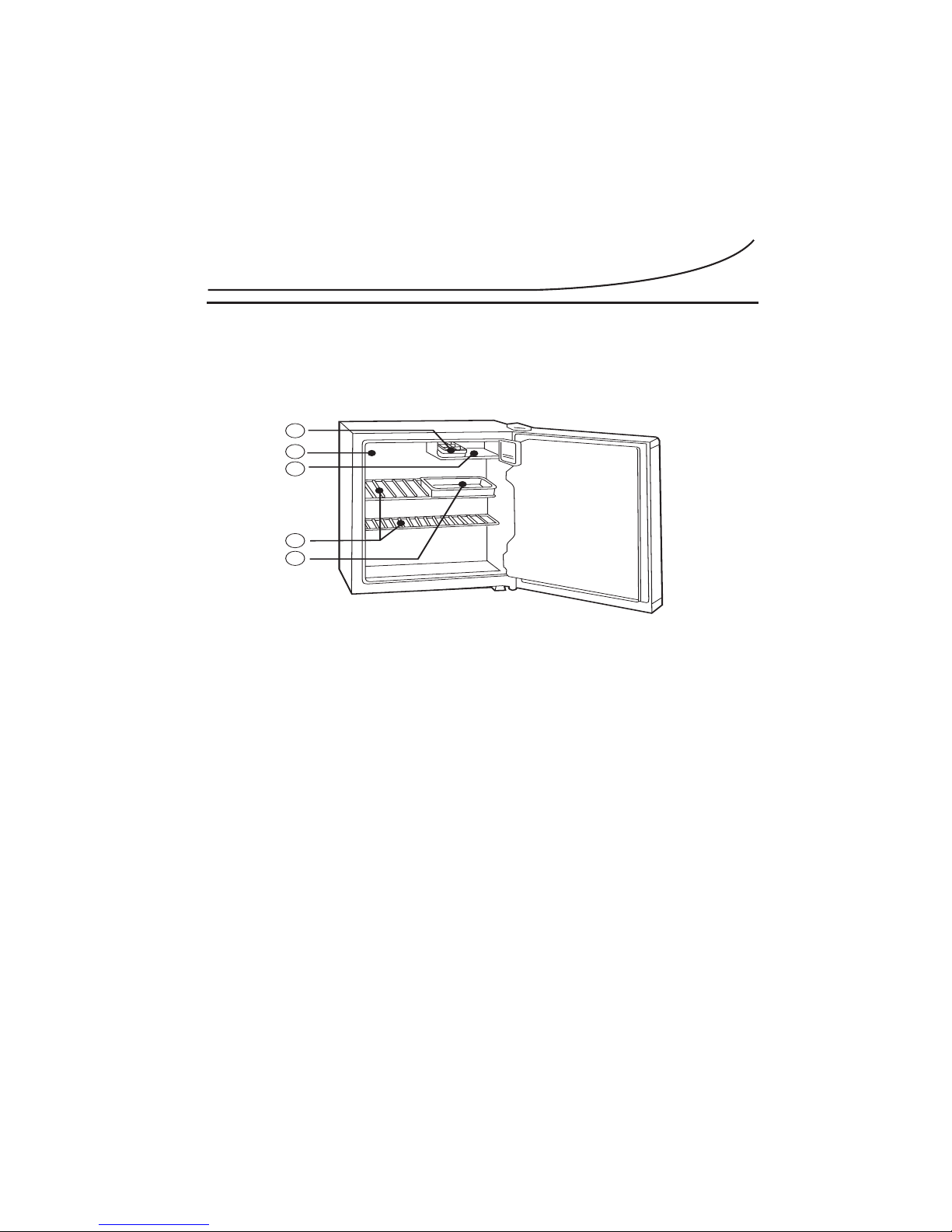

FIGURATION OF THE BAR CHILLER
1
2
3
4
5
=Ice-tray Thermostat with defrost button
Evaporator ==========Shelf
Drip tray

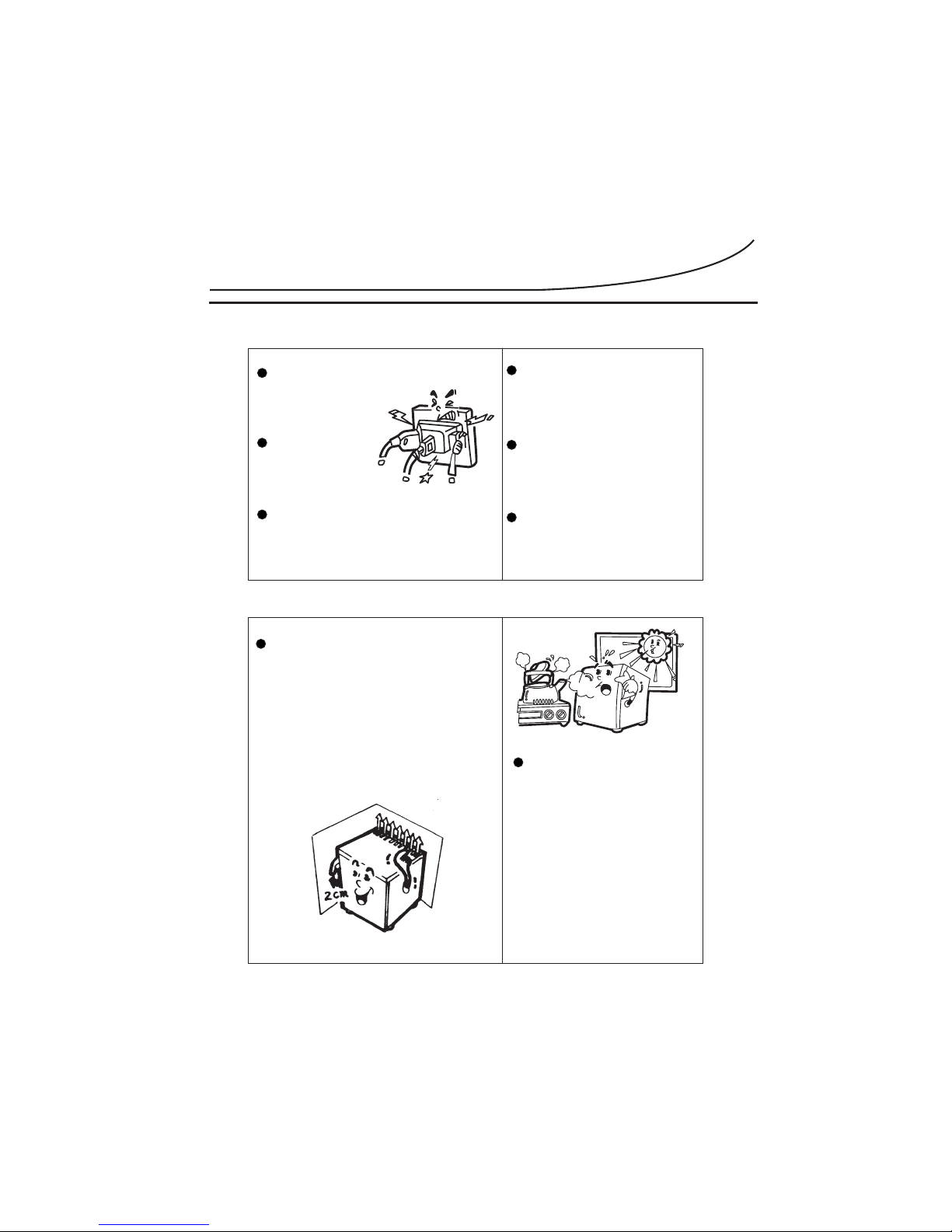

NOTICE
The power supply
for appliance is
240V, 50Hz
single phase.
It is not
recomended
to use any
extension cords.
Connect the appliance
with a properly earthed three-wire
plug and socket with a special use.
SETTING UP
The appliance can be placed with its
rear panel directly against the wall.
For a good air circulation, the vent
grille at the back of the worktop must
not be blocked, It should be placed on
flat and firm ground lest it gives off
higher noise than usual. Poorly ventilated rooms
are unsuitable. Avoid
positioning the appliance
in direct sunshine or
exposed to similar
sources of heat.
2
Never store anything dangerous
in the appliance, such as
combustibles, exposives,
strong acid and alkali. etc.
The appliance is not intended
for use by young children or
infirm persons without
supervision.
Young children should be
supervised to ensure that they
do not play with the appliance.

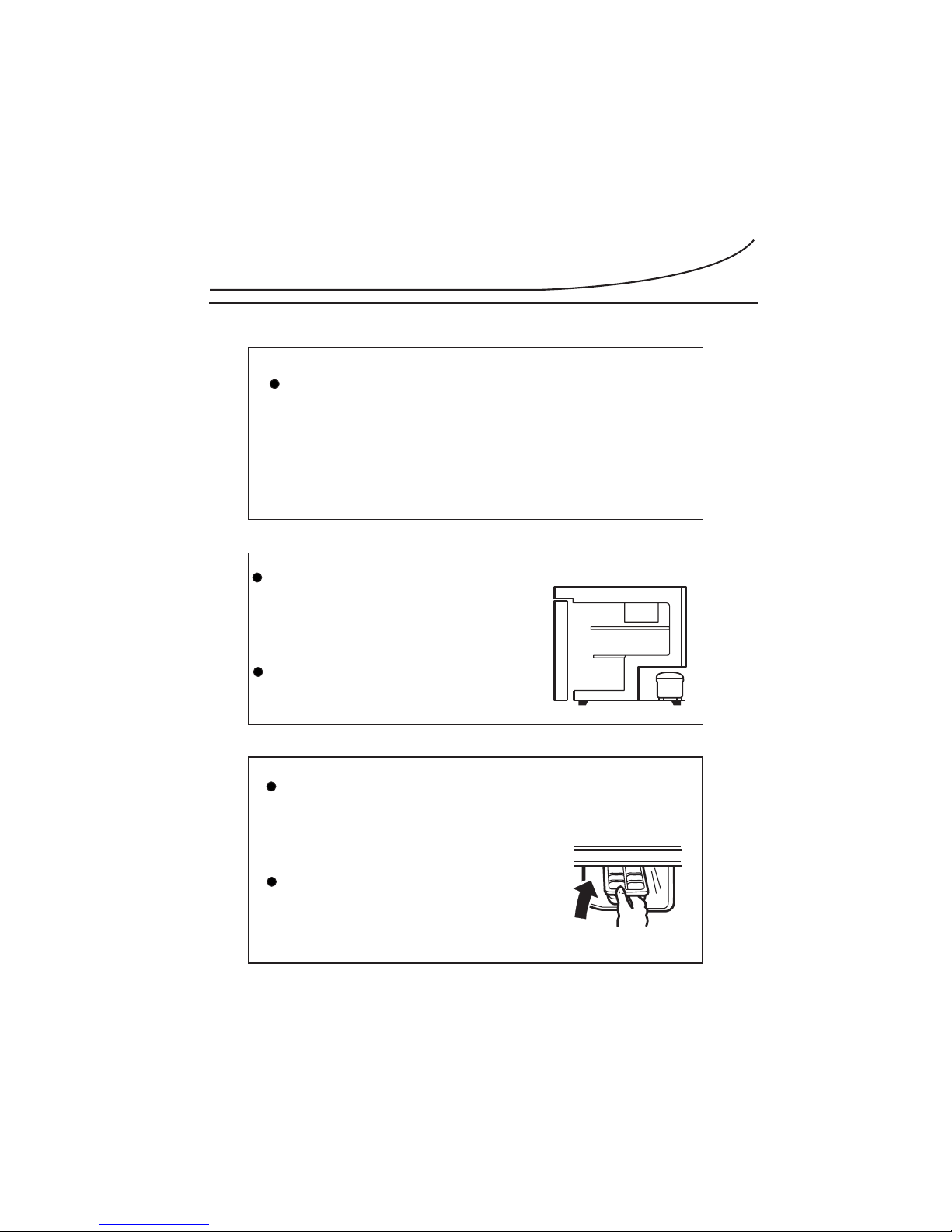

THERMOSTAT
The knob graduation 0, 1, 2, 3, 4, 5, 6, 7,
does not stand for concrete temperature.The smaller
the numbers,the higher the temperature in the
compartment and vice versa.Usually,it’s better to
put the thermostat in Pos. “1”,Pos. “4”, Pos. “0”
shows the power is cut off.
STORING FOOD
The temperatures in different positions inside
the refrigerator are different due to different
refrigeration distribution.Thus when store
food, select proper position to meet your
needs.
The coldest position áë=, Temperature
from low to high in order as K
ICE-MAKING
When making ice,add water to the ice tray
until 4/5 full with the grid in it and place it
on the bottom of the ice chamber. Twist the
tray or place it briefly in warm water to
remove the ice cubes.
NOTE
Do not use a knife and the like when
removing the ice tray.
3
①
②
③

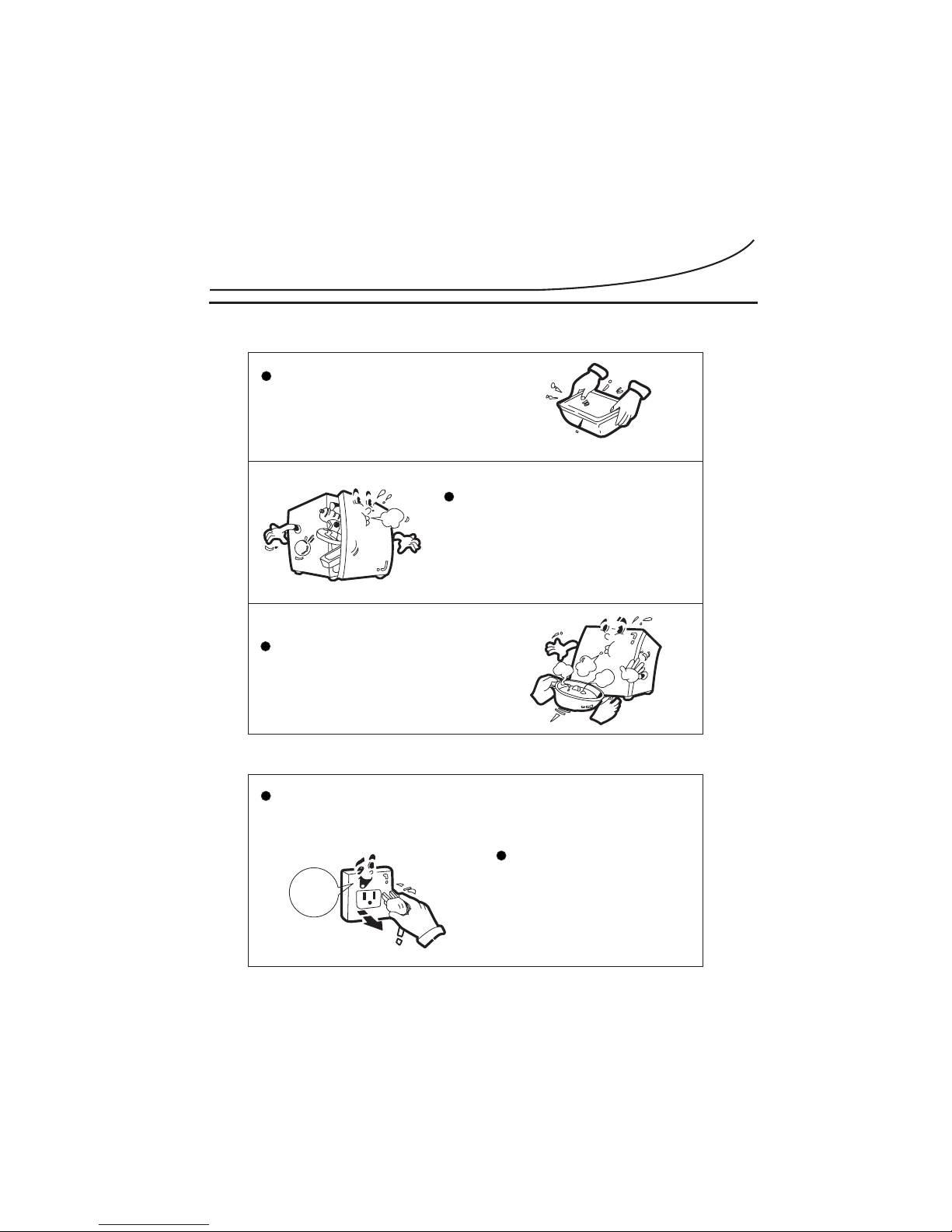

NOTES ON STORAGE
Where necessary, food should be
packed in bags, avoiding giving
off strong odours or getting wet
or dry.
Do not store food too full in
the appliance. Allow space among
the packages of food for a
perfect refrigerating.
Hot food or liquid must be allowed
to cool to room temperature
before placing in it.
CLEANING
The appliance can only be cleaned at drawn network plug. Clean it
with lukewarm water containing a little detergent. In any case do
not use hot water,corrosive scouring agent and anything rough.
NOTE
Do not use anything rough
for cleaning.
Pull the
plug out
4

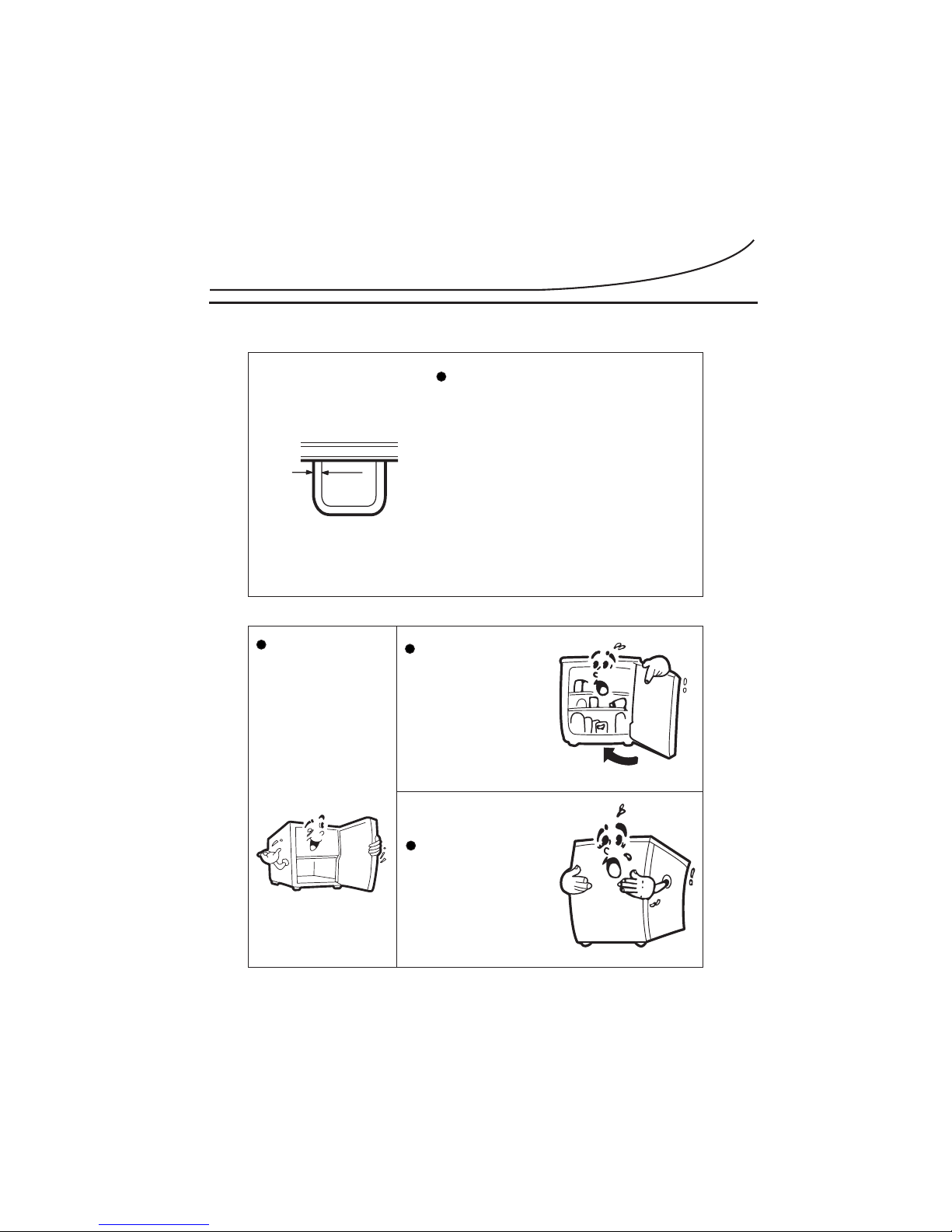

DEFROSTING
NOTES
If the appliance
remains out of
use for some time,
pull out the plug
to disconnect the
appliance from
power supply.
Clean the interior
as described
above to prevent
odours from
forming inside.
In the event of power
failure,try to keep
the appliance closed
to maintain the
refrigeration as long
as possible.
The appliance door
should be opened as
little and briefly
as possible to reduce
energy consumption
5
4~6mm
To defrost,remove the food and ice
cube fray from the freezer section.
Make sure the drip tray is under the
freezer section and push the defrost
button on thethermostat.Defrosting
may take a few hours.When defrosting
process has been completed,the drip-tray
should be depletde.Replace the food
and switch on the appliance.
In the event of a fault occurring during operation, check first if the
fault is due to an operation error. You can repair the following faults
yourself.
The appliance does
not run.
1. It is not switched on properly,
or mains plug properly inserted
in the socket.
2. The thermostat knob is turned to
position “0”.
3. Supply voltage is too low.
The temperature inside
the appliance is not
low enough.
1. The appliance is too full of food.
2. The appliance is located too near
a source of heat.
3. The door is not properly closed or
is opened too frequently.
4. The vent grille is covered over.
Excessive noise
from the appliance. The appliance is not standing
securely on the ground.
If none of these circumstances applies and you are not able to
repair the fault, please Contact the service point.
7
LEFT/RIGHT-OPENED DOOR
This product is assembled according to the right-opened door
configuration. The right hinge together with its mount is fixed on
the right side of the door body. Take out the door handle from
the accessory parts and fix it on the left side of the door body.
The two holes on the right side of the door body shall be stuffed
with the handle hole stoppers, as an item of accessory parts.
In case the left-opened door configuration is required, this can
be achieved by using accessory parts.
1) Remove the right hinge, hinge mount and the lower hinge from
the door body.
2) Put stoppers in the holes that occur.
3) Install the left hinge and hinge mount (two items of accessory
parts) onto the corresponding location at the left upper corner of
the refrigerator body with Screws removed from the right hinge.
4) Dismantle the shaft from the lower hinge, put it into the hole on
the left side and fasten it securely.
5) Install the door body with the refitted lower hinge and put the
lower hinge adjusting pad in place.
6) Install the door handle on the right side of the door body with
screws through two holes and fasten them securely.
7) Stuff the two holes on the left side of the door body with handle
hole stoppers.
6

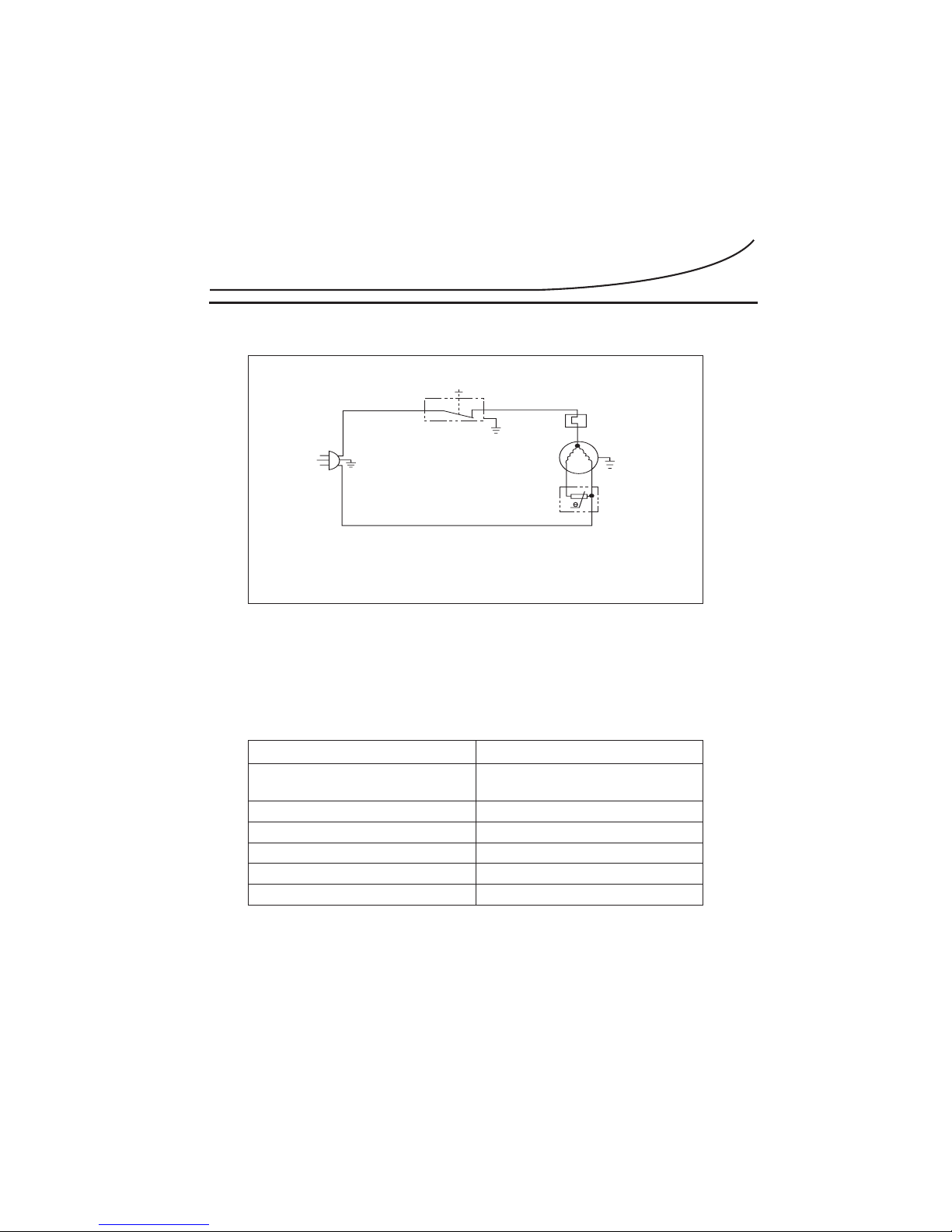

ELECTRICAL DIAGRAM
A.PLUG B.THERMOSTAT C.OVERLOAD PROTECTOR
D.COMPRESSOR E.PTC
A
BC
D
E
8
TECHNOLOGY DATA
Model
Anti-shock safety
classification
Net capacity
Gross capacity
Voltage
Watt
R134a 46g
76L
I
Refrigerant
HBF80G
240V~,50Hz
80L
90W
!
0; G=: FHCC?K 8BE9 >F 96@6<:9+>G @HFG 7: E:C?68:9 7K G=: @6AH;68GHE:
E
6<:AG BE 6 F>@>?6E?K DH6?>;>:9 C:EFBA >A BE9:E GB 6IB>9 6 =6L6E9,
3=: C?H< F=BH?9 7: 688:FF>7?: 6;G:E G=: 6CC?>6A8: CBF>G>BA:9,
3=: 6CC?>6A8: >F ABG >AG:A9:9 ;BE HF: 7K KBHA< 8=>?9E:A BE >A;>E@ C:
E
FHC:EI>F>BA,
5BHA< 8=>?9E:A F=BH?9 7: FHC:EI>F:9 GB :AFHE: G=6G G=:K 9B ABG C?6K J
>
4.2101/-
