Haier AFD630IX User manual

AFD630IX

CFL629CW/CX

AFL628CX/CW

Top Mount fridge-freezer

Instruction for use

Table of Contents

Before use

Use instructions

Maintenance

Key features.......................................................1

Description ......... ..... ...............................2-3

Safety precautions ........................................4-6

Placing and environment .................................7

Preparation prior to use ................................8-9

Function ..................................................10-14

Fridge compartment...................................15-16

Fridge storage precautions............................17

Tips on food storage in the fridge......................18

Freezer storage precautions .........................19

Icemaker use instructions .............................20

Defrosting and cleaning................................21

Stopping use....................................................22

Troubleshooting ........................................23-25

Please read this Operation Manual carefully before using the appliance.

Keep this Manual for future reference.

Please check the appliance for the model, color and door pattern.

Key Features

Automatic icemaker (only on some models).

Freezer drawers - this facilitates easy access to food item,ensuring

energy saving and convenience (only on some models).

Slide in half shelf -

a full length shelf that slides to half length to allow

storage of taller items below.

Innovative low-energy lighting system - ensures greater visibility.

Foldaway wine holder.

Large crisper with humidity control adjustment.

Holiday function, energy-saving holiday mode.

Power ON/OFF function on the display panel (only on some models).

Fridge Storage compartment can be turned off when not required.

Intelligent alarm function - automatic alarm at high temperature,

electrical malfunction or door open.

Touch keys (only on some models).

Deodoriser (only on some models).

Fresh food drawer.

Description

Fridge storage

compartment

Display panel

Shelf

Wire wine holder

Fresh food drawer

Crisper

Crisper cover

(including egg box)

Butter box

Middle bottle rack

Large bottle rack

Small bottle rack

Middle drawer

Bottom drawer

Freezer storage

compartment

Middle drawer

Bottom drawer

Transparent tray

Note

The accessories shown are for several models. There may be slight

differences between them and the ones in your refrigerator.

Models:

AFD630IX/AFL628CX/AFL628CW

Dairy cover

Dairy shelf

(display panel on door

for AFD630IX)

Condenser

(On the back of appliance)

Fresh food drawer cover

Descriptions

Models:

Display panel

Shelf

Wire wine holder

Crisper

(including egg box)

Middle bottle rack

Large bottle rack

Small bottle rack

Freezer storage

compartment drawer

The accessories shown are for several models. There may be slight

differences between them and the ones in your refrigerator.

Note

Fresh food drawer

Crisper cover

CFL629CW/CFL629CX

Dairy cover

Dairy shelf

Condenser

(On the back of appliance)

Fresh food drawer cover

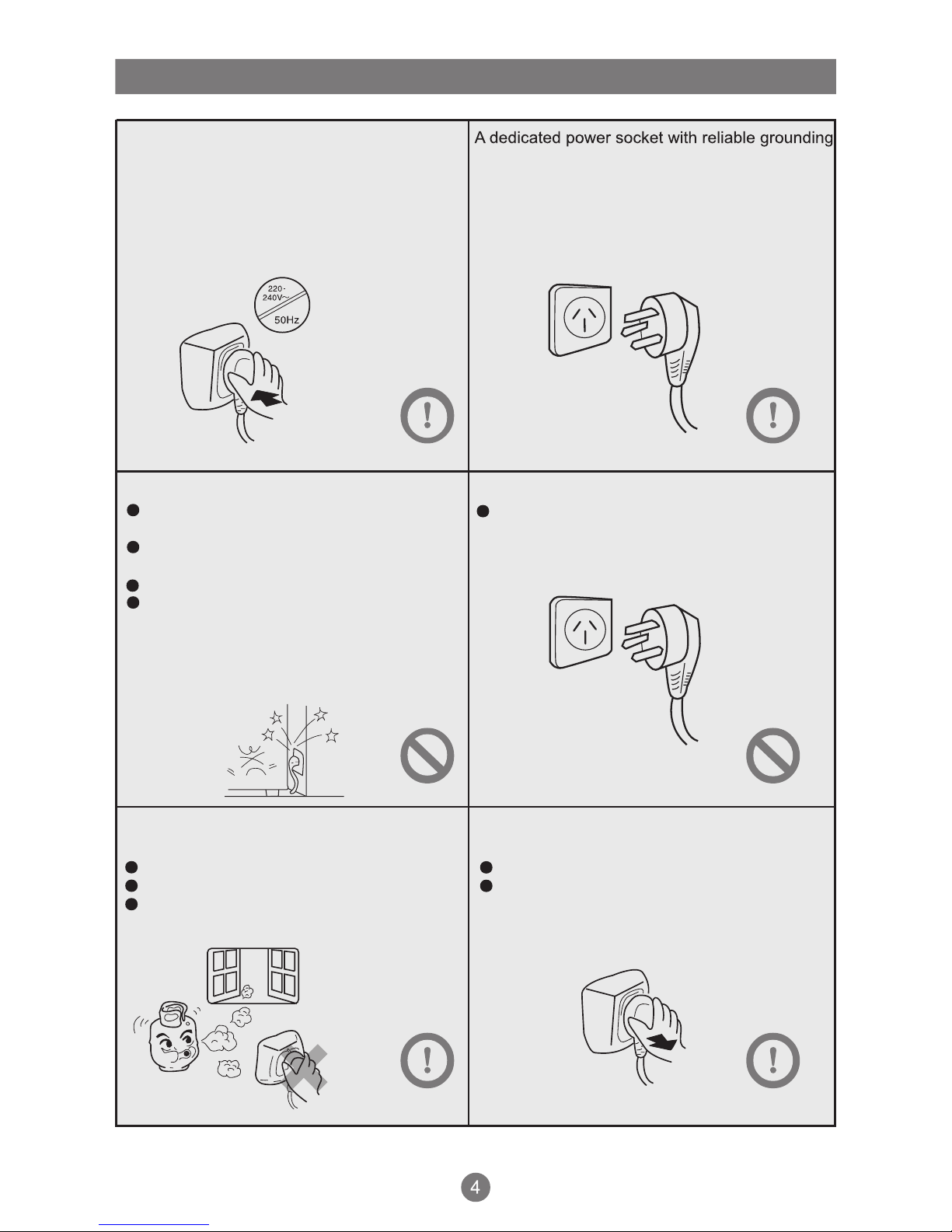

Safety precautions

Therefrigeratorisoperatedthrougha220-

240VAC/50Hzpower supply.Abnormal

voltagefluctuationmaycausetherefrigerator

to fail, damage thetemperature control or

compressor, or there may be an abnormal

noise when the compressor is operating.

refrigerator's power cable is fitted with 3-pin

(grounding)plug thatfits a standard3-pin

(grounding)socket.Nevercutofforremove

the third pin (grounding). After the refrigerator is

installed,the plugshould beaccessible.

Careforthepowercord

gging the refrigerator.

Ensure that the power cord is not

Takecare not to roll over the power cord or

damage it whenmoving the refrigerator

away from the wall.

Damaged power cord

When the power cord is damaged or the plug

If coal gas or other inflammable gas is

leakinginthevicinityoftherefrigerator

Turn off the valve of the leaking gas;

Open the doors and windows;

Donotunplugorplugthepowercordsof

the refrigerator or any other appliance.

Unplug the refrigerator for the following

reasons:

Cleaningormaintenance;

Lamp replacement

Hold the plug, not the cord, when unplu-

is worn, turn off the refrigerator and consult

an authorized service agent for replacement.

constrain-

ed by the refrigerator.

Do not step on the power cord.

must be used for this refrigerator. The

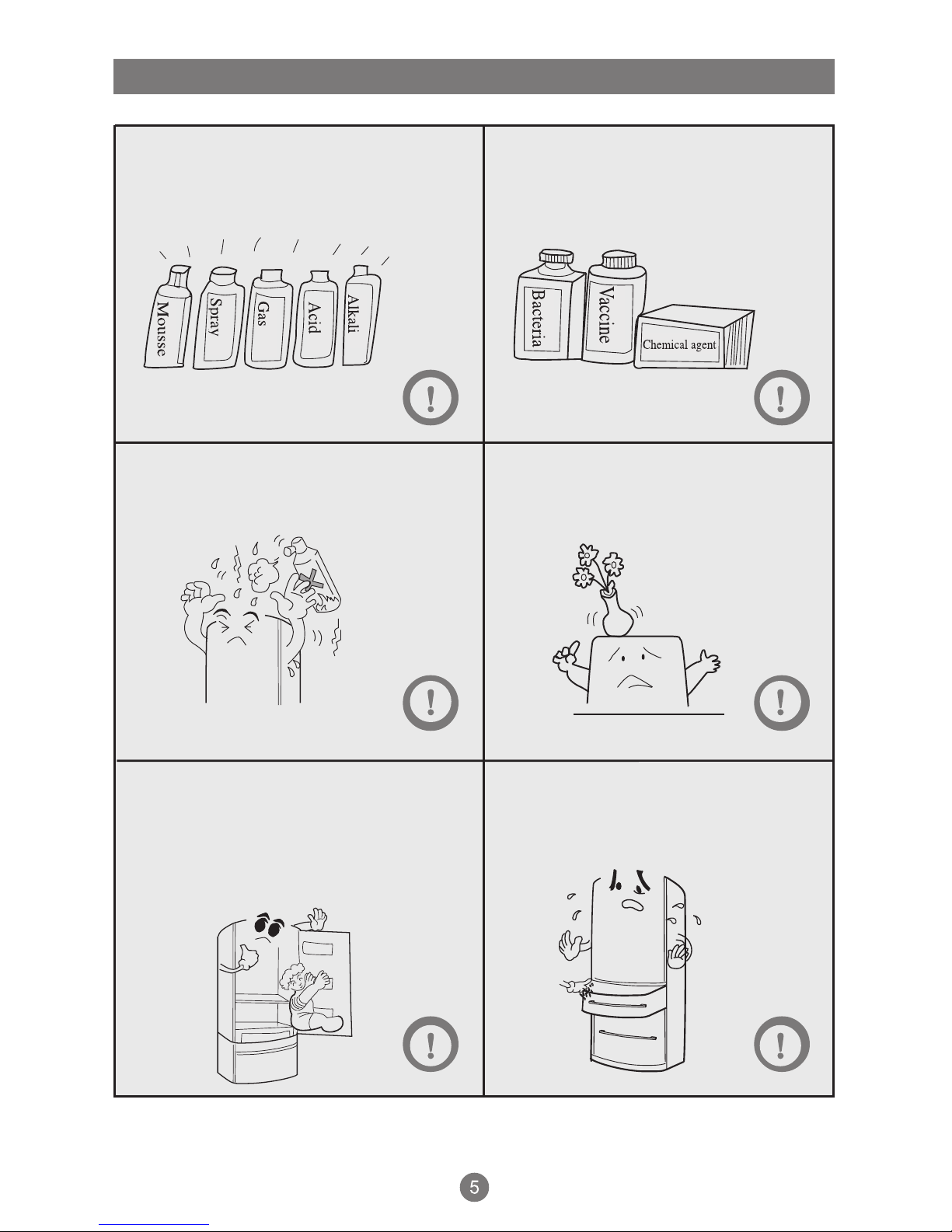

Safety precautions

Never store inflammables, explosives or

corrosive materials in the refrigerator.

Do not store medicines, bacteria or chemical

agents in the refrigerator. This refrigerator is a

household appliance. It is not recommended

to store materials that require precise

temperatures.

Do not store or use gasoline or other

inflammable materials in the vicinity of the

refrigerator to avoid a fire.

Do not place unstable articles (heavy objects,

containers filled with water) on the top of the

refrigerator, to avoid personal injury caused

by falling or electric shock caused by contact

with water.

Do not swing from the bottle racks on the door.

The door may be pulled our of alignment, the

bottle rack may be pulled away, or the

refrigerator may topple. Do not step on the

freezer storage compartment door or cabinet

when putting in or taking out food.

Do not touch the inside surface of the freezer

storage compartment when in operation,

especially with wet hands, as your hands

may freeze onto the surface.

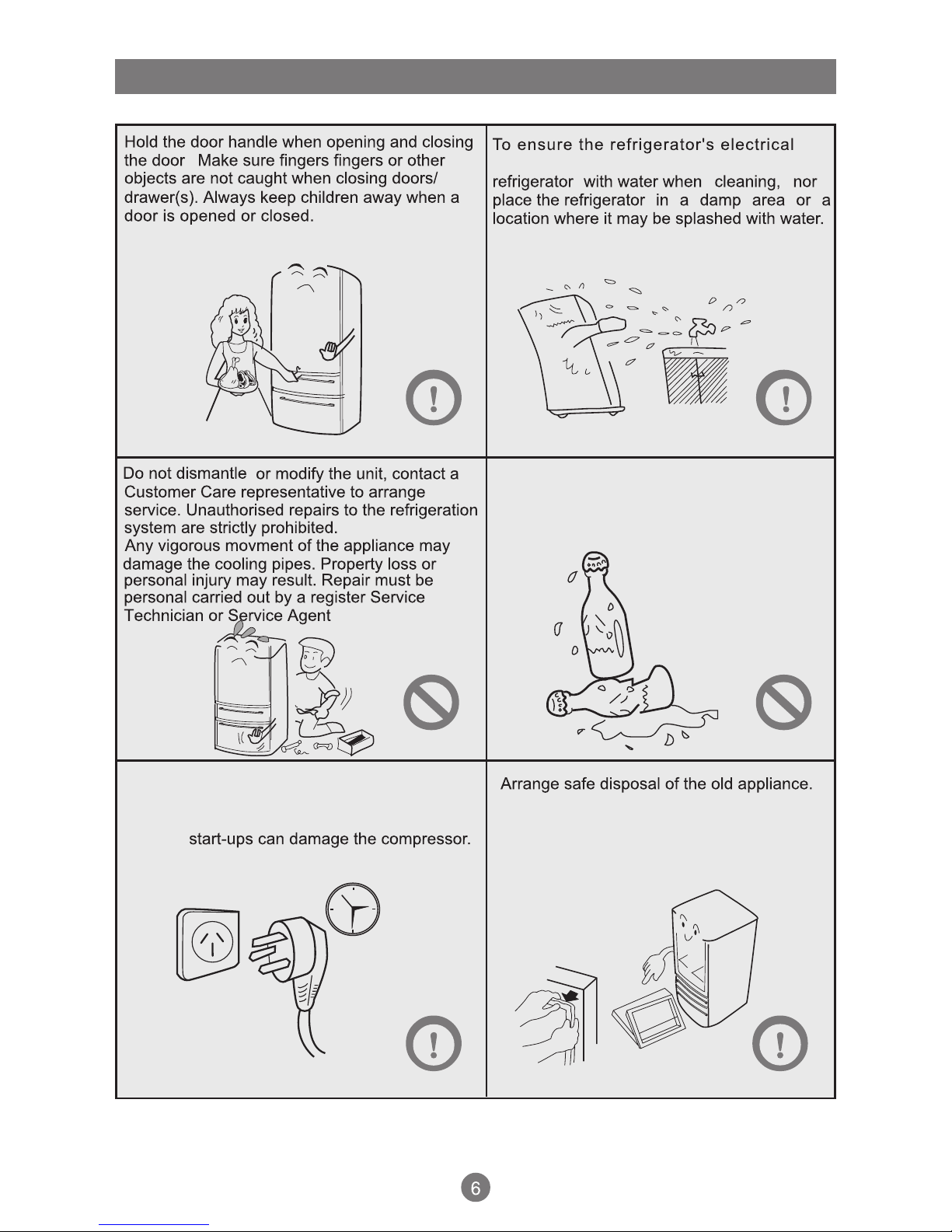

Safety precautions

insulation, do not spray/

flush the

Never store bottled beer or beverages in the

freezer, as these will burst during freezing.

Unplug the refrigerator in the event of a power

interruptionor before cleaning. Allow at least 5

minutes before restarting the refrigerator, as

frequent

Keep ventilation openings in the appliance enclosure or in the built-in structure, clear

of obstruction.

than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance,

unless they are of the type recommended by the manufacturer.

This appliance is not intended for use by persons (including children) with reduced

physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the appliance by a person responsible

for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Warning:

The refrigerator should be placed on a flat and

solid surface. If the refrigerator is placed on a

materials must be used. Never use the foam

packing material for a pedestal. If the

shorten the adjustable feet of the refrigerator

by turning

Never place the refrigerator in a damp area

or a location where it may be splashed with

water. Clean and dry any water splashes and

The direction shown is clockwise The refrigerator should be placed in a well-

To the

upper

Distance

To the

back

To right

or left

recommended.

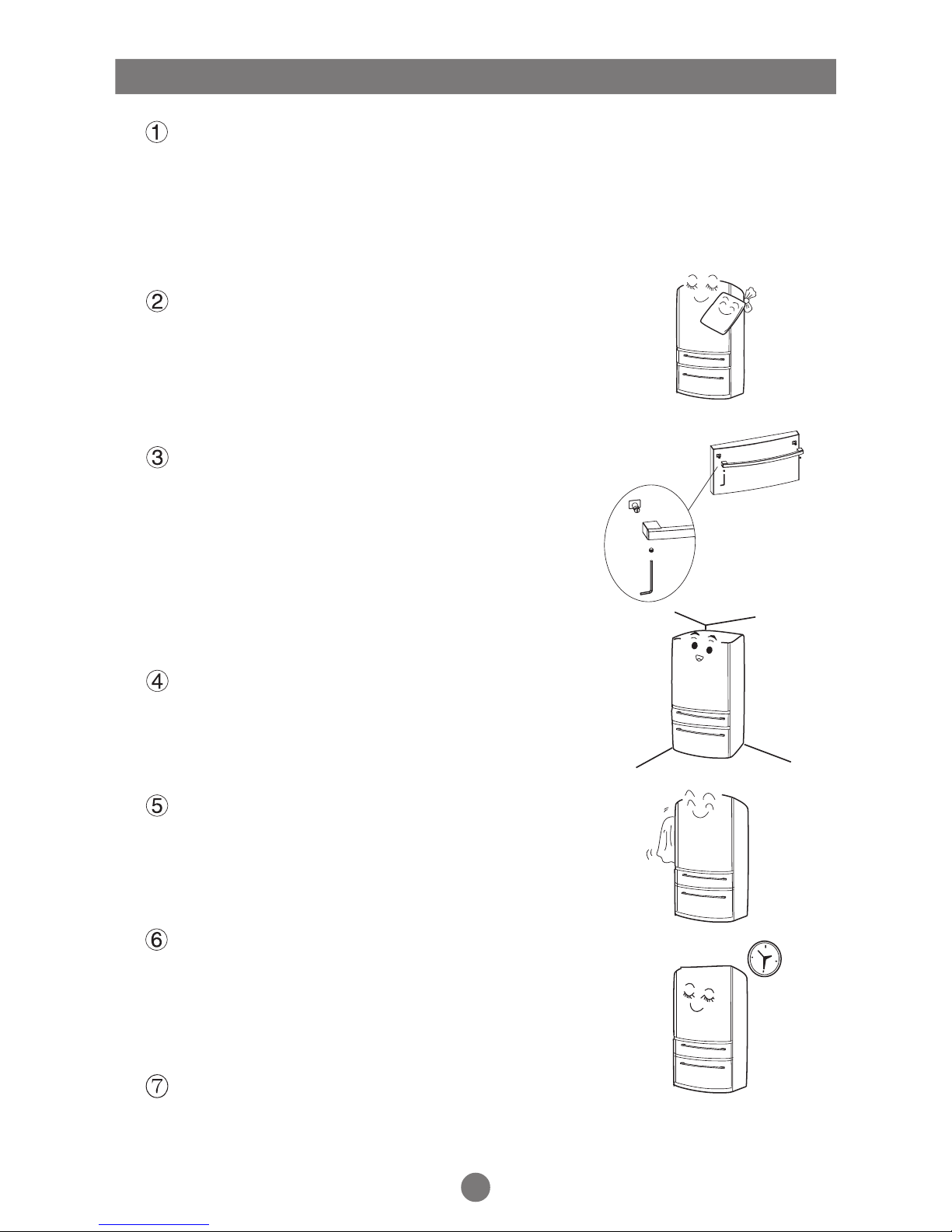

Preparation for first use

Remove all packaging including the foam base and the adhesive tape accessaries inside

Check accompanying accessories and documents

items inside the box against the Packing List.

Install the handles (AFD630IX/AFL628CX/AFL628CW).

Take out the two handles from the accessory

box and place them in the handle seats respectively

as shown in the figure. Secure the handles on the

with the supplied(4) screws. Insert the screw on

the underside of the handle.

Move the refrigerator into a proper location.

(See section “Placing and environment”)

It is advisable to clean the cabinet before use.

Please clean the inside and outside of the refrigerator with

water before putting any food in it.

Standing before Power Up.

After the appliance has been leveled and cleaned,allow gases

to settle for at least 6 hours before switching it on, to

ensure its normal running.

Fridge door reversal (AFD630IX, AFL628CX/CW only).

The fridge door hinging can be reverse for these models only.

Please contact an Authorized Service Agent.

the fridge and freezer compartments.
