Haier HF-180T User manual

FREEZER

Service Manual

……………..

Features

zEnergyefficiency

zMicro foam technology

zLownoiseoperation

zThick insulation for energy efficiency

Haier Group

Serial number: ER03SM0120-17 Version number: 00.00

Edition: 2003-01-20

Models:

HF-120T

HF-120TA

HF-180T

HF-180TA

HF-240T

HF-240TA

102102429 (HF-240TA)

CONTENT

1. Content……………………………………………………. 1

2. Product code illumination and Series Introduction…… 2

3. Specifications……………………….……..……………………. 3

4. Safety precautions……………………………………….……... 4

5. Parts and Functions…………………………………………. 7

6. Function Schedule……………………………......…….………. 8

7. System Flow Chart……………..………………………...…… 9

8. Circuit Diagram………………………………..….….….…… 10

9. Program Diagram…………………………..…………….. 11

10. Maintenance Service and Trouble Shooting…….…... 12

11. Exploded View…………………………………...………… 32

12. List of Parts………………..………………………….… 33

CONTENT

Product code illumination and Series Introduction

H F — 240TA (102102429)

Haier product

Freezer

Gross capacity (according to

export country standard)

Product code illumination and Series Introduction

Serial Number

Specifications

Models HF-120T

HF-120TA

HF-180T

HF-180TA

HF-240T

HF-240TA

Net capacity

(L) 115 165 230

Color White White White

Power Supply

(V/Hz) 220-240~/50 220-240~/50 220-240~/50

Rated Input Power

(W) 90 110 120

Power Consumption

(kW.·h/24h) 0.60 0.63 0.67

NetWeight

(kg) 45 55 63

GrossWeight

(kg) 53 68 79

Unit Dimension (D*W*H)

(mm) 600x600x850 600x600x1134 600x600x1467

Packing Dimension

(D*W*H)(mm) 700X675X920 690X685X1215 690X685X1550

Container Quantity

40’

(PCS)

Container Quantity

40’HC(PCS) 144 102 74

Specifications

Safety precautions

Parts and Functions

A Foamed Cabinet B Short Drawer C Long Drawer

D LowerPlate EControlPanel F FoamedDoor

Parts and Functions

Function Schedule

zEnergy efficiency

zMicro foam technology

zLow noise operation

zThick insulation for energy efficiency

Function Schedule

System Flow Chart

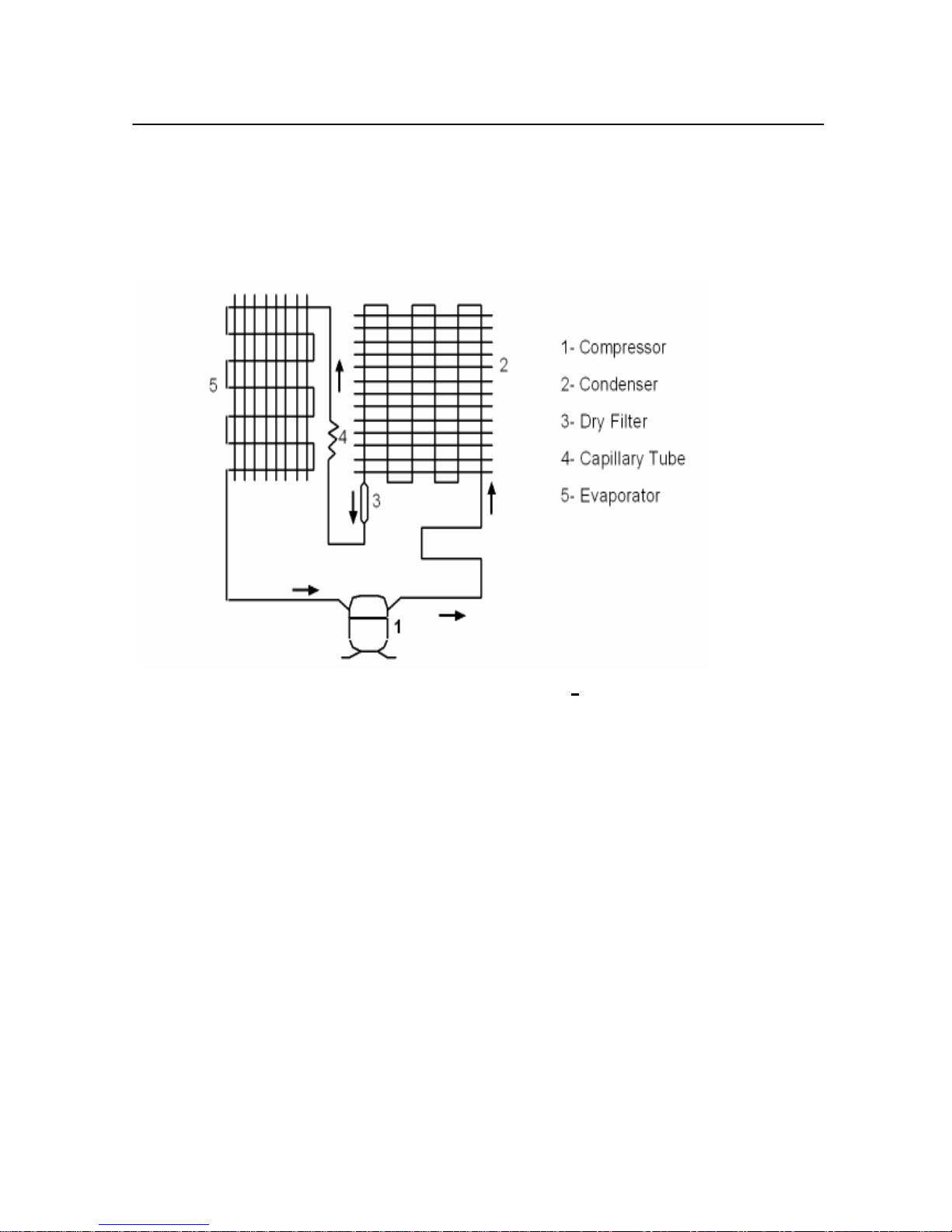

1 Schematic diagram of System Flow Chart

2 Brief Description of System Flow Chart

HF-120T/180T/240T is a direct cooling single-system freezer. When the

freezer is just powered on, the refrigerant flows in the sequence:

1->2->3->4->5.

System Flow Chart
