HADEF 50/07 Assembly instructions

5.52.157.00.01.05

Rev.05

HADEF Ratchet Lever Hoist

Type 50/07

Installation,- Operating and

Maintenance Instructions

5.52.157.00.01.05

NOTICE!

The installation or mounting instructions for incomplete machines you’ll find in chapter “Installation”



by Heinrich de Fries GmbH

Heinrich de Fries GmbH, Gauss Str. 20, D-40235 Düsseldorf

Heinrich De Fries GmbH will be named HADEF in the following text.

Original operating- and maintenance instructions in German language.

Translation in other languages is made of the German original.

A copy may be requested in writing or is available for download on www.hadef.com

Subject to changes.

Table of Contents

1Information.........................................................................................3

2Safety .................................................................................................4

2.1 Warning notice and symbols..........................................................................................4

2.2 Duty of care of the owner................................................................................................4

2.3 Requirements for the operating personnel....................................................................5

2.4 Appropriate use...............................................................................................................5

2.5 Basic safety measures....................................................................................................6

3Transport and Storage......................................................................7

3.1 Transport..........................................................................................................................7

3.2 Safety device for transport..............................................................................................7

3.3 Storage.............................................................................................................................7

4Description.........................................................................................7

4.1 Areas of application.........................................................................................................7

4.2 Design ..............................................................................................................................8

4.3 Functions .........................................................................................................................8

4.4 Important components....................................................................................................8

5Technical data ...................................................................................8

5.1 Main dimensions..............................................................................................................9

6Installation .........................................................................................9

7Operation ...........................................................................................9

7.1 Devices from 750 kg up to 6000 kg.................................................................................9

7.2 Brake and pawl ..............................................................................................................10

8Commissioning ...............................................................................10

8.1 General...........................................................................................................................10

8.2 Load chain......................................................................................................................11

9Safety check ....................................................................................11

10 Maintenance.....................................................................................11

10.1 General...........................................................................................................................11

10.2 Monitoring......................................................................................................................11

10.3 Replacing the load chain...............................................................................................11

11 Inspection ........................................................................................12

5.52.157.00.01.05

11.1 Periodic checks .............................................................................................................12

11.2 Checking the load chain................................................................................................12

11.3 Checking the load hook ................................................................................................13

11.4 Checking - pawl .............................................................................................................13

11.5 Checking – Brake System.............................................................................................14

11.6 Checking – Suspension and load hook bolt................Fehler! Textmarke nicht definiert.

12 Service .............................................................................................14

12.1 Load chain......................................................................................................................14

12.2 Pulleys............................................................................................................................15

12.3 Load hook ......................................................................................................................15

12.4 Gear................................................................................................................................15

12.5 Gear spring pressure brake..........................................................................................15

12.6 Lubricant - Selection.....................................................................................................15

12.7 Lubricant for food industry – Selection (as option*)...................................................15

13 Trouble............................................................................................. 15

14 Remedy............................................................................................ 16

15 Decommissioning ...........................................................................16

15.1 Temporary decommissioning.......................................................................................17

15.2 Final decommissioning/disposal..................................................................................17

16 Documents available on request....................................................17

1 Information

The products meet European Union requirements, in particular the valided EU Machine Directive.

The entire company works acc. to a certified quality assurance system as per ISO 9001.

The production of components at our work is subject to strict, intermediate checks.

After assembly, each product is subject to a final test with overload.

For the operation of hoists, the national accident prevention regulations apply in Germany, amongst others.

The stated performance of the devices and meeting any warranty claims require adherence to all instructions

in this manual.

Before delivery, all products are packed properly. Check the goods after receipt for any damage caused

during transport. Report any damage immediately to the forwarding agent.

This manual allows a safe and efficiently use of equipment. Images of this manual are for a principle

understanding and can be different from the real design.

NOTICE!

We refer to the prescribed equipment tests before initial start-up, before putting back into operation and the

regular periodic inspections.

In other countries any additional national regulations must be observed.

5.52.157.00.01.05

2 Safety

2.1 Warning notice and symbols

Warnings and notice are shown as follows in these instructions:

DANGER!

This means that there is a high risk that leads, if it is not avoided, to death or severe injury.

WARNING!

This means that there is a risk that could lead, if it is not avoided, to death or severe injury.

CAUTION!

This means that there is little risk that could lead, if it is not avoided, to slight injury or damage to the device or its

surrounding.

NOTICE!

Gives advice for use and other useful information.

Danger from electricity.

Danger from explosive area.

2.2 Duty of care of the owner

DANGER!

Failure to follow the instructions of this manual can lead to unpredictable hazards.

For any resulting damage or personal injury, HADEF assumes no liability.

The unit was designed and built following a risk analysis and careful selection of the harmonized standards

that are to be complied with, as well as other technical specifications. It therefore represents state-of-the-art

technology and provides the highest degree of safety.

Our delivery includes the hoist supplied beginning at its suspension and ending at the load hook and if

supplied with control, the control line/hose that leads to the hoist. Further operating material, tools, load

attaching devices as well as main energy supply lines must be assembled according to the valid rules and

regulations. For explosion-proof equipment, all these parts must be approved for use in area prone to

explosion, or they must be suitable for use in area prone to explosion. The owner is responsible for this.

However, in everyday operation this degree of safety can only be achieved if all measures required are

taken. It falls within the duty of care of the owner/user of the devices to plan these measures and to check

that they are being complied with.

Complete the operating and installation instructions by any instructions (regarding supervision or

notifications)that are important for the special kind of use of the equipment, i.e. regarding organization of

work, work flow and human resources.

In particular, the owner/user must ensure that:

The unit is only used appropriately.

The device is only operated in a fault-free, fully functional condition, and the safety components, in

particular, are checked regularly to ensure that it is functioning properly.

The required personal protective equipment for the operators, service and repair personnel is available

and is used.

The operating instructions are always available at the location where the equipment is used and that they

are legible and complete.

The unit is only operated, serviced and repaired by qualified and authorized personnel.

This personnel is regularly trained in all applicable matters regarding safety at work and environmental

protection, and that they are familiar with the operating manual and, in particular, the safety instructions it

contains.

Any safety and warning signs on the devices are not removed and remain legible.

Devices for use in area prone to explosion must (from customer's side) be earthed with a shunting

resistor of < 106Ω against earth.

WARNING!

It is not allowed to make constructive changes of the equipment!

5.52.157.00.01.05

2.3 Requirements for the operating personnel

The units may only be operated by qualified persons that are appropriately trained and that are familiar with

it. They must have their employer’s authorization for operation of the units.

Before starting work, the operating personnel must have read the operating and installation instructions,

especially the chapter "Safety Instructions".

This is especially important for operating personnel that rarely uses the equipment, i.e. for installation or

maintenance work.

DANGER!

In order to avoid severe injury, please pay attention to the following when using the equipment:

Use protective clothes/equipment.

Do not wear long hair hanging down open.

Do not wear rings or other jewelry.

Do not wear clothes that are too big/wide.

Do not reach into ropes, chains, drive parts or other moving parts with your hands

2.4 Appropriate use

The permitted safe working load of the devices must not be exceeded! An exception can be made during the

load test before initial operation, carried out by a licensed qualified person.

The permissible ambient temperature during operation of manual driven devices is -20 ° C / + 50 ° C and

at all power driven devices -20 ° C / + 40 ° C!

Defective devices and load suspension devices must not be used until they have been repaired! Only

original spare parts must be used. Non-compliance will result in any warranty claims becoming void.

Liability and warranty will become void if unauthorized modifications of the units are made by the user!

Vertical lifting, lowering, pulling and tightening of loads.

It must be assured that the unit can position itself in true alignment to the load.

DANGER!

Ratchet hoists with ship hook can be used for tightening!

Only ship hooks can be loaded on its point!

The ratchet hoist is "a unit ready for operation"acc. to the valid national regulations and obtails the

declaration of conformity CE.

NOTICE!

If the units are not used appropriately, it is not possible to ensure safe operation.

The owner and operator have sole liability for all personal injury and damage to property arising from

inappropriate use.

DANGER!

It is not allowed:

Pulling loose of stuck loads, dragging of loads and inclined pulling is not allowed.

The use in area at risk from explosion.

In reactor containment vessels.

To transport people with the equipment.

The device is not suitable for use on stages and in studios!

Persons must not stand under a suspended load.

Motor drive of the equipment.

Blocking of the loose chain end.

Charging the loose chain end.

Dragging of loads with motor-driven hoists.

5.52.157.00.01.05

2.5 Basic safety measures

Observe installation-, operation and maintenance instruction.

Take notice of caution notes at units and in the manual

Observe safety distances.

Take care for a free view on the load.

Only use the hoists appropriately.

The equipment is to be used exclusively for movement of goods. Under no circumstances my persons be

moved.

Never load the devices beyond their working load limit.

Pay attention to the accident prevention regulations (UVV).

Should the hoist be used outside of Germany, please pay attention to the national regulations that apply.

Supporting structures and load-attached devices used in conjunction with this equipment must provide an

adequate safety factor to handle the rated load plus the weight of the equipment. In case of doubt, consult

a structural engineer.

If the equipment has not been used for a period of time, carry out visual checks of all main components

such as chains, load hooks etc. and replace any damaged parts with new, original spare parts before

putting the equipment back into operation!

Do not use a hoist that is defective, pay attention to any abnormal noise it makes during operation.

Stop working immediately in case of disturbances and remedy failures.

Any damage and faults must be reported to a responsible supervisor immediately.

If the unit is put into motion, any persons in the immediate vicinity must be informed by calling to them!

Please pay attention to the regulations for load carrying devices UVV for both positive and non-positive

methods of attaching loads.

The lifting tackle or the load must be securely attached to the hook and be seated at the bottom of the

hook.

The safety catch of hooks must be closed.

When charged, the housing may not be in contact somewhere.

Stop lowering the load when the bottom block or the load is being set down or is prevented from being

lowered further.



The load chain must not be twisted.

Twisted chains must be aligned before attaching the load.

The correct alignment of the chain links can be seen from the weld seams.

The chain links must always be aligned in one direction.

Don't bump against something with load or hook

Illustration 1

We recommend a unit with sliding clutch to prevent overload, when the unit is used for tightening,

Motor drive is prohibited.

5.52.157.00.01.05

WARNING!

The following is not allowed:

to lift another load than the nominal safe working load

to manipulate the sliding clutch

The use of elongated or damaged chains. Replace worn out chains immediately by new, original chains.

Never loop the load chain around a load nor place or pull the chain over edges.

Never repair damaged load hooks (e.g. by hammering). They must be replaced by original hooks.

Do not operate the hoist by stepping on the lever with a foot.

Never use an elongation piece for the lever.

It is prohibited to charge the load hook at its point. (Only allowed for hoists with shipyard hook)

It is prohibited to weld or cut when a load is suspended.

It is prohibited to swing the load.

It is prohibited to use the load chain for earthing during welding.

Do not use the hoist when it makes abnormal noise.

Do not use the lever without rubber handle.

Do not leave a lifted load unintended for a longer period of time.

3 Transport and Storage

CAUTION!

Transport may only be done by qualified personnel. No liability for any damage resulting from improper

transport or improper storage.

3.1 Transport

The devices are checked and if so adequately packed before delivery.

Do not throw or drop the equipment.

Use adequate means of transport.

Transport and means of transport must be suitable for the local conditions.

3.2 Safety device for transport

NOTICE!

Should a safety device for transport exist, please remove it before commissioning.

3.3 Storage

Store the equipment at a clean and dry place.

Protect the equipment against dirt, humidity and damage by an appropriate cover.

Protect hooks, wire ropes, chains and brakes against corrosion.

4 Description

4.1 Areas of application

The devices must be as far as possible installed in a covered room.

If they are used in the open, protect the units against the effects of weather such as rain, hail, snow, direct

sunshine, dust, etc. - we recommend to use a cover in parking position. If the device is set up in a

continuously humid environment with strong temperature fluctuations, the correct functionings are

endangered by the forming of condensation.

Ambient temperature -20°C up to +50°C. Power-operated units -20 up to +40°C. Humidity 100 % or less but

not under water

5.52.157.00.01.05

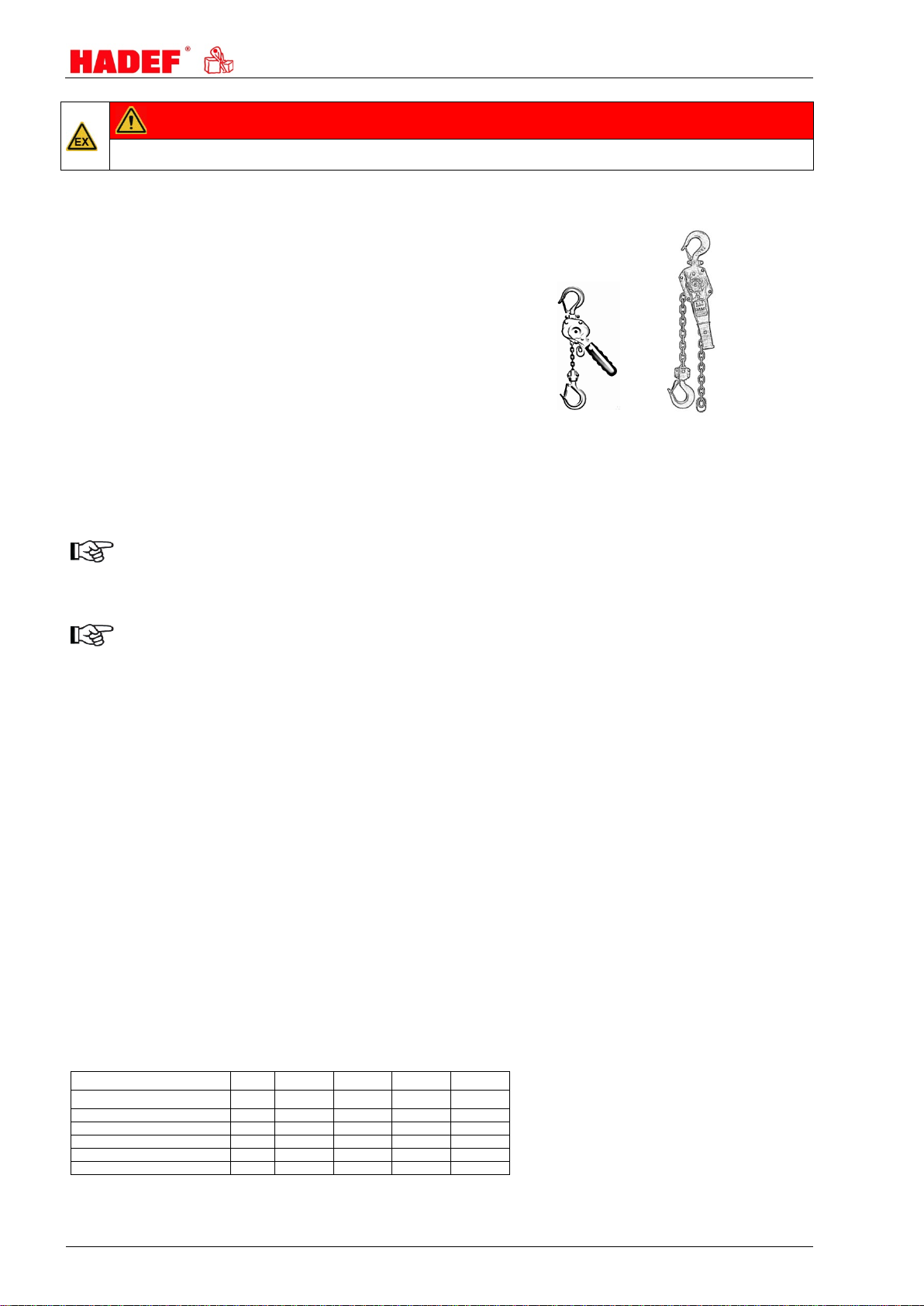

DANGER!

It is not permitted to use the unit in an area at risk from explosion!

4.2 Design

HADEF ratchet lever hoists are compact hoists

with suspension hook for stationary use.

Illustration 2

4.3 Functions

The load is lifted, lowered or tensioned by operating the lever. The load pressure brake prevents automatic

lowering of the load.

NOTICE!

If used "overhead" or "lashing" undefined forces may appear. We recommend to use a hoist with

slipping clutch for these cases.

NOTICE!

The best protection against functional failures in case of extreme environmental impact is the regular use of

the equipment.

4.4 Important components

Gearbox

Gear box parts are made of high-quality material.

Load pressure brake

Holds the load in any position.

Housing

Made of steel plate.

Load chain

According to EN 818-7-T high quality chain. All components match precisely to each other. Use only original

chains.

Load hook

Forged steel. Rotating, this facilitates attaching the load and avoids twisting of the chain. With safety catch.

Free-wheeling of chain

For pulling through of the uncharged chain.

5 Technical data

Capacity 750 kg 1,5 t 3 t 6 t

Number of chain falls 1 1 1 2

Load chain dimensions

5,6x17

7,1x21

10x30

low headroom dimension

280

350

420

570

lever force approx.

daN

weight* approx.

6,.2

9,6

15,5

weight per add. m lift approx.

0,7

1,1

2,.2

4,4

5.52.157.00.01.05

5.1 Main dimensions

dimensions

750 kg 1,5 t 3 t 6 t

122

142

185

239

140

167

188

266

414

107

113

280

350

420

570

Illustration3

6 Installation

Please observe the following points in order to avoid any damage to equipment or injury of person:

Please read chapter "Safety".

Before loading the hoist make sure the hooks are placed safely. The safety catch of the hook must be

closed.

Make sure that the fastening position cannot be changed either by the load nor by other influences.

7 Operation

Only people that are familiar with the operation of the lifting devices and cranes may be entrusted with their

operation. They must be authorized by the employer for the operation of the equipment. The employer must

ensure that the operating instructions are available near the equipment and that they are accessible for the

operating personnel.

7.1 Devices from 750 kg up to 6000 kg

Before start up please make sure the free-wheeling mechanism is deactivated.

Forcible pulling may possibly close the brake and stop the chain. Should this be the case place the switching

pin in position "▼", do some lowering operation movements and begin lifting again.

Lifting or pulling

Turn the switching pin in position lifting (1) or

pulling (2) as marked on the type plate and move

the load by operating the hand lever.

Lowering or relieving

Turn the switching pin in position lowering or

relieving (2) and move the load

by operating the

hand lever.

Illustration 4

7.1.1 Free-wheeling of chain

DANGER!

Never activate the free-wheeling mechanism if the hoist is under charge.

Switching ON the free-wheeling mechanism

switch in middle position

Illustration 5

5.52.157.00.01.05

Turn the free-wheeling mechanism anti-

clockwise, if necessary pull the loose fall of the

chain jerkily.

The chain can be pulled through in both

directions.

Illustration 6

Switching OFF the free-wheeling mechanism

Turn the free-wheeling mechanism clockwise,

if necessary pull the chain fall jerkily.

Free-wheeling mechanism is switched OFF.

The chain cannot be pulled through any longer

and working operation can be proceeded.

Illustration 7

7.2 Brake and pawl

The brake system needs a minimum load of 3% of the capacity.

Only this minimum load makes sure that the load-pressure-brake closes correctly. When the brake closes

correctly, the load is safely held.

DANGER!

Working situations with no guarantee that the minimum load is charged, are forbidden!

The brake remains closed (stuck) if:

The ratchet lever hoist is uncharged without lowering the load, i.e. in case of vertical lifting/lowering or in

case of horizontal pulling/tensioning.

The load hook is pulled against the housing and got stuck there.

The chain does not move, the load cannot be lowered.

Remedy:

Charge the ratchet lever hoist again

Release the brake by setting down the load.

OR: Turn the switching pin to position "Lowering" and release the hand lever with a strong jerk in direction

"▼".

8 Commissioning

8.1 General

Should the unit be used in Germany:

Please observe the validated, national accident prevention regulations.

For other countries:

Inspections as above. Please observe the national rules and regulations and the instructions in this manual!

NOTICE!

Hoists up to 1000 kg capacity and without motor-driven trolleys of hoisting unit must be tested by a “qualified

person” before putting into operation for the first time.

Hoists of 1000 kg capacity and up or with more than one motor-driven hoist movement; i.e. lifting and trolley

movement, must be tested by a “licensed qualified person” before putting in operation.

An exception is “hoists ready for operation” acc. validated national regulations with EU-declaration of

conformity.

Definition “qualified person” (former expert)

A “qualified person” has learned, due to occupational training and experience and the job that the person has

done, the skills needed to tests the material for one’s work.

Table of contents

Other HADEF Chain Hoist manuals

HADEF

HADEF 32/20 User manual

HADEF

HADEF 29/06AP-EX Assembly instructions

HADEF

HADEF 29/12 HH Assembly instructions

HADEF

HADEF 29/12-EX User guide

HADEF

HADEF 9/12-VA User manual

HADEF

HADEF 24/12 Assembly instructions

HADEF

HADEF 25/19 Assembly instructions

HADEF

HADEF 22/90 User manual

HADEF

HADEF 28/06 AP-EX Assembly instructions

HADEF

HADEF 28/06E Assembly instructions

HADEF

HADEF 11/09 Assembly instructions

HADEF

HADEF 70/06 APS Assembly instructions

HADEF

HADEF 29/06E series Assembly instructions

HADEF

HADEF 27/12 HR Assembly instructions

HADEF

HADEF 21/12 Assembly instructions

HADEF

HADEF 9/12 Assembly instructions

HADEF

HADEF 29/06E series Assembly instructions

HADEF

HADEF 108/99 User guide

HADEF

HADEF 20/94 AFR User manual

HADEF

HADEF 53/07 Assembly instructions

HADEF

HADEF 66/04 AKS User manual

HADEF

HADEF 24/12 Assembly instructions

HADEF

HADEF 20/94 AF Series Assembly instructions

HADEF

HADEF 25/13 Assembly instructions

Popular Chain Hoist manuals by other brands

EINHELL

EINHELL Herkules H-F 1000 operating instructions

RED ROOSTER

RED ROOSTER TCR-250 user manual

POWERTEX

POWERTEX PCB-S1 Instructions for use

Parkside

Parkside PSZ 250 A1 Operation and safety notes

Ingersoll-Rand

Ingersoll-Rand QCH Series Product information

Creative Conners

Creative Conners CM Varistar Smart Chain Hoist Reference manual

Stagemaker

Stagemaker SR05 user manual

KITO

KITO TCL Series owner's manual

CRYSTEEL

CRYSTEEL LO-BOY manual

Performance Tool

Performance Tool W4005DB owner's manual

Parkside

Parkside PSZ 250 A1 Original operating instructions

Stahl

Stahl ST Series Product information

Coffing Hoists

Coffing Hoists EC Series Operating, Maintenance & Parts Manual

CM 622A Series Operating, Maintenance & Parts Manual

KITO

KITO RY Series Disassembly and Reassembly

Haklift

Haklift LOABT800 Original instructions

Tractel

Tractel bravo Operating and maintenance instruction

Villager

Villager VEH 250 Original operating instructions
