H3C MSR 2600 Operating and maintenance manual
1
The installation tools are not provided with the router. Prepare them yourself.
路由器不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver
一字螺丝刀
Phillips screwdriver
十字螺丝刀
Needle-nose pliers
尖嘴钳
Wire-stripping pliers
剥线钳
ESD-preventive wrist strap
防静电腕带
Blow dryer
热吹风
Drill
电钻
Claw hammer
羊角锤
Marker
记号笔
Screw and anchor kit
( User supplied )
螺钉和安装导管(用户自备)
Ring terminal
( 26-00-5 supplied )
接地端子
( 26-00-5提供 )
Rubber pads
胶垫贴
3G antenna
( 26-00-5-GU/GT supplied )
3G天线
( 26-00-5-GU/GT提供 )
3G/4G extender cable
( User-supplied )
3G/4G天线延长线
（用户自备）
3G/4G antenna bracket
( User-supplied )
3G/4G天线支架
（用户自备）

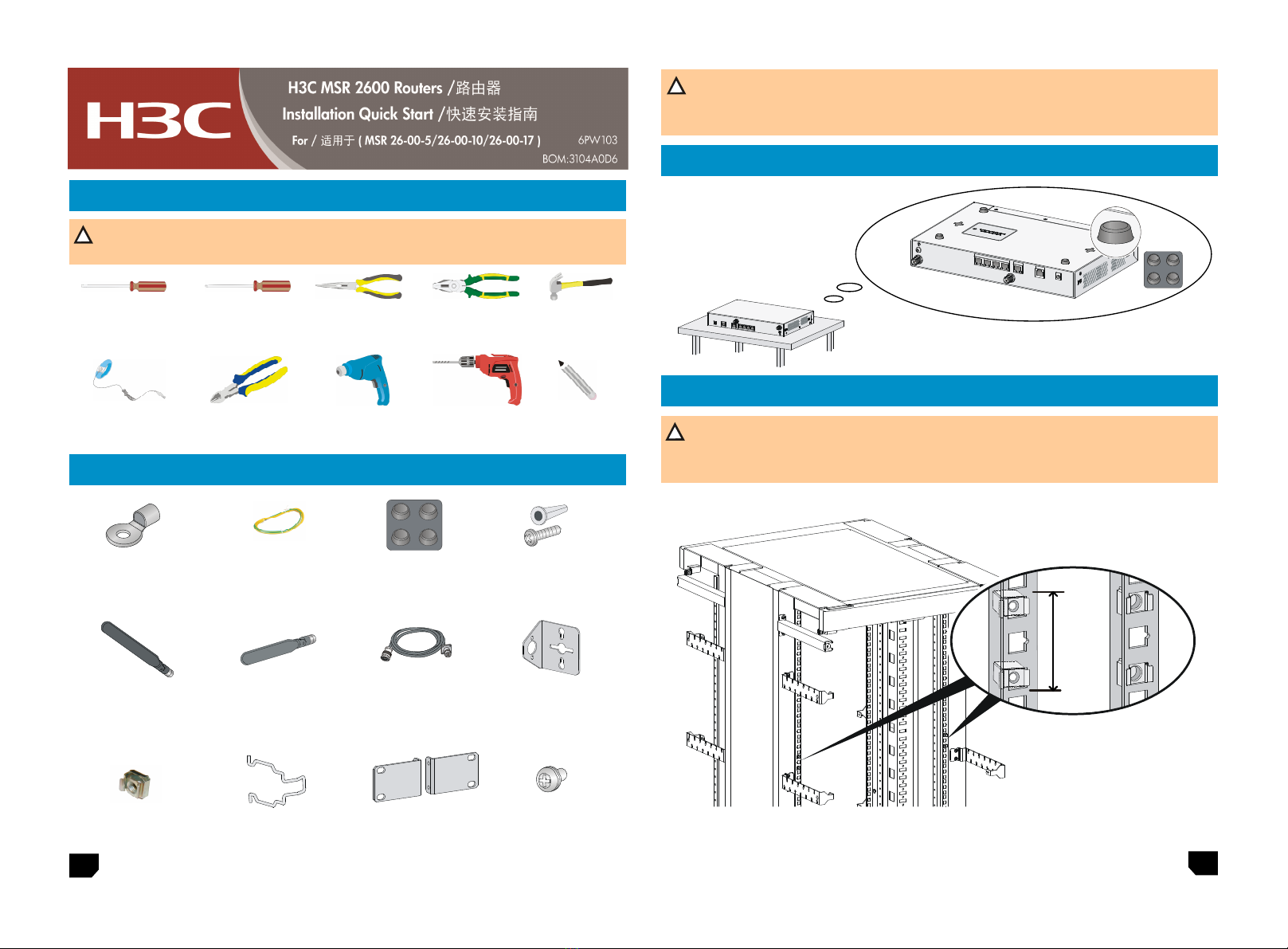

Tool List 工具参考
Introduction of Installation Accessories 安装附件介绍
4G antenna
( 26-00-5-LM supplied )
4G天线
( 26-00-5-LM提供 )
Diagonal pliers
斜口钳
Cage nut (user supplied)
浮动螺母(需自备)
Grounding cable
( 26-00-10/17 supplied )
地线
( 26-00-10/17提供 )
26-00-10/17 Bail latch (required)
26-00-10/17电源线卡勾(标配)
M4 screw
( required )
M4 螺钉(标配)
26-00-10/17Mounting
bracket ( required )
26-00-10/17挂耳(标配)
Mounting the Router to a Workbench 安装路由器到工作台
2
Stick the rubber pads to the
appropriate positions on the
router bottom
将脚垫粘贴到路由器底部
Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin
contact and is well grounded. 操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好
接触，并确认防静电腕带已经良好接地。
Mounting the Router to a Rack 安装路由器到机柜
Supplied mounting brackets and the installation modes depend on your device model.
对于不同款型的设备，标配挂耳及挂耳的安装方式不同，安装挂耳到路由器时请按照
实际情况进行选择。
Install cage nuts. 安装浮动螺母
1U
This section is only applicable to the MSR 26-00-10 and MSR 26-00-17 router.
本节内容仅适用于MSR 26-00-10和MSR 26-00-17款型。
3

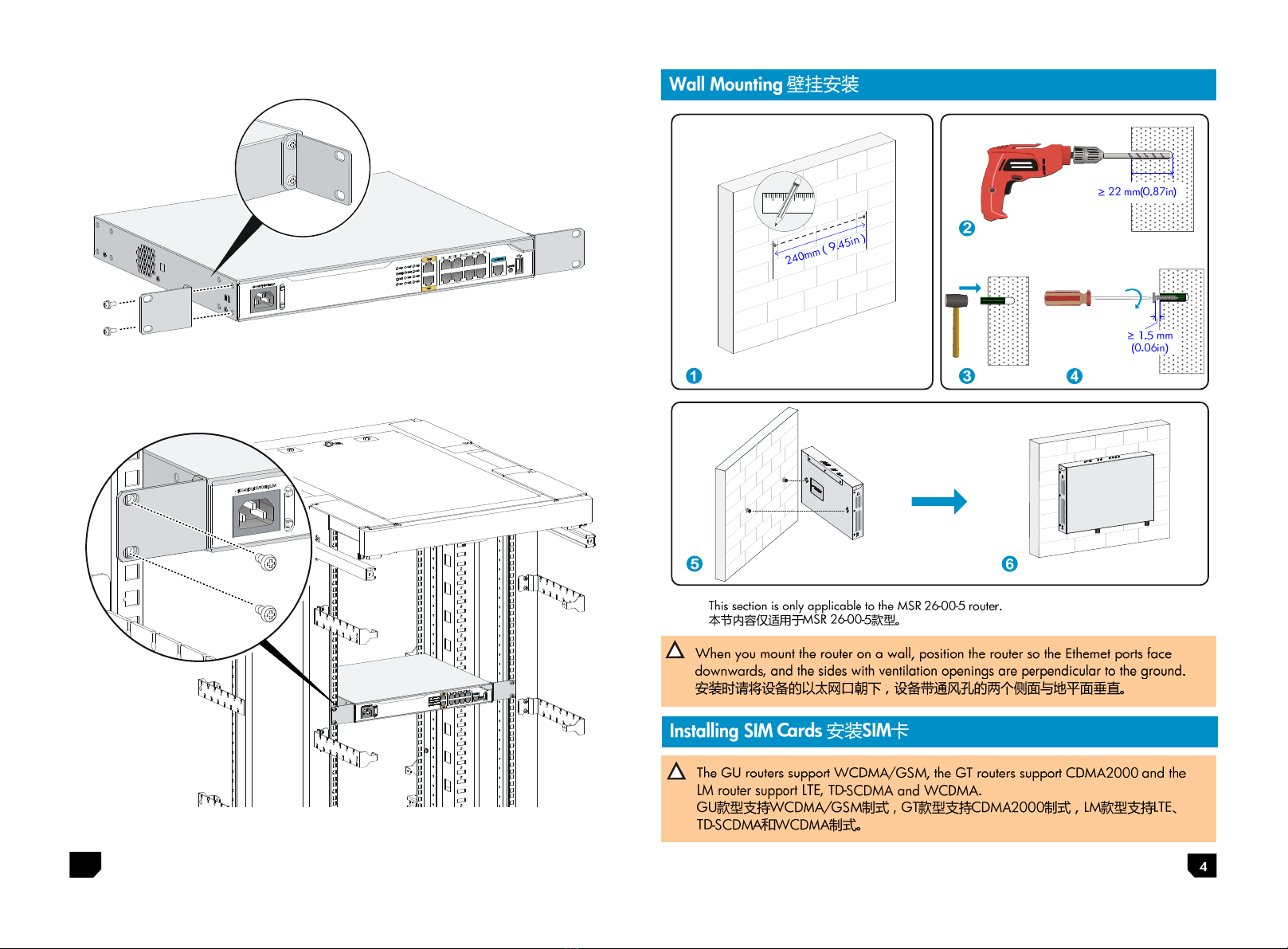

Attach the mounting brackets to the router. 安装挂耳到路由器
Mount the router to the rack. 安装路由器到机柜
This section is only applicable to the MSR 26-00-10 and MSR 26-00-17 router.
本节内容仅适用于MSR 26-00-10和MSR 26-00-17款型。
This section is only applicable to the MSR 26-00-10 and MSR 26-00-17 router.
本节内容仅适用于MSR 26-00-10和MSR 26-00-17款型。
5
错误的安装方式 Incorrect Installation：
正确的安装方式 Correct Installation：
1
9
23
45
67
SIM2

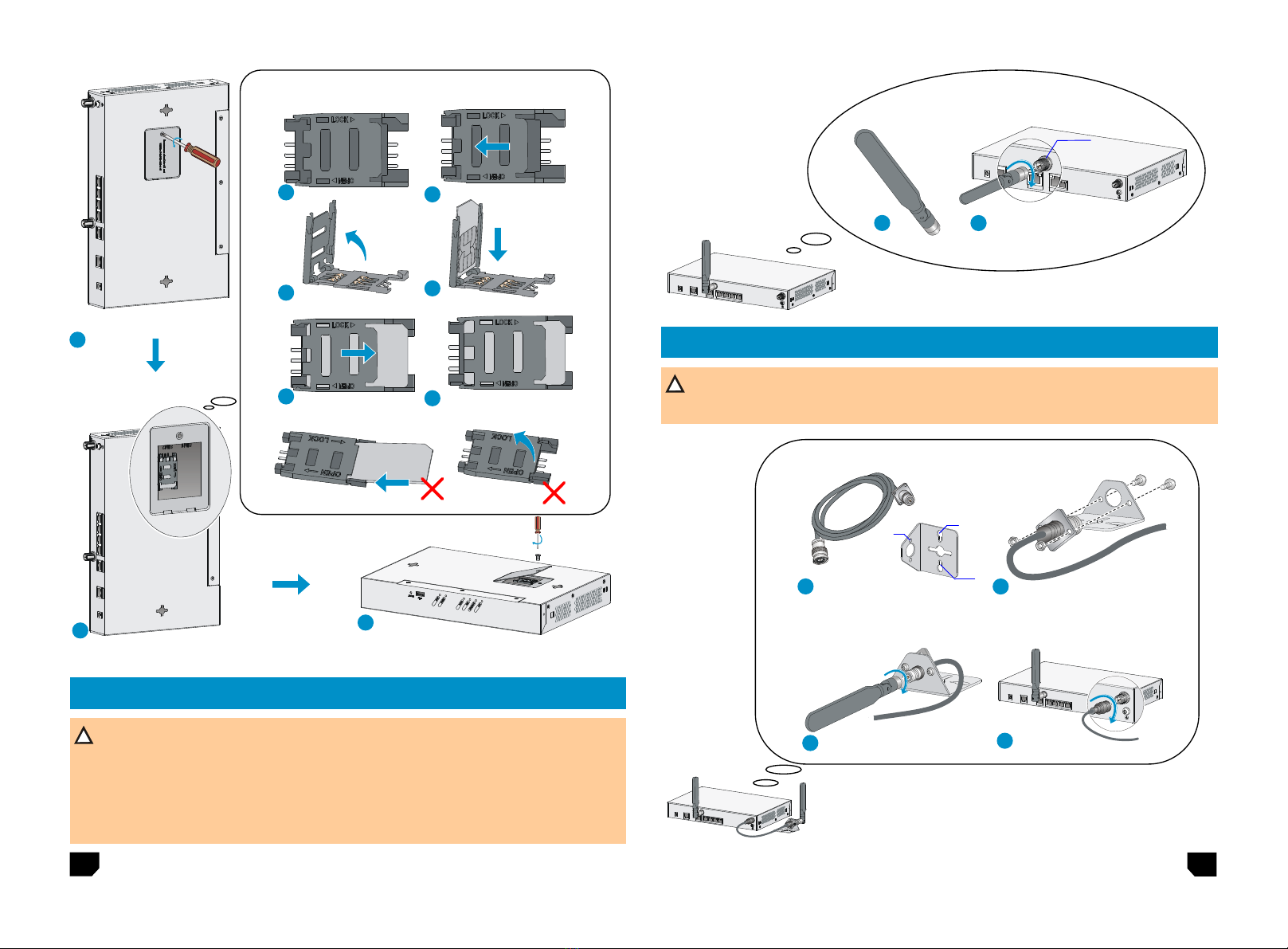

Installing the 3G/4G Antenna 安装3G/4G天线
Two 4G antennas are provided with a 4G LM router. One 3G antenna is provided with a
3G GU/GT router. When you install a 3G antenna on a GU/GT router, attach the
antenna to the port marked "MAIN." If you need to install two 3G antennas on a GU/GT
router, purchase one separately.
LM是4G款型，随机提供两根4G天线。GU/GT是3G款型，随机仅提供一根3G天线，请将
天线安装在标有MAIN字样的接口上。当用户需要配置两根3G天线时，天线请单独购买。
8
This section is only applicable to the MSR 26-00-5 router.
本节内容仅适用于MSR 26-00-5款型。
6
1 2
Installing the 3G/4G Extender Cable 安装3G/4G天线延长线
The 3G/4G extender cable is not supplied with the router. Prepare it yourself.
3G/4G延长线不随机提供，用户可根据需要单独购买。
MAIN
1
3
2
4
M3 M6
M2.9
This section is only applicable to the MSR 26-00-5 router.
本节内容仅适用于MSR 26-00-5款型。
This section is only applicable to the MSR 26-00-5 router.
本节内容仅适用于MSR 26-00-5款型。
Copyright © 2017, New H3C Technologies Co., Ltd.
For more information about the product and installation procedures, log in to www.h3c.com.hk
Copyright © 2017 新华三技术有限公司 版权所有，保留一切权利。
如需了解产品及安装方面的更多信息，请登录 H3C 网站 www.h3c.com
7

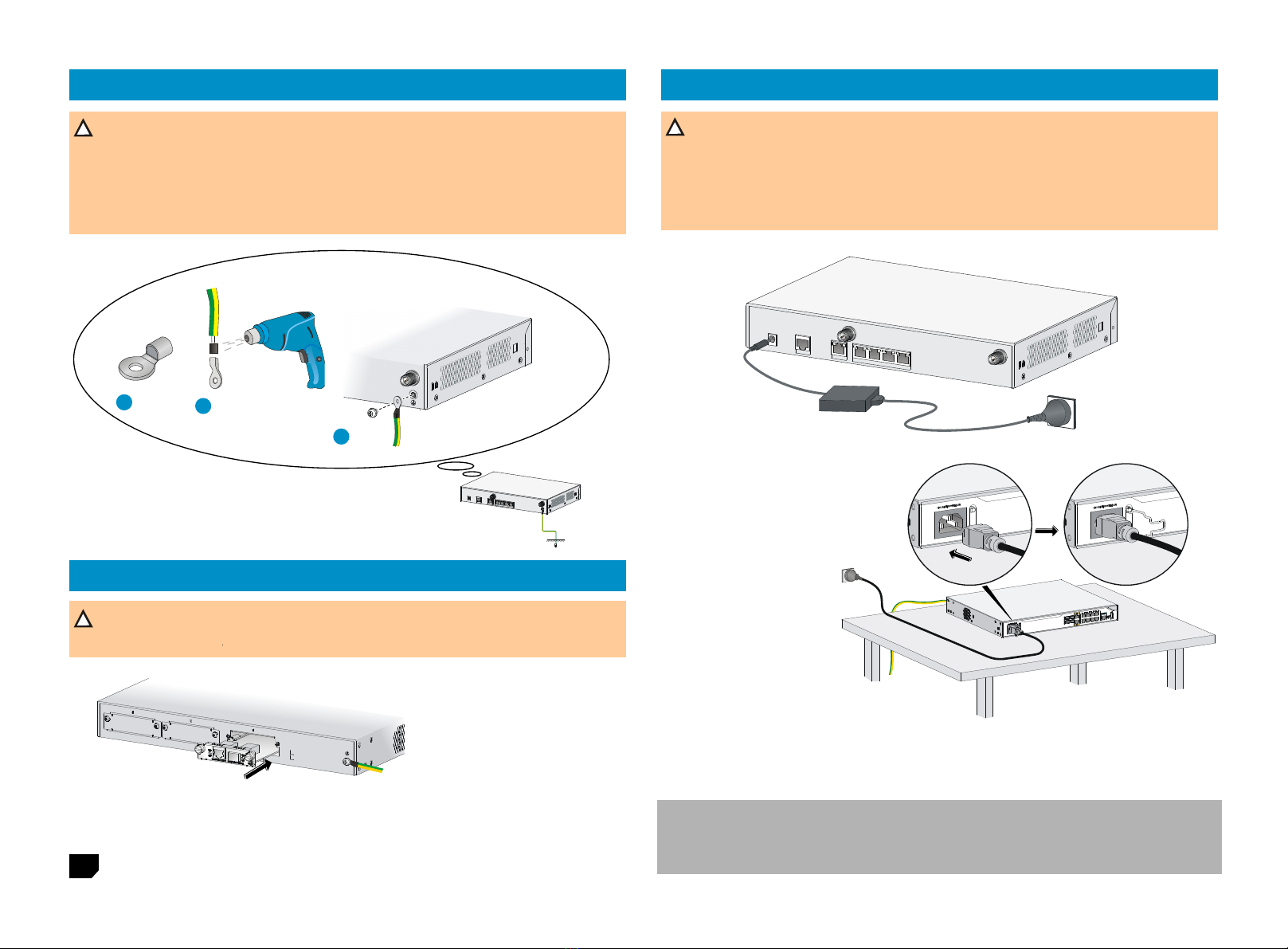

Connecting the Grounding Cable 连接保护地线
Correctly connecting the grounding cable is crucial to lightning protection and EMI
protection. Use the ring terminal supplied with the router to make a grounding cable
and make sure the grounding cable is well grounded.
路由器地线的正确连接是路由器防雷、防干扰的重要保障，请使用设备随机提供的接
地端子制作保护地线，并正确接地。
2
3
1
Installing an Interface Card 安装接口模块
SIC interface cards are not hot swappable.
SIC接口模块不支持热插拔。
This section is only applicable to the MSR 26-00-10 and MSR 26-00-17 router.
本节内容仅适用于MSR 26-00-10和MSR 26-00-17款型。
Connecting the Power Cable 连接电源线
Before connecting the power cable, make sure the router is correctly grounded.
在连接电源线前，需保证设备已正确接地。
To avoid bodily injury, connect the power cable to the router first and then to the
equipment-room power supply system. 在连接电源线时，请先完成电源线与路由器侧
的连接，再进行电源线与机房供电系统的连接，以免造成人身伤害。
MSR 26-00-10 / MSR 26-00-17
MSR 26-00-5
