Brief Instructions 2
Battery/microcassette compartment...............2
Safety lock......................................................2
Tape speed .....................................................2
Tape counter...................................................2
Recording.......................................................3
Playback.........................................................3
Fast forward and rewind.................................3
Quick-erase.....................................................3
Preparation 4
Battery / rechargeable battery operation.........4
Operation with the mains unit 678 CW ...........5
Connecting an earphone.................................6
Tape speed......................................................6
Recording Dictations 7
Recording.......................................................7
Voice-activated start/stop ...............................7
Care and Maintenance 9
Tape heads and recording mechanism............9
Housing........................................................10
What you should know.................................10
Technical Data 11
Accessories 12
Warranty, Service, Sales 13
Contents
ķ1
GB
F
I
NL
S
DK
N
E
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 1

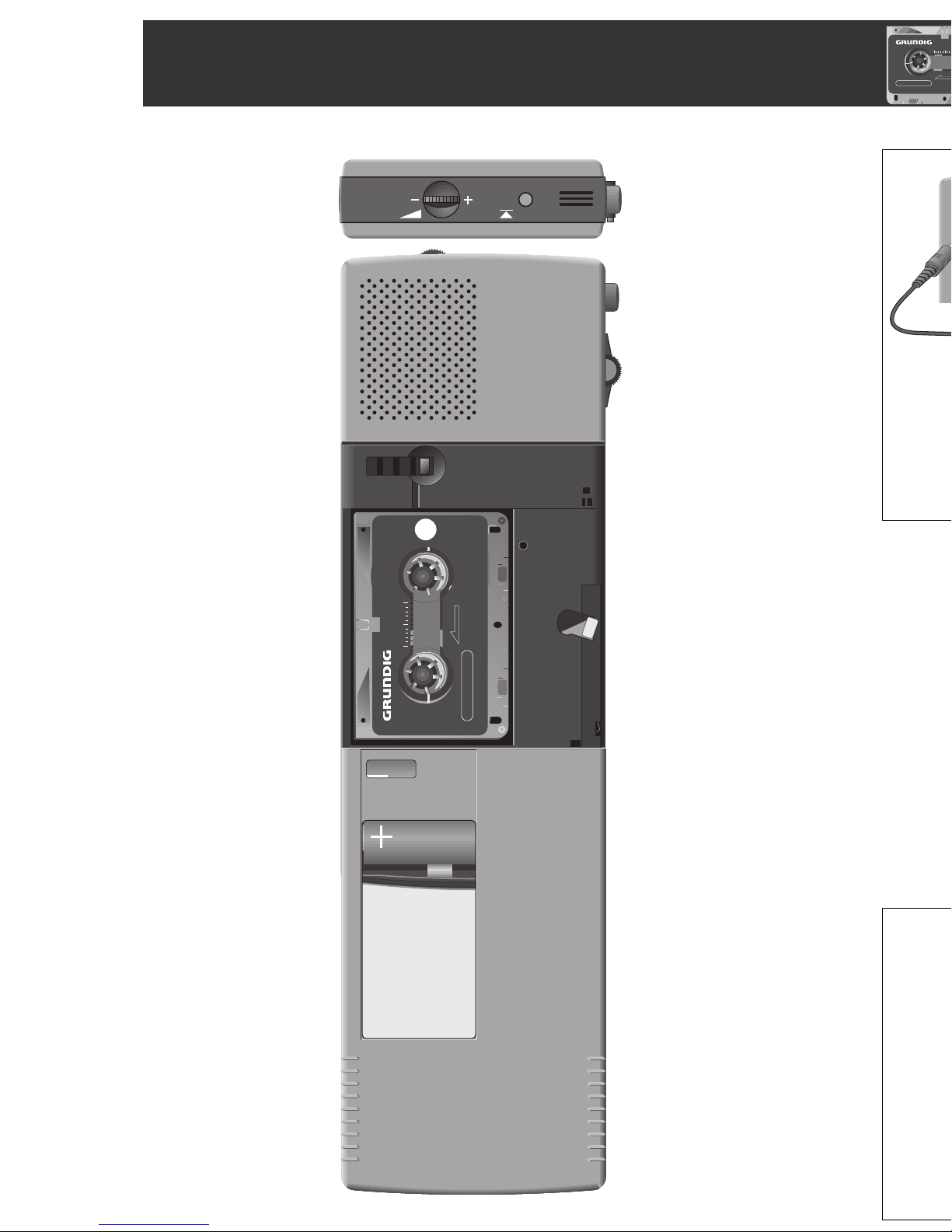

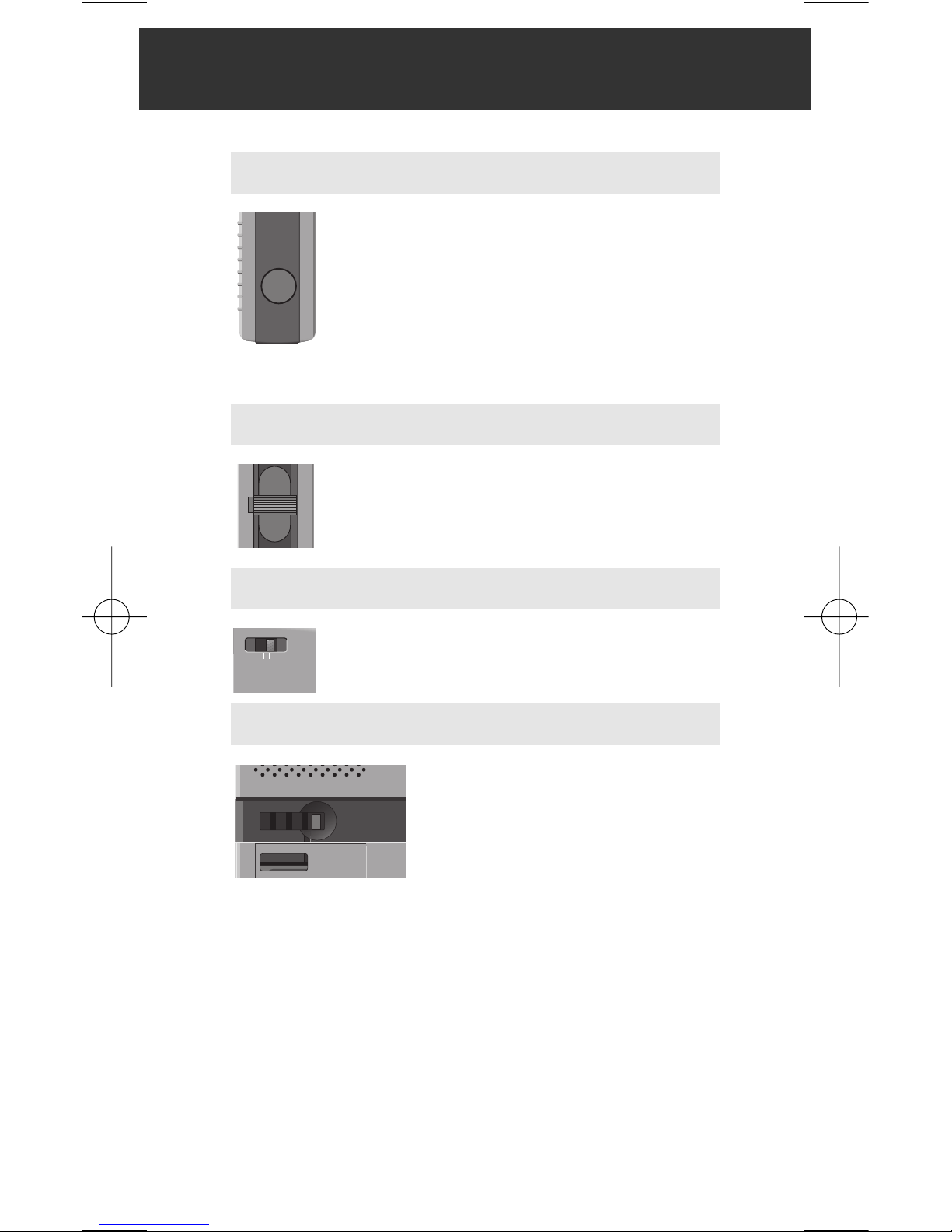

Battery/microcassette compartment
Insert batteries/rechargeable batte-
ries: press and hold down the green
"LID LOCK" button and pull off the
cover. Insert a cassette: slide open
the cover to its end stop.To remove
the microcassette tilt the machine.
Safety lock
Press against the red or green end.
Red mark visible: Safety lock of the
slide-switch is activated.
Tape speed
Set tape speed with the "SPEED"
slide-switch at the back.
Tape counter
Reset the tape counter: press
the "O-SET" button next to
the tape counter below the
sliding cover.
123 0-SET
0-SET
COUNTER
SPEED1.2 2.4
Brief Instructions
ķ2
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 2
Recording
Sensitivity for voice-activated
start/stop mode: "HIGH", "LOW" or
"OFF".
ļ
–
Activate recording: press the red
"DICTATE" button (locks in).
ŁRecording-start: set slide-switch to
"START".
Recording-pause: set the slide-
switch to "STOP".
Playback
ŁPlayback-start: set the slide-switch
to "START".
Playback-stop: set the slide-switch
to "STOP".
|Volume: set with the "VOL" adjuster.
Fast forward and rewind
ŁŁ Fast forward (with sound): set the
slide-switch to "FFWD".
ĵĵ Rewind (with sound): set the slide-
switch to "REWIND".
Quick-erase
ļ
–
Press and hold the "DICTATE"
button.
ĵĵ Set the slide-switch to "REWIND".
OFF HIGH
LOW VA
Brief Instructions
ķ3
GB
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 3
Battery / rechargeable battery operation
Battery/rechargeable battery indicator (and
recording indicator): lights up on recording.
Goes out if the battery/rechargeable battery
gets weak. Recording is still possible until the
motor stops running (sound signal).
Rechargeable battery operation
The rechargeable batteries 662* are recharged
by means of the mains/charging unit 678CW*
inside the set.
The charging time is approximately 18 hours.
During charging, the set remains fully operative.
Warning
The mains unit is designed for use with the
GRUNDIG Dh 2028 only. Use the mains unit
"678 CW UC"for the USA and Canada, the
mains unit "678 CW GB"for Great Britain, and
"678 CW"for the rest of Europe. Do not use the
mains unit if the plugs and cables are damaged.
Attention
Remove the batteries from the set when they
are exhausted or if the set is not to be used
for a long time.
Grundig accepts no responsibility for dama-
ge caused by leaking batteries.
Preparation
ķ4
* Grundig accessory
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 4

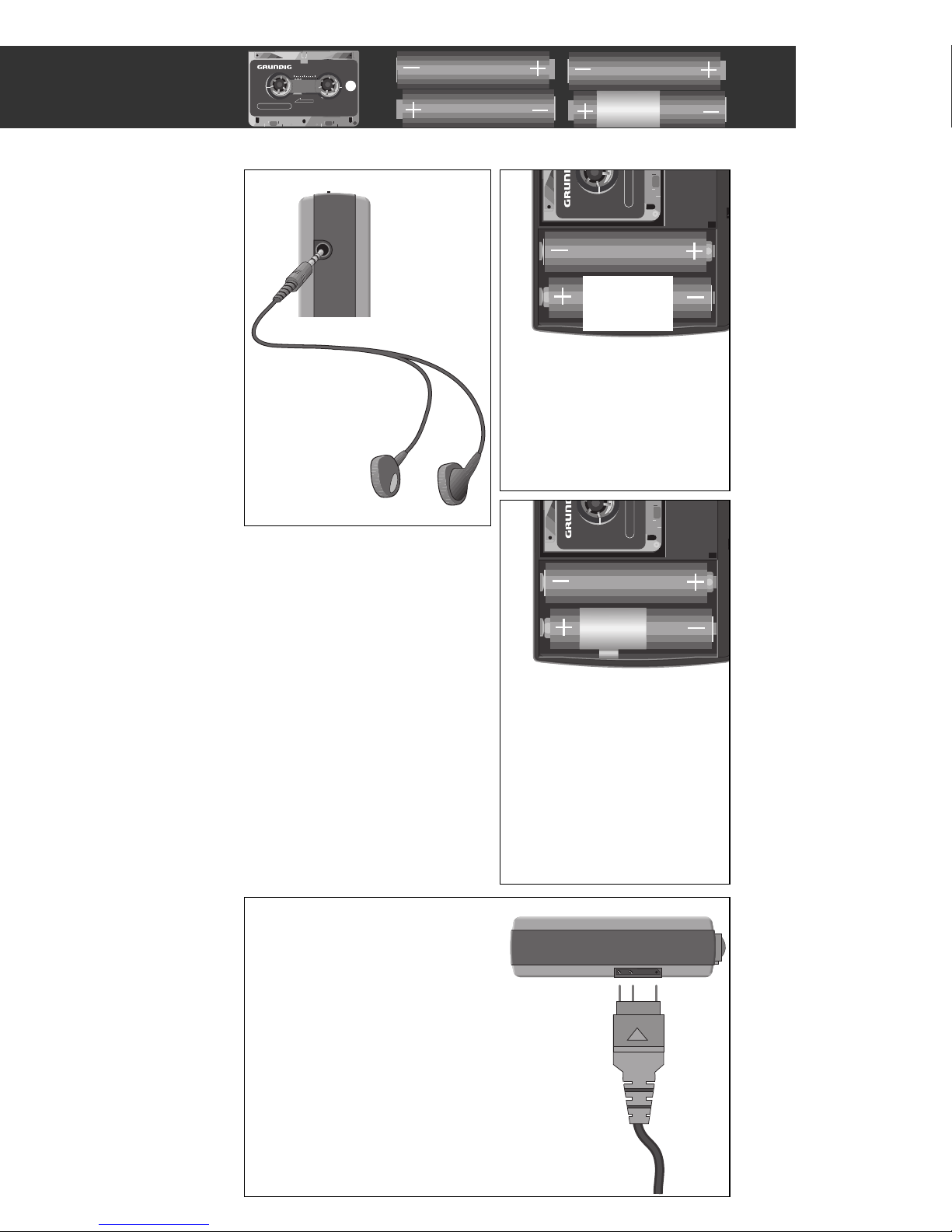

Battery/rechargeable battery compartment
Press and hold down the ĵ
l
LID LOCK
button, then remove sliding cover
from the unit.
Inserting batteries: Ensure correct
polarity (+/–); see figure p.
Inserting rechargeable batteries:
Observe correct polarity and position. Insert
the rechargeable battery with the removed
sheathing into the compartment with the late-
ral charging contact; see fig. ü. Refit and close
sliding cover.
Note on Environmental Protection
Do not throw exhausted batteries in the house-
hold refuse. Hand over the old batteries to your
dealer or public collection points when buying
new ones.
Operation with the mais unit 678 CW
See Fig. +at the beginning of this booklet.
The batteries in the set are switched off; if
rechargeable batteries 662* are fitted, they will
be charged.
Warning
Please observe the hints given in the
"Battery/rechargeable battery operation"
chapter.
Preparation
ķ5
* Grundig accessory
GB
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 5

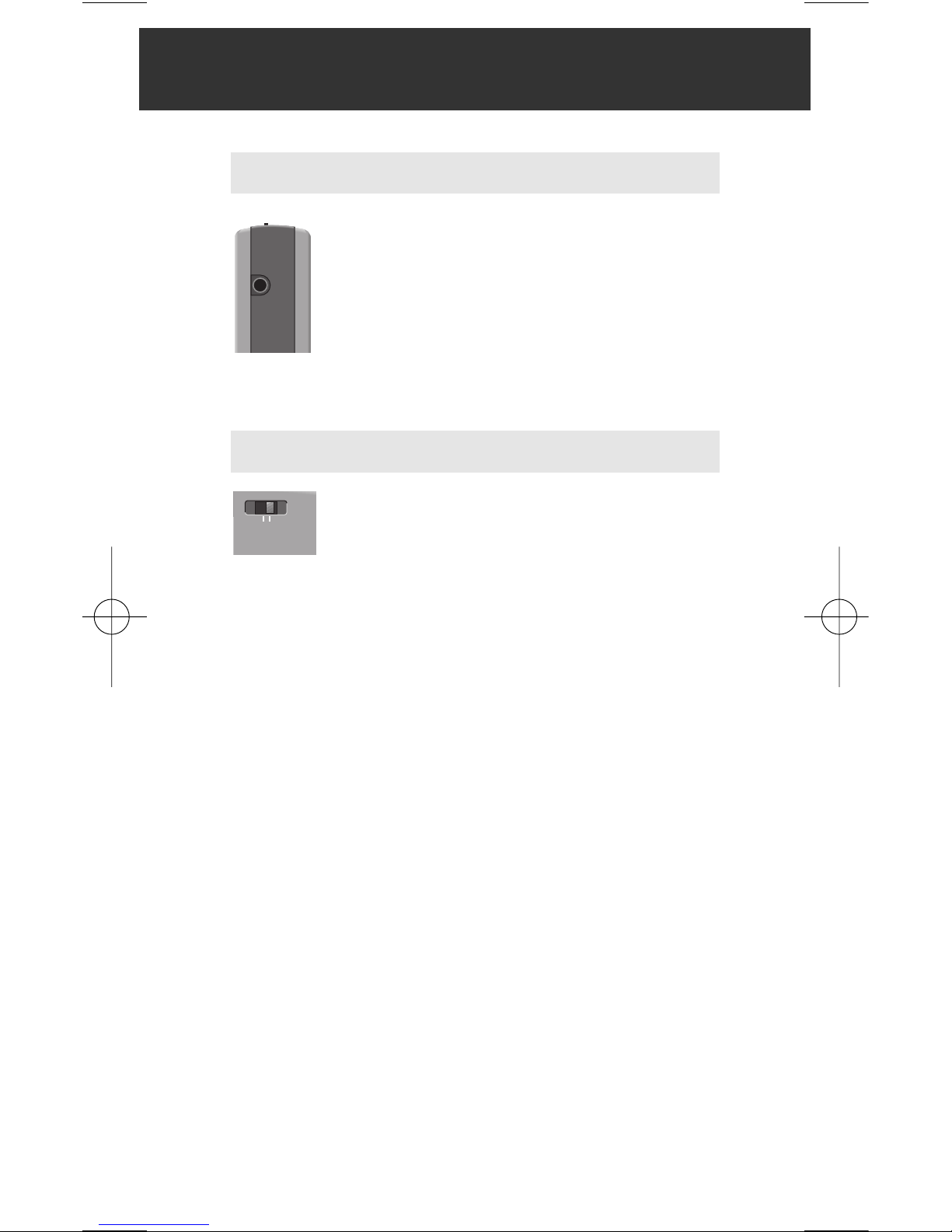

Connecting an earphone
Connect the earphone plug into the
ysocket.
See chapter “Technical Data“.
This switches off the built-in loud-
speaker.
Tape speed
The tape speed can be selected with
the slide-switch "1.2 2.4 SPEED" at
the back.
Note: With a tape speed of 1.2 cm/sec, the
double recording capacity is
obtained. However, the recording
quality will be reduced accordingly.
The tape speed must be the same
for recording and playback.
SPEED1.2 2.4
Preparation
ķ6
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 6
Recording
Each new recording automatically erases any
previous recordings on that part of the tape.
Speaking distance approximately 2 - 4 inches /
5 - 10 cm. In the case of high background
noise, decrease the speaking distance.
Recording
ļ
–
Press the red recording button
"ļ
–
DICTATE" (locks in).
ŁSet the slide-switch to "ŁSTART".
– The recording indicator lights up.
– The tape starts running.
– If no microcassette is loaded or the tape end
is reached, a sound signal is emitted.
Recording-pause
Set the slide-switch to "STOP".
– The recording indicator goes out.
– The recording button "ļ
–
DICTATE" remains
locked in.

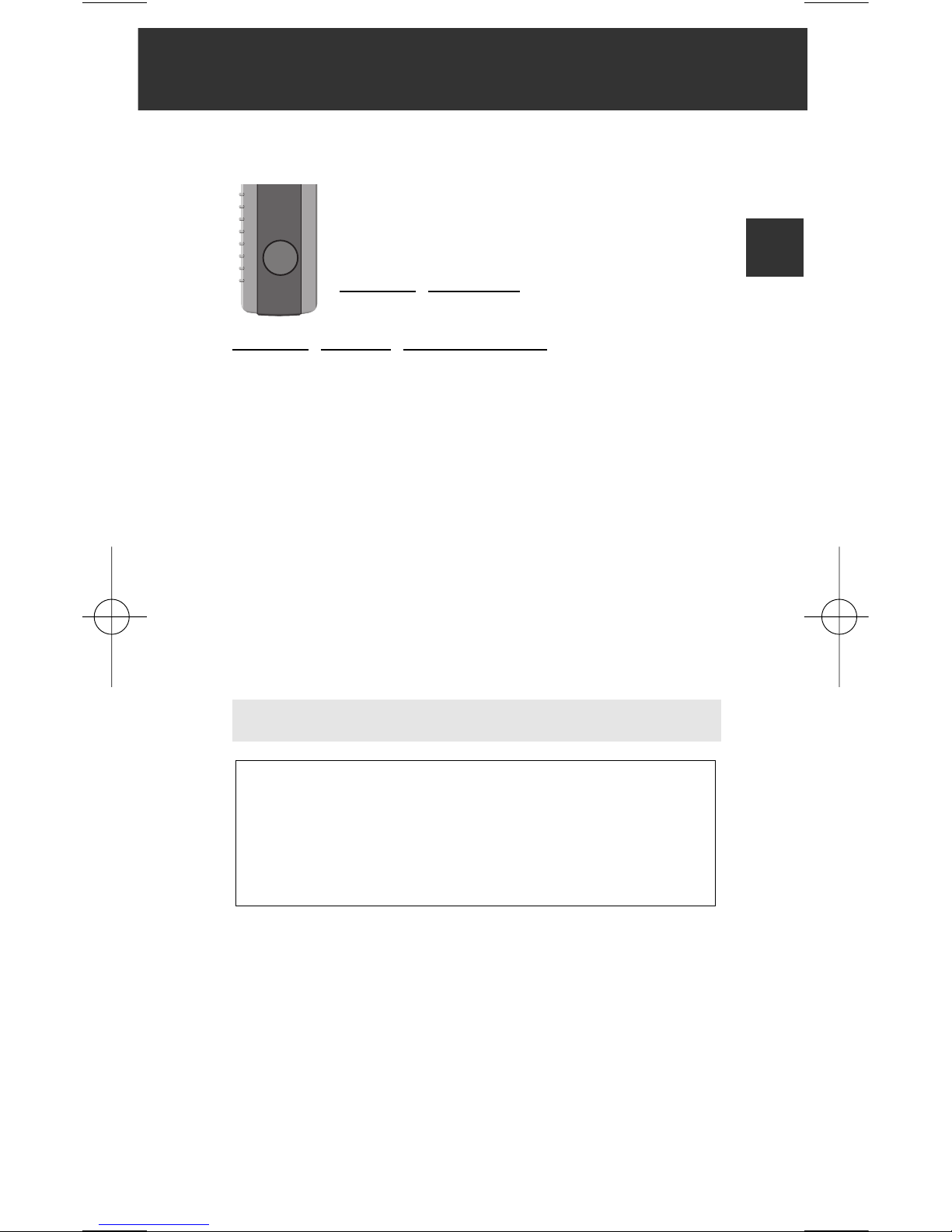

Voice-activated start/stop
(Voice activation, VA)
When making pauses when
speaking (approximately 3 secs),
recording will be interrupted. When
speaking again, recording will be
resumed.
OFF HIGH
LOW VA
Recording Dictations
ķ7
GB
2 DH 2028,GB 22.04.2005 10:11 Uhr Seite 7
